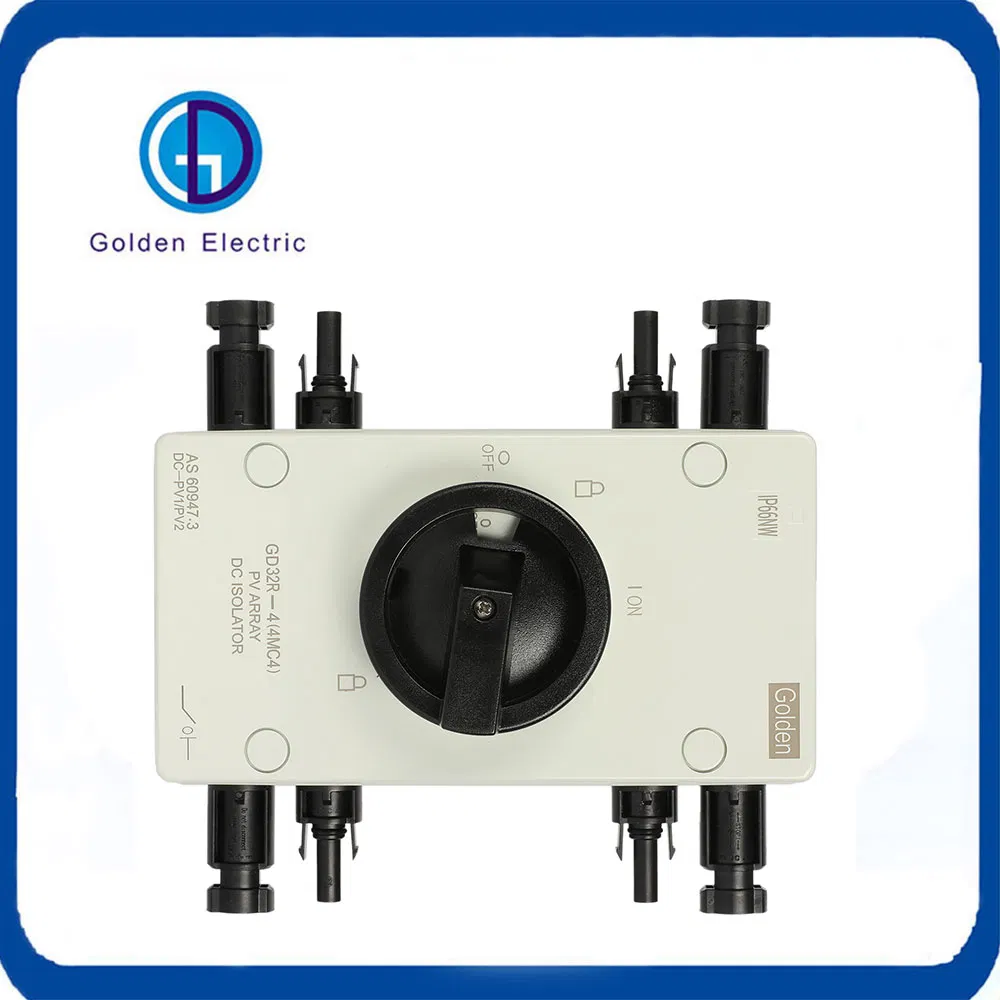

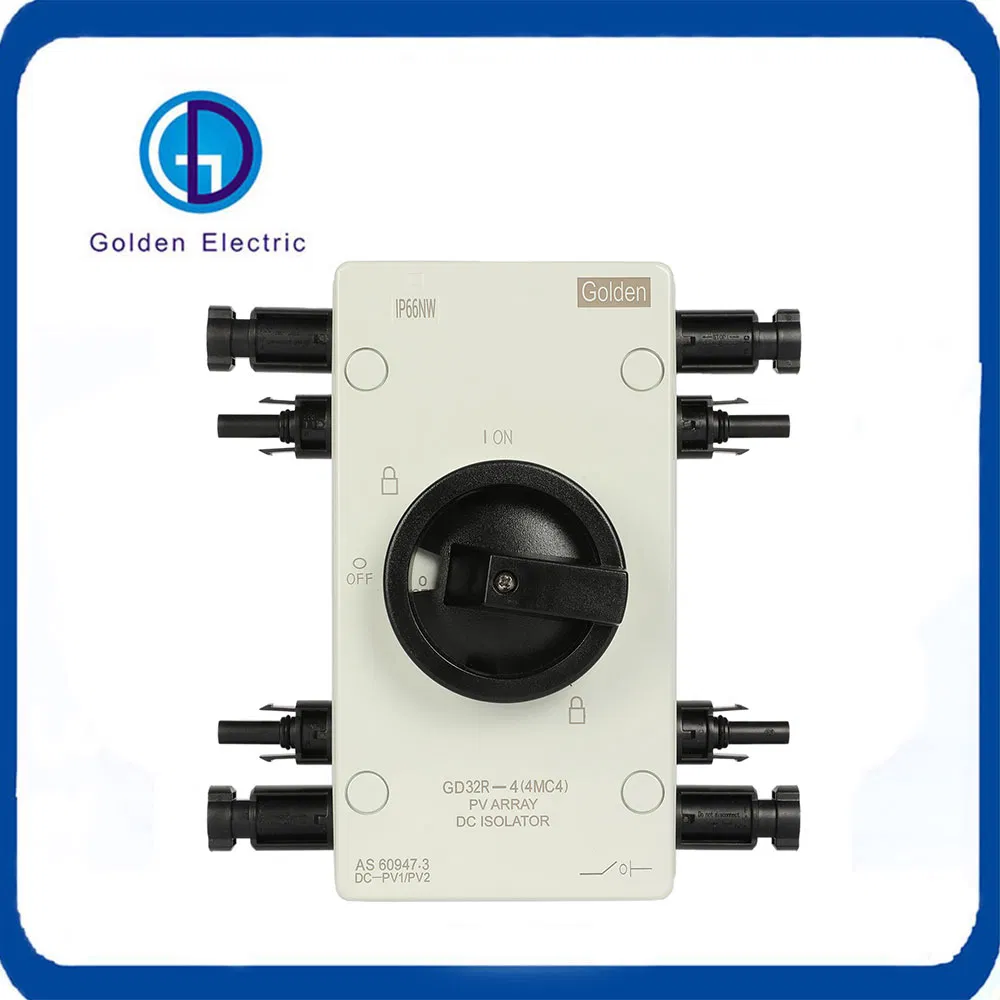

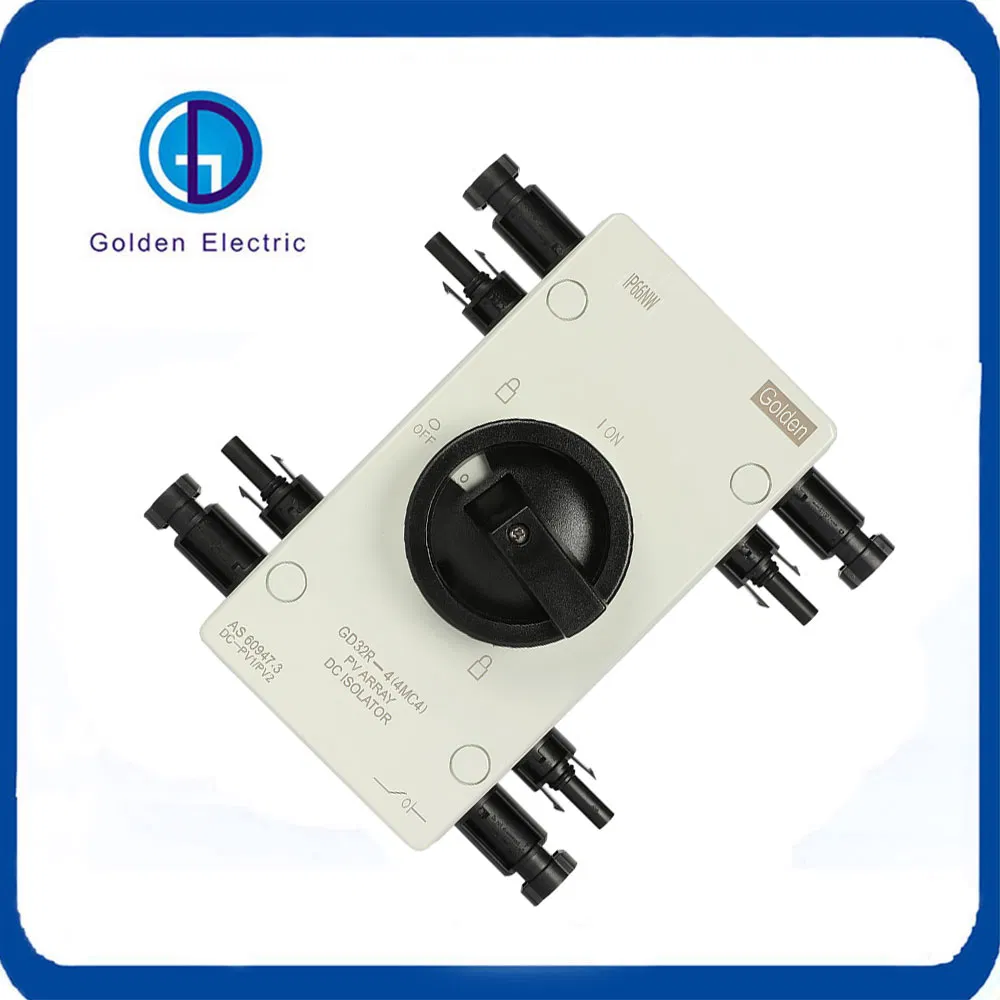

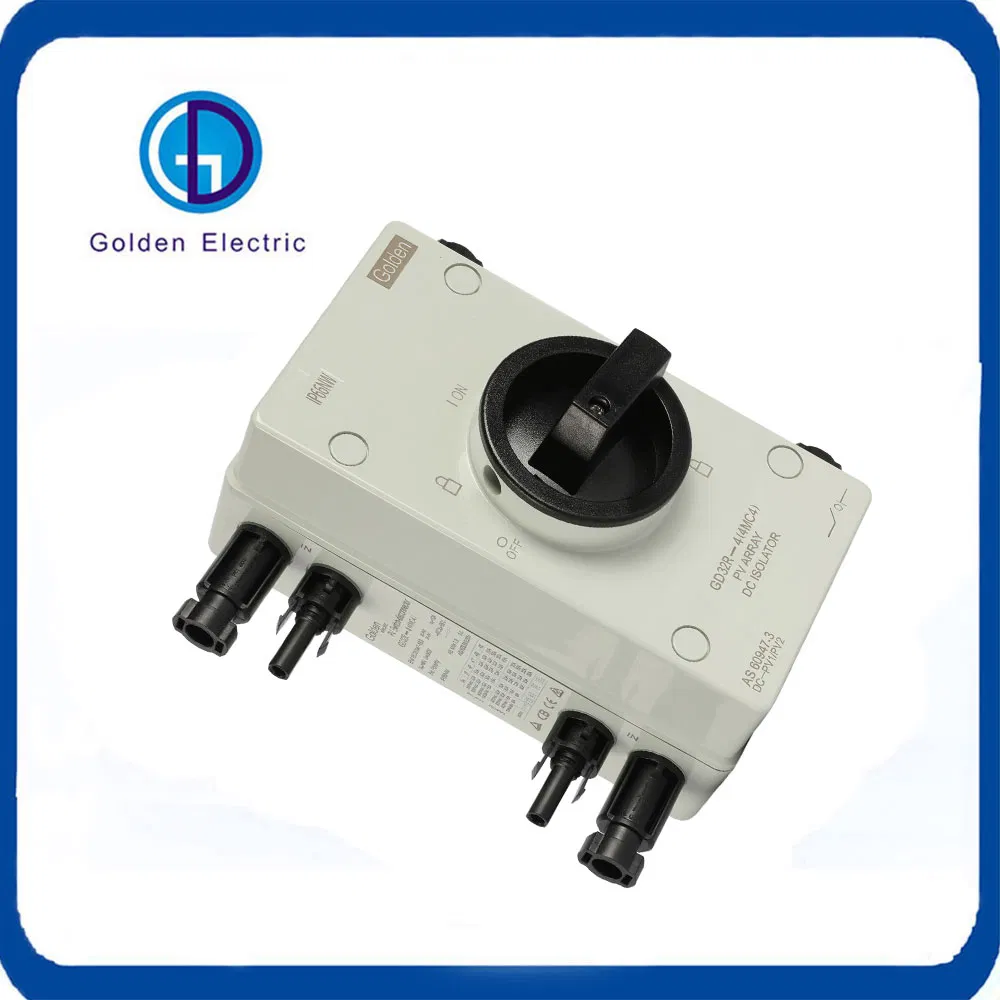

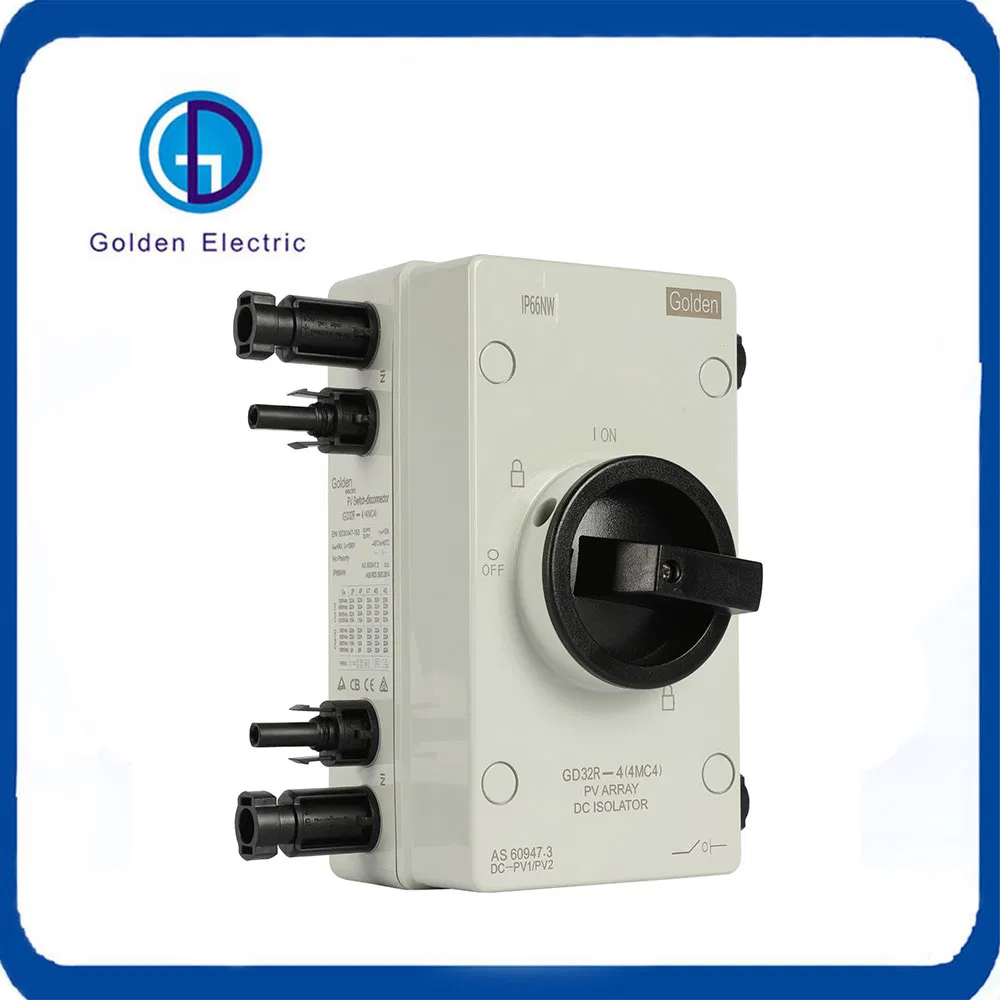

PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector
PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector
PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector
PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector
PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector
1 / 5
PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector
PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector
PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector
PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector
PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector

PV Array DC Isolator Switch Solar Disconnecting Switch Electric Isolator Switch with Mc4 Connector

Customization: Available
Type: Low-voltage
Installation: Outdoor High-voltage
Send Inquiry

Product Description

Basic Information

Model NO.GD32R-4S(4 MC4)
WaterproofIP66
Current16A, 25A, 32A
Rated Insulation1500V
Temperature-5 to +60°C
CertificationISO, CE, RoHS, TUV

Product Description

Modular design, DC insulation voltage 1500V, compact structure, 2-8 Pole optional. IP66 box design, switch rotation operator with three lockable positions to prevent misoperation. Suitable for various waterproof cable connectors or MC4 connectors. High-speed "on-off" switching mechanism with maximum switching time less than 5ms.

Product Features

  • Non-polar design.
  • Modular design, 2-8 grades available.
  • Positive and negative contact options.
  • Multiple installation methods: single-hole, panel, door lock, etc.
  • Uses imported seals for IP66 rating.
  • Compliant with IEC/EN60947-3, UL508I standards.

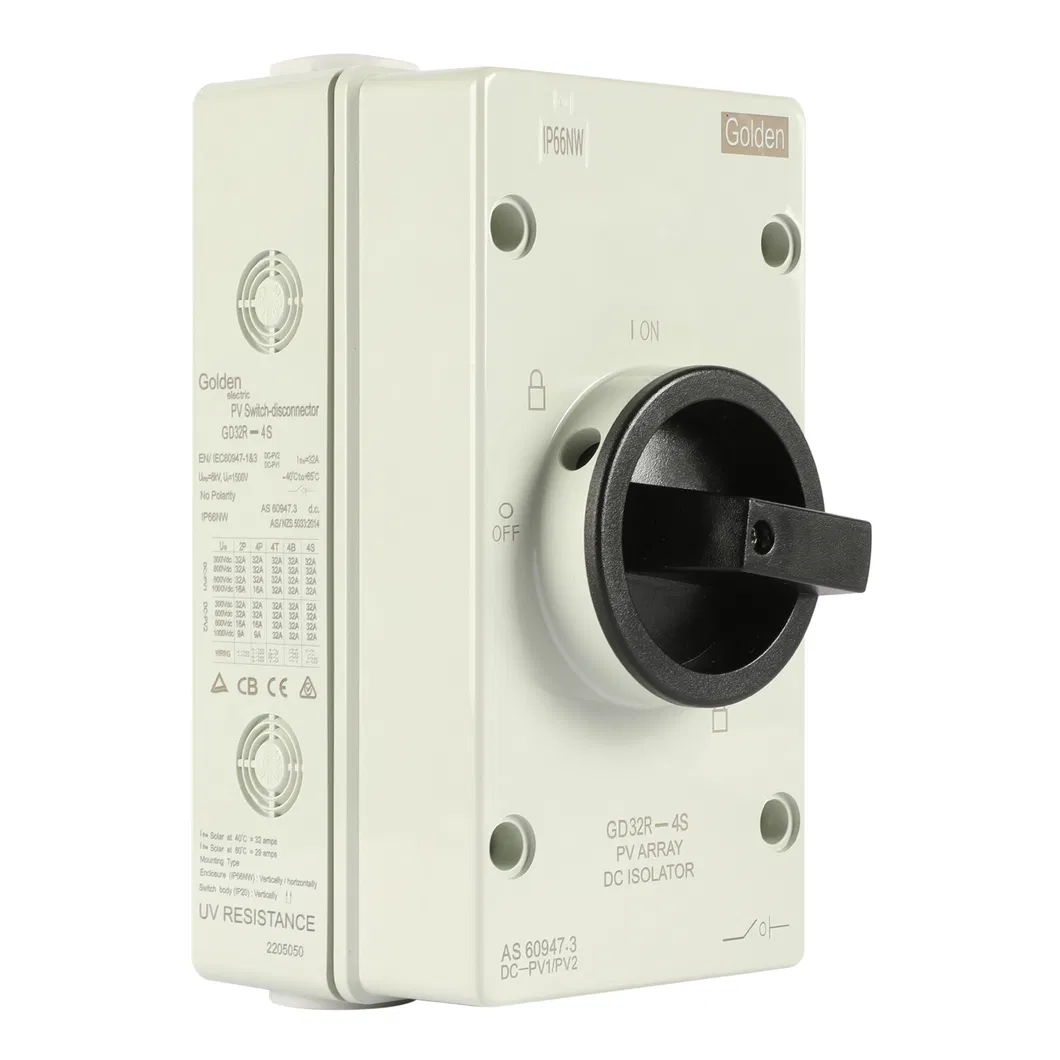

DC Isolator Switch

Product Parameters

ParameterValue
Rated Insulation Voltage (Ui)1500V
Rated Thermal Current (Ith)16A / 25A / 32A
Rated Impulse Withstand (Uimp)8000V
IP RatingIP66
Mechanical Life10,000 cycles
Operating Temperature-40 to +85°C

Product Details

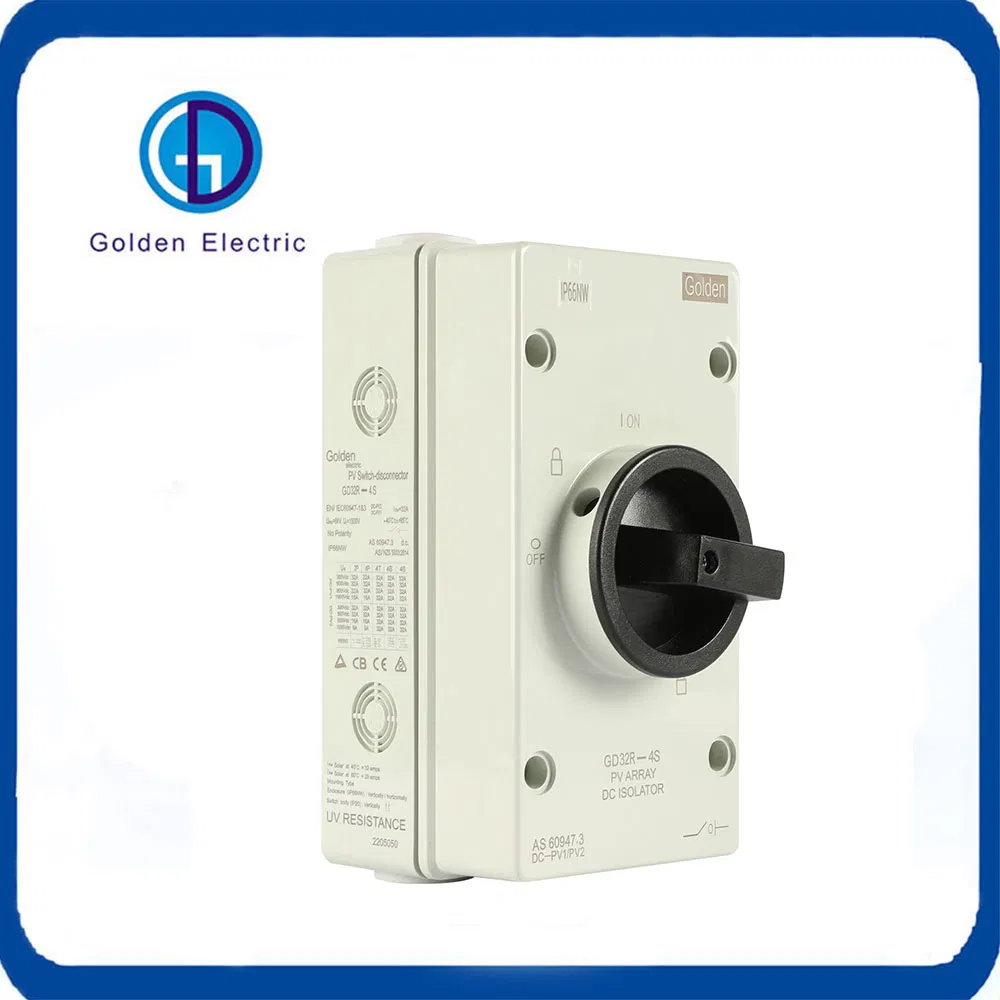

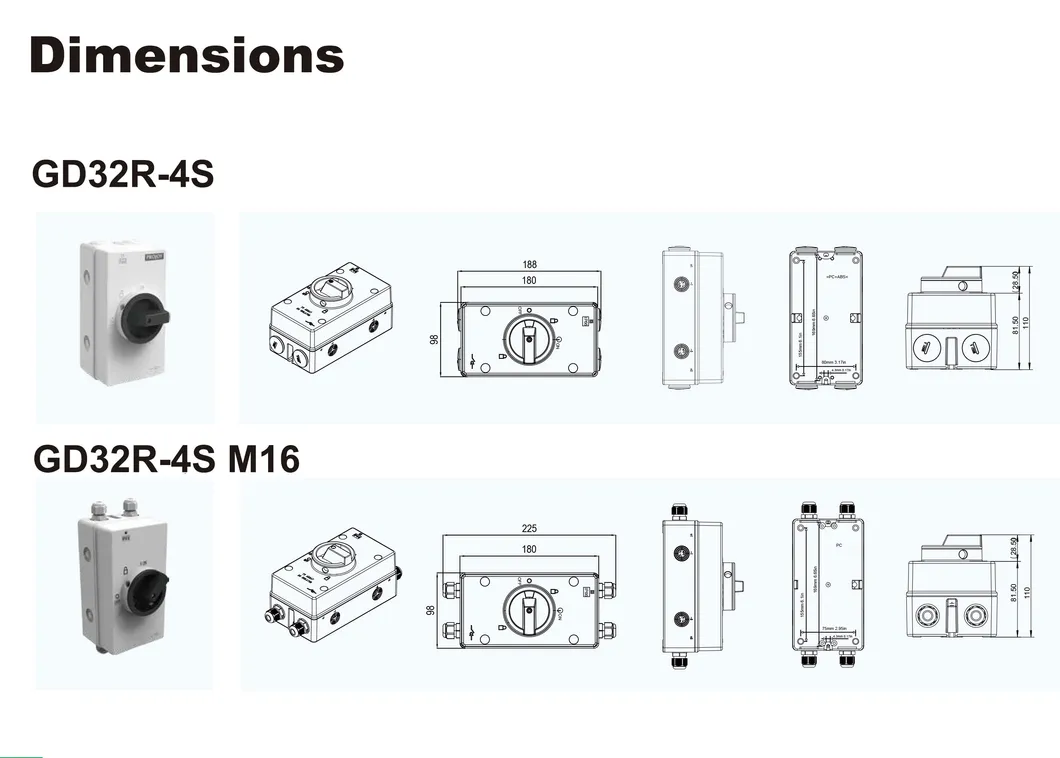

Product Detail 1

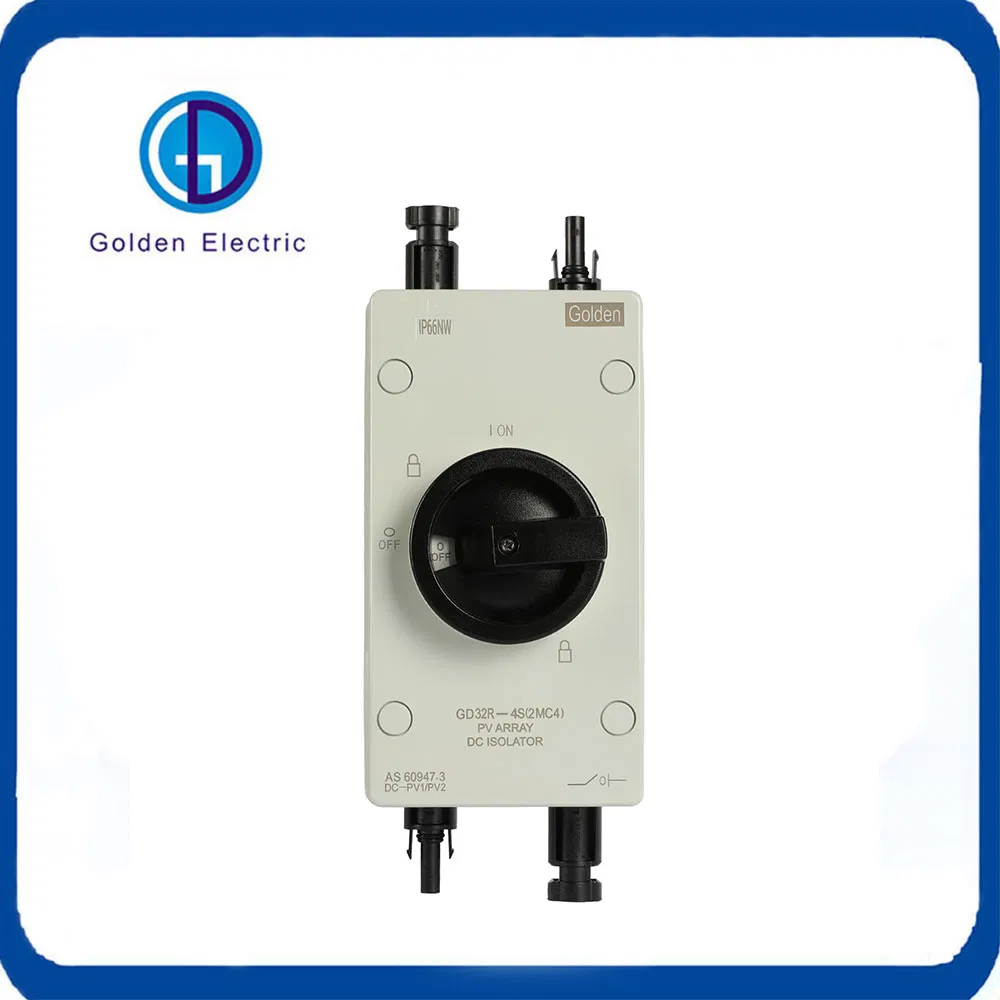

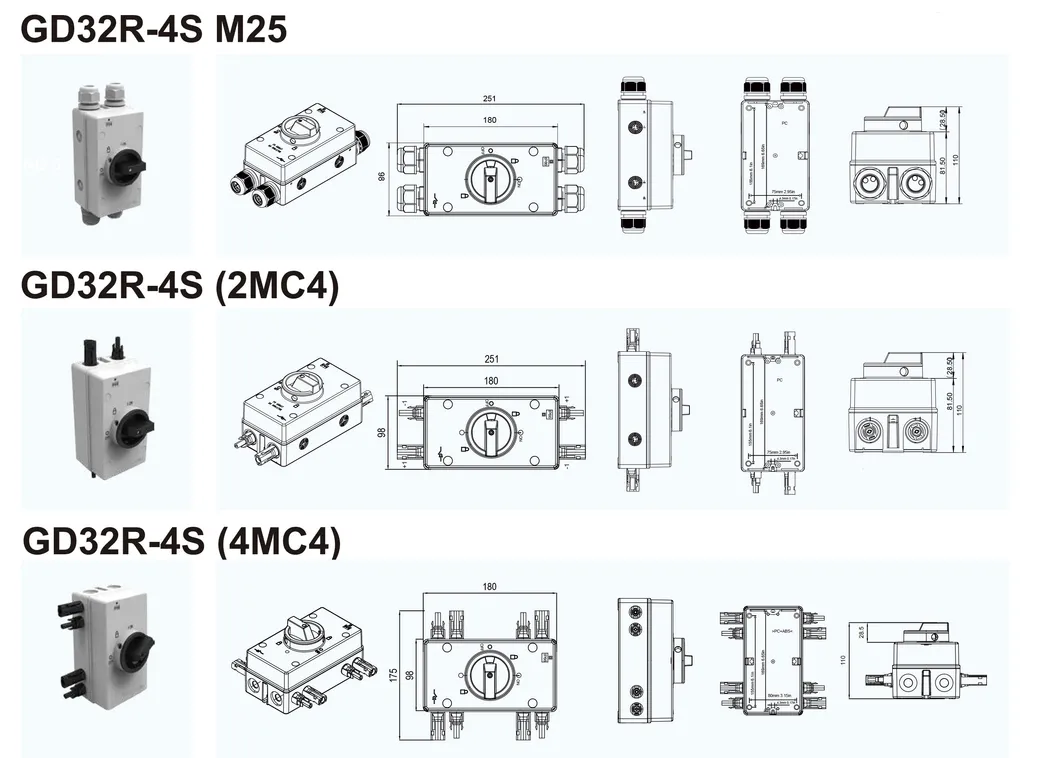

Product Detail 2

Recommended Products

Product 1
Product 2
Product 3

Frequently Asked Questions

Q: What is the primary application of this isolator switch?
A: This product is designed specifically for solar photovoltaic (PV) DC systems to safely disconnect current, ensuring maintenance safety.
Q: Does the switch support outdoor installation?
A: Yes, with an IP66 waterproof rating and durable housing, it is designed to operate safely in outdoor environments under various weather conditions.
Q: Can I customize the installation method?
A: Yes, the switch supports multiple installation types, including single-hole mounting, panel mounting, and power distribution box installation.
Q: What is the expected mechanical lifespan?
A: The switch is engineered for longevity, with a mechanical lifespan tested to 10,000 cycles under rated conditions.
Q: What certificates does this product hold?
A: Our products comply with international standards including IEC/EN 60947-3, CE, TUV, and RoHS requirements.
