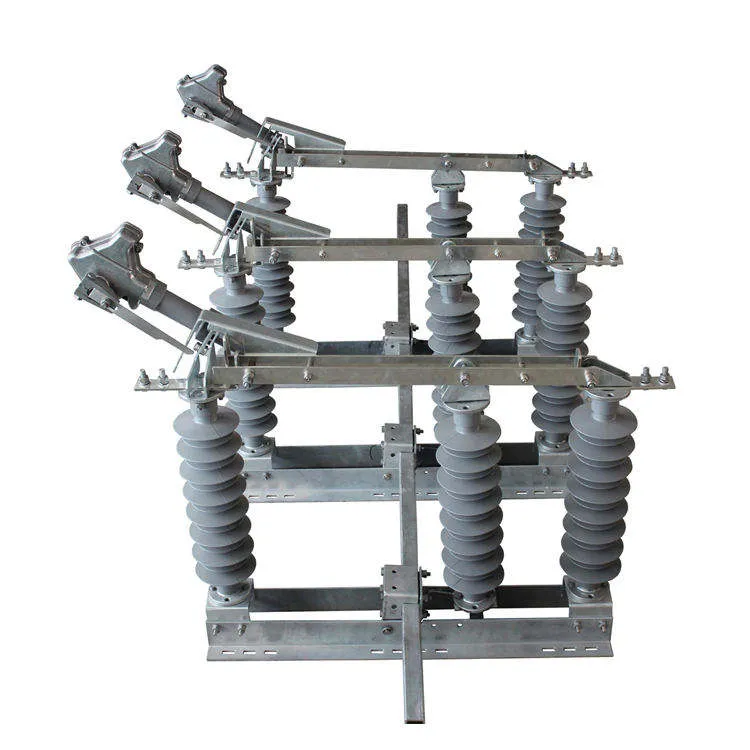

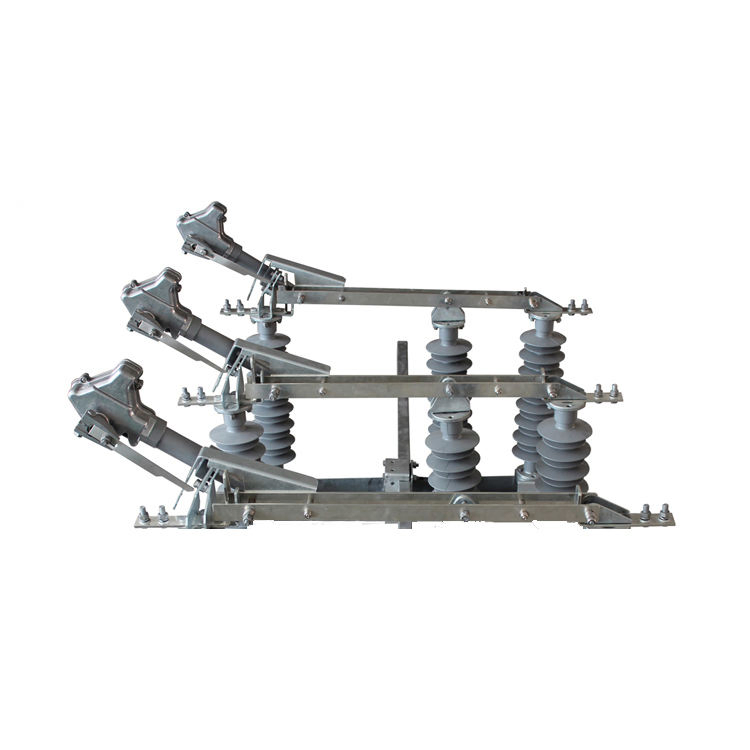

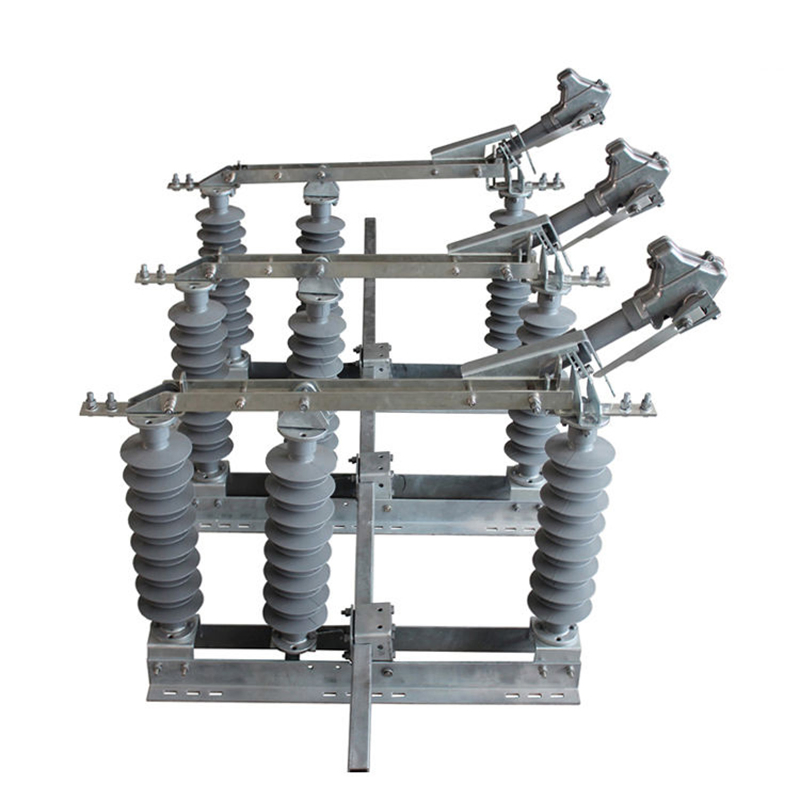

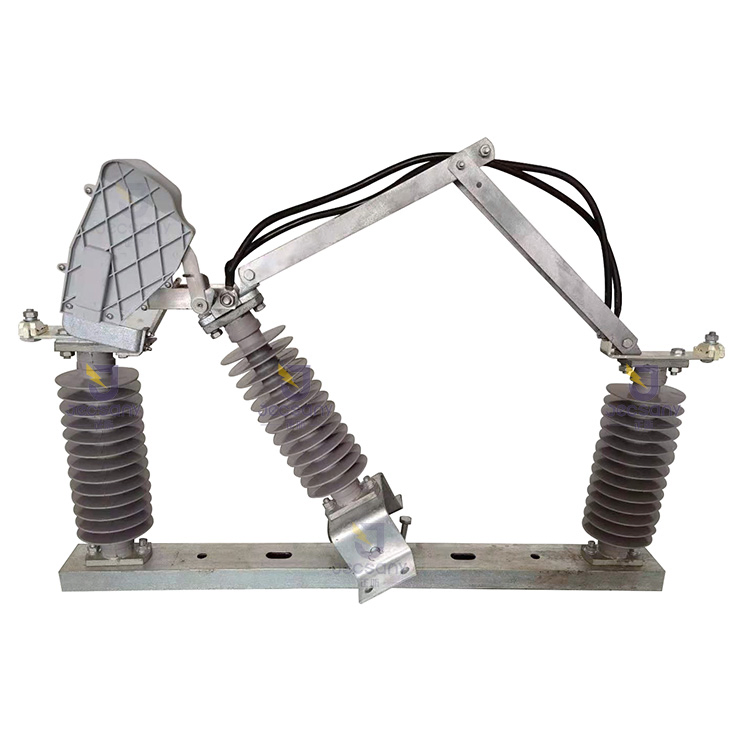

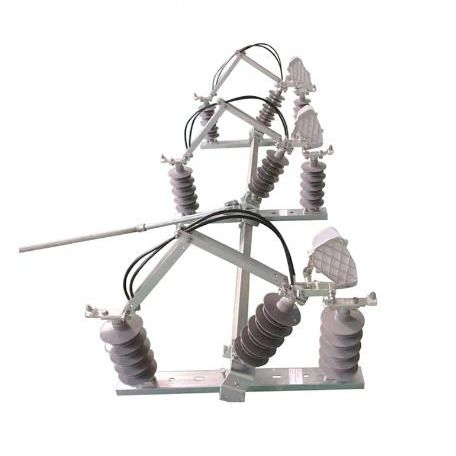

High Quality Outdoor 38kv High Voltage Polymer Isolator Switch

1 / 5

High Quality Outdoor 38kv High Voltage Polymer Isolator Switch

Customization:	Available
Type:	High-voltage
Structure:	Three-column Disconnector

Send Inquiry

Product Description

Basic Info.

Model NO.RHB(F)

InstallationOutdoor High-voltage

OperationManual

Grounding ModeNot Grounding

Movement ModeVertical Rotary Type

Number of PolesThree Pole

Insulator TypePolymer (Silicone Rubber)

CertificationISO, ISO9001, IEC

Operating MechanismHook Stick Operated

Packaging & Delivery

Package Size60cm * 40cm * 50cm

Gross Weight15.000kg

Product Description

Outdoor AC Gang isolator switch (11KV-33KV) is designed for 3 phase AC 50/60Hz power circuits. It serves as a reliable device for switching on and off voltage without load. Compliant with IEC 60964: 1996 and IEC62271-102:2002 standards.

Type	Unit	RHB(F)-11	RHB(F)-24	RHB(F)-33
Rated Voltage	KV	11	24	33
Rated Current	A	400-600	600-800	800-1000

Isolating Switch Features

An electrical device for the reliable disconnection of specific sections of a high-voltage electrical network when there is no current. These switches simplify the arrangement of switching points and transformer substations, eliminating the need for expensive high-voltage circuit breakers in certain configurations.

In the event of network damage, isolating switches automatically disconnect the affected section, allowing circuit breakers to restore power to consumers quickly. They are essential for disconnecting and reconnecting unloaded transformers and power lines during operation.

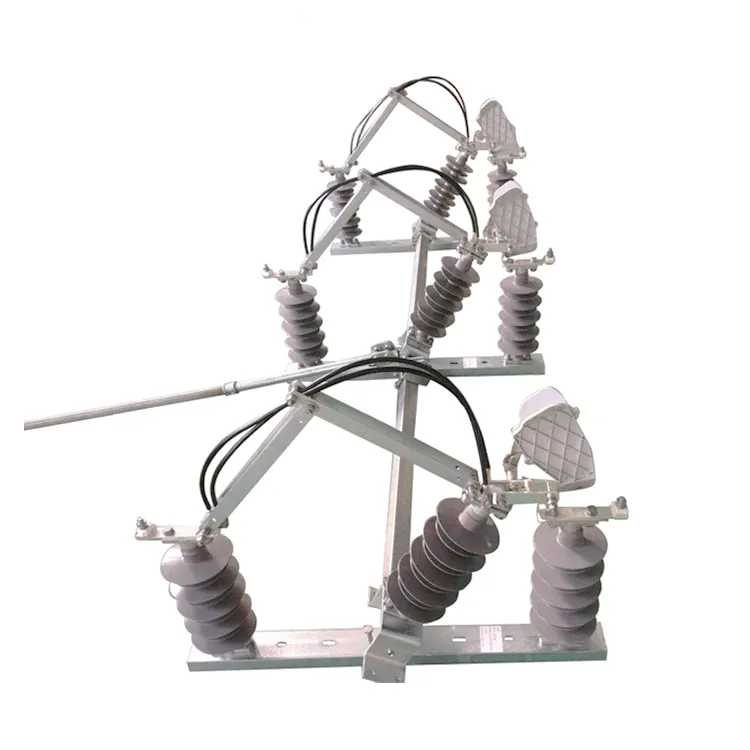

High Quality Outdoor High Voltage Polymer Isolator Switch

Frequently Asked Questions

1. What is the primary function of the RHB(F) Isolator Switch?

It is designed for the reliable disconnection of high-voltage electrical network sections when there is no load current, ensuring safe maintenance and system switching.

2. Which international standards does this isolator switch meet?

The product is manufactured in compliance with IEC 60964: 1996 and IEC62271-102:2002 standards.

3. What materials are used for the insulator?

It utilizes high-quality Polymer (Silicone Rubber), which offers excellent insulation and durability for outdoor environmental conditions.

4. How is the isolator switch operated?

It features a Manual operation mechanism, specifically a Hook Stick Operated type, ensuring simplicity and ease of use in the field.

5. Is this switch suitable for outdoor installations?

Yes, it is specifically engineered as an Outdoor High-voltage switch, designed to withstand external atmospheric conditions.

6. What is the benefit of using an isolating switch?

It simplifies the arrangement of switching points, eliminates the need for expensive circuit breakers for certain tasks, and allows for the safe isolation of damaged network sections.
