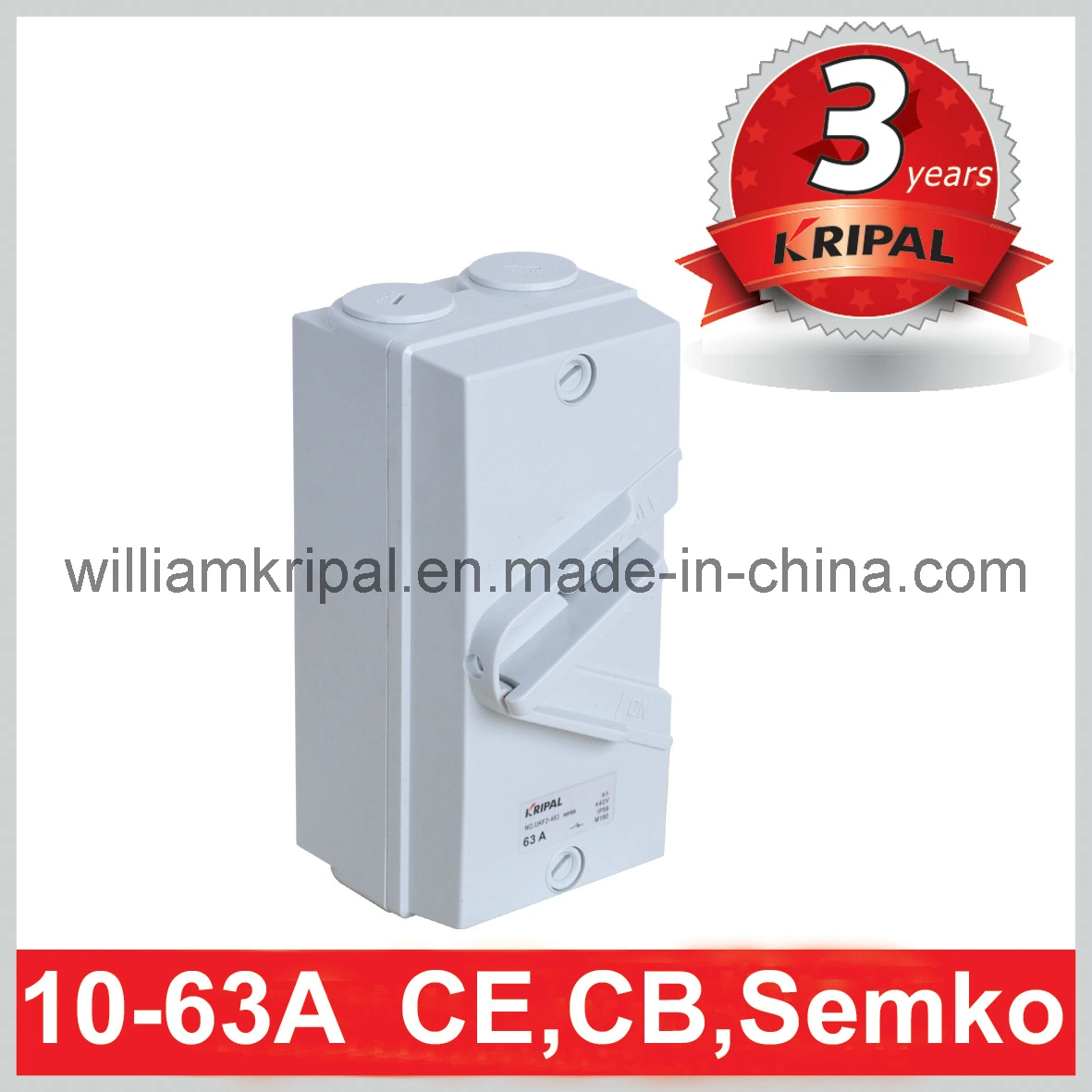

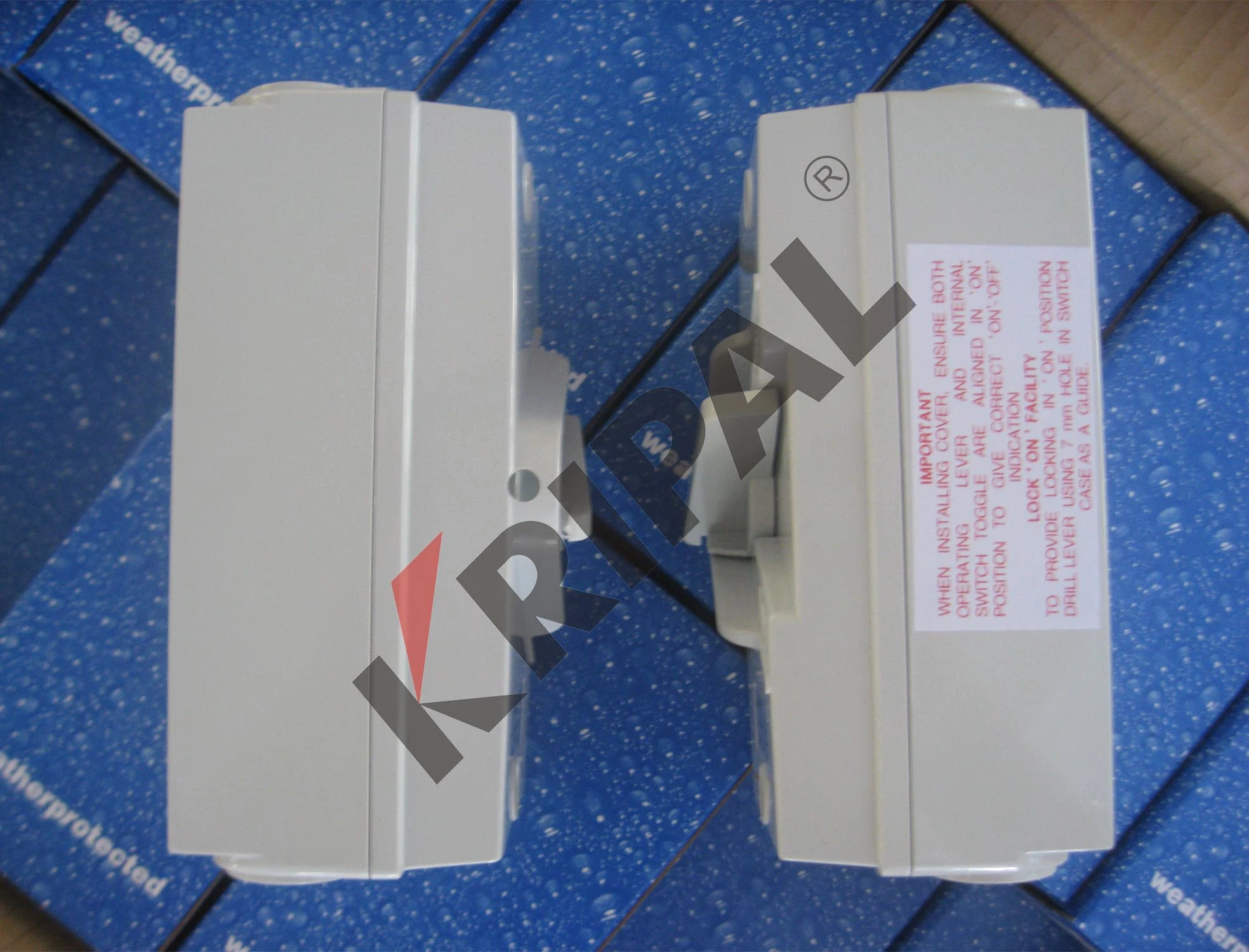

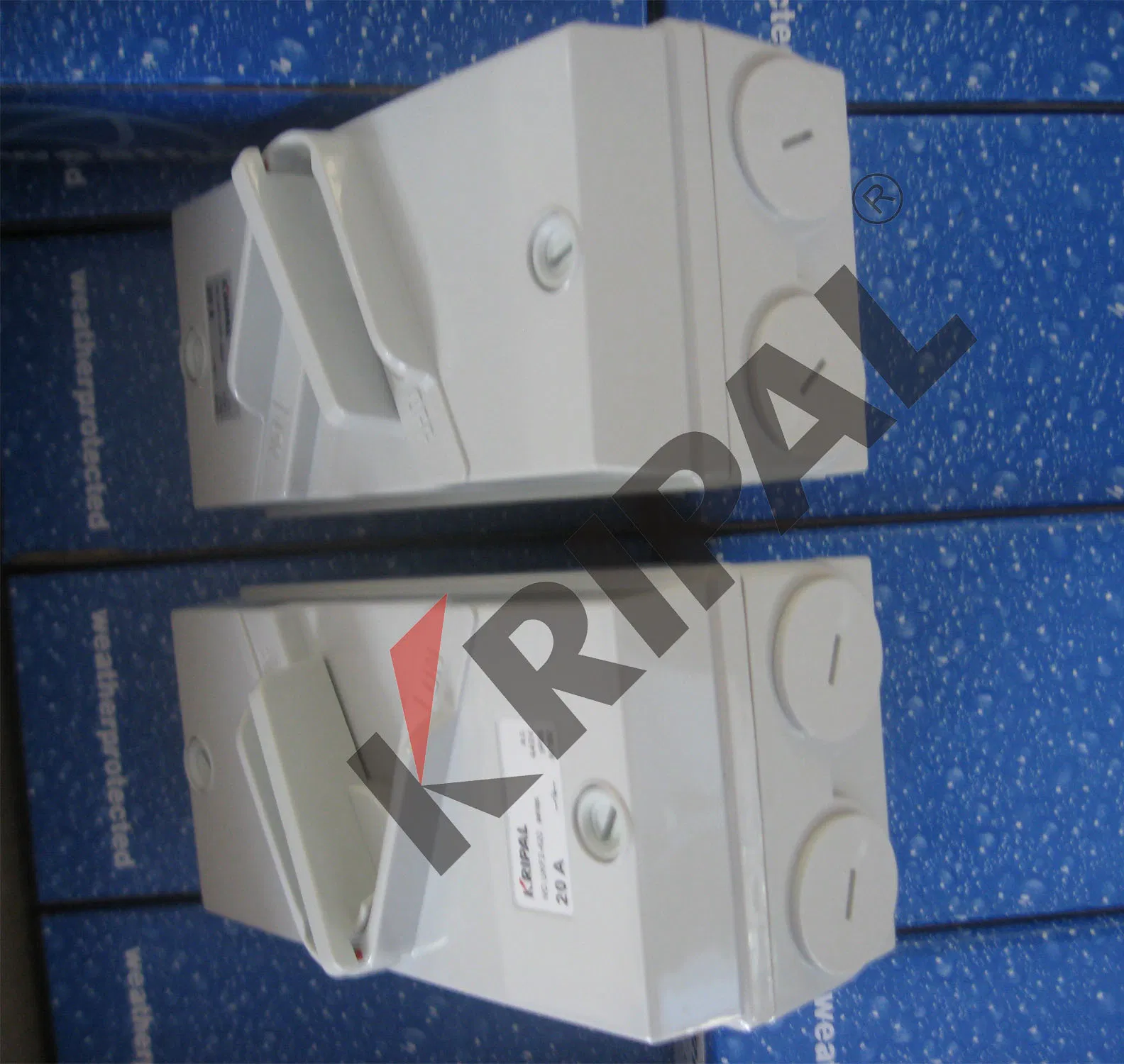

IP66 63A 4p Isolating Switch / Isolator Switch

1 / 5

IP66 63A 4p Isolating Switch / Isolator Switch

Customization:	Available
Usage:	Electrical Appliance
IP:	66

Send Inquiry

Product Description

Overview

Model NO.	UKF2-463
Color	Ral 7035
Warranty	3 Years
Materials	PC, Copper, Silver
Transport Package	36 PCS / Carton

Specification	IEC 60947-3 CE
Trademark	OEM
Origin	China
HS Code	85365000
Production Capacity	30000 PCS / Month

Product Description

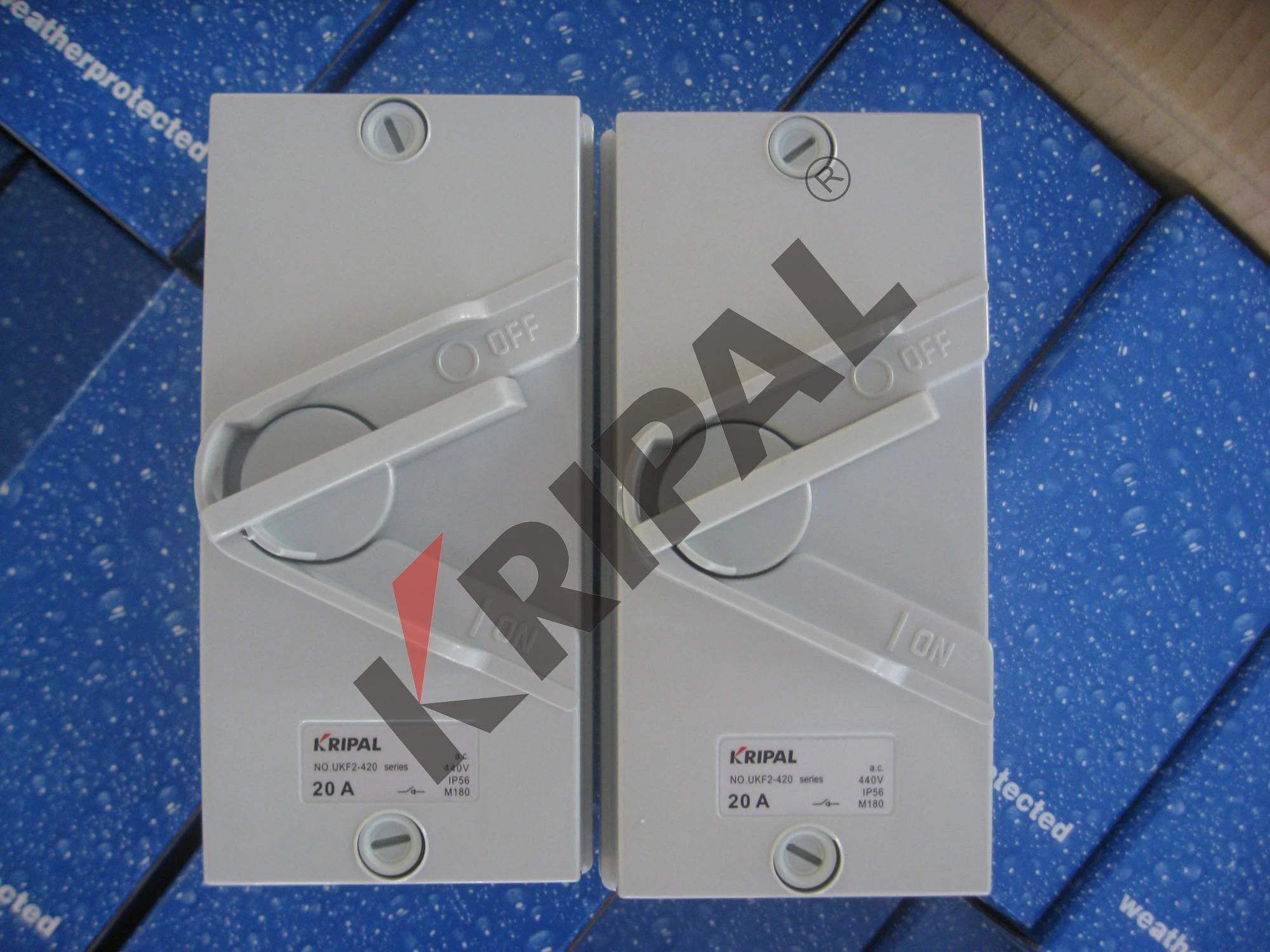

Isolating Switch / Isolator switch

Three type: UKF1, UKF2 UKF3, the differences are the outlook and the function are the same.

Pole: 1P, 2P, 3P, 4P
Rated Current: 10A, 20A, 35A, 63A

UKF4 mini isolator switch:

Pole: 1P, 2P
Rated current: 10A, 16A, 20A, 35A

Cables looped in and out from overhead.
In and out from underground.
In and out straight through the switch.
Two 25mm rear knockouts are moulded in the base for surface mounting with concealed wiring.
Samples provided freely.

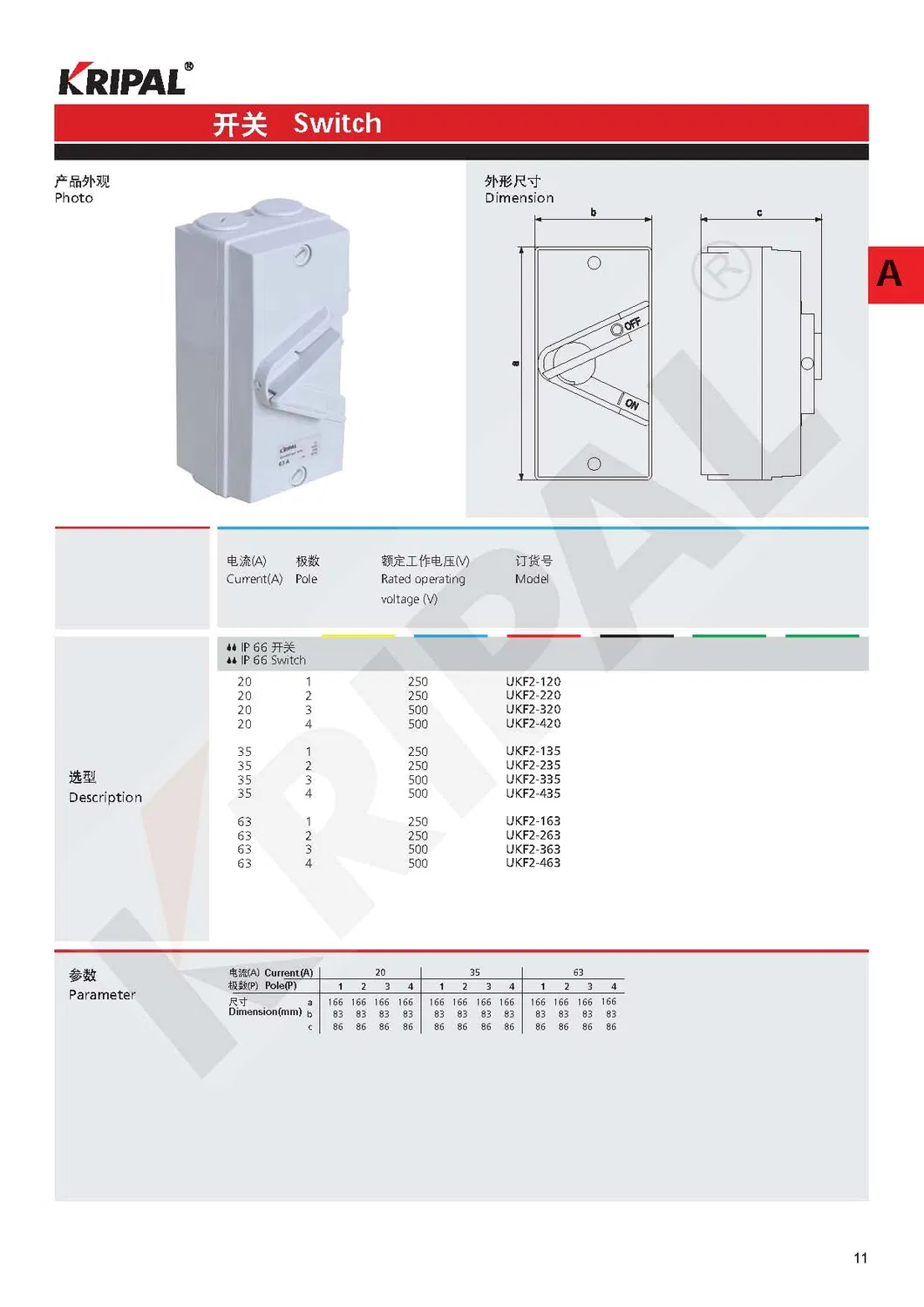

Type		UKF1-120	UKF1-135	UKF1-163	UKF1-220	UKF1-235	UKF1-263	UKF1-320	UKF1-335	UKF1-363	UKF1-420	UKF1-435	UKF1-463
Type		UKF2-120	UKF2-135	UKF2-163	UKF2-220	UKF2-235	UKF2-263	UKF2-320	UKF2-335	UKF2-363	UKF2-420	UKF2-435	UKF2-463
Type		UKF3-120	UKF3-135	UKF3-163	UKF3-220	UKF3-235	UKF3-263	UKF3-320	UKF3-335	UKF3-363	UKF3-420	UKF3-435	UKF3-463
Insulation voltageUi(50Hz)		250	250	250	440	440	440	440	440	440	440	440	440
Working VoltageUe(50Hz)		250	250	250	440	440	440	440	440	440	440	440	440
Power frequency(KV) voltage		1.5	1.5	2.5	1.5	1.5	2.5	1.5	1.5	2.5	1.5	1.5	2.5
Rated irregular load(A)		20	35	63	20	35	63	20	35	63	20	35	63
Rated uninterrupted working system		Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Number of poles		1P	1P	1P	2P	2P	2P	3P	3P	3P	4P	4P	4P
Single cable section cross-strand	Min	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Single cable section cross-strand	Max	16	16	25	16	16	25	16	16	25	16	16	25
Cable section many cross-shares	Min	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Cable section many cross-shares	Max	10	10	16	10	10	16	10	10	16	10	10	16
EN60947-3-1		250	250	415	415	415	415	415	415	415	415	415	415
Use of categoriesAC23		20	35	63	20	35	63	20	35	63	20	35	63
Short-term rated(A)1/Sec voltage		240	384	756	240	384	756	240	384	756	240	384	756
Breaking capacity		0.5	0.5	1	0.5	0.5	1	0.5	0.5	1	0.5	0.5	1

Company Profile

We are one of the national high-tech enterprises integrated of researching, producing and selling water-proof electric, low-voltage electric and new energy electric products.

Surface Mount 40A Main isolator switch 3 single phase changeover switch 4p padlocked switch

Established in 1992, we have gradually become an influential electrical manufacturer after years of development. With an extensive sales and service network, the products have been exported worldwide, including Europe, Australia, America, Africa, Oceania, and Southeast Asia.

20A isolating switch gear selector switch

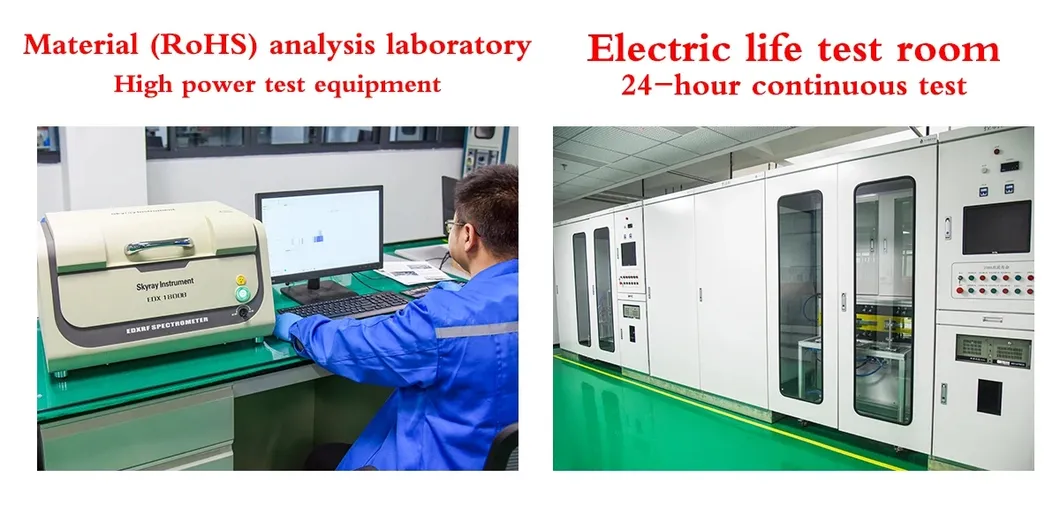

Certifications

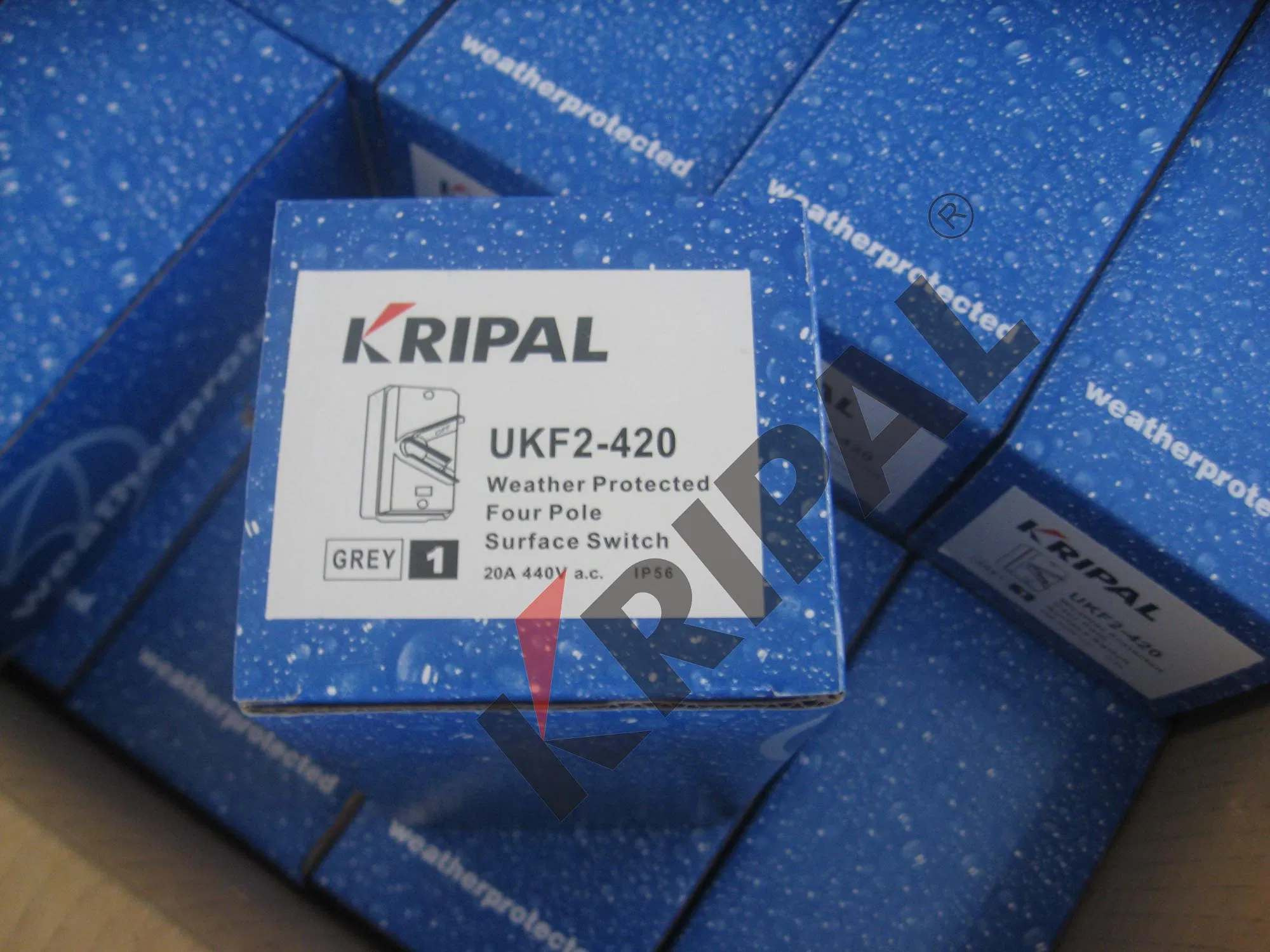

Packaging & Shipping

Frequently Asked Questions

What is the IP protection level of this isolating switch?

This isolating switch features an IP66 rating, which provides comprehensive protection against dust penetration and high-pressure water jets, making it suitable for demanding outdoor environments.

What configuration options (poles and rated current) are available?

We offer configurations of 1P, 2P, 3P, and 4P. The rated current options range from 10A, 20A, 35A, up to 63A to meet diverse application requirements.

Are the materials durable enough for harsh outdoor weather?

Yes, the switch is manufactured using high-quality PC, copper, and silver contact materials, which ensure excellent weather resistance, conductivity, and safety.

Does this product comply with international safety standards?

Yes, the isolating switch is fully compliant with the IEC 60947-3 standards and carries CE certification to ensure compliance and reliability.

Can you provide product samples for quality testing?

Yes, product samples can be provided for evaluation. Please contact our support team for more details on sample requests.

What is the standard warranty period for this switch?

We provide a standard 3-year warranty for these isolating switches, covering manufacturing defects and operational reliability under normal installation conditions.
