630A 11KV Porcelain Insulator Non Load Break Isolator Switch for Global B2B Supply

Customization:	Available
Type:	High-voltage, Switch
Structure:	Double-column Disconnector

Basic Info

Model NO.

RH-B 11KV/630A

Installation

Outdoor High-voltage

Operation

Electric

Grounding Mode

Grounding

Movement Mode

Vertical Rotary Type

Number of Poles

Three Pole

Grounding

Double Ground

Series

Three

Run

Turn the Horizontal

Switching Mode

Double-Throw Type

Common Model

YR

Structure of Operating

Electric

Certification

ISO, CE, IS9001

Breaking Capacity

High

Usage

High Voltage

Shape

Circle

Fusing Speed

FF

Fusing Device

Discoloration

Standard

JIS

Impulse Withstand Voltage

95/195 Kv

Power-Frequency Withstand Voltage

42/80kv

Insulator Material

Porcelain

Terminal Pad

Copper with Silver Plated

Origin

China

HS Code

8535400000

Production Capacity

50000PCS/Month

Packaging & Delivery

Package Size

155.00cm * 66.00cm * 200.00cm

Package Gross Weight

5.400kg

Product Description

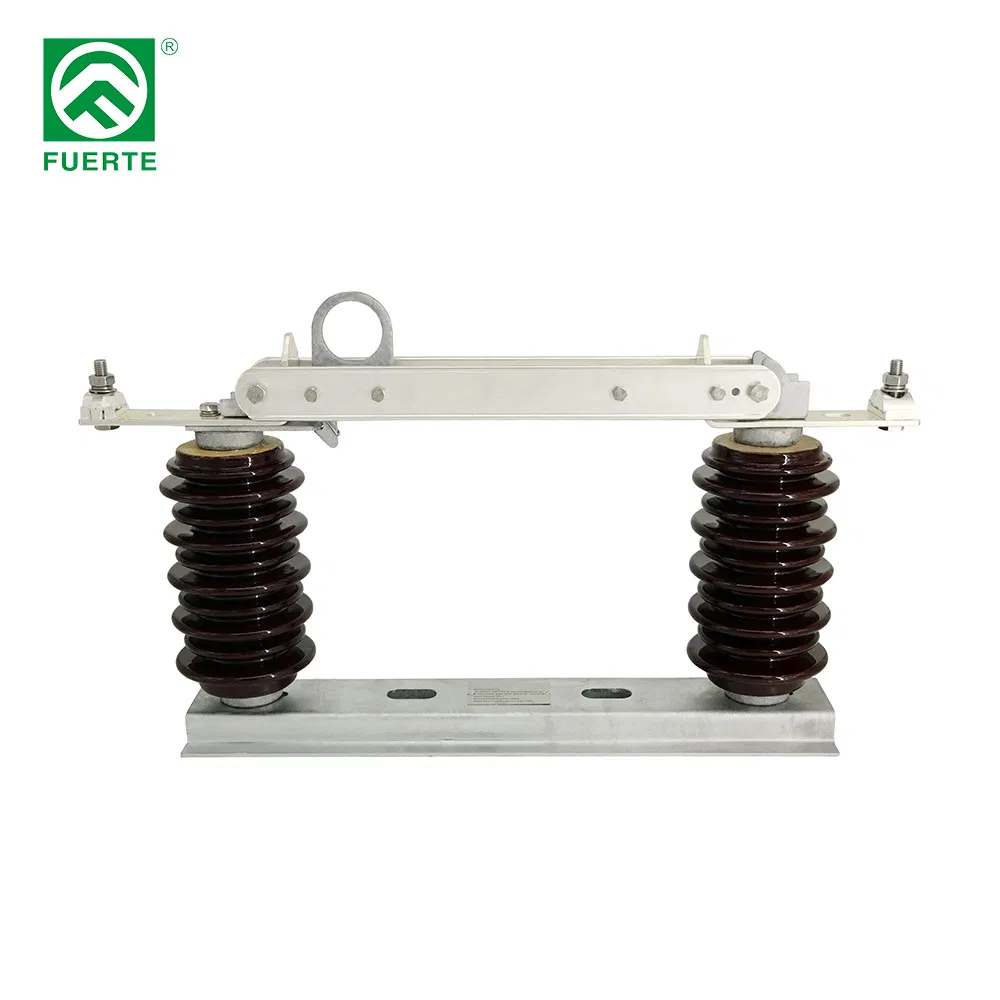

11kv 630A with Porcelain Insulators Non Load Break Isolator Switch

Brief Instruction

The disconnect switch / isolating switch, single phase or three phase with manual operation mechanism is used for opening and closing loading current to protect the outdoor distribution overhead line, transformer, cable connector and electric equipment.

Products are completely in accordance with IEC 62271-102:2001 standard.

Blade: Two pieces of blade made by copper with silver plated
Terminal pad: Copper with silver plated
Latch design: Self-lock mechanism
100% Routine Tested: Power frequency withstand voltage 1 min, Dry

Electrical Characteristics	Specification
Rated voltage of Disconnector	12	36
Rated current	630
Rated frequency	50
Lighting Impulse withstand voltage	95	170
Power frequency withstand voltage in 1 min (Dry)	42	70
Power frequency withstand voltage in 10 s (Wet)	36	60
Rated short circuit withstand current	20
Rated short circuit withstand time	3
Rated peak withstand current	50
Creepage	25	20
Blade stopped degree in opening position	160
Spare parts
Mounting bracket	with/without
Terminal clamp	with/without
Loadbuster Hook	with/without
Self locking Mechanism	with
Material
Terminal pads	Brass/Copper plated by silver
Blade	Copper plated by silver
Insulator	Porcelain / Polymer
Channel Base	Steel hot galvanized
Operating eye	Steel hot galvanized
Package
Qty/package	1
Service conditions
Environment maximum temperature	40
Pollution level	Heavy
Altitude	≤1000
Standard
Standard	IEC 62271-102:2001

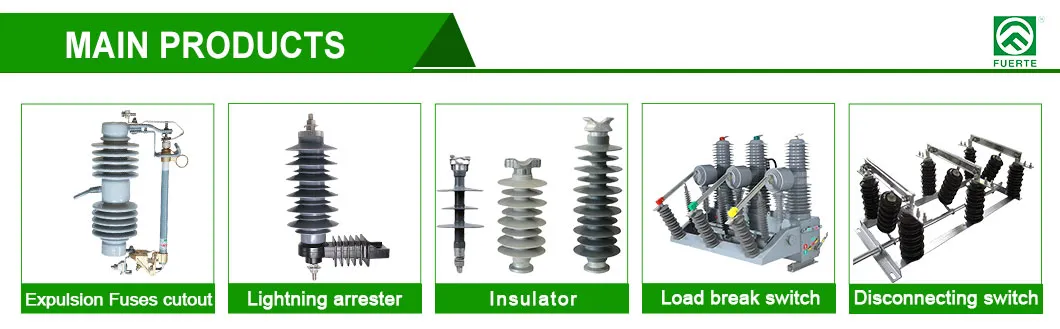

Main Products

Company Profile

Our company was founded in 1985, employs 220 staffs, and has a site area of 19881m² with a covered area of 36216m².

As one of the earliest professional manufacturers in China for fuse cutouts, surge arresters, isolating switches, porcelain and polymer insulators, and other electrical protection apparatus, we've passed ISO certification (by DEKRA Certification GmbH Stuttgart). Our fuse cutouts are tested by CESI, Italy and KEMA, and our surge arresters are also tested by KEMA. The scope of business activities includes the production and sale of these electric apparatus.

We possess strong research and development capabilities for customization requirements. We've designed more than one hundred custom styles of fuse cutouts for clients worldwide, including Kenya, South Africa, Morocco, Thailand, Korea, Pakistan, Saudi Arabia, USA, etc. We also provide customized surge arresters, isolating switches, porcelain & polymer insulators, and electrical fittings, matching country-specific standards and installation needs.

Exhibition

Our Advantages

40+ Years Experience: Over 40 years of production and engineering expertise.
Large Scale Facility: New plant covers an area of 36,216m², employing 220 staff.
Continuous Innovation: Continuous improvement and optimization of high-voltage products.
Diverse Range: 10~38KV voltage level and 100~300A current level product selection.
High Productivity: Large spare parts inventory securing quick lead times.
Certified Quality: CESI certificate and multiple laboratory test certifications.
Flexible Orders: Sample orders available.

Certifications

Packaging & Shipping

Frequently Asked Questions

How about the performance of your surge arresters?

We use reliable materials from qualified suppliers, and each batch of material is certified. The assembled products are also 100% tested before packaging.

Can we customize the surge arresters according to our drawings or design?

Yes, we accept customized orders. If the mold fee is covered by you, the minimum order quantity starts from 1,000 pieces. If we cover the mold fee, a larger order quantity is required.

What kind of certificates do you have for the surge arresters?

We hold various certifications including KEMA, among other industry-standard approvals.

What is the minimum order quantity (MOQ) for the surge arresters?

The minimum order quantity for surge arresters is 1 piece to accommodate sample testing.

What is the warranty period for your surge arresters?

We offer a 2-year warranty for free on all of our surge arresters.

What are your terms of payment and typical delivery times?

We accept T/T, L/C, Western Union, Trade Assurance, and cash, with 30% deposit and 70% paid before shipment. Delivery takes 3 working days for stocked items, and 20 working days for non-stocked items after receiving payment.
