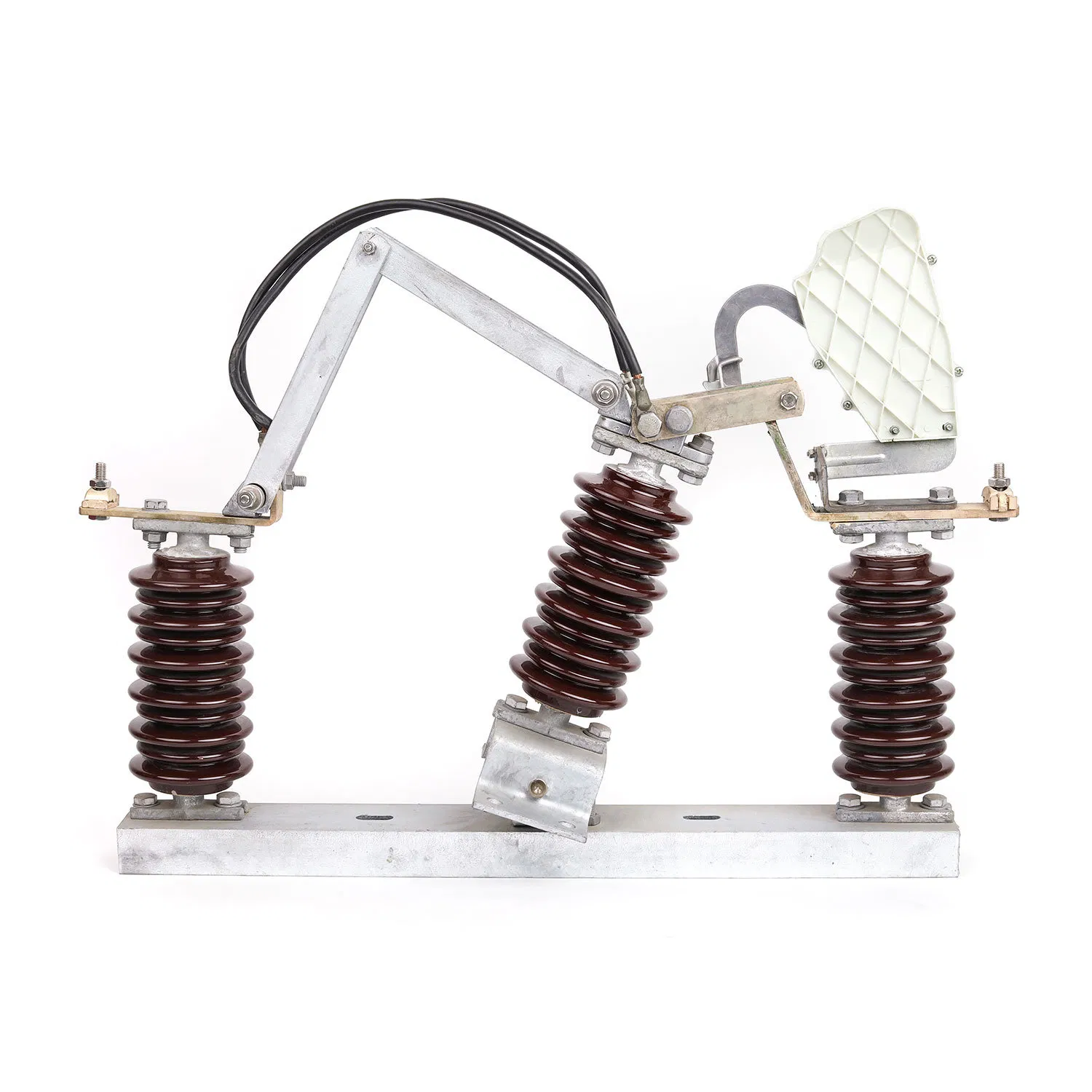

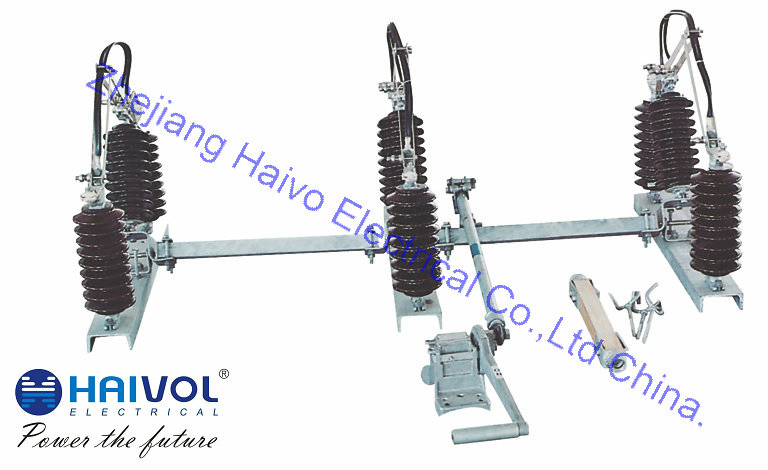

Outdoor AC Gang isolator switch 11kv/400A-33kv/600A used in 3phase AC 50/60Hz power circuit, it is used as switching on and switching off at the voltage with no load. It apply to IEC standard. IEC60964: 1996, IEC62271-102: 2002
Note: For detail, please refer to the catalogue.
Model
Rated voltage(KV)
Rated current(A)
4S Heat steady e. c. A
Impulse withstand voltage A
Impulse voltage
Power frequency withstand voltage
To earth KV
Across the isolating distance KV
To earth KV
Across the isolating distance KV
RH-B
11
400
12500
31500
75
95
38
42
RH-B
33
600
12500
31500
170
195
70
80
As one of the international electrical companies, we not only manufacture the power equipment, but also provide sustainable power solutions underpinned by technology innovation. To date, business is conducted in nearly 50 countries and territories in South America, Europe, Latin America, Asia, Africa, and the Middle East. High standards have received due recognition from the local power customers.
Our worldwide operation and sales coverage is backed by exceptional experience and expertise to provide customers with the most reliable and highest quality products and services available.

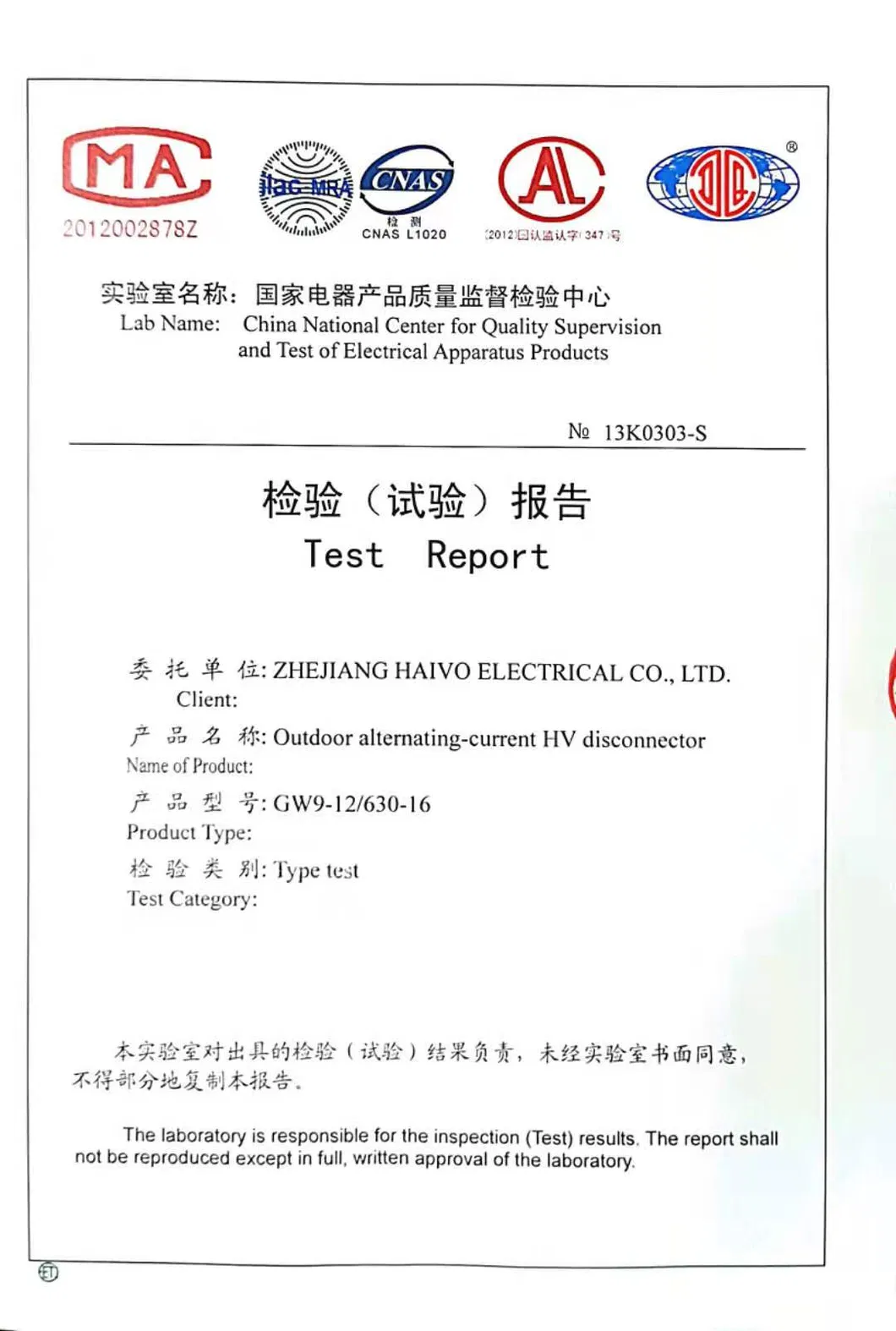

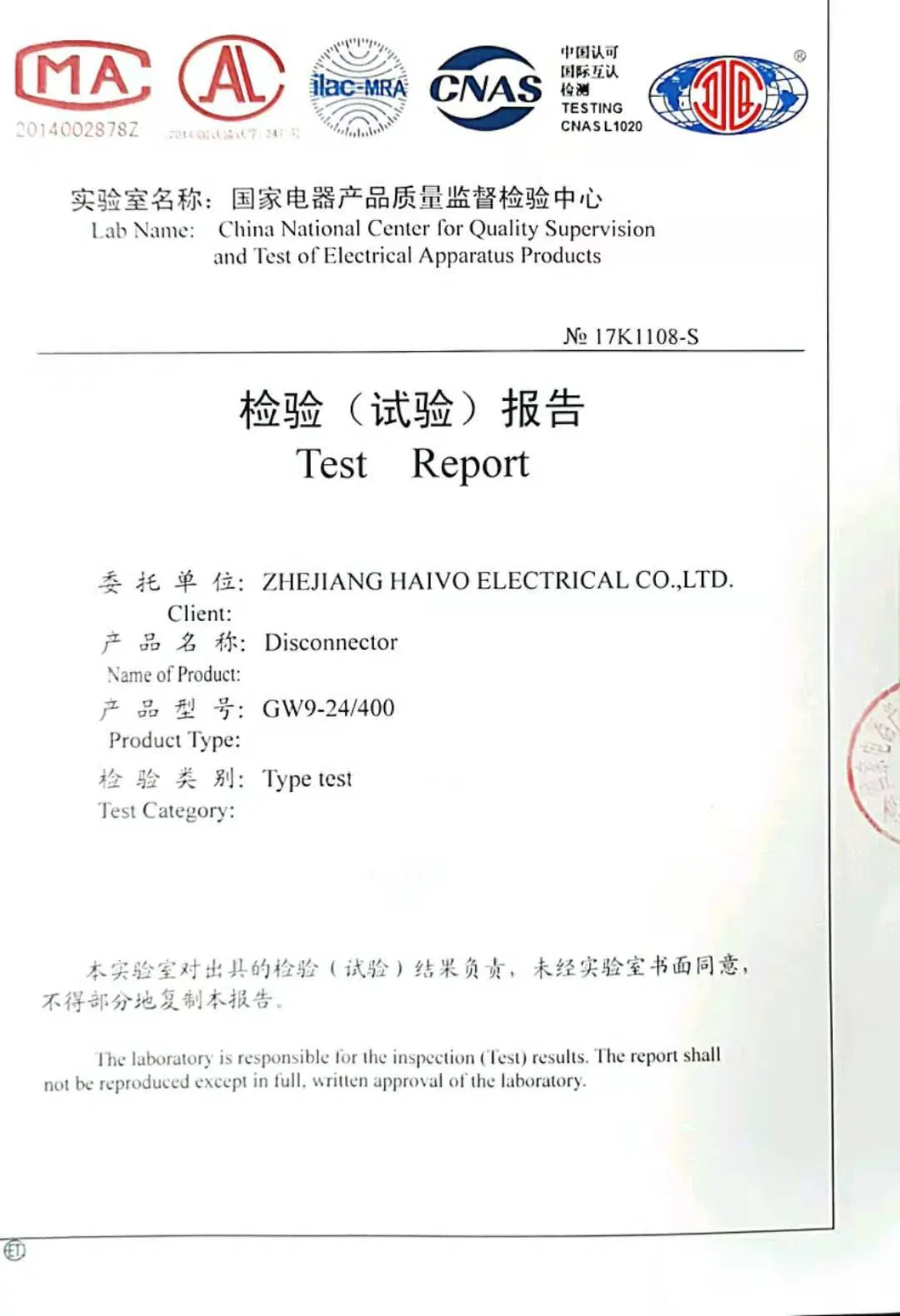

For the quality control system, we were successively awarded ISO 9001:2015 by DAS CERTIFICATION LTD & UKAS QUALITY MANAGEMENT, and All series products have been done TYPE TEST by International famous STL APPROVED Labarotaries(KEMA)and NATIONAL labarotaries(XIHARI).
We promise we will offer first-class quality, reasonable price, first-class service and following the business philosophy of development and innovation to serve global power customers!
Exhibition & Product Display
Frequently Asked Questions
What is the main function of the RH-B-11/33KV outdoor gang isolator switch?
It is designed for outdoor high-voltage AC applications (11kV to 33kV) to switch power circuits on and off under no-load conditions in 3-phase AC 50/60Hz power systems.
What industry standards does this isolator switch comply with?
This series of switches complies with the international IEC60964: 1996 and IEC62271-102: 2002 standards, ensuring high safety and reliability benchmarks.
Has the equipment undergone any third-party verification?
Yes. All series products have undergone comprehensive TYPE TESTS conducted by internationally renowned STL approved laboratories (KEMA) and national laboratories (XIHARI).
What are the grounding and operating configurations?
The RH-B model supports a single grounding mode (Single Ground) and uses manual operation mechanism to complete plug-in type movement and horizontal turning.
How is the product packaged for delivery?
To guarantee safety during transit, the isolator switches are packed inside robust, export-standard wooden cases, with a package dimension of 155.00cm * 66.00cm * 200.00cm.
