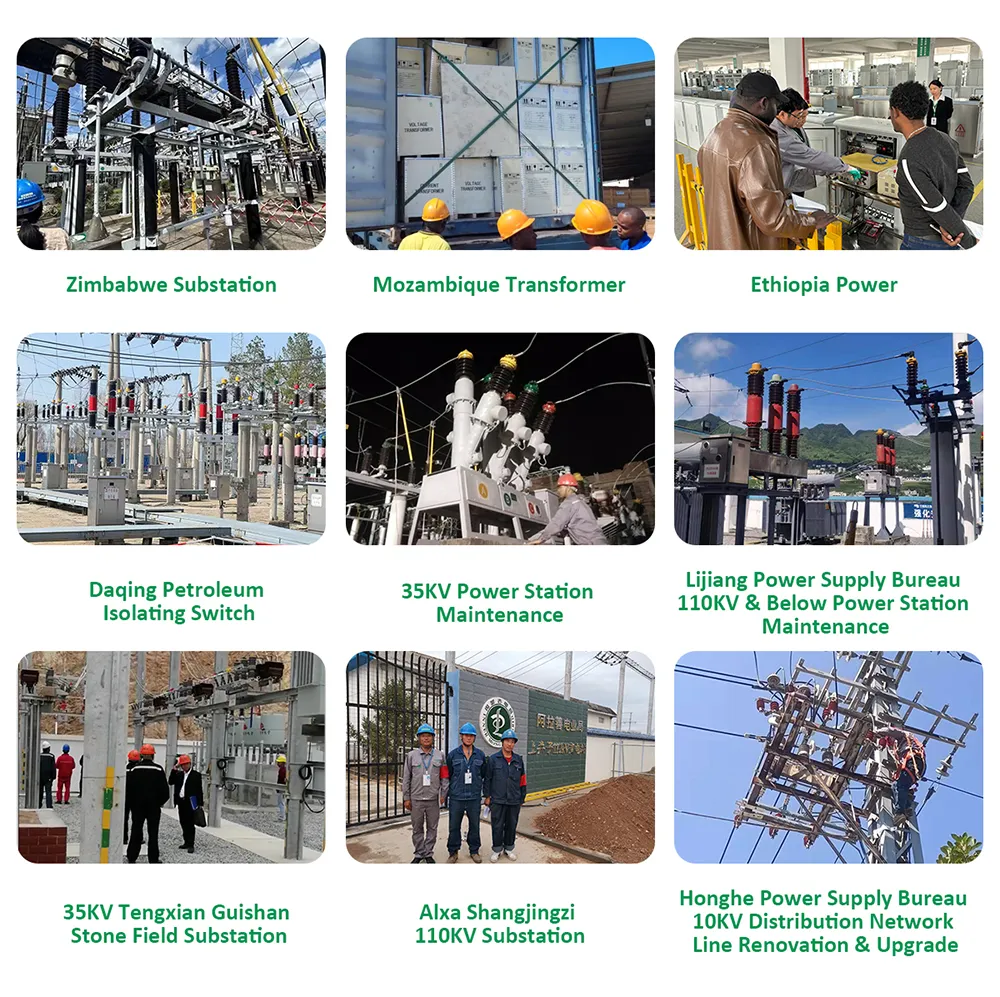

We have supplied products for domestic and overseas power distribution projects, including utility, substation, and EPC-related applications.

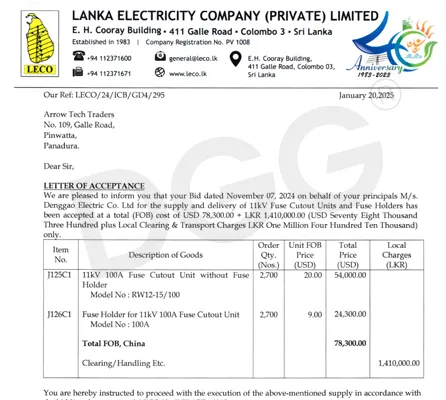

Partial Project References:
DD1/P&D/ICB/2025/028/D
CEB SPECIFICATION 082:2019
DD4/P&D/ICB/2024/010/D
CEB/AGM(DD3)/P&D/ICB/2025/25/BPC
TENDER Y103092
NO-DIS-MA-2205
NO-DIS-MA-6003
NO-DIS-MA-7006
NO-DIS-MA-7007TENDER FOR THE...
Project reference documents and technical files are available upon request. Contact us to discuss your project requirements.

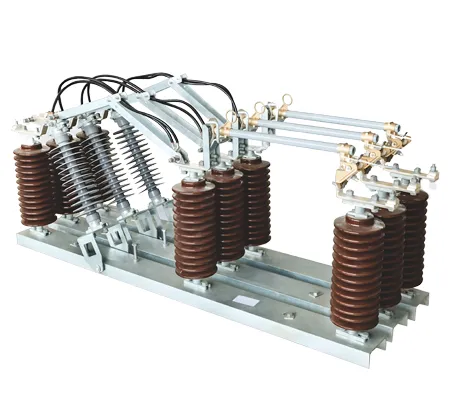

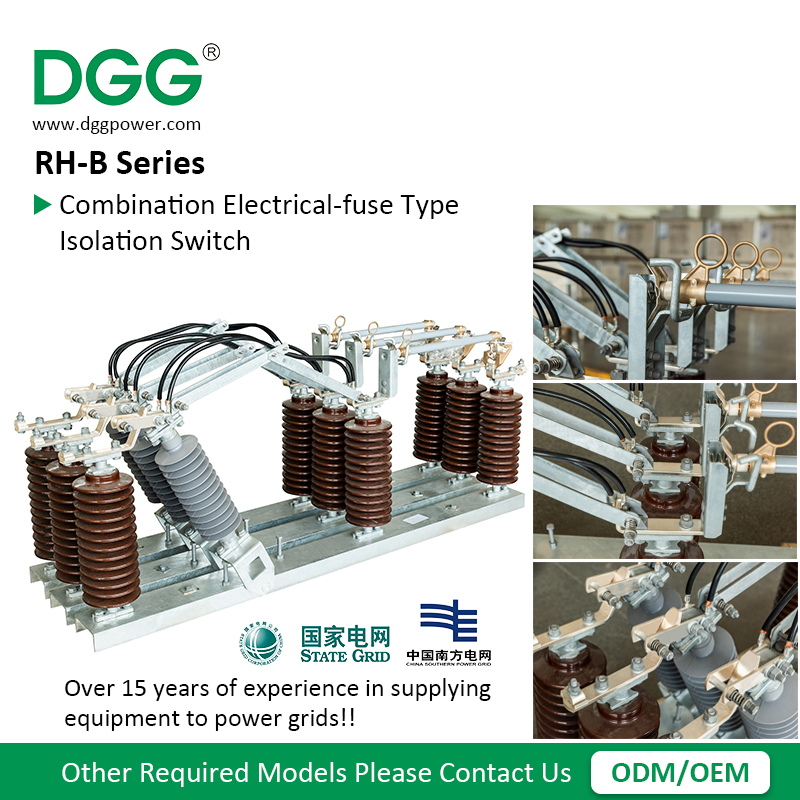

Combination Electrical Fuse Type Isolation Switch
Combination electrical - fuse type isolation switch is a simple and effective manually operated protective device, mainly used for isolating circuits or short circuit protection in circuits.
Isolation switch is a switch device mainly used for isolating power supply, switching operation, connecting and cutting off small current circuits, without arc extinguishing function.

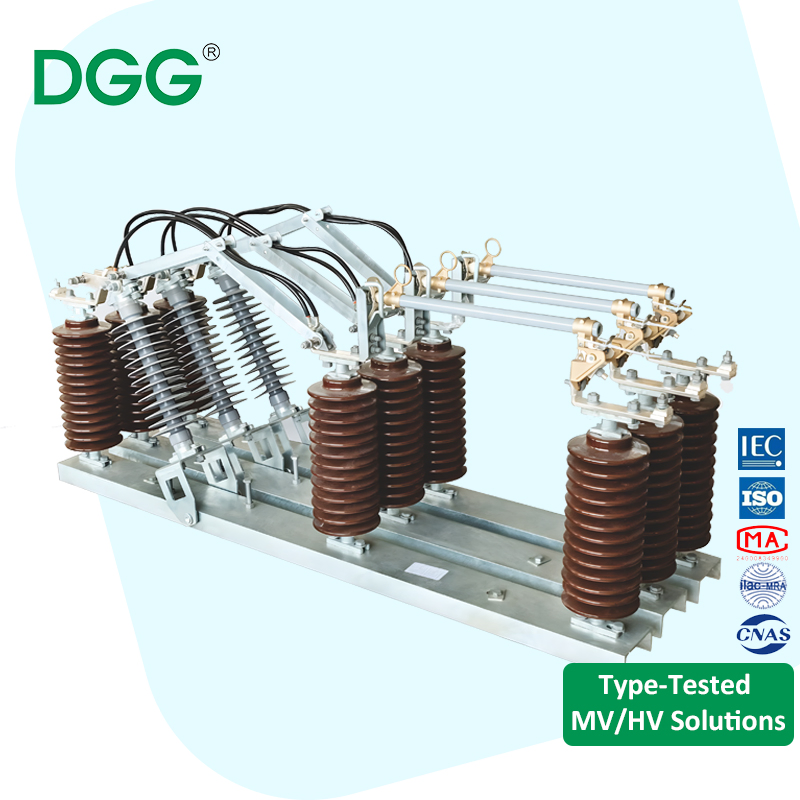

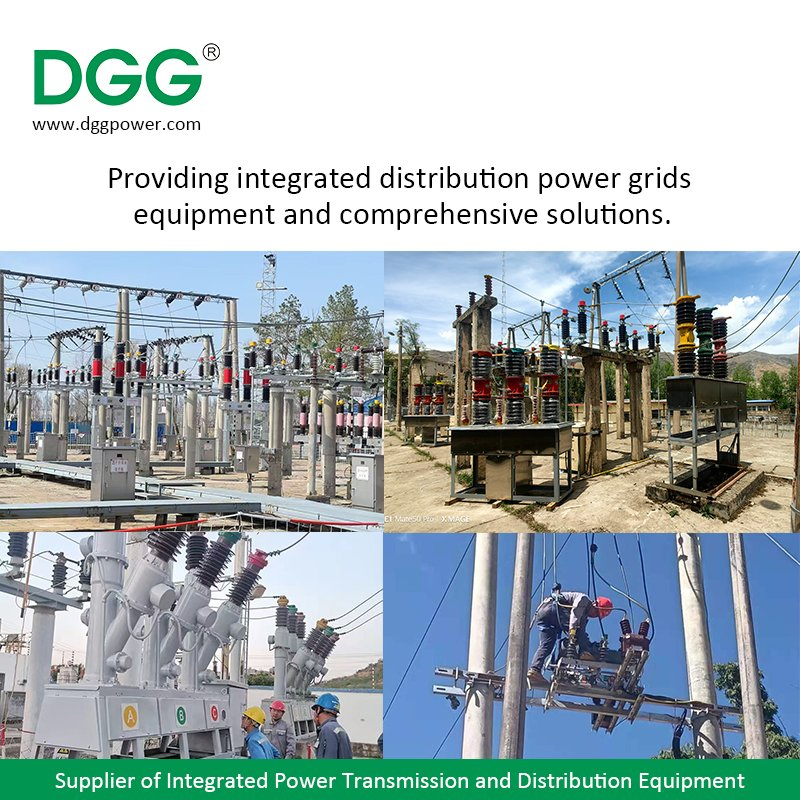

This outdoor three phase disconnect switch is designed for medium and high voltage distribution lines, substations and outdoor switching stations. It provides a visible isolation point for maintenance, inspection and circuit sectionalizing operations, supporting safe electrical isolation in power distribution systems.
| Project | Unit | Technical Parameter | |||
|---|---|---|---|---|---|
| Rated voltage | kV | 11 | 33 | ||
| Rated current | A | 400 | 630 | 400 | 630 |
| Rated short-term withstand current | kA/3s | 12.5 | 20 | 12.5 | 20 |
| Peak withstand current | kA | 31.5 | 50 | 31.5 | 50 |
| Power frequency withstand voltage (Phase-to-ground) | kV | 38 | 70 | ||
| Power frequency withstand voltage (Fracture surface) | kV | 42 | 80 | ||
| Lightning impulse withstand voltage (Phase-to-ground) | kV | 75 | 170 | ||
| Lightning impulse withstand voltage (Fracture surface) | kV | 95 | 195 | ||
| Creepage distance | mm | ≥ 372 | ≥ 900 | ||
| Project | Unit | Technical Parameter | |||
|---|---|---|---|---|---|
| Rated voltage | kV | 11 | 33 | ||
| Rated current | A | 100 | 200 | 100 | 200 |
| Breaking current | kA | 12.5 | 16 | 12.5 | 16 |
| Power frequency withstand voltage (Phase-to-ground) | kV | 38 | 70 | ||
| Power frequency withstand voltage (Fracture surface) | kV | 42 | 80 | ||
| Lightning impulse withstand voltage (Phase-to-ground) | kV | 75 | 170 | ||
| Lightning impulse withstand voltage (Fracture surface) | kV | 95 | 195 | ||
| Creepage distance | mm | ≥ 372 | ≥ 900 | ||
* Note: If the parameters requested by the user are beyond the scope of the above table, they can be determined after consultation with us.

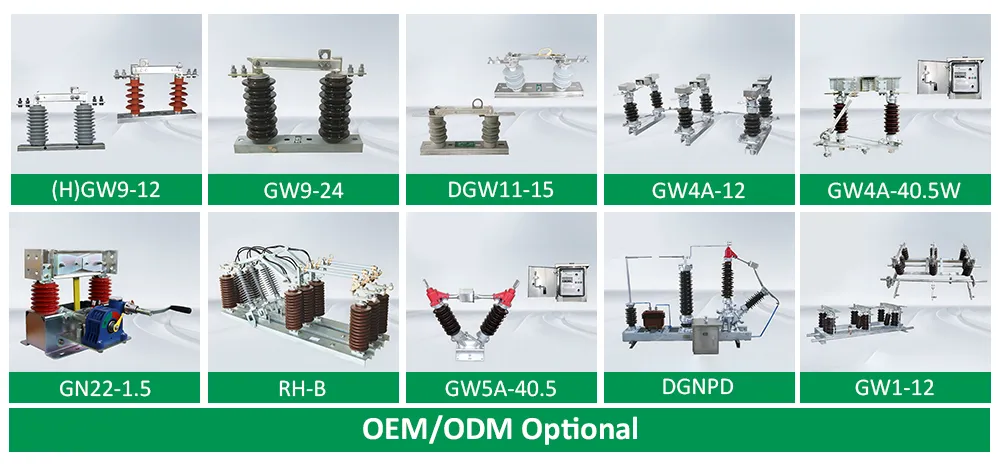

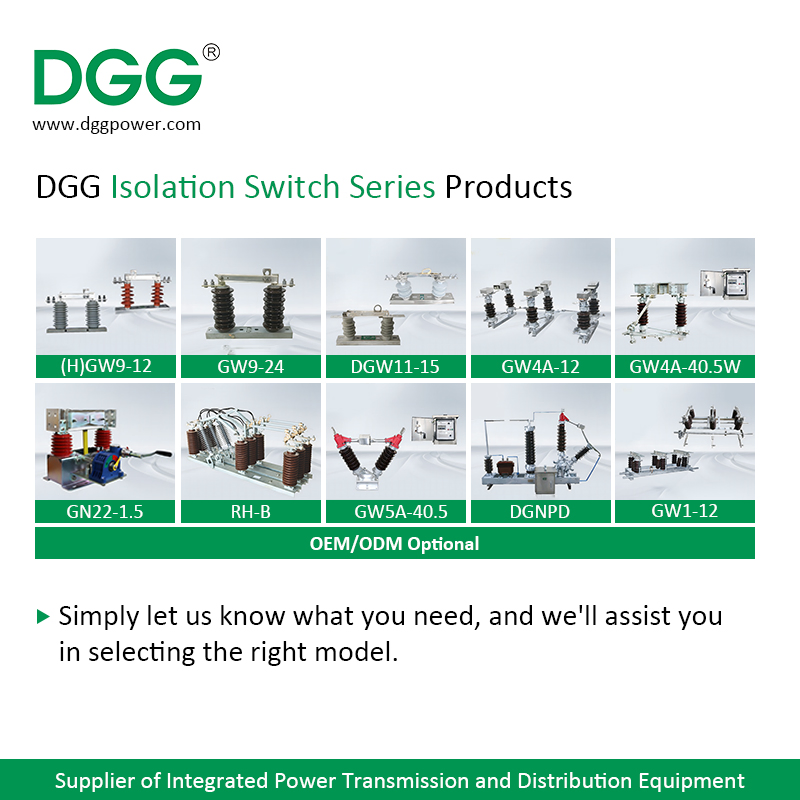

Simply let us know what you need, and we'll assist you in selecting the right model.
Project-based supply experience for power distribution and substation applications.
IEC type test report support for selected models, including KEMA and TÜV reports.
Engineering support for product selection, parameter confirmation, and technical documents.
In-house production and testing capabilities for stable quality and delivery.
We welcome customers and project partners to visit our factory for inspection, product discussion, and technical communication.
During the visit, our sales and engineering teams can support product selection, parameter confirmation, sample review, and project requirement discussion.
This helps both sides improve communication efficiency and move from inquiry to practical project confirmation.
Years of experience in power transmission and distribution equipment manufacturing.

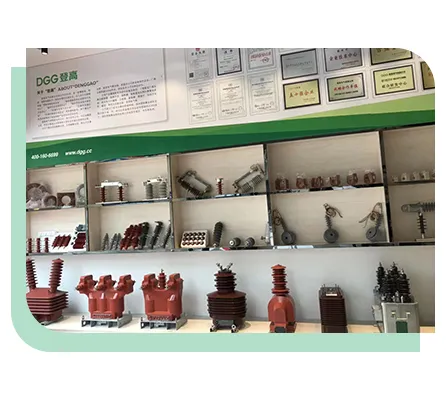

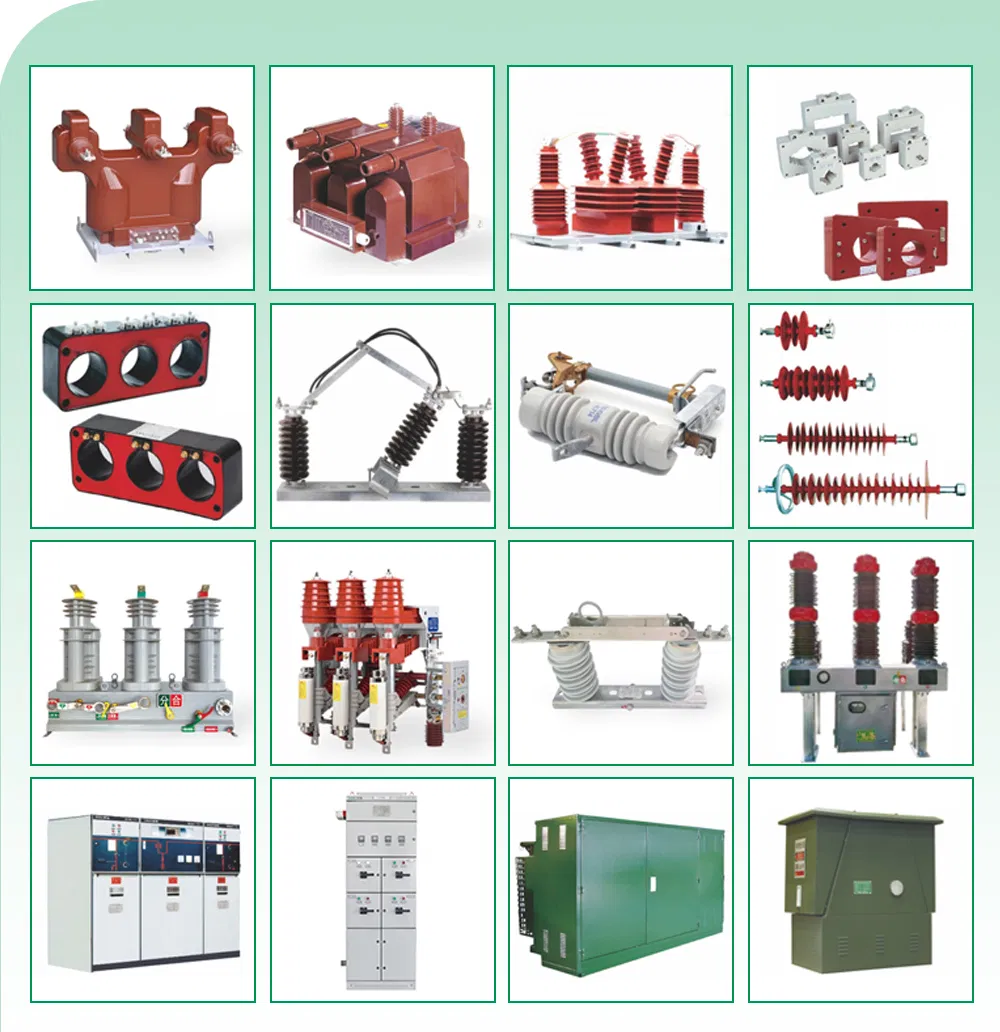

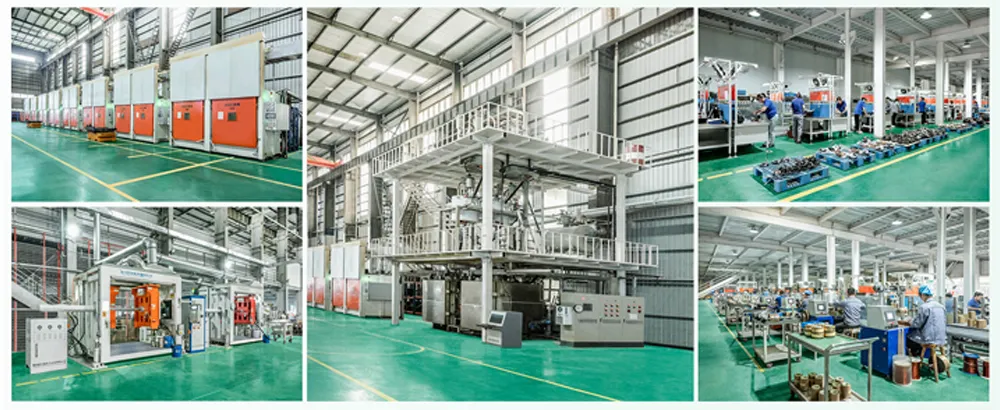

Equipped with production lines for instrument transformers, surge arresters, fuse cutouts, circuit breakers, disconnect switches, switchgear, and related products.
Our skilled workers each have over 10 years of experience.
Direct factory support for distributors, contractors, utilities, and project buyers.

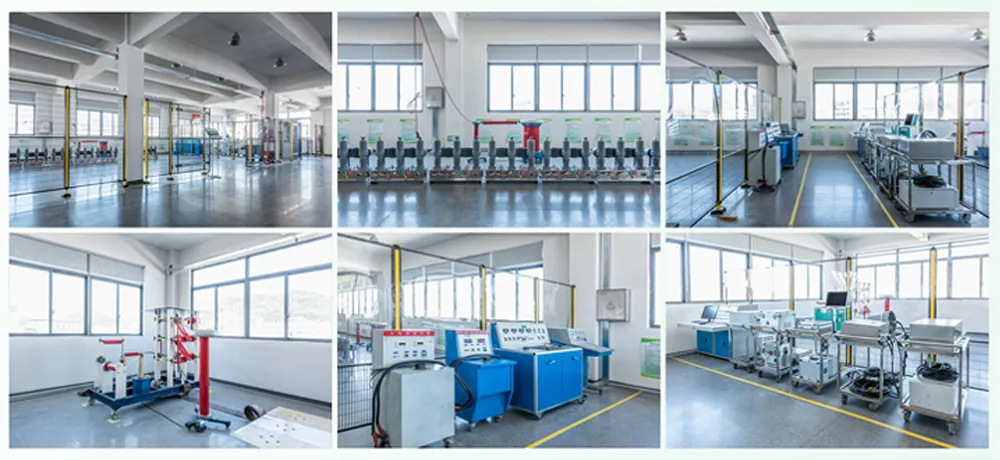

In-house laboratory facilities are available to support routine testing, product verification, and technical data collection. These testing capabilities help us check key product performance, support technical confirmation, and provide reliable data for project requirements.

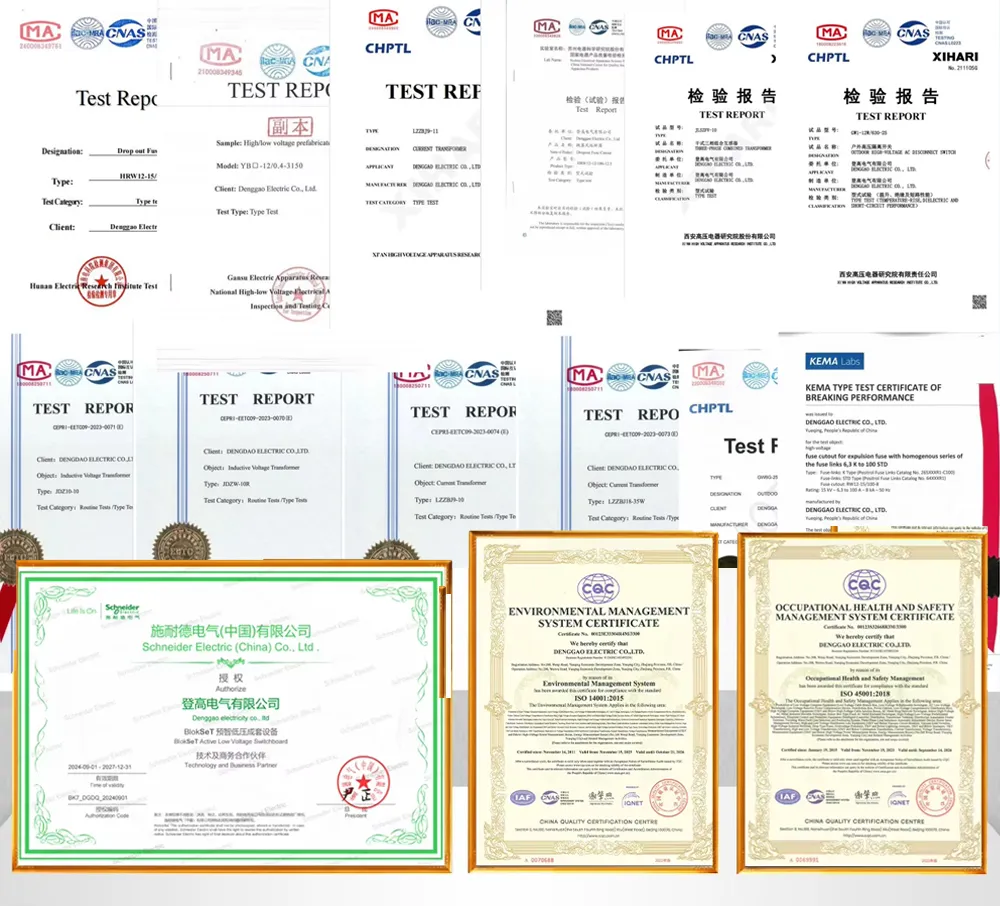

* Note: If you need more information about our certificates & test reports, please contact us.
