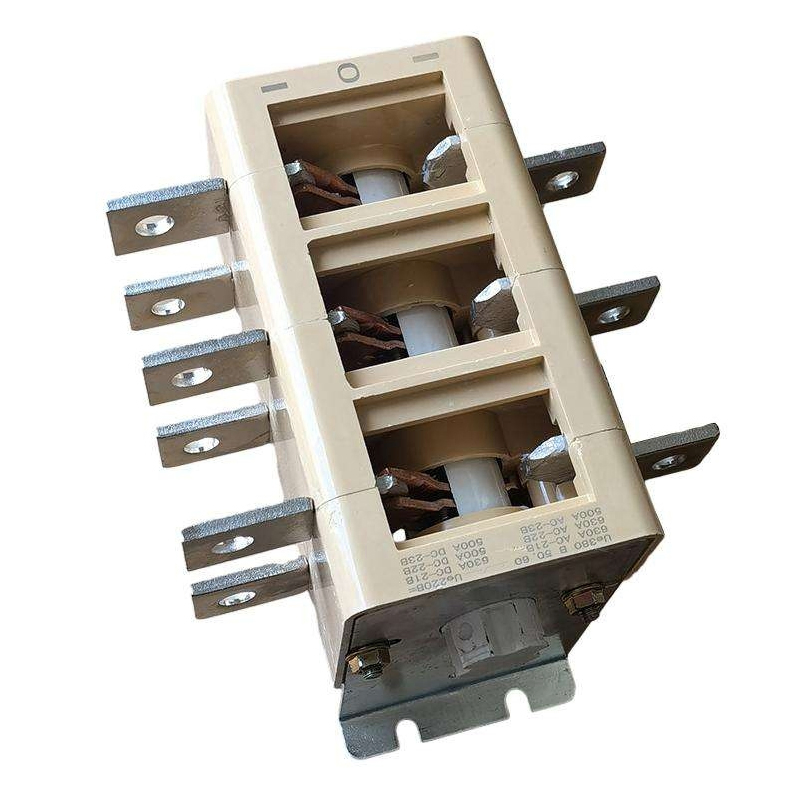

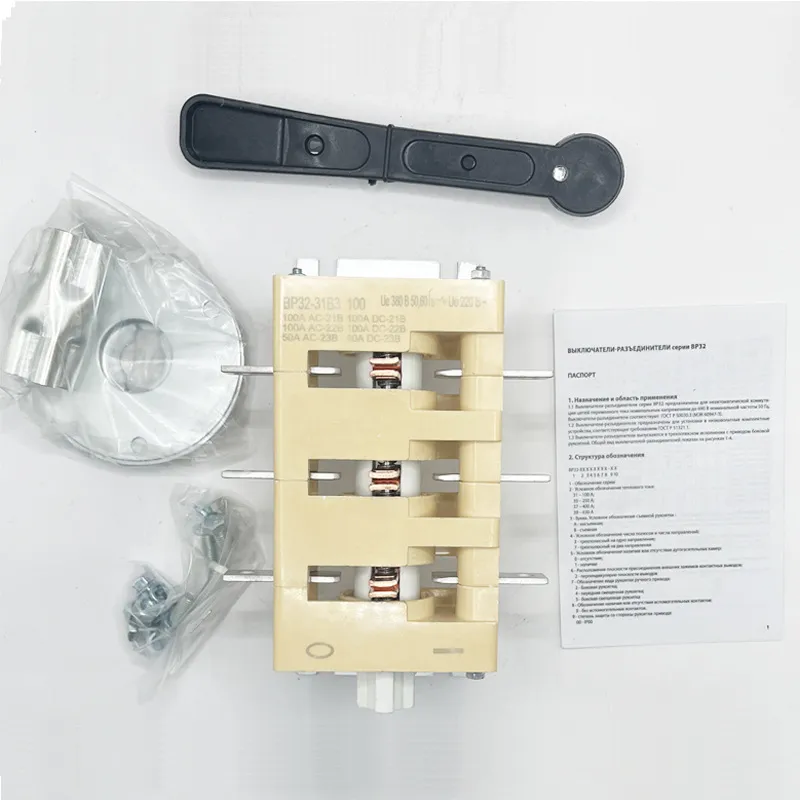

Bp32 Disconnector Switch 31250 71250 Capacity Russia Type Isolator Knife Switch

1 / 5

Bp32 Disconnector Switch 31250 71250 Capacity Russia Type Isolator Knife Switch

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

BP 3231B 31250-32

Installation

Indoor High-voltage

Operation

Manual

Grounding Mode

Not Grounding

Number of Poles

Three Pole

Series

Three

Run

Vertical Rotation

Switching Mode

Single Throw-in

Certification

ISO, CE, ISO9001

Transport Package

Carton

Specification

500*240*140

Origin

China

HS Code

8535301090

Production Capacity

5000

Packaging & Delivery

Package Size

30.00cm * 30.00cm * 30.00cm

Package Gross Weight

24.000kg

Product Description

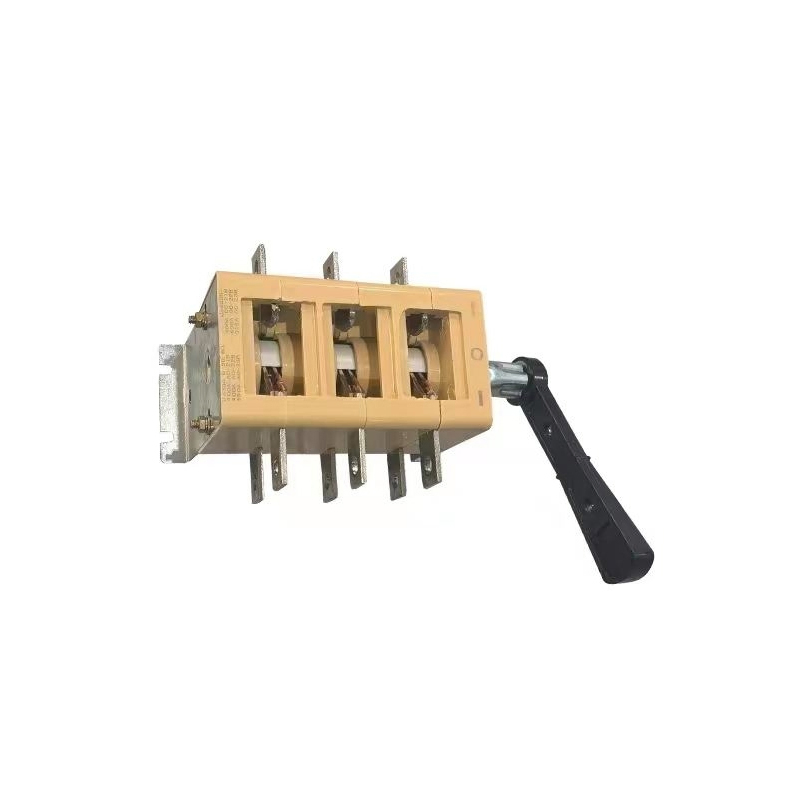

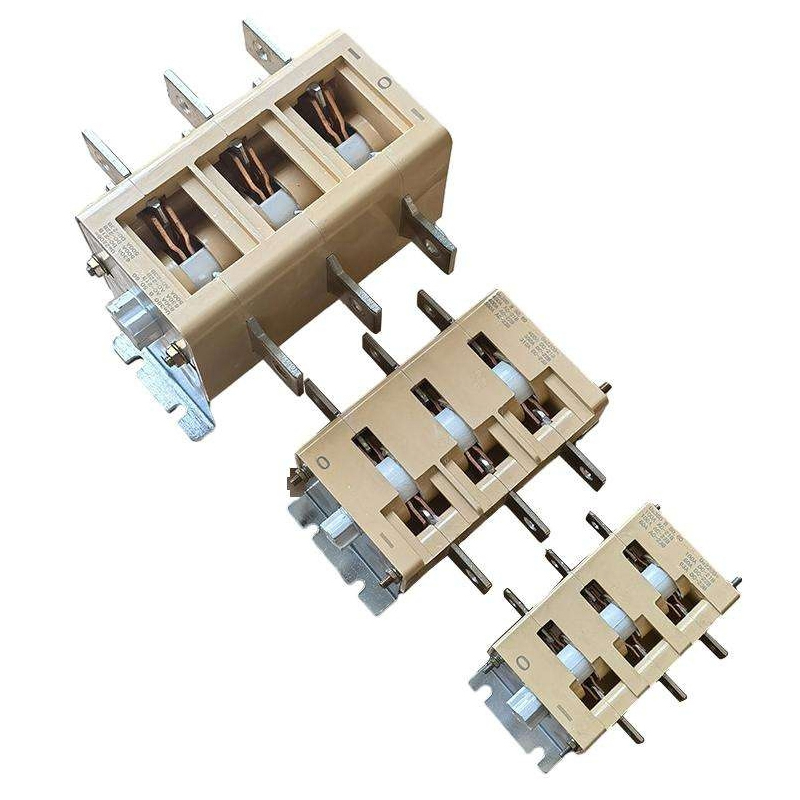

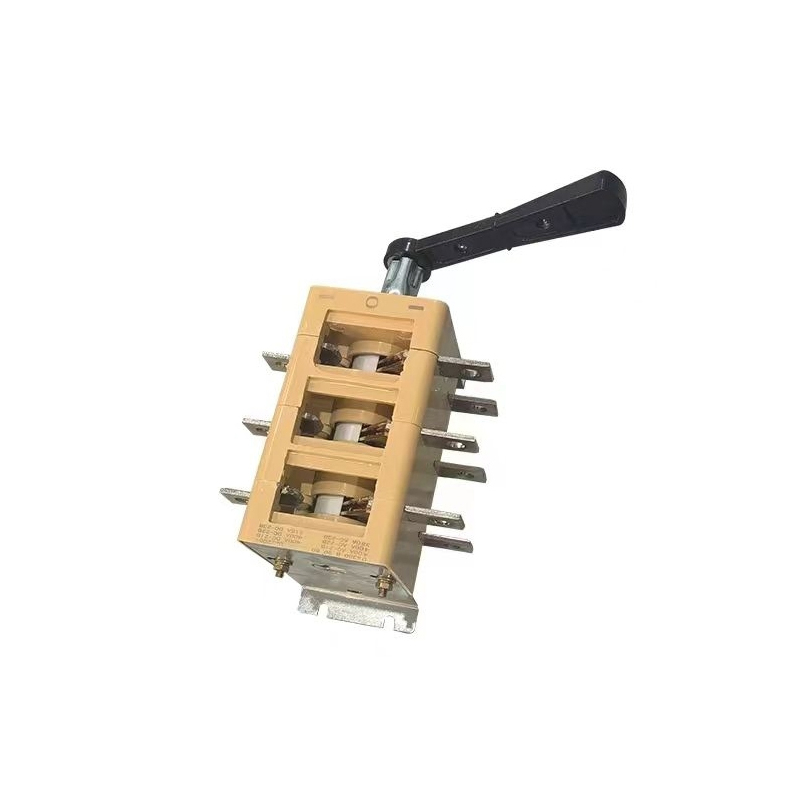

BP32 isolating switch disconnector knife switch Russia type 400A

1.1 The rated voltage of the low-voltage series open type knife switch, conversion switch, and conversion switch (hereinafter referred to as knife switch and knife shaped conversion switch) is AC 50Hz, 380V, and the rated current is 630A. In the distribution equipment of industrial enterprises, it is used as an infrequent manual connection or disconnection of lines or as an isolation switch.

1.2 Normal working conditions for knife switches and knife shape conversion switches:

a. Altitude not exceeding 1000M;

b. The ambient air temperature shall not be higher than +40 ºC and not lower than -30 ºC;

c. The relative humidity of the air shall not exceed 85%;

d. In a medium without explosion risk, and there are no gases or dust (including conductive dust) in the medium that are sufficient to corrode metals and damage insulation;

e. Places without significant shaking and impact vibration.

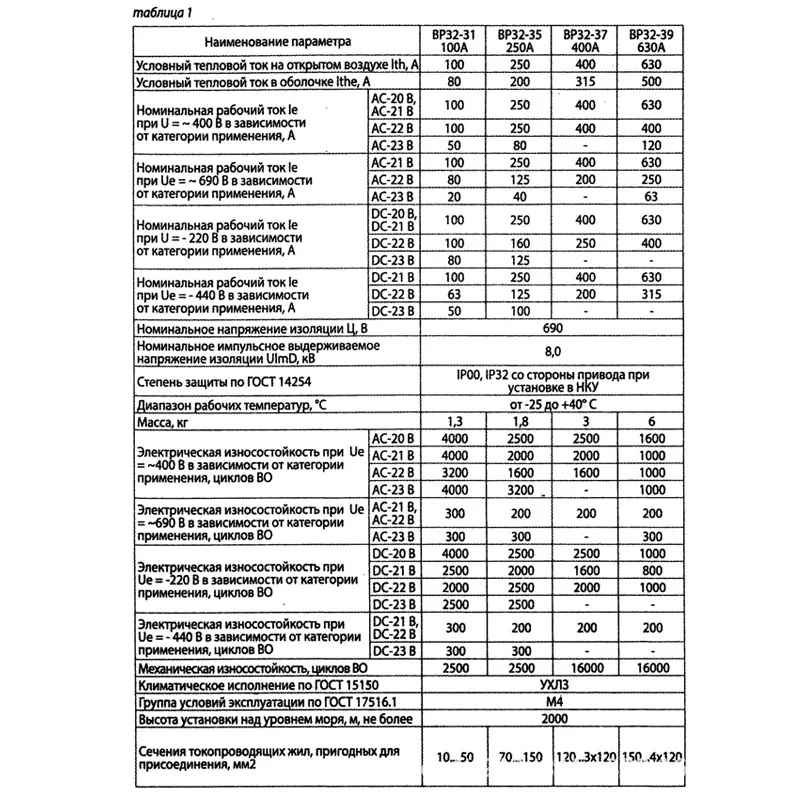

Наименование параметра	BP32-31 100A	BP32-35 250A	BP32-37 400A	BP32-39 630A
Условный тепловой ток на открытом воздухе lth, A	100	250	400	630
Условный тепловой ток в оболочке Ithe, A	80	200	315	500
Номинальное напряжение изоляции Ui	690
Номинальное импульсное выдерживаемое напряжение изоляции Uimp, кВ	8.0
Степень защиты по ГОСТ 14254	IP00, IP32 со стороны привода при установке в НКУ
Диапазон рабочих температур, °C	от -60 до +40° С

Frequently Asked Questions

What is the primary application of the BP32 series isolating switch?

The BP32 low-voltage series open-type knife switch and conversion switch are primarily used in the distribution equipment of industrial enterprises for infrequent manual connection, disconnection of lines, or as electrical isolation switches.

What are the normal ambient temperature limits for this switch?

Under standard working conditions, the ambient air temperature should be within the range of -30 ºC to +40 ºC. However, the device specifications indicate a design working range spanning from -60 ºC to +40 ºC.

What is the protection rating (IP Code) of the BP32 disconnector switch?

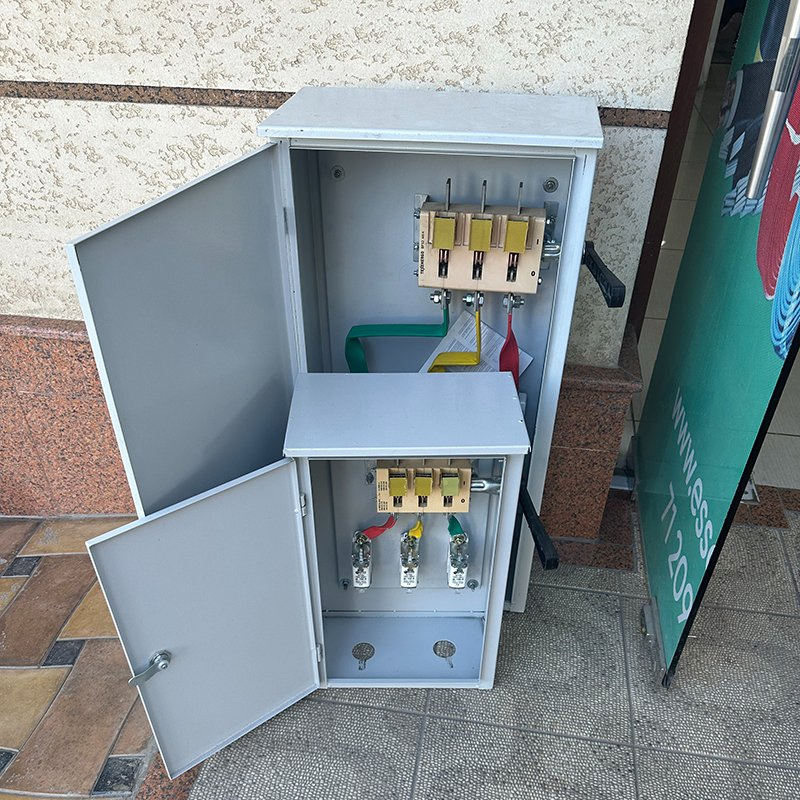

It has a basic protection rating of IP00 according to GOST 14254 standards, which becomes IP32 from the drive side when properly integrated into low-voltage complete switchgear devices (NKU).

What installation environments must be avoided?

The switch should not be installed in environments with explosion risks, significant vibration or impact, or in media containing gases or conductive dust that could damage metal components and insulation.

What are the rated insulation voltage specifications?

The BP32 switch series has a rated insulation voltage (Ui) of 690V and features a rated impulse withstand voltage (Uimp) of 8.0 kV.
