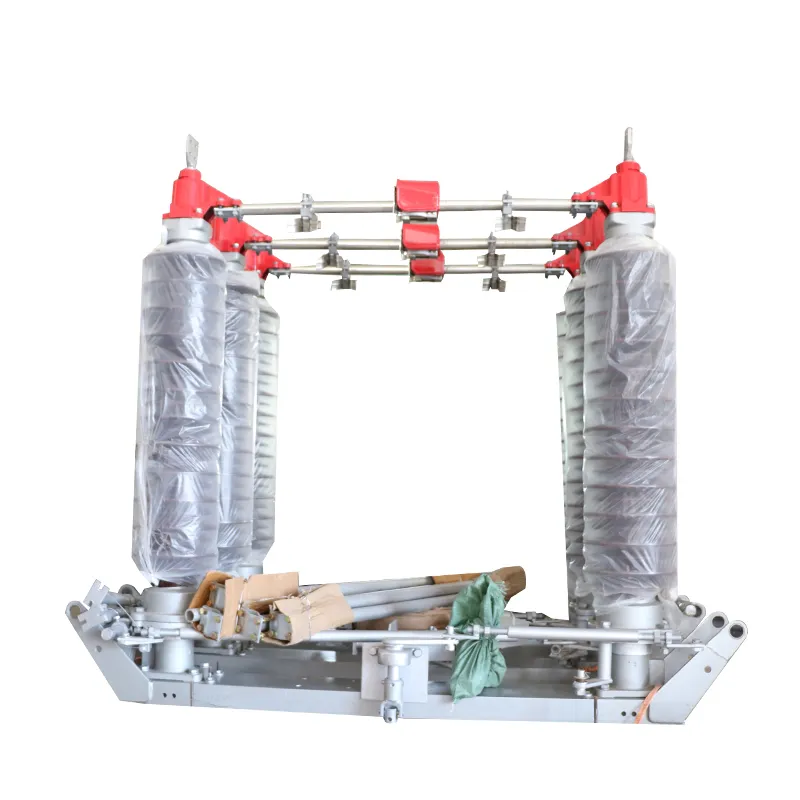

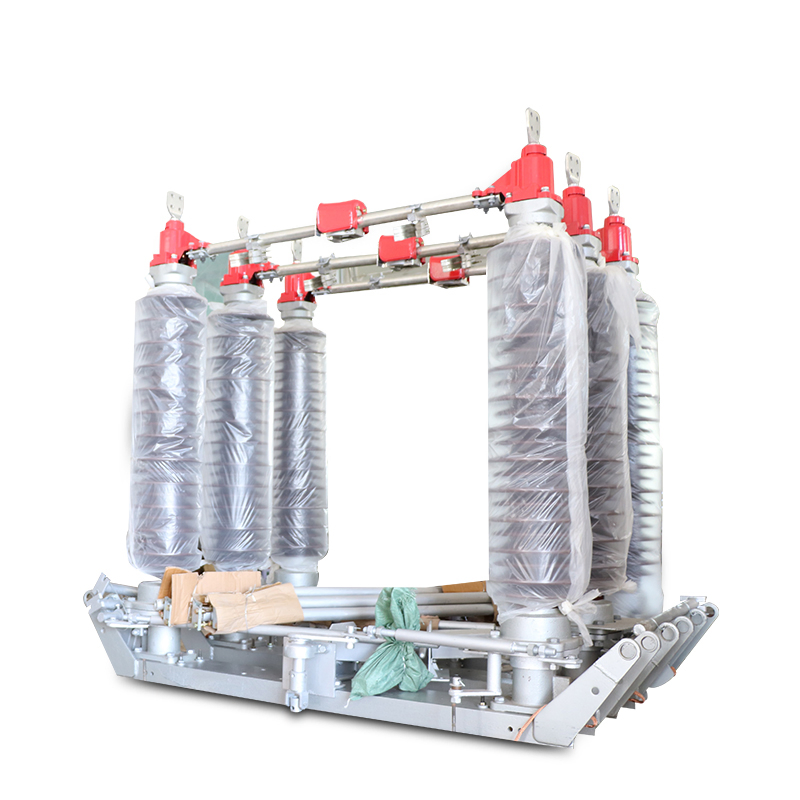

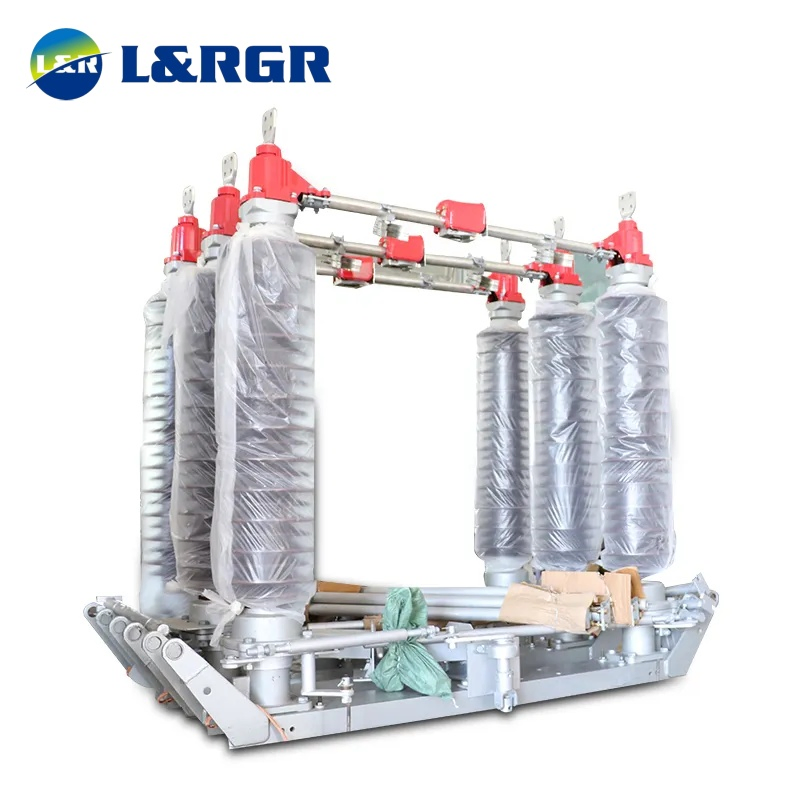

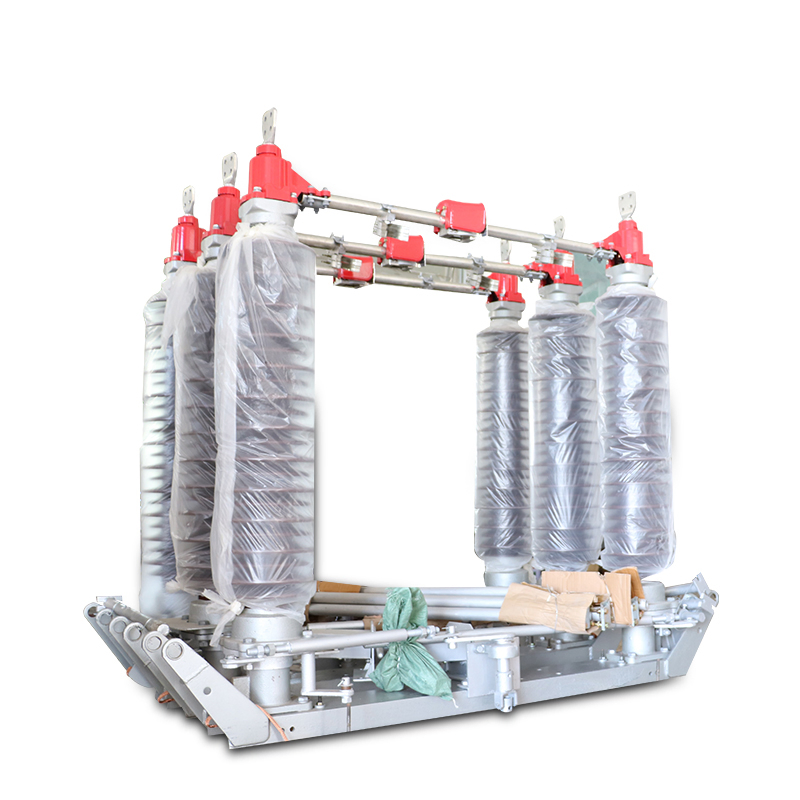

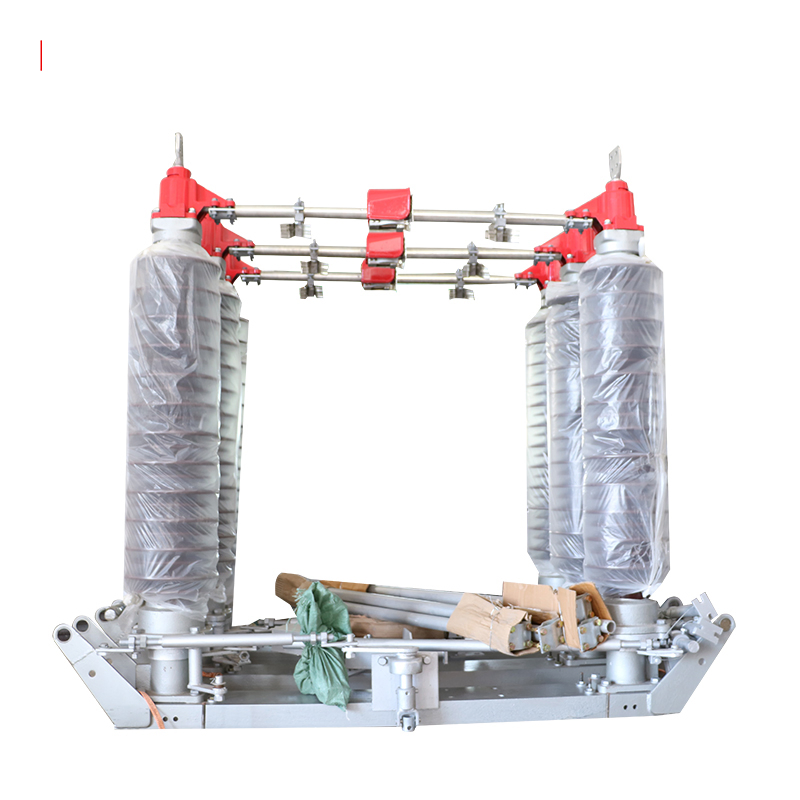

110kv 1250A Double Earthed Disconnector / Isolator Switch
110kv 1250A Double Earthed Disconnector / Isolator Switch
110kv 1250A Double Earthed Disconnector / Isolator Switch
110kv 1250A Double Earthed Disconnector / Isolator Switch
110kv 1250A Double Earthed Disconnector / Isolator Switch
1 / 5
110kv 1250A Double Earthed Disconnector / Isolator Switch
110kv 1250A Double Earthed Disconnector / Isolator Switch
110kv 1250A Double Earthed Disconnector / Isolator Switch
110kv 1250A Double Earthed Disconnector / Isolator Switch
110kv 1250A Double Earthed Disconnector / Isolator Switch

110kv 1250A Double Earthed Disconnector / Isolator Switch

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
GW4-126KV
Installation
Outdoor High-voltage
Operation
Manual & Electric
Movement Mode
Vertical Rotary Type
Number of Poles
Three Pole
Rated Voltage
126kv
Rated Current
630A-2000A
Frequency
50/60Hz

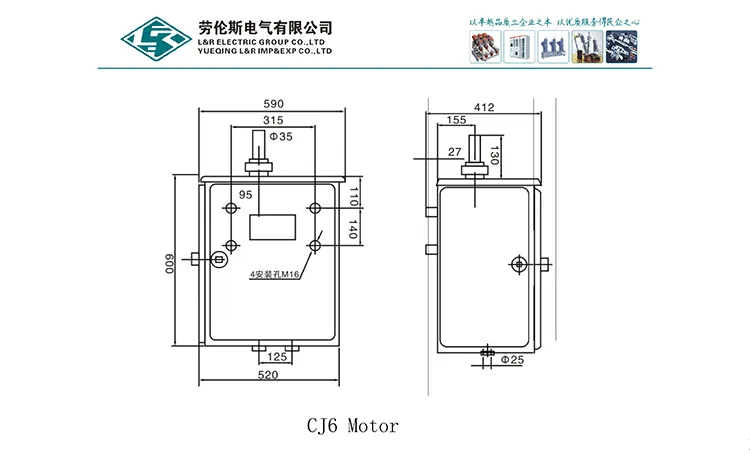

Operating Mechanism
Cj6b/CS17
Certification
ISO, CE, ISO9001
Packaging & Delivery
Package Size
150.00cm * 200.00cm * 200.00cm
Gross Weight
1500.000kg
Product Description

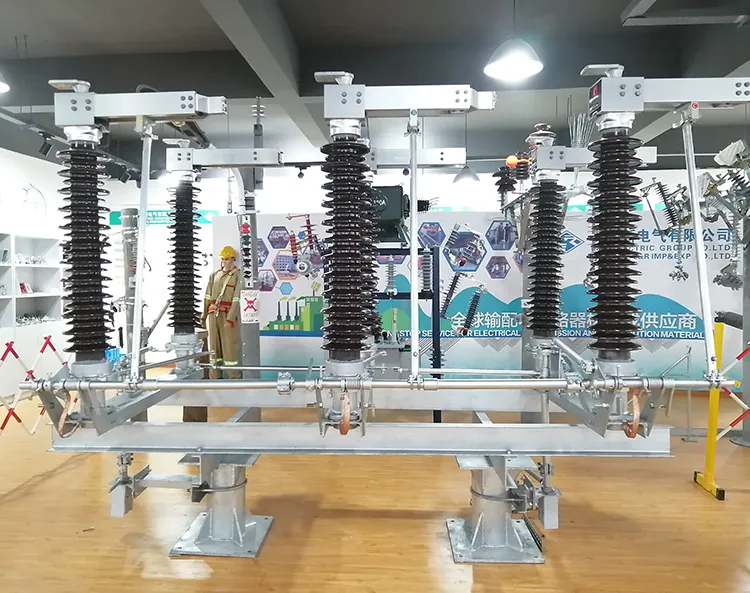

GW4-72.5/126/145 outdoor high voltage disconnect switch is used to open and close high voltage circuit in rated voltage 72.5/126/145kV, AC 50/60Hz system. The anti-pollution type is especially suitable for serious pollution areas. It accords with standards of IEC62271-102: High voltage AC disconnect switch.

110kv 1250A Double Earthed Disconnector
110kv 1250A Double Earthed Disconnector
110kv 1250A Double Earthed Disconnector
110kv 1250A Double Earthed Disconnector
110kv 1250A Double Earthed Disconnector

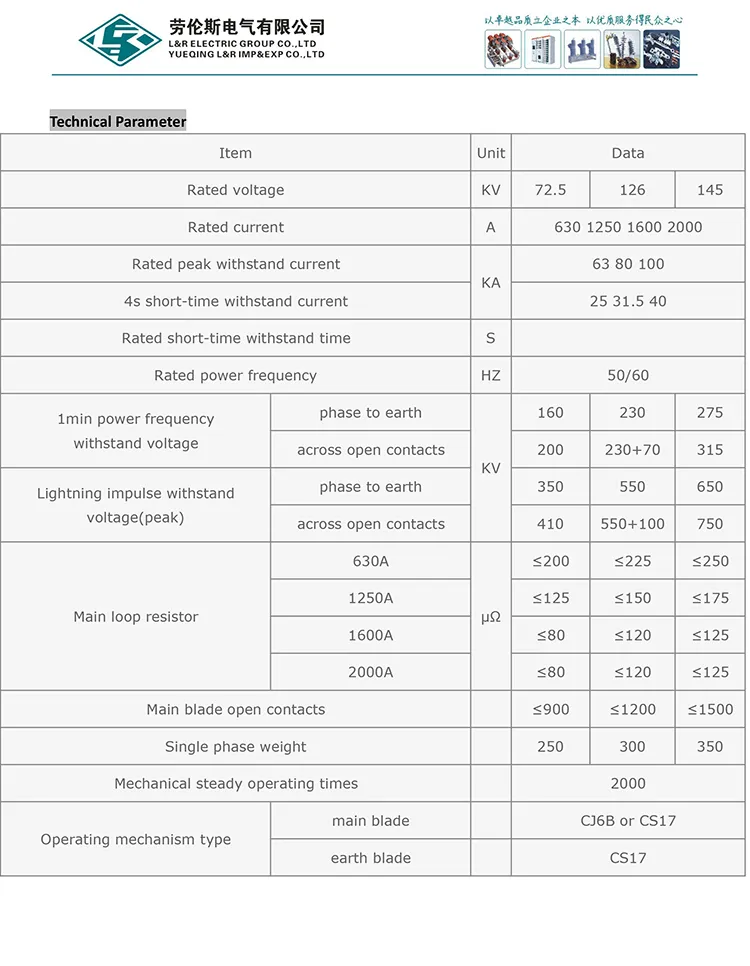

Rated Voltage 72.5KV, 126KV, 145KV
Rated Current 630A, 1250A, 1600A, 2000A
Rated peak withstand current 63kA, 80kA, 100kA
4s short-time withstand current 25kA, 31.5kA, 40kA
Frequently Asked Questions
1. What is the primary application of the GW4 disconnect switch?
The GW4 disconnect switch is designed to open and close high voltage circuits in systems with rated voltages of 72.5kV, 126kV, and 145kV.
2. Is this switch suitable for polluted environments?
Yes, the anti-pollution type model is specifically engineered to perform reliably in areas with serious pollution.
3. Does this switch support manual and electric operation?
Yes, this equipment supports both manual and electric operation modes for added flexibility.
4. What international standards does this product comply with?
This switch strictly adheres to the IEC62271-102 standard for high-voltage AC disconnect switches.
5. What certifications are provided for this switch?
The product is certified with ISO, CE, and ISO9001 standards, ensuring high quality and safety.
