Products Introduction:

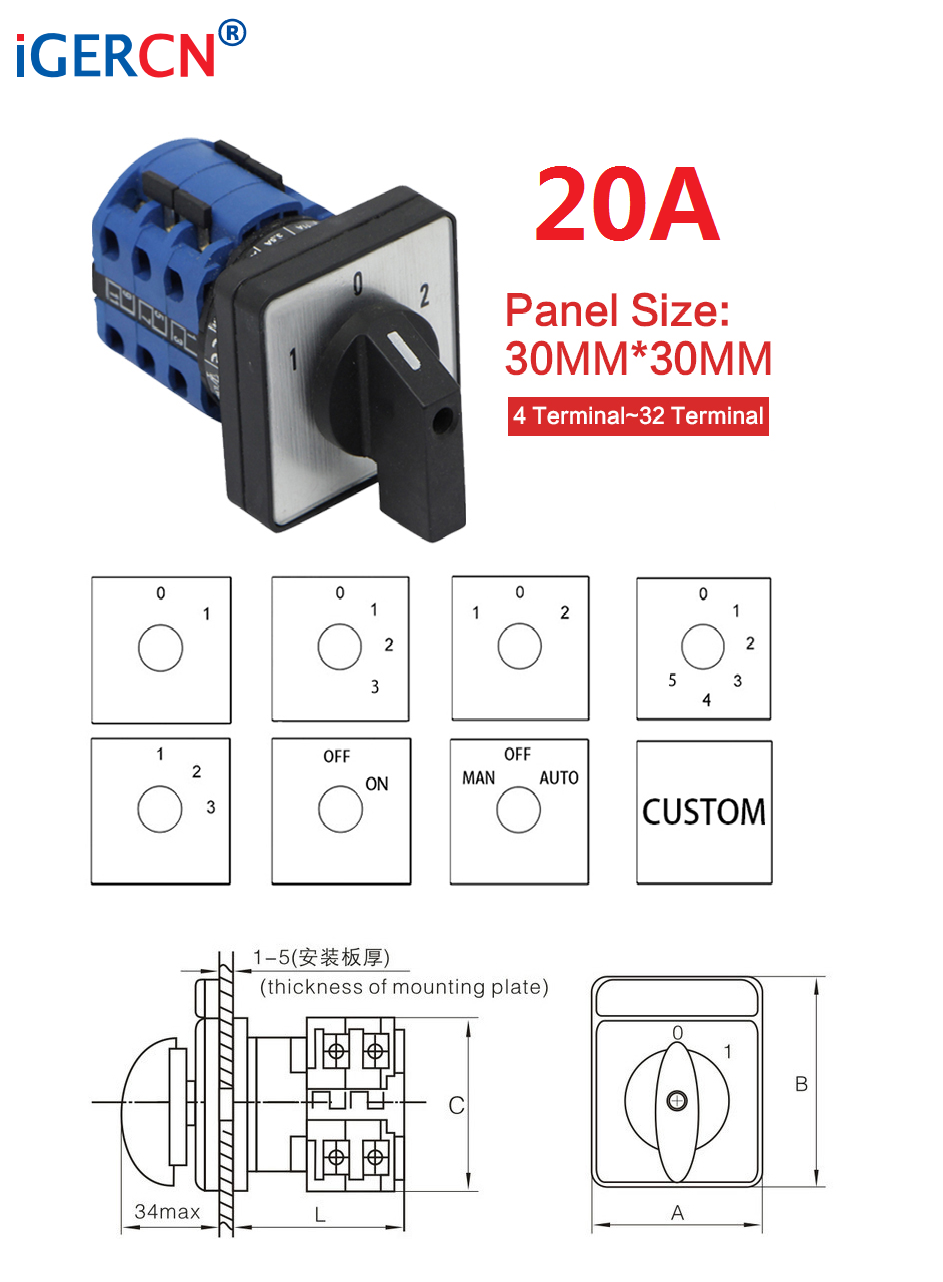

The IG26 series rotary switch mainly applies to AC 50Hz circuits of 440V and below, or DC circuits of 240V and below. It is engineered for breaking, closing, and change-over of circuits under infrequent manual operation.
| Type | 0-1 | 1-0-2 |
|---|---|---|
| Current | 20A | 20A |
| 25A | 25A | |
| 32A | 32A | |
| 40A | 40A | |
| 63A | 63A | |
| 125A | 125A |
A1: The IG26 series is primarily used for breaking, closing, and change-over of circuits under infrequent manual operation. Typical applications include control switches for 3-phase motors, control switchgear, instrument control switches, machinery, and welding machines.
A2: It is suitable for AC 50Hz circuits operating at 440V and below, as well as DC circuits operating at 240V and below.
A3: The series conforms to Chinese national standards GB 14048.3 and GB 14048.5, as well as international standards IEC 60947-3 and IEC 60947-5-1.

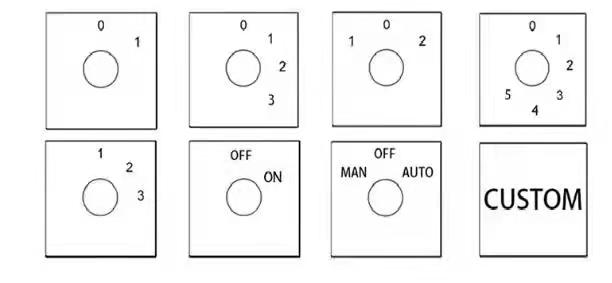

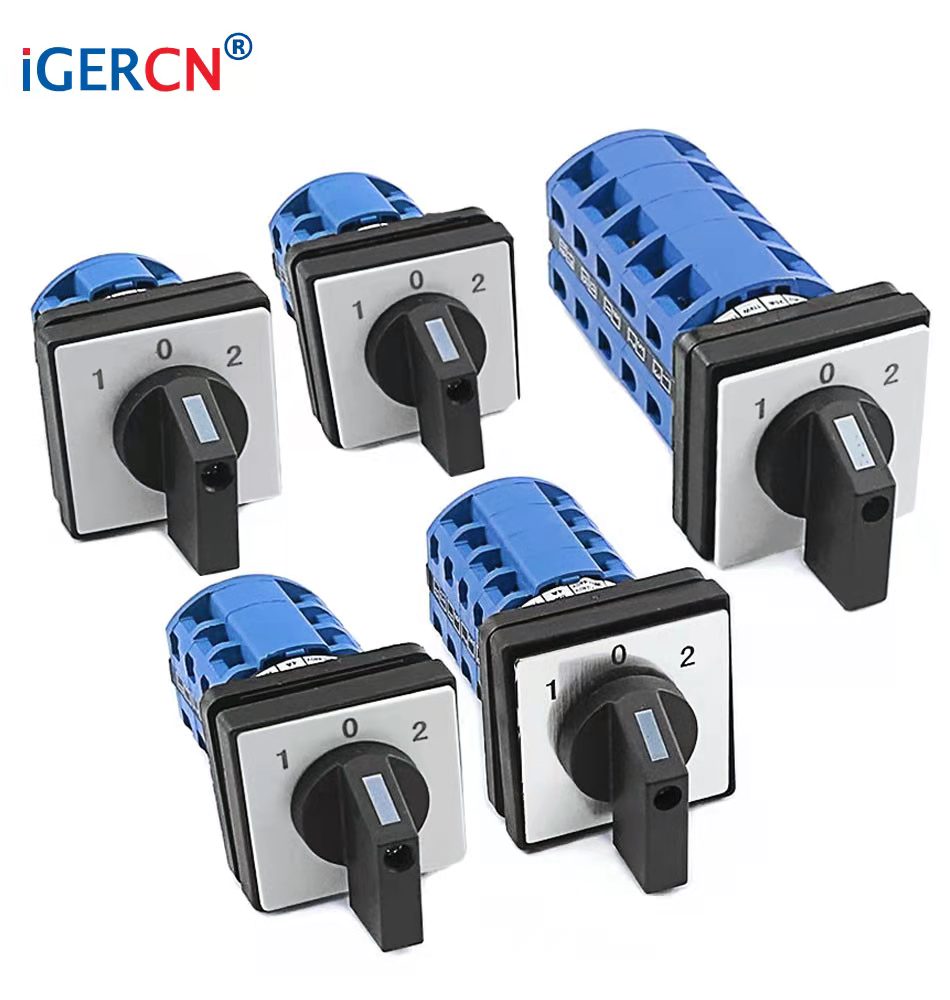

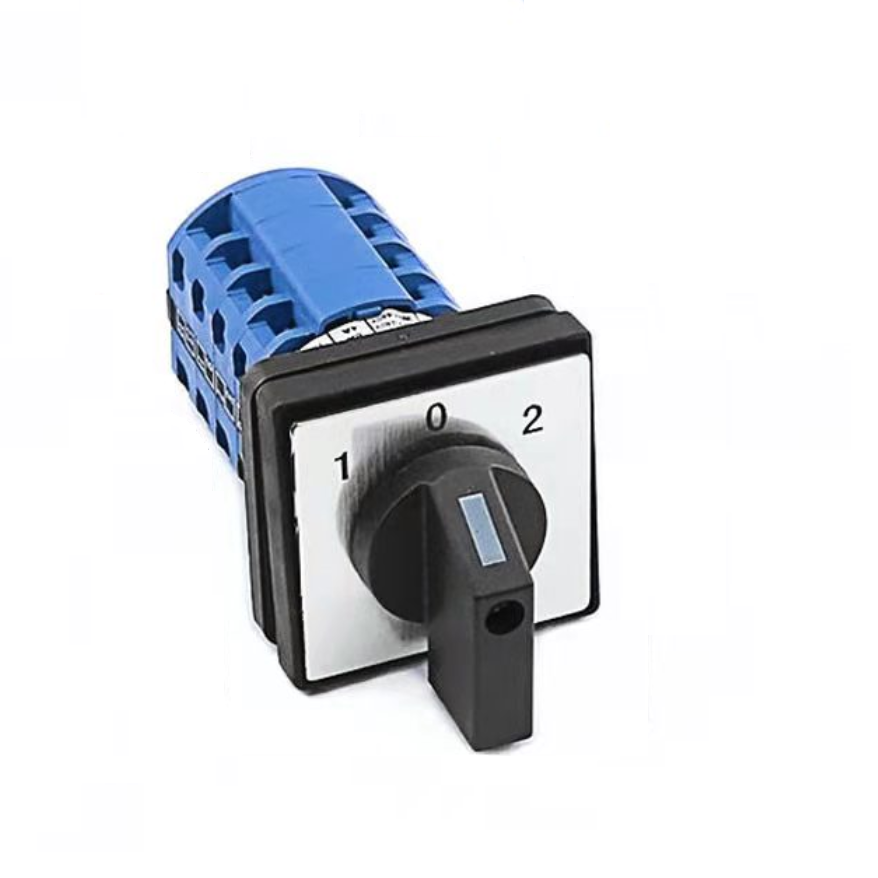

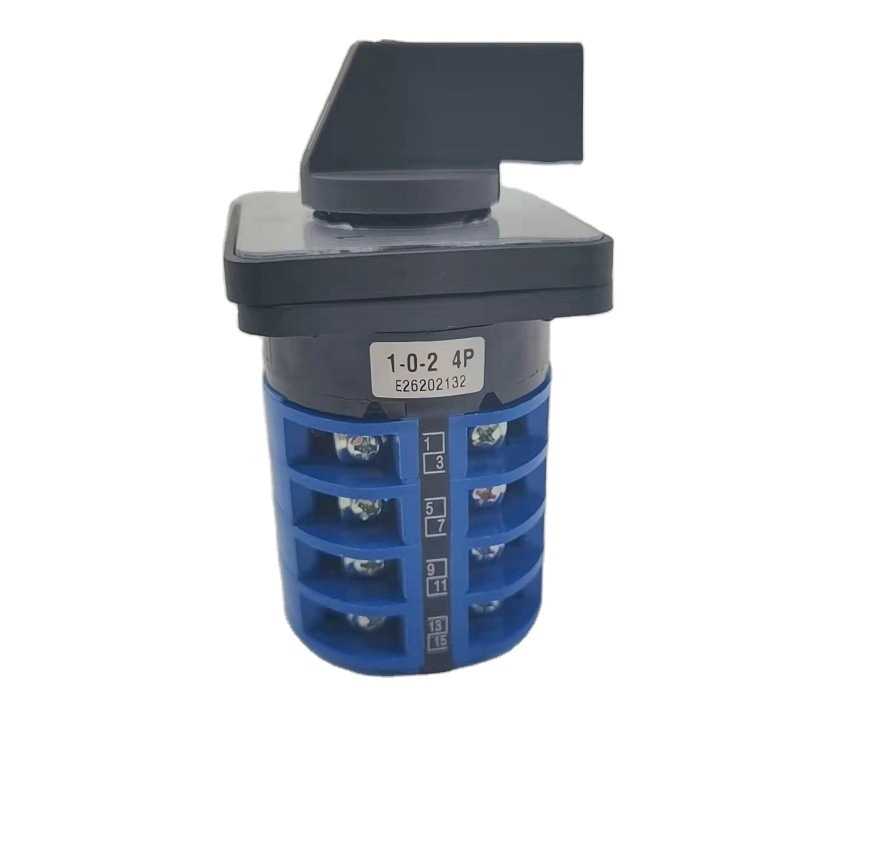

A4: The IG26 series includes two main types: the (1) 0-1 type and the (2) 1-0-2 type change-over configurations.
A5: The current ratings are divided into six levels: 20A, 25A, 32A, 40A, 63A, and 125A.
A6: Yes, they are commonly used as control switches for 3-phase motors and associated control gear mechanisms.
