| Specification | LW26-20 | |||
| LW26-20X | ||||
| LW26-20C | ||||
| Rated insulation voltage | 660/690 | |||
| Rated thermal current | 20 | |||
| Rated working voltage | 24 | 110 | 240 | 440 |
| AC-21A | / | / | 20 | 20 |
| AC-23A | / | / | 15 | 15 |
| AC-2 | / | / | 15 | 15 |
| AC-3 | / | / | 11 | 11 |
| AC-4 | / | / | 3.5 | 3.5 |

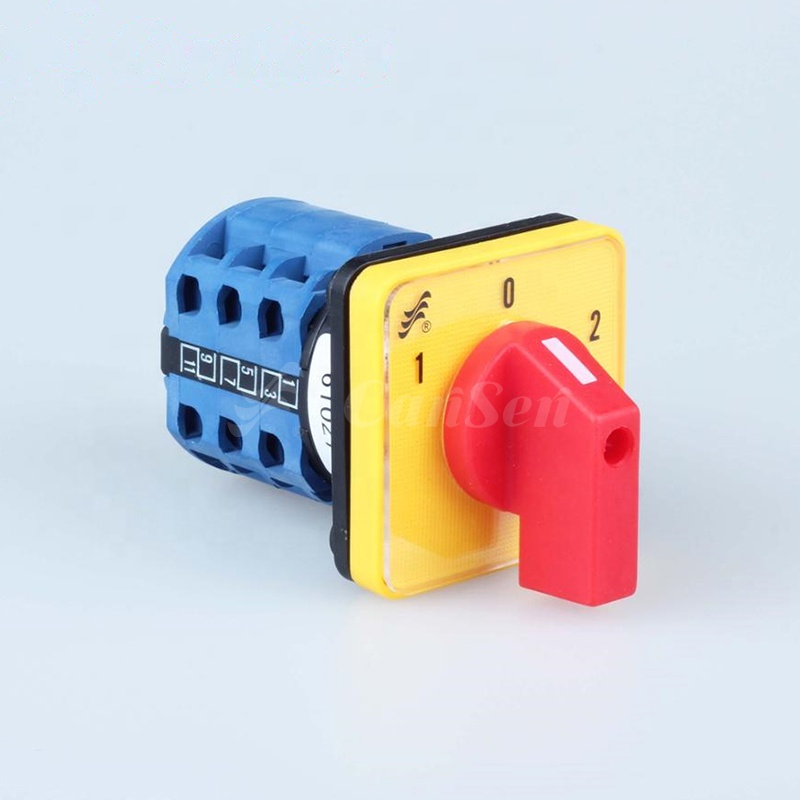

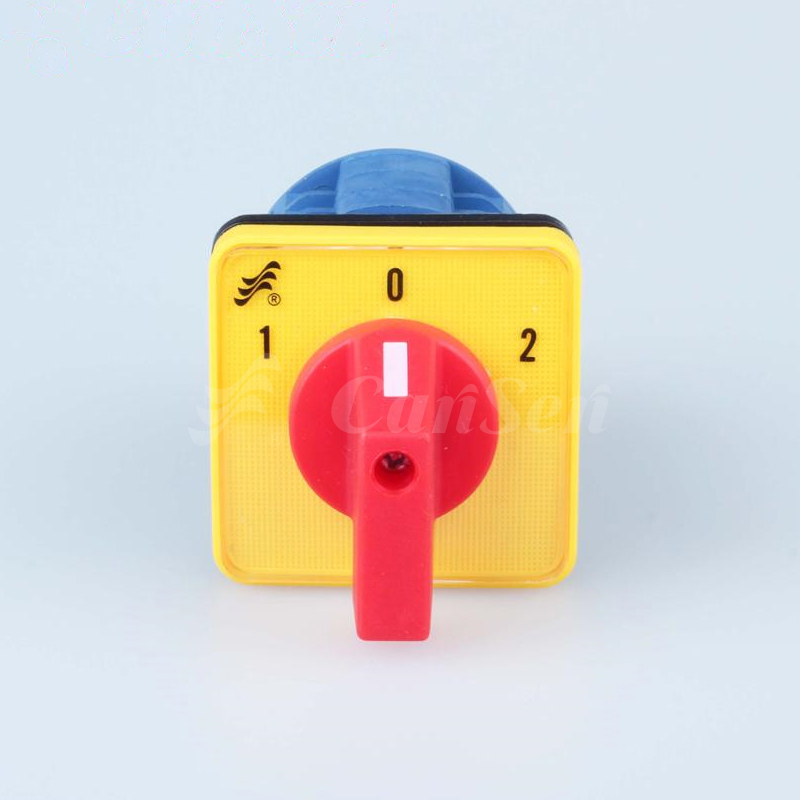

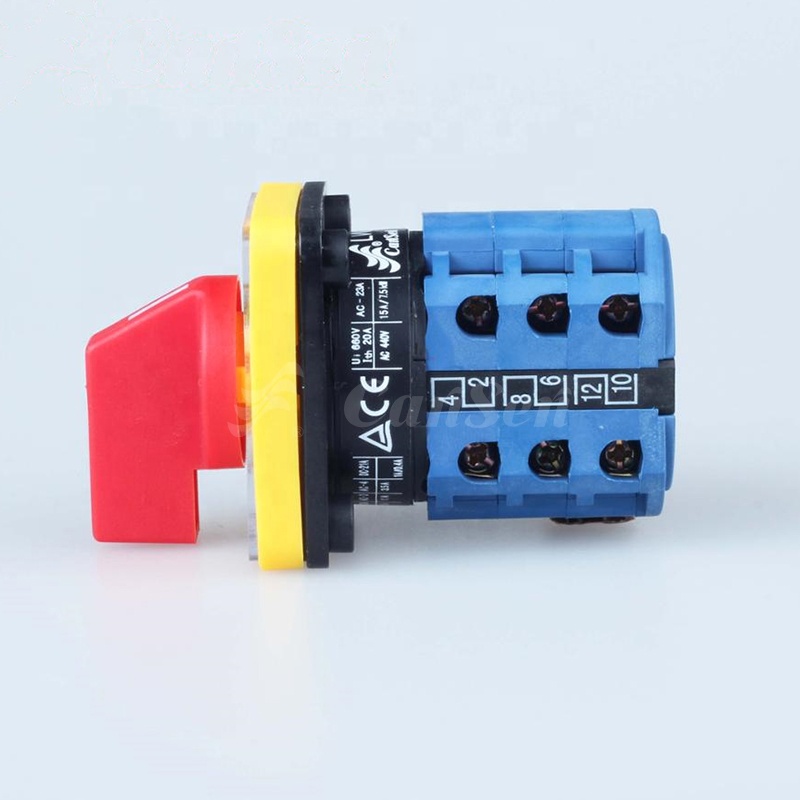

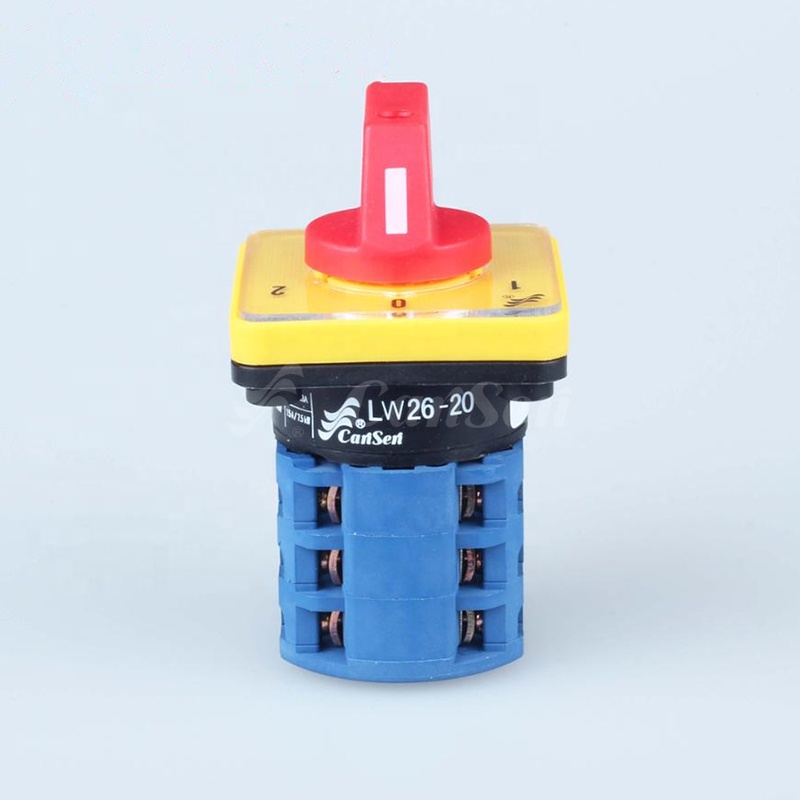

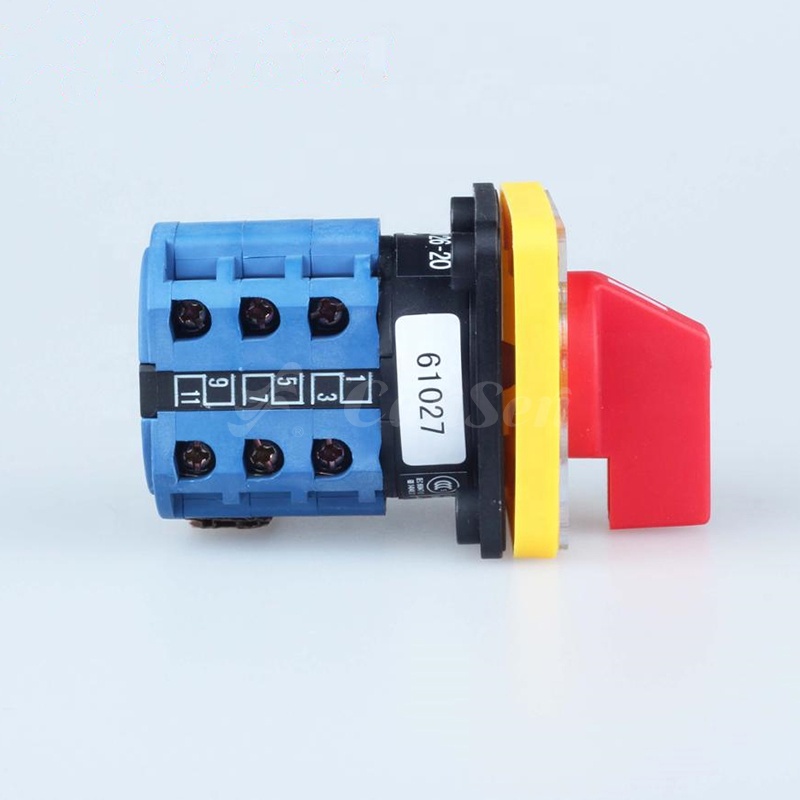

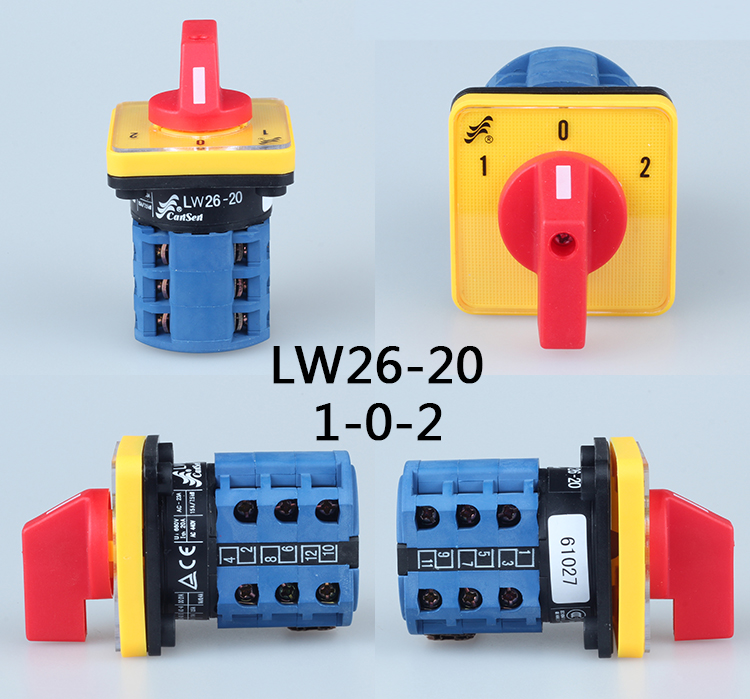

The LW26 series rotary switch mainly applies to 440V and below, AC 50Hz or 240V and below DC circuits. For breaking and closing, change-over of circuits under infrequent manual operation. Typical applications include control switch of 3-phase motors, control switch gear, control switch of instruments, and change-over switch of machinery and welding machines.
The series complies with GB 14048.3, GB 14048.5 and IEC 60947-3, IEC 60947-5-1 standards. They are designed for multiple functions and a wide variety of applications. We offer various derivatives including Pad-lock and Key-lock types for physical control requirements.
a. Ambient temperature should not exceed 40°C, and the average temperature, measured over a period of 24 hours, should not exceed 35°C.
b. Ambient temperature should not be below -25°C.
c. Should not be installed above 2000m above sea level.
d. The humidity should not exceed 50% when the ambient temperature is 40°C; higher humidity is allowed for lower temperatures.
a. A clean environment is required.

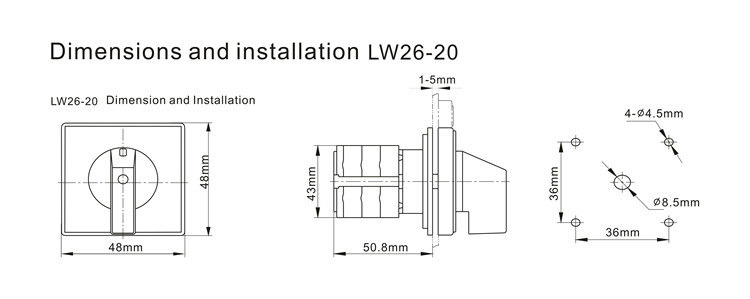

b. Please follow the provided technical manual for correct installation.

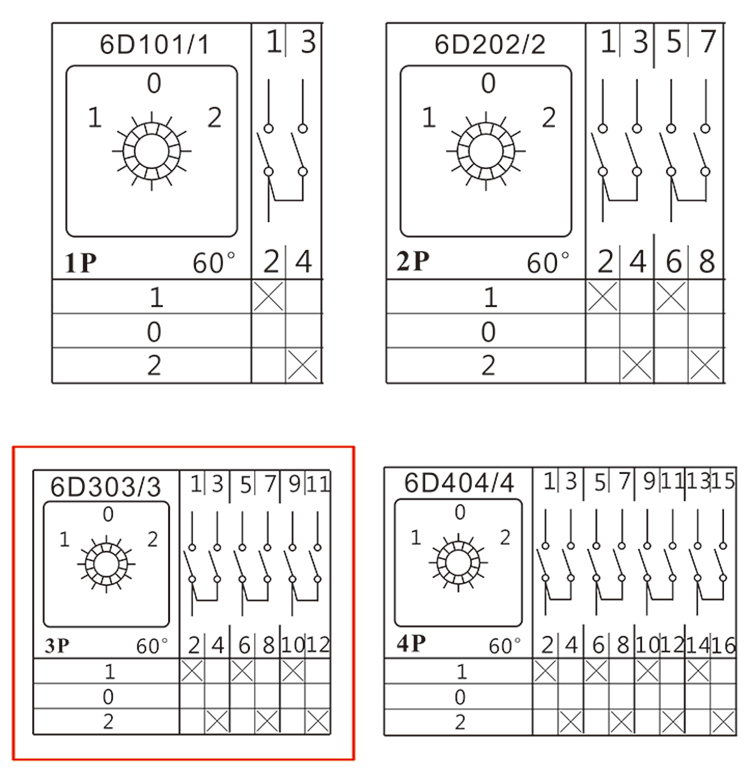

When placing an order, please specify the contact diagram of the product. The LW26 series rotary switch has a contact diagram similar to other rotary switches like LW2D, LW5D, LW6D, LW8D, LW12, LW15, HZ5D, and HZ25D.
In addition, please specify the current rating, mounting plate, handle type, color, and quantity. Due to continuous technological updates, we reserve the right to update the catalogue without further notice.
