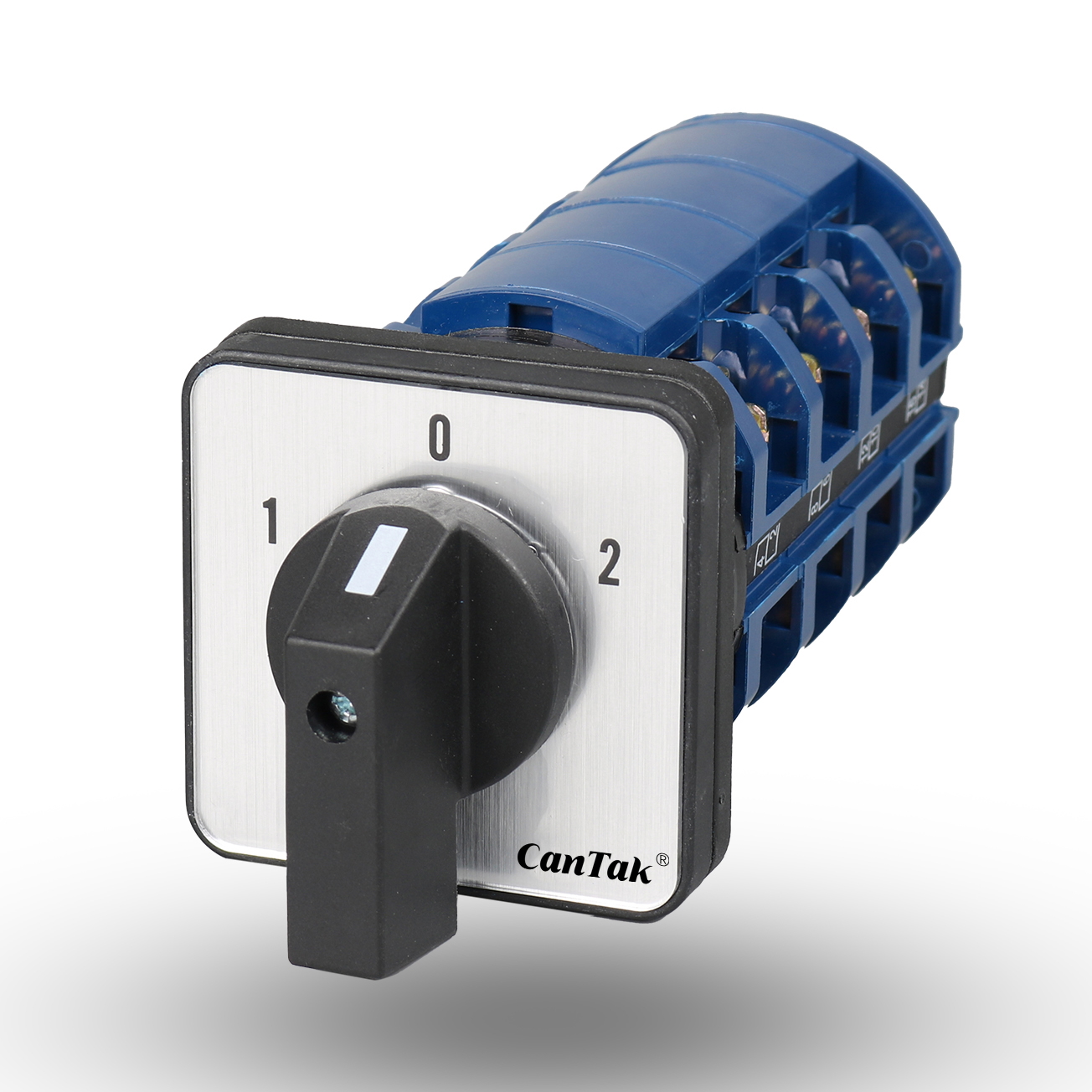

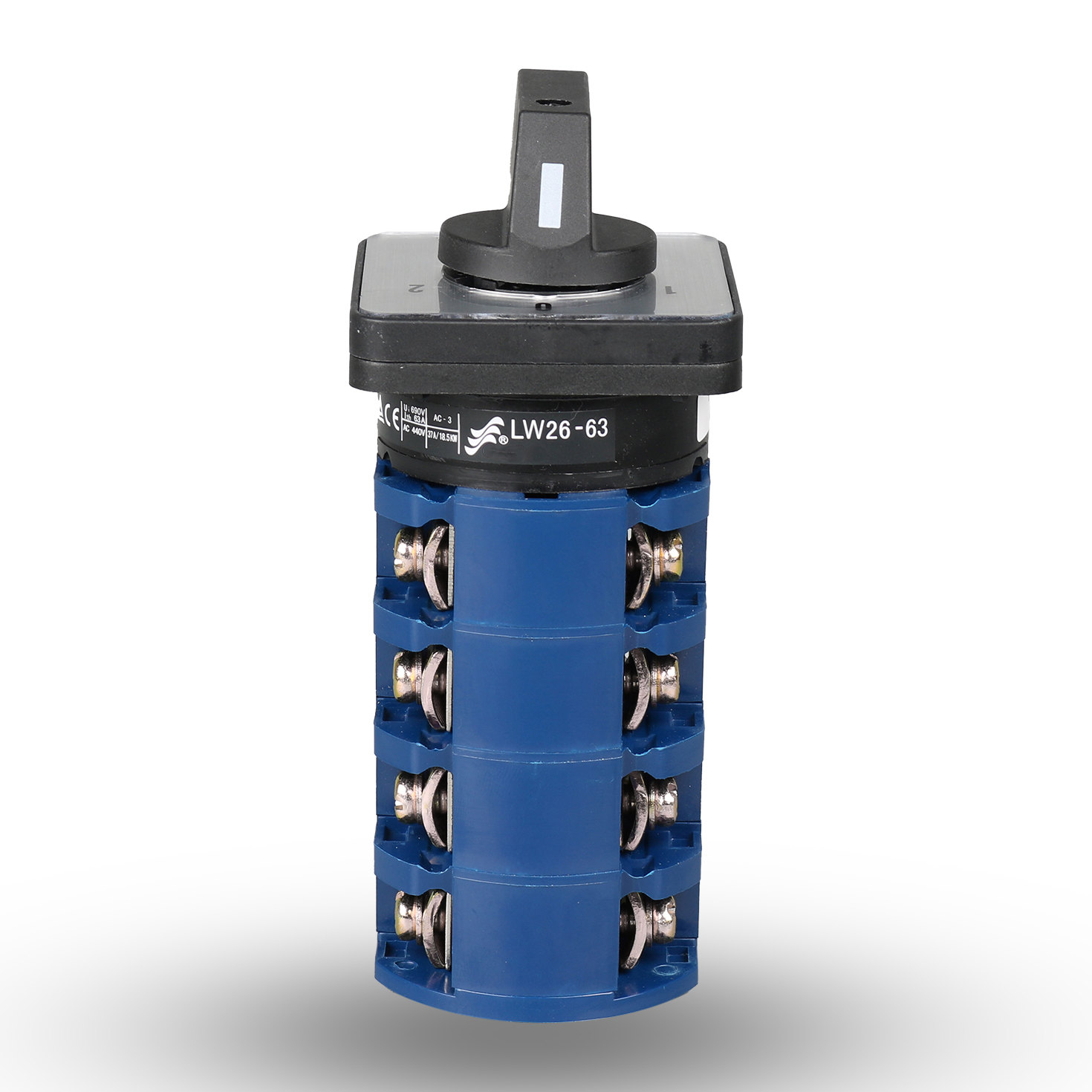

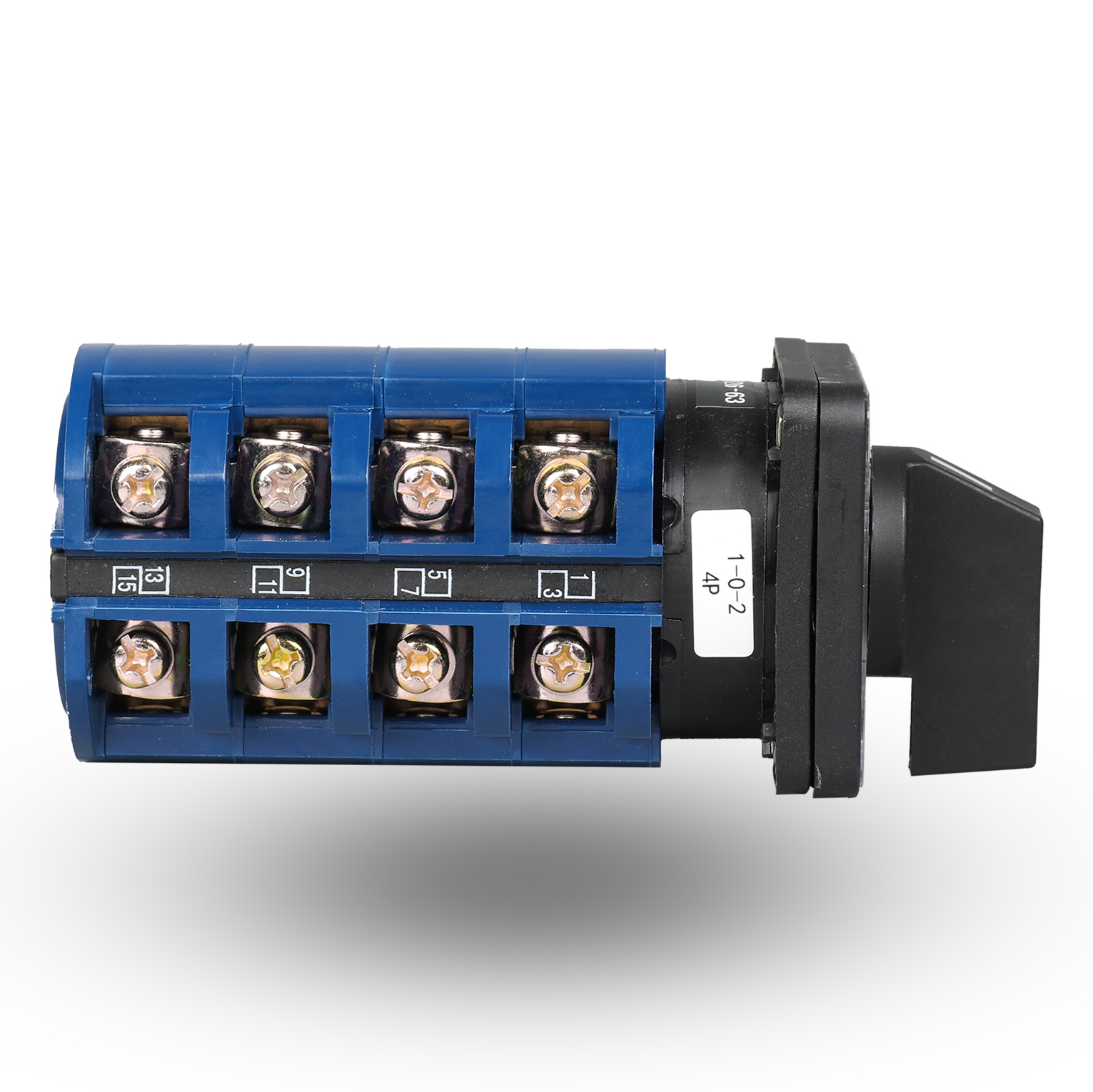

| Specification | LW26-63 | |
|---|---|---|
| LW26-63F | ||
| Rated insulation voltage | 660/690 | |
| Rated thermal current | 63 | |
| Rated working voltage | 240 | 440 |
| Rated working current | / | / |
| AC-21A | 63 | 63 |
| AC-23A | 57 | 57 |
| AC-2 | 57 | 57 |
| AC-3 | 36 | 36 |
| AC-4 | 15 | 15 |
| AC-15 | / | / |
| DC-13 | / | / |
| Power | / | / |
| AC-23A | 15/10 | 30/18.5 |
| AC-2 | 18.5 | 30 |
| AC-3 | 11/6 | 18.5/11 |
| AC-4 | 5.5/2.4 | 7.5/4 |

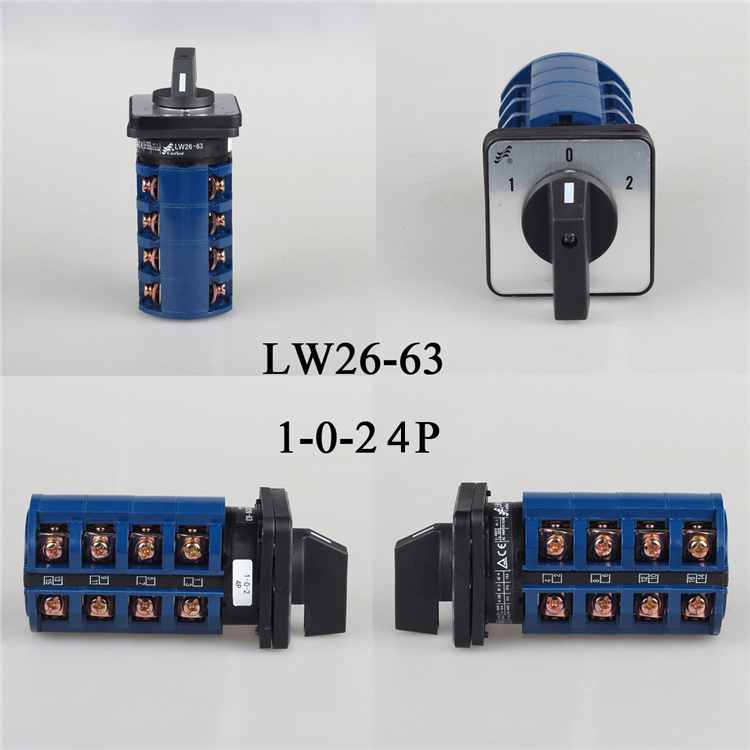

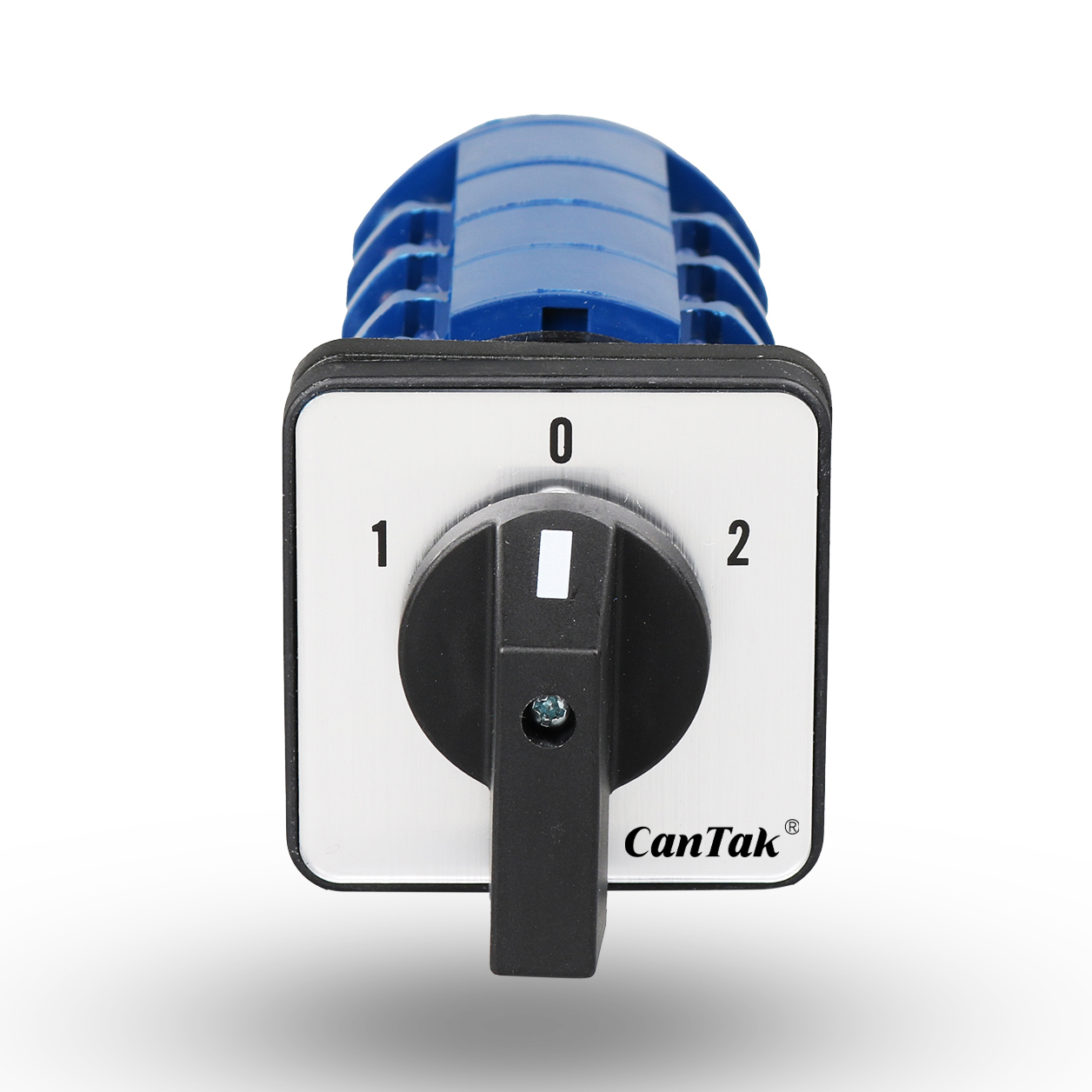

The LW26 series rotary switch mainly applies to 440V and below, AC 50Hz or 240V and below DC circuits.
For breaking and closing, change-over of circuits under unfrequently manual operation.
And the typical application are: control switch of 3 phase motors, control switch gear, control switch of instruments, and change-over switch of machinery and welding machine.
The series comply with the GB 14048.3, GB 14048.5 and IEC 60947-3, IEC 60947-5-1.
The LW26 series have 10 current ratings: 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A, 250A and 315A.
They were designed for multiple functions, wide variety of applications.
The LW26-10, LW26-20, LW26-25, LW26-32F, LW26-40F and LW-60F have finger protection terminals.
LW26 series rotary switch are an excellent substitute for LW2, LW5, LW6, LW8, LW12, LW15, HZ5, HZ10, and HZ12.
The LW26 series rotary switch has two derivatives, LW26GS Pad-lock type and LW26S Key-lock type.
Both of them are applicable in circuits when a physical control is required.
We can equip protective box (IP65) for 20A to 250A.

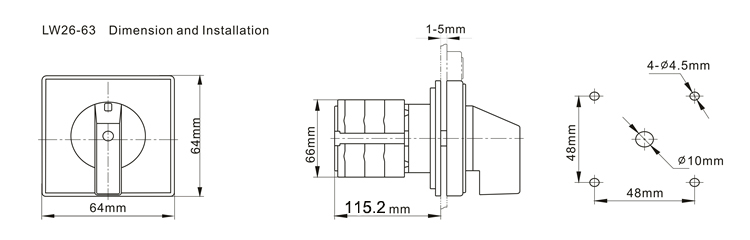

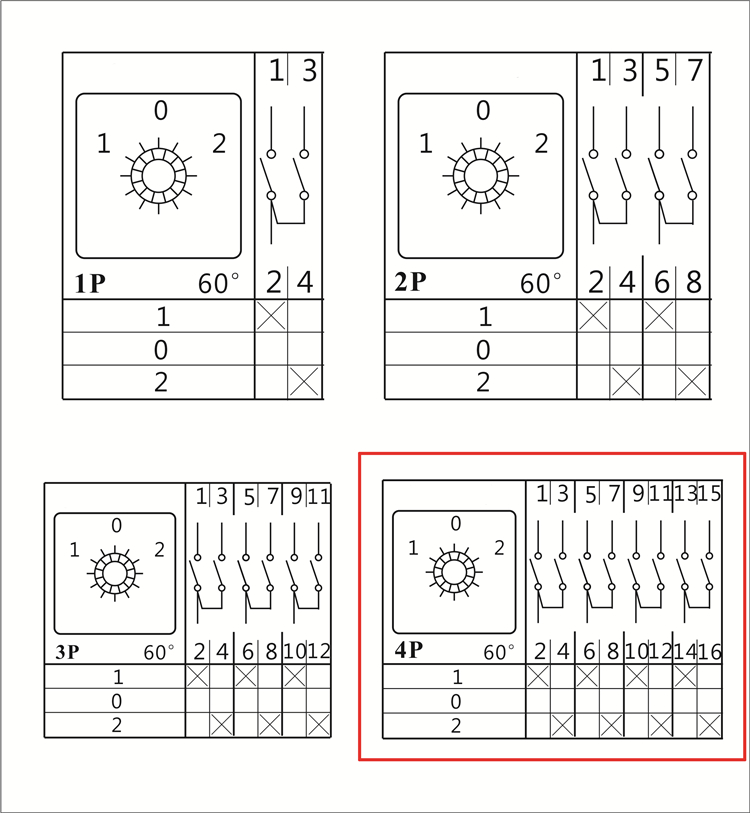

When placing an order please specify the contact diagram of the product you require. The LW26 series rotary switch have the similar contact diagram as the other rotary switches like LW2D, LW5D, LW6D, LW8D, LW12, LW15, HZ5D and HZ25D. Our factory have published <The General Contact Diagram for Rotary Switches> which will help you to specify the contact diagram.
In addition, please specify the current rating, mounting plate, handle type, color and quantity as well.
For instance: When ordering 20A, rotary angle 60°, character code C, contact diagram code 5391, M1 plate, black R handle 20 units. The order can be: LW26-20.6C5391/2A11R(M1R) 20 units.
Due to the update of the technologies, we reserve the right of updating the catalogue without further notices.
