| Specification | LW26-160 | |
| Rated insulation voltage | 660/690 | |
| Rated thermal current | 160 | |
| Rated working voltage | 240 | 240 |
| Rated working current | / | / |
| AC-21A | 150 | 150 |
| AC-23A | 135 | 135 |
| AC-2 | 135 | 135 |
| AC-3 | 95 | 95 |
| AC-4 | 95 | 95 |
| AC-15 | / | / |
| DC-13 | / | / |
| Power (AC-23A) | 37/22 | 75/37 |
| Power (AC-2) | 37 | 55 |
| Power (AC-3) | 22/11 | 37/18.5 |
| Power (AC-4) | 10/4 | 15/7.5 |

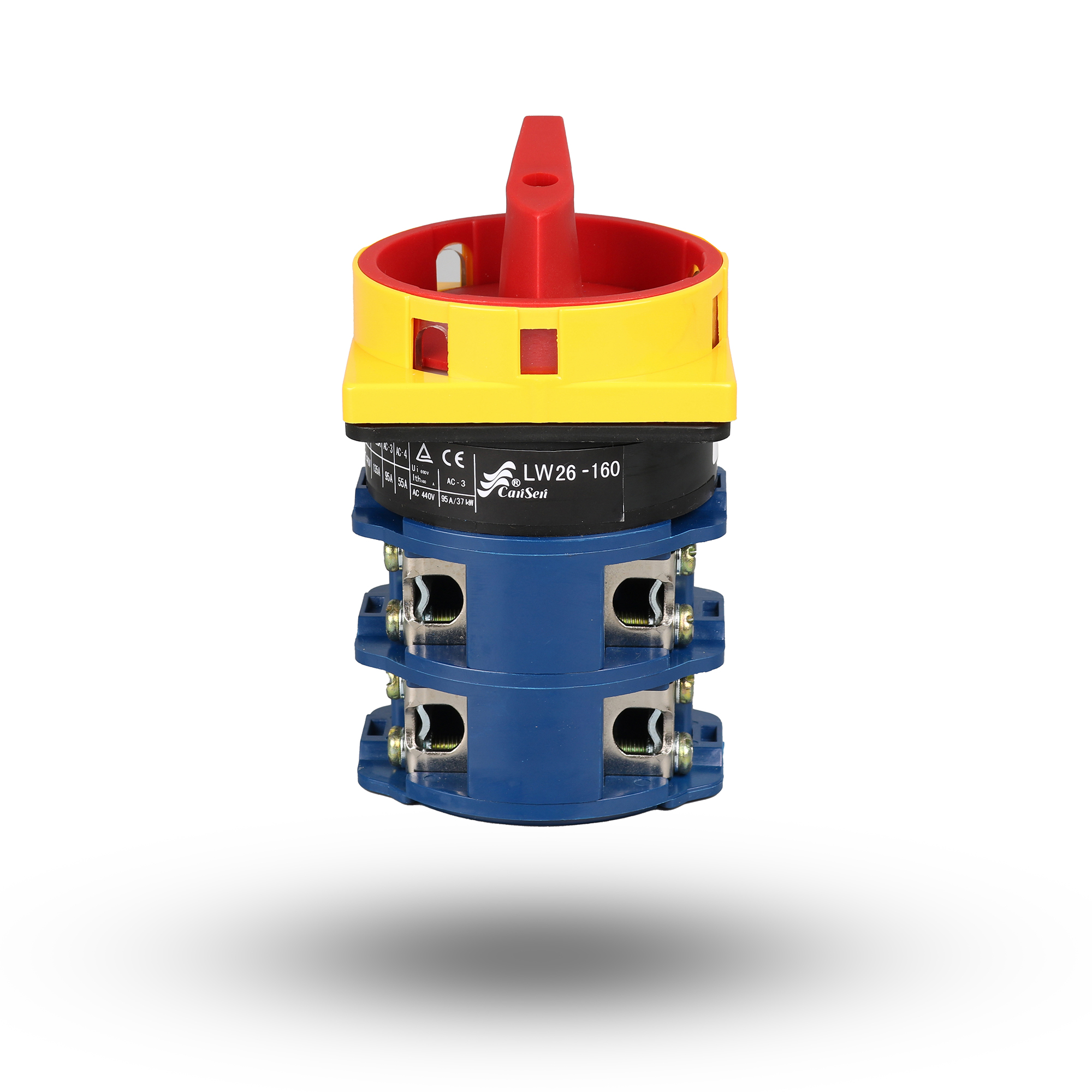

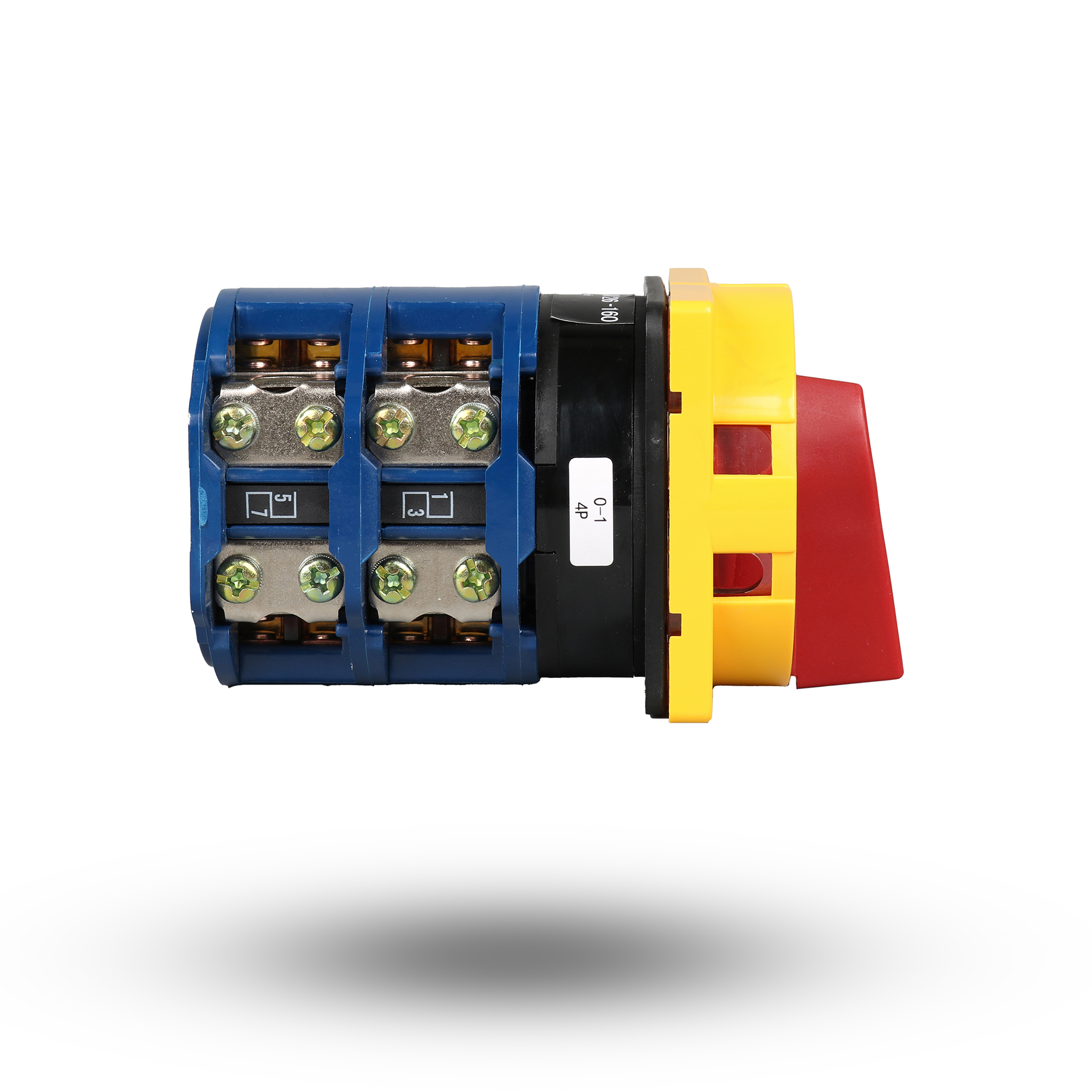

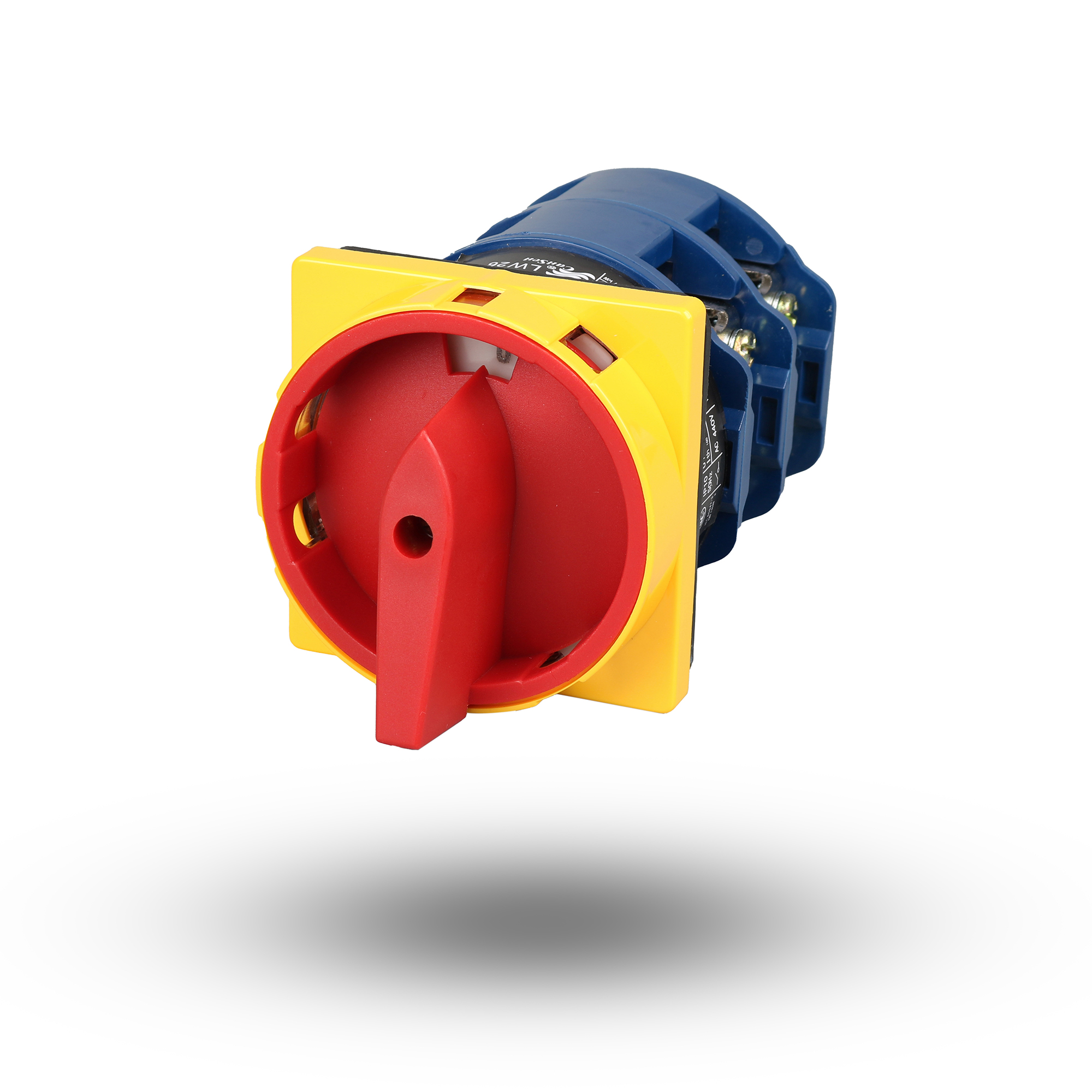

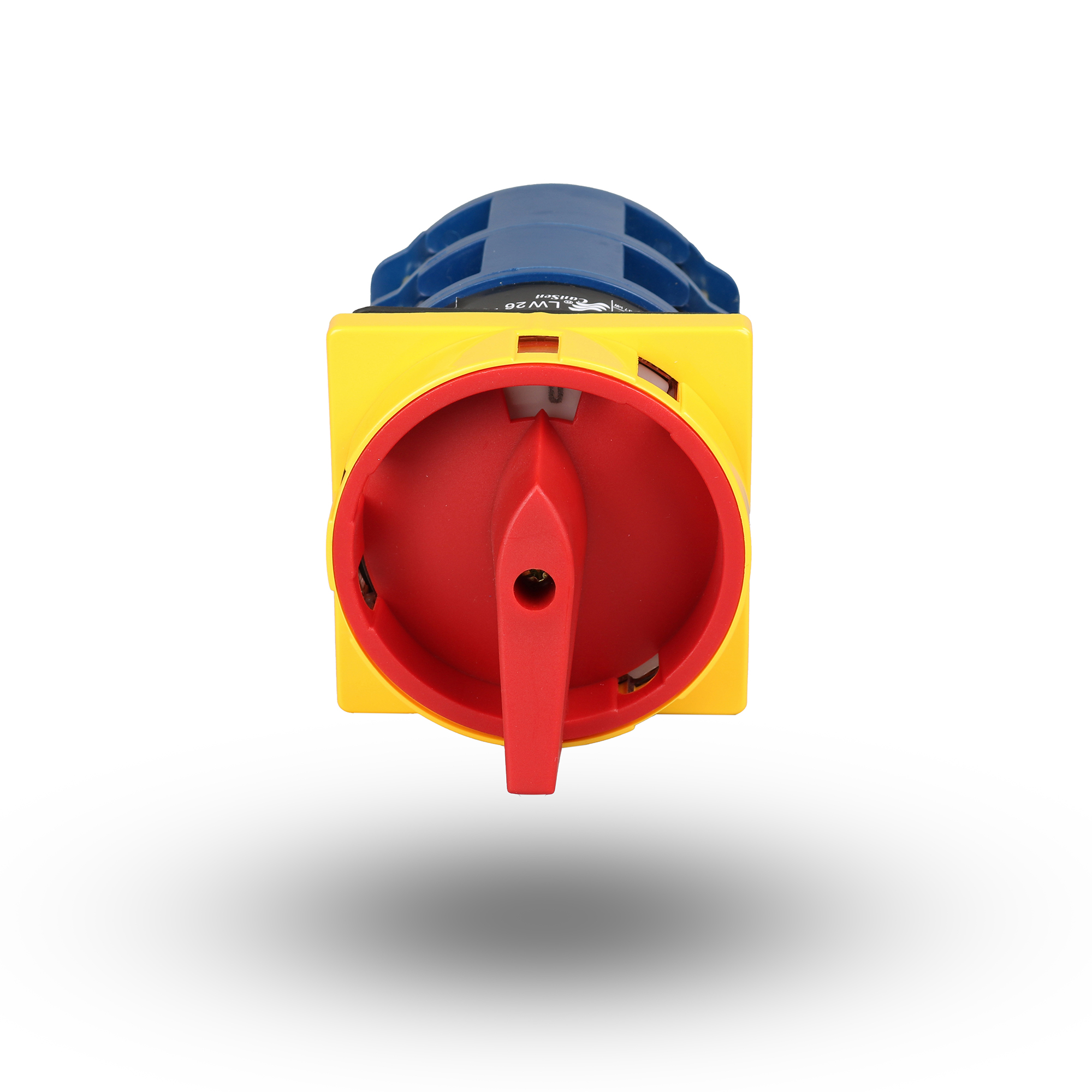

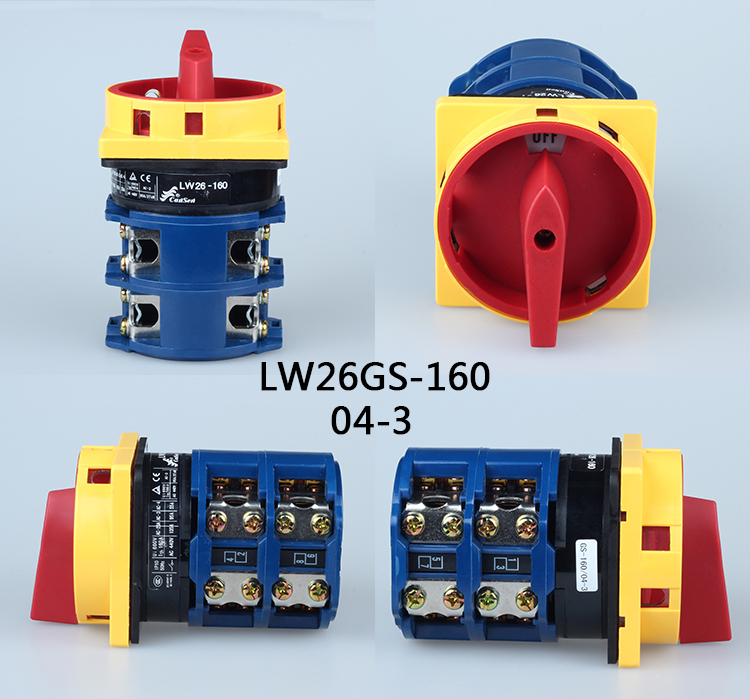

The LW26 series rotary switch mainly applies to 440V and below, AC 50Hz or 240V and below DC circuits for breaking and closing, and change-over of circuits under unfrequent manual operation. Typical applications include control switches for 3-phase motors, control switchgear, instruments, and change-over switches for machinery and welding machines.
The series complies with GB 14048.3, GB 14048.5, IEC 60947-3, and IEC 60947-5-1 standards. LW26 series rotary switches are an excellent substitute for older series like LW2, LW5, LW6, LW8, LW12, LW15, HZ5, HZ10, and HZ12. We can also provide protective boxes (IP65) for models ranging from 20A to 250A.
A clean environment is required for installation. Please ensure you strictly follow the provided operation manual for wiring and configuration.

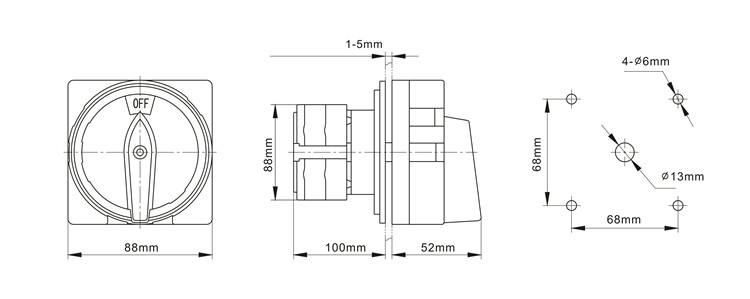

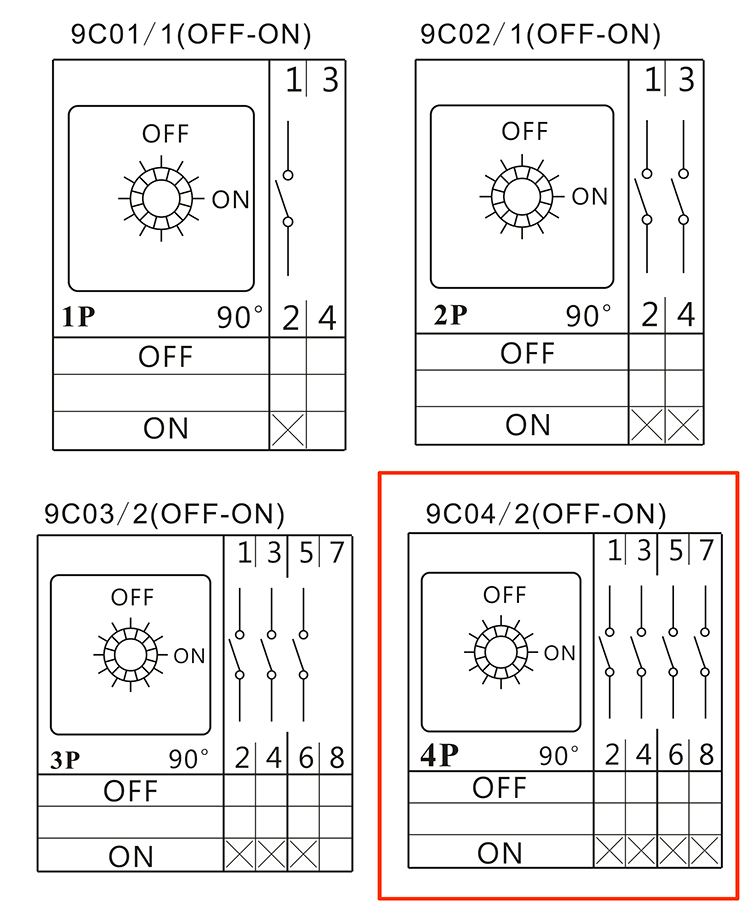

When placing an order, please specify the contact diagram. We have published "The General Contact Diagram for Rotary Switches" to assist with your selection. Additionally, please clarify the current rating, mounting plate, handle type, color, and quantity required.
Example: For 20A, rotary angle 60°, character code C, contact diagram code 5391, M1 plate, black R handle, 20 units; your order reference would be: LW26-20.6C5391/2A11R(M1R)20units.
