| Specification | LW26-32 | LW26-32F |
|---|---|---|
| Rated insulation voltage | 660/690 | |
| Rated thermal current | 32 | |
| Rated working voltage | 240 | 240 |
| AC-21A | 32 | 32 |
| AC-23A | 30 | 30 |
| AC-2 | 30 | 30 |
| AC-3 | 22 | 22 |
| AC-4 | 11 | 11 |
| AC-15 | 14 | 6 |
| Power (AC-23A) | 7.5/4 | 15/7.5 |
| Power (AC-2) | 7.5 | 15 |
| Power (AC-3) | 5.5/4 | 11/5.5 |
| Power (AC-4) | 2.7/1.5 | 5.5/3 |

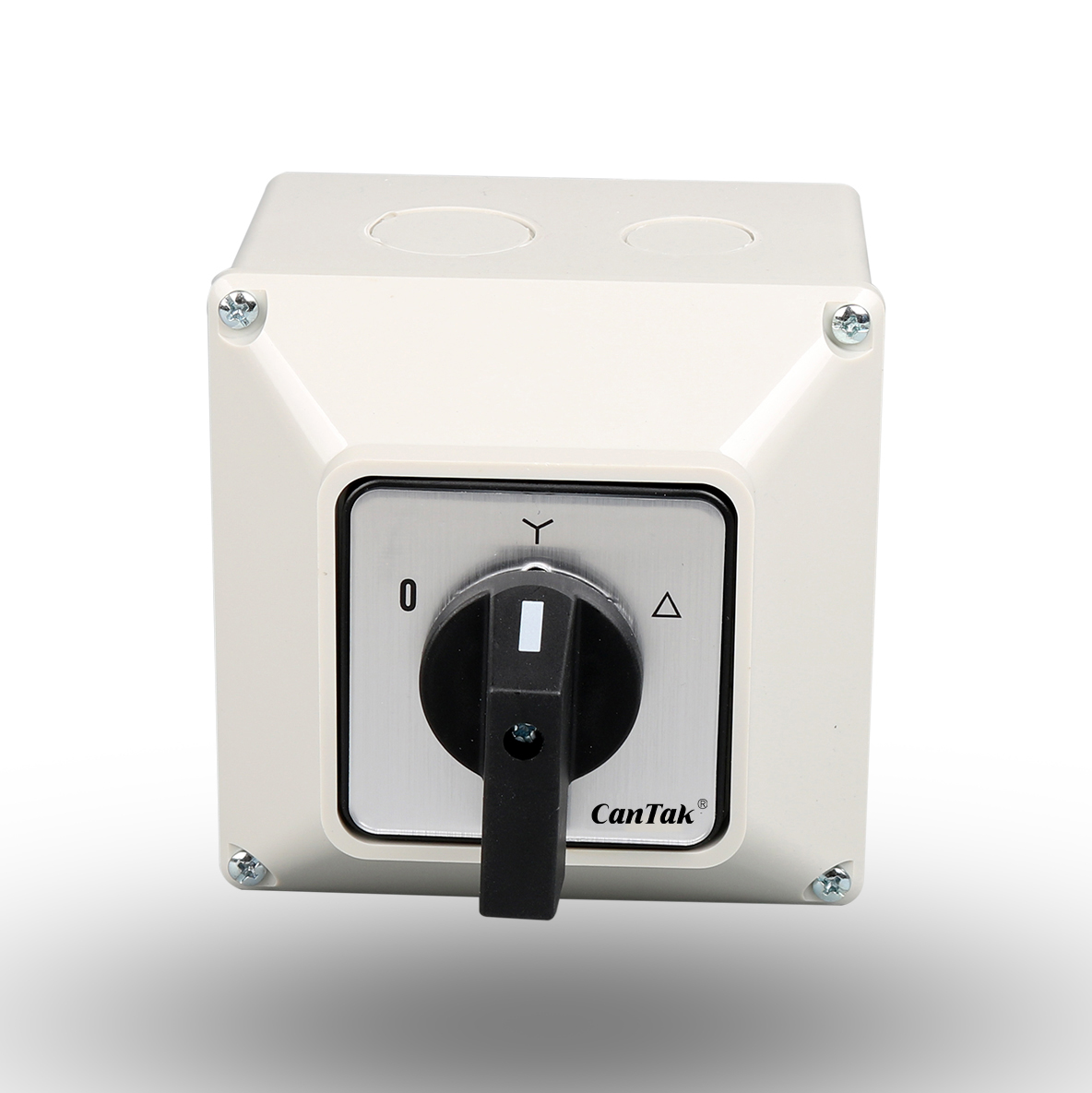

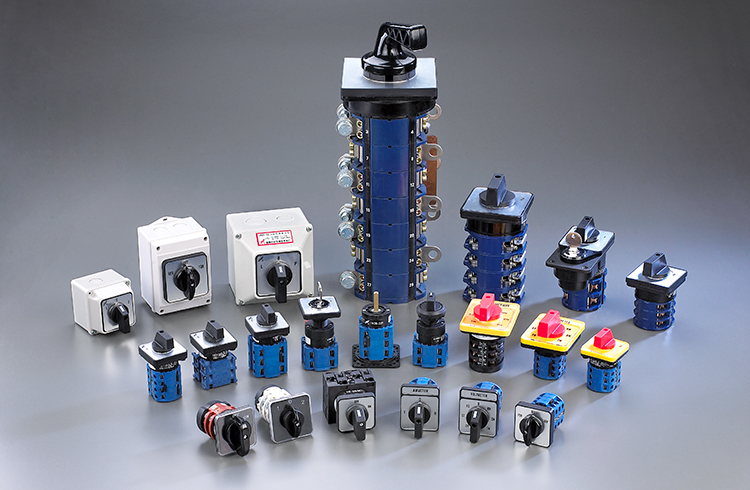

The LW26 series rotary switch mainly applies to 440V and below AC 50Hz or 240V and below DC circuits. Designed for breaking and closing, change-over of circuits under infrequent manual operation.
Typical Applications: Control switch of 3-phase motors, control switch gear, instrument control, and change-over switch for machinery and welding machines.
Standards: Complies with GB 14048.3, GB 14048.5 and IEC 60947-3, IEC 60947-5-1.

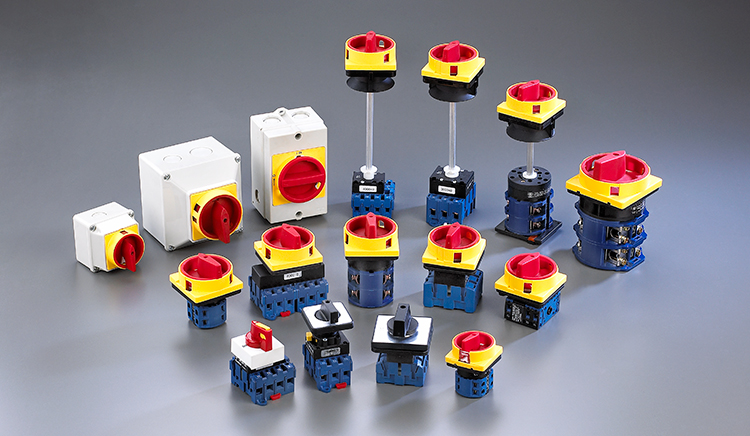

Current Ratings: Available in 10A, 20A, 25A, 32A, 40A, 63A, 125A, 160A, 250A and 315A.

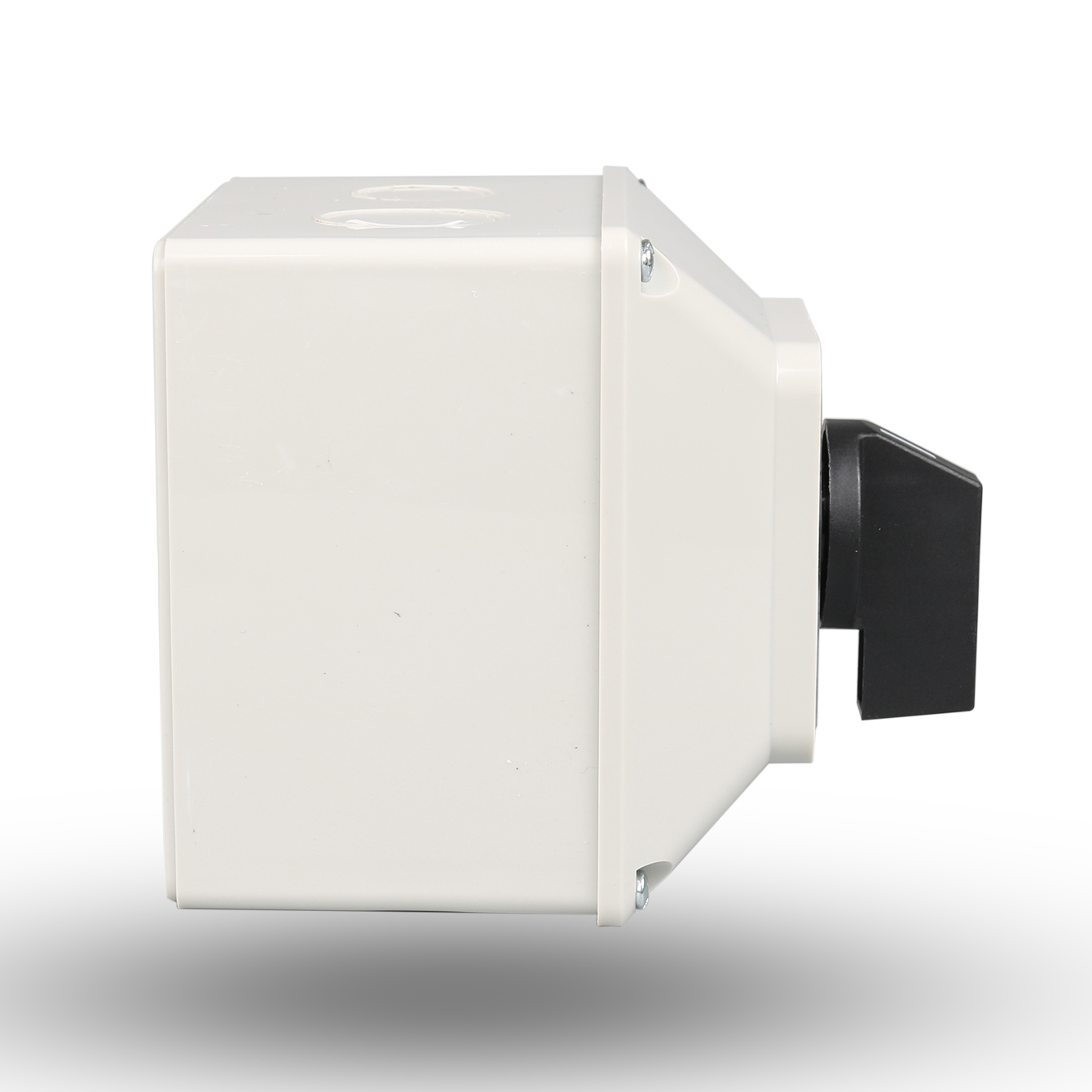

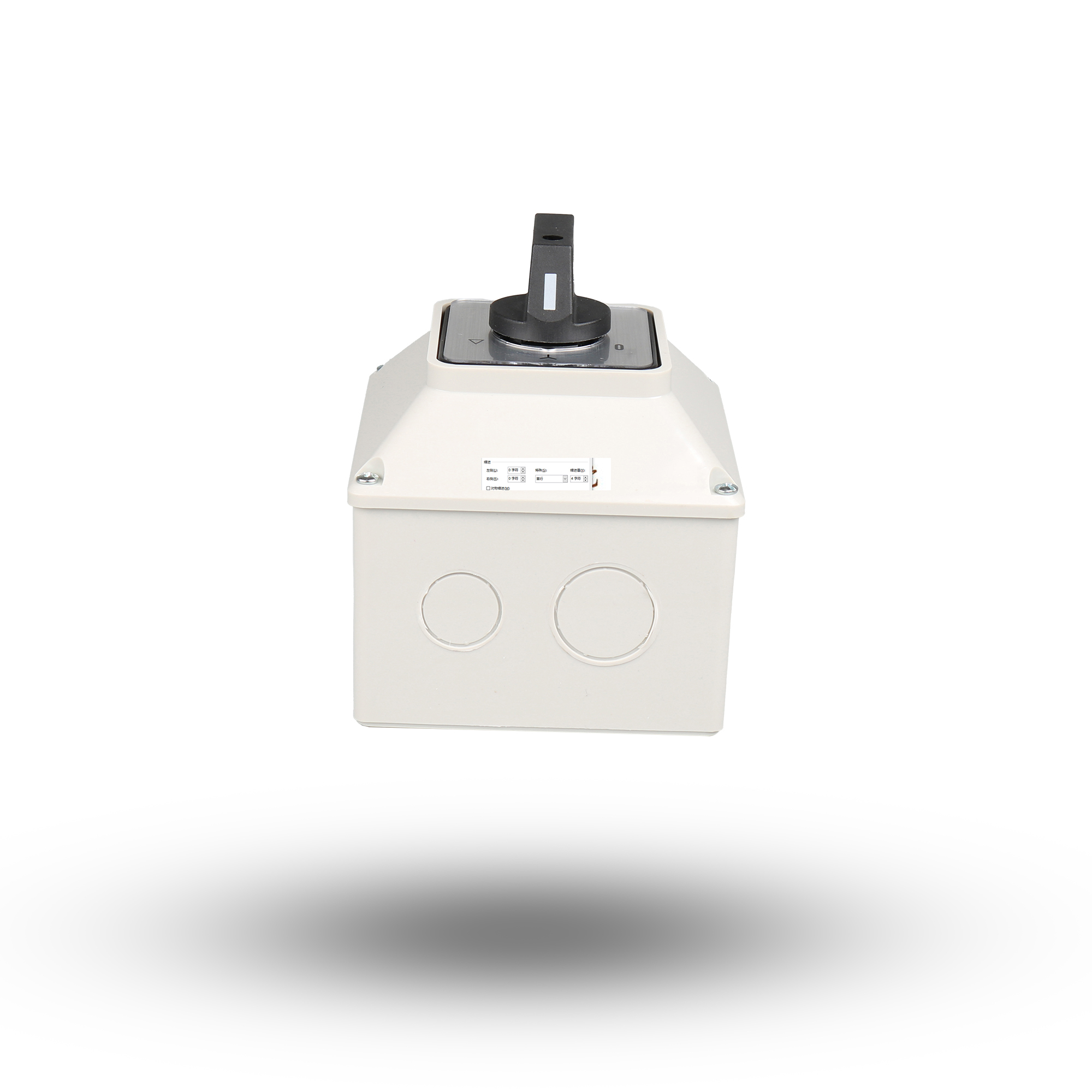

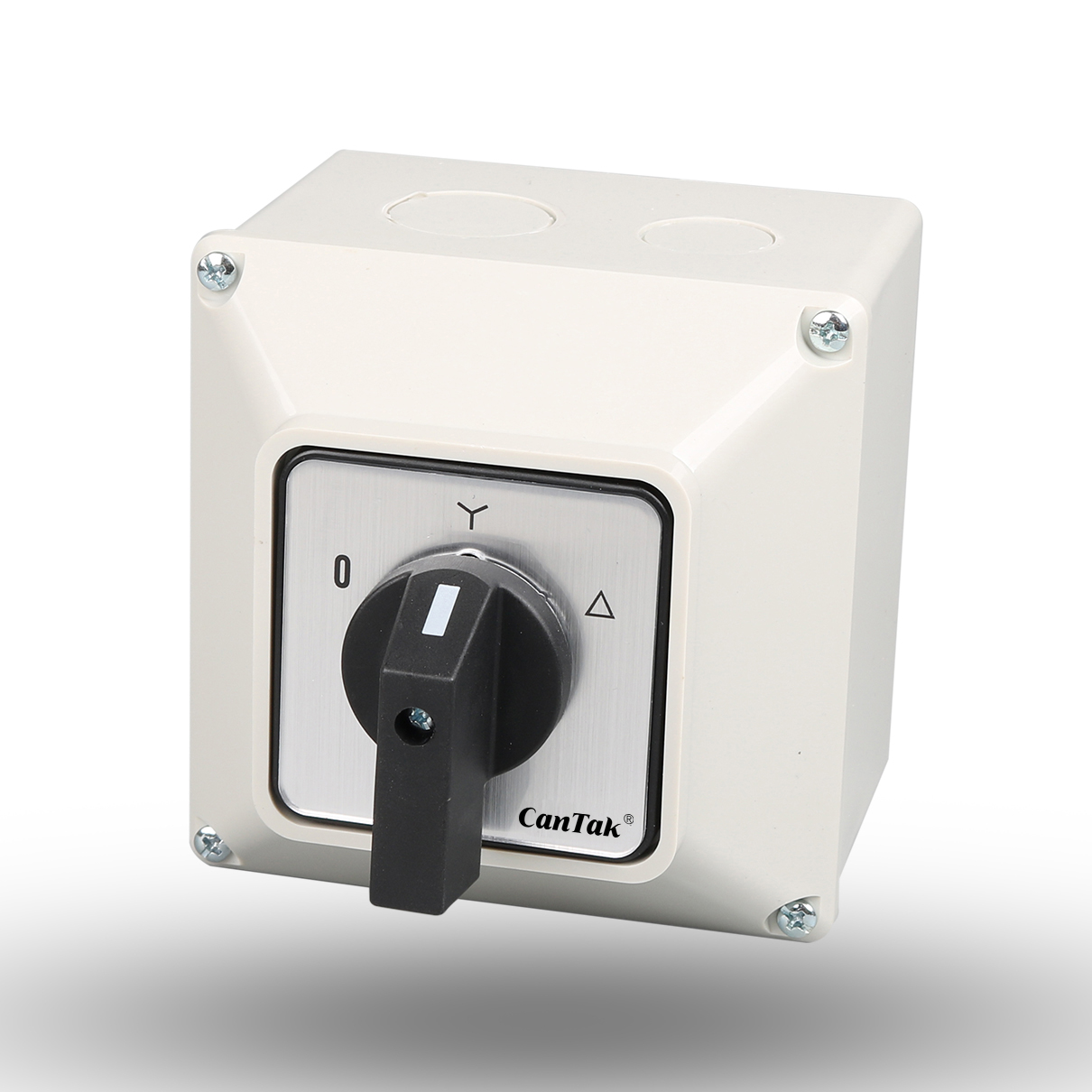

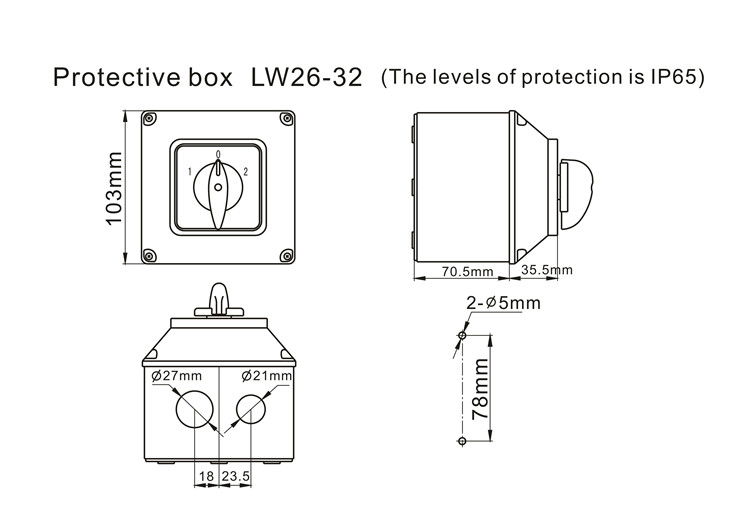

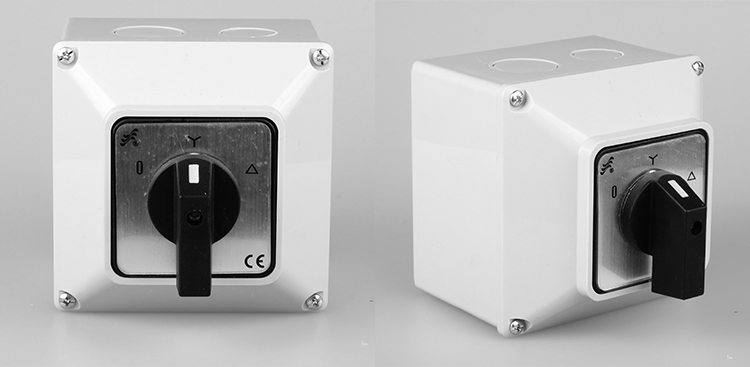

Special Features: Finger protection terminals available for specific models. Derivative types include LW26GS Pad-lock and LW26S Key-lock for physical control requirements. Protective boxes (IP65) can be equipped for 20A to 250A.

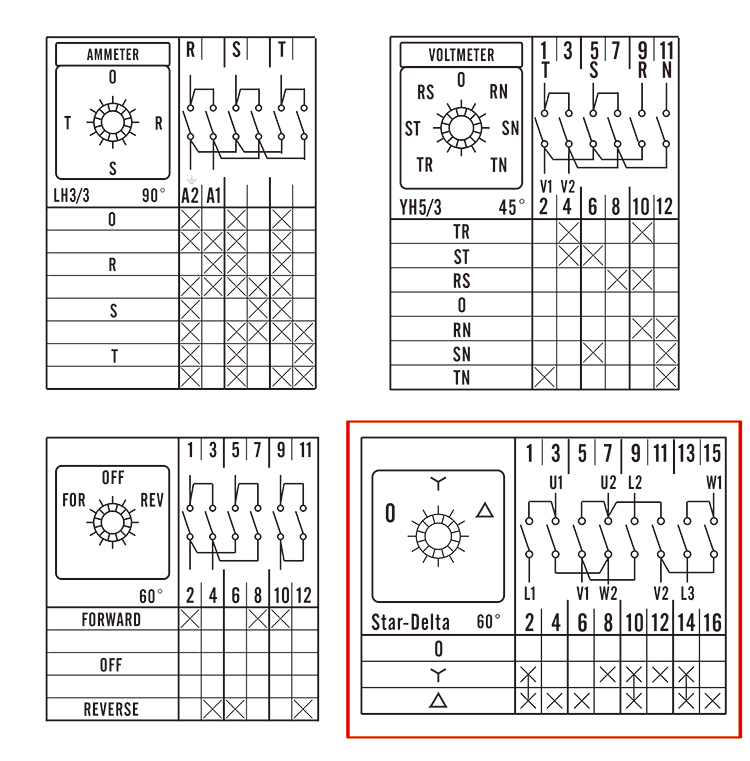

When placing an order, please specify the contact diagram. The LW26 series shares similar contact diagrams with LW2D, LW5D, LW6D, LW8D, LW12, LW15, HZ5D, and HZ25D series.
Order Details Required: Current rating, mounting plate type, handle type, color, and quantity.
Example: 20A, 60° angle, character code C, contact diagram 5391, M1 plate, black R handle, 20 units.
