Product Description

Product Description

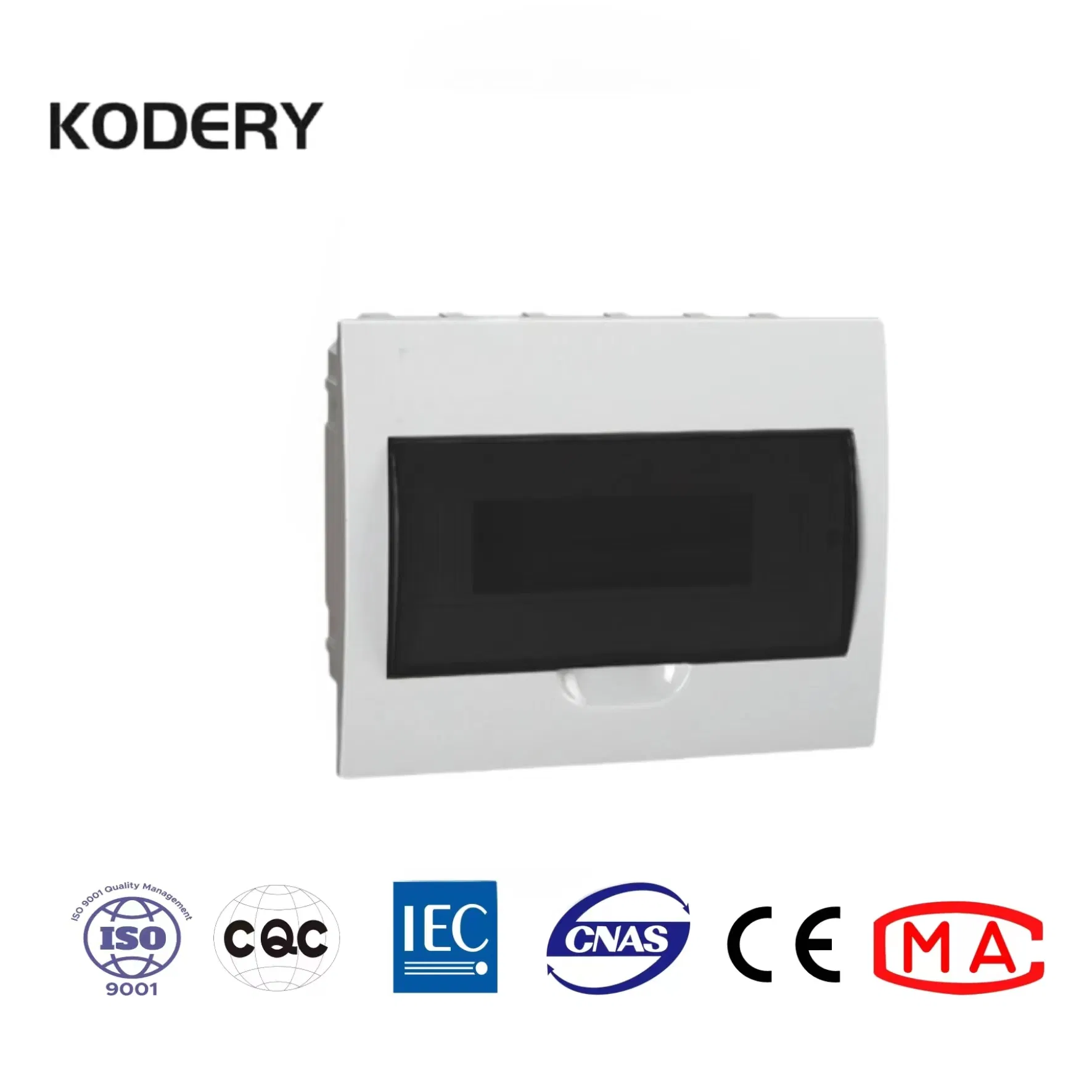

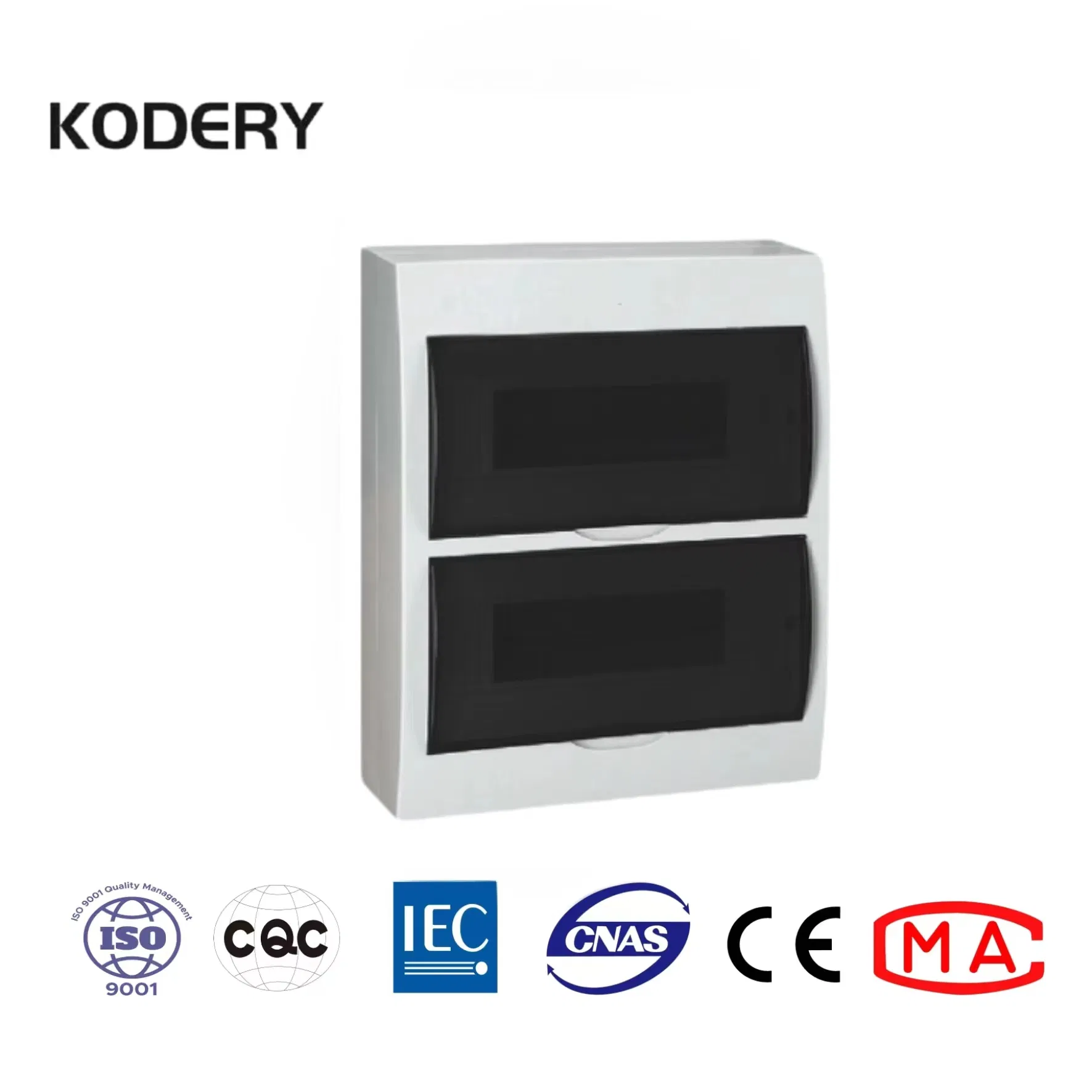

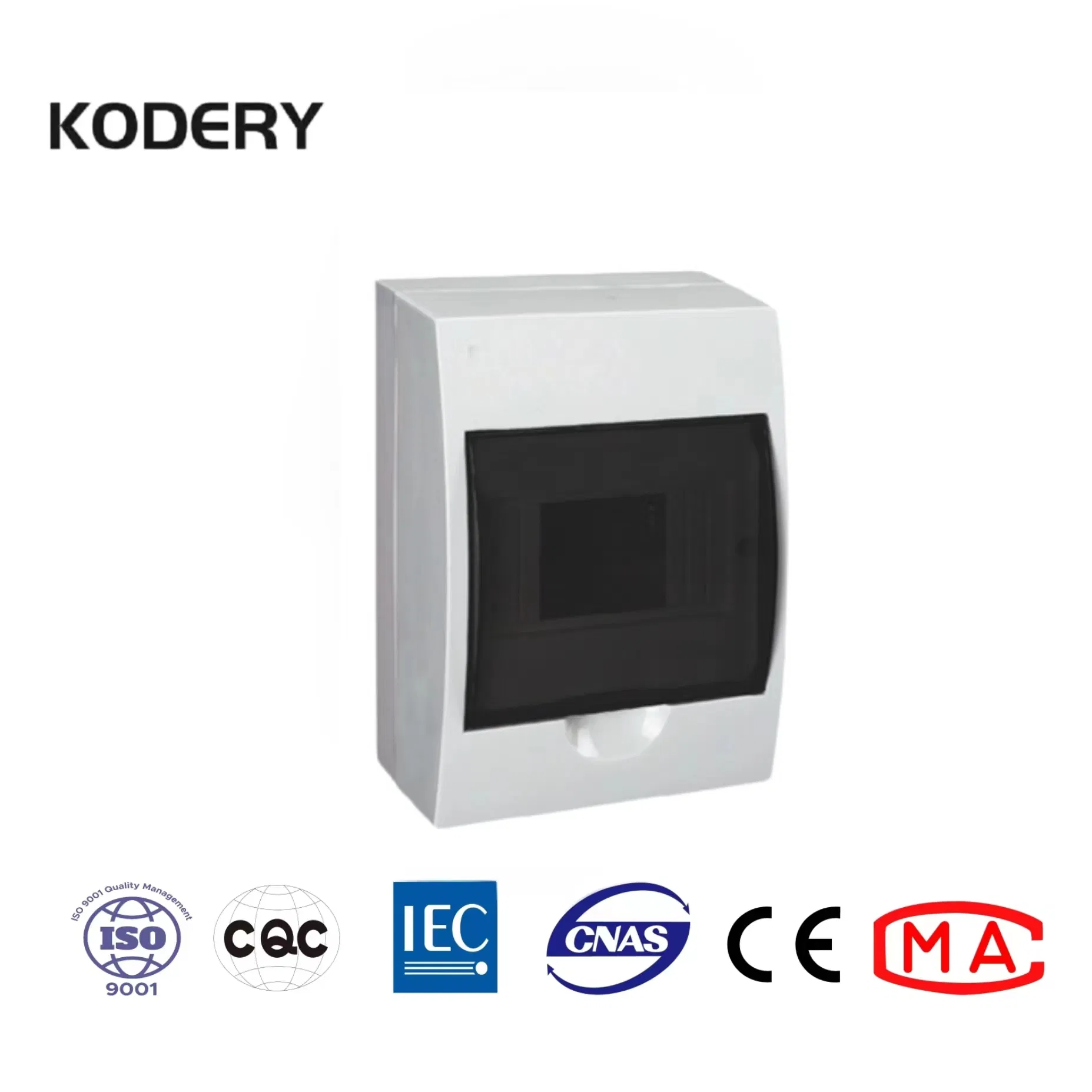

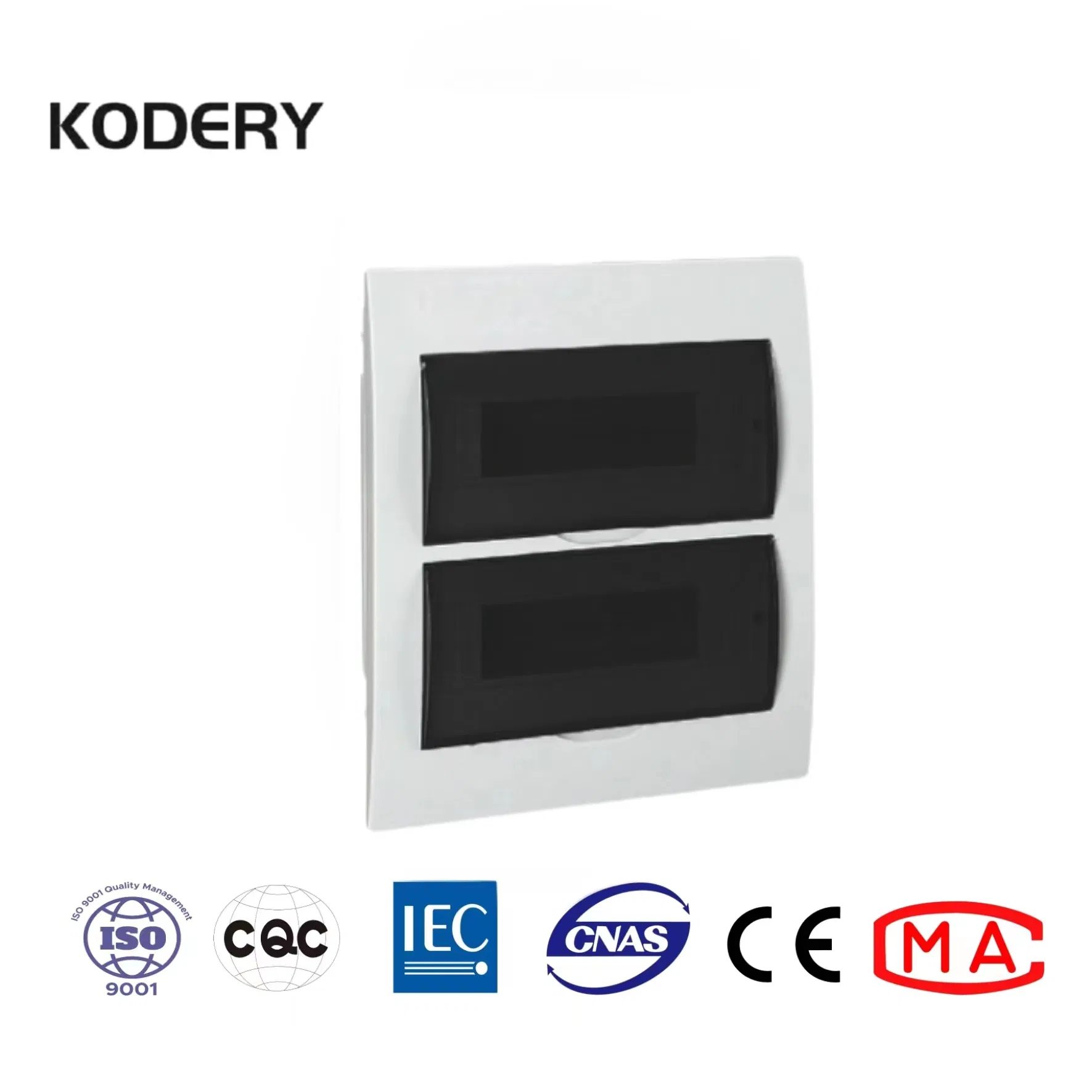

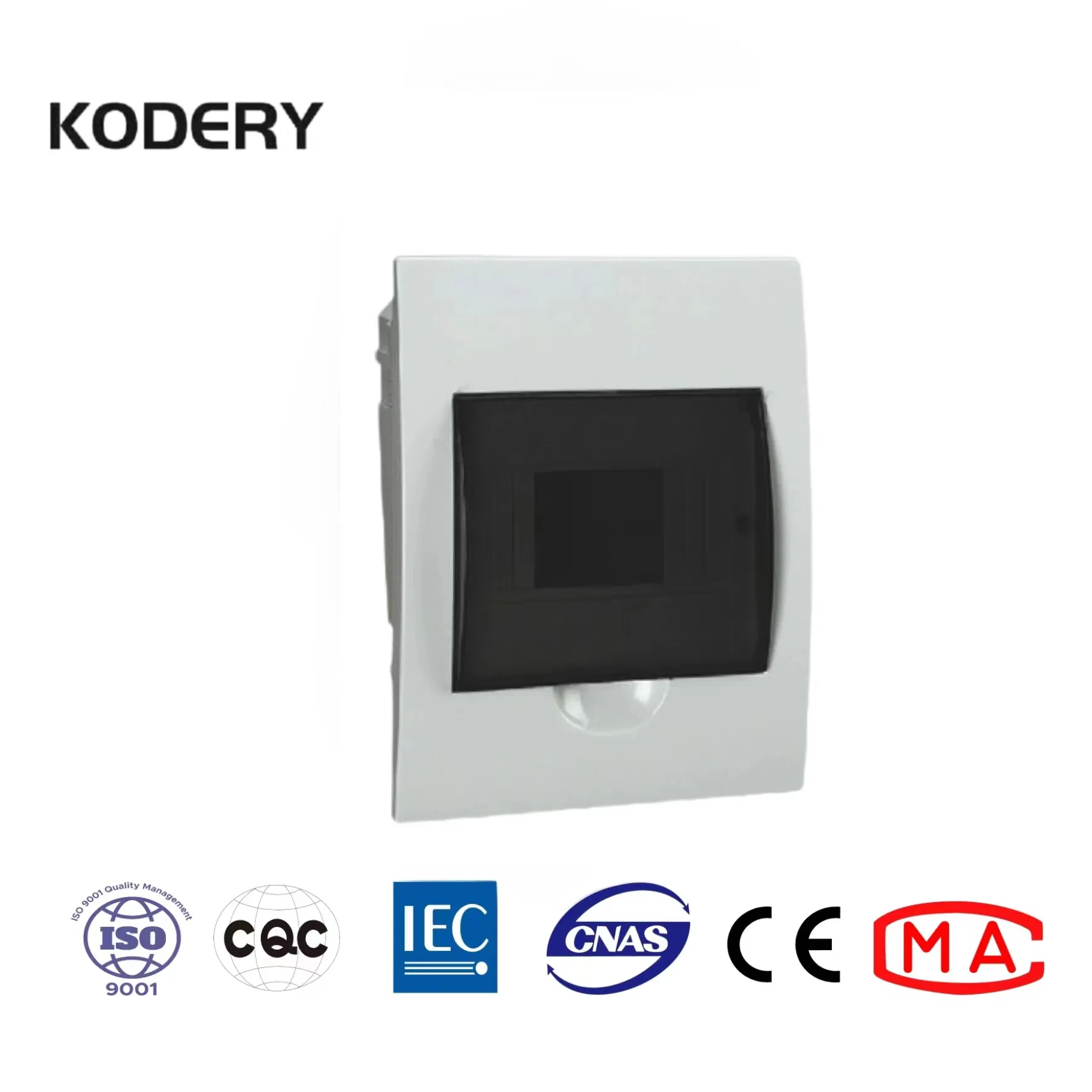

Distribution Box (DB-FT/FN)
This product applies to terminal of AC 50/60 Hz, rated operating voltage up to 400 V and rated current up to 63A, equipped with various modular electric for function of electric energy distribution, control, (short circuit, overload, earth leakage, over-voltage) protection, signal, measurement of terminal electric appliance.

Door Design
Equipped with transparent / non-transparent door. Single row: door open upward 90 degrees.
Rated Current
4 ways 50A, 6-36 ways 63A.
Premium Material
Insulating, self-extinguishing fire-resistant material.
Protection Level
Indirect contact proof 2 protection.

Product Parameters

Surface mounting
Model number Material ABS-PC
Dimension L W H
DB104/ST/SN 4ways 52 24 42.5
DB106/ST/SN 6ways 52 34.5 42.5
DB108/ST/SN 8ways 52 38.5 42.5
DB112/ST/SN 12ways 52 27 42.5
DB118/ST/SN 18ways 54.5 37.5 45.6
DB124/ST/SN 24ways 55 34.5 56
DB136/ST/SN 36ways 49.5 32.5 59.5

Detailed Photos

Surface Mounting Distribution Box / Consumer Units
Surface Mounting Distribution Box / Consumer Units
Surface Mounting Distribution Box / Consumer Units
Surface Mounting Distribution Box / Consumer Units
Surface Mounting Distribution Box / Consumer Units

Company Profile

Surface Mounting Distribution Box / Consumer Units
Surface Mounting Distribution Box / Consumer Units
Surface Mounting Distribution Box / Consumer Units
Surface Mounting Distribution Box / Consumer Units
Surface Mounting Distribution Box / Consumer Units
Surface Mounting Distribution Box / Consumer Units

Frequently Asked Questions (FAQ)

What is the main application of the DB-FT/FN Distribution Box?
This distribution box is designed for terminals of AC 50/60 Hz with a rated operating voltage up to 400V and rated current up to 63A. It is widely used for electric energy distribution, control, signals, measurement, and protection features including short circuit, overload, earth leakage, and over-voltage protection.
What materials are used in manufacturing these distribution boxes?
The distribution boxes are built with high-quality, insulating, and self-extinguishing fire-resistant ABS-PC material, ensuring enhanced safety, durability, and reliable performance.
What are the door options and opening mechanism for the unit?
It comes equipped with options for both transparent and non-transparent doors. For single-row versions, the door opens upward to a full 90 degrees for convenient maintenance and operation.
How many modules or 'ways' are available for surface mounting?
The surface mounting models offer a variety of options including 4, 6, 8, 12, 18, 24, and 36 ways to meet different installation scales and circuit requirements.
What is the protection rating and rated current of the distribution box?
The rated current for the 4-way models is 50A, and for the 6 to 36-way models, it is 63A. The box has an indirect contact proof 2 safety protection level to ensure secure user interaction.
