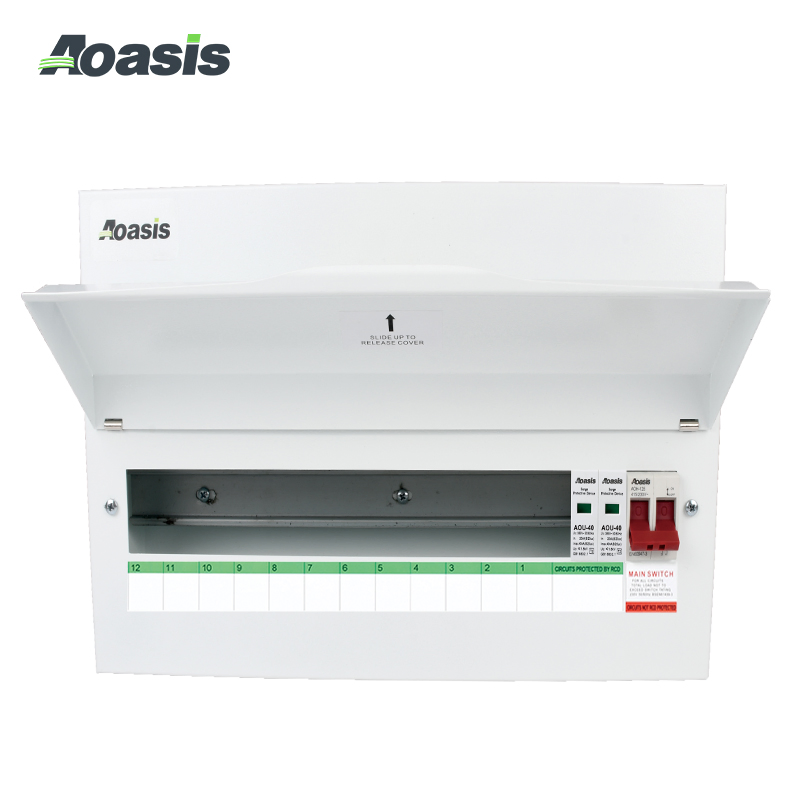

Aoasis Aox1-20m/Hu Distribution Box Factory Electrical Equipment Home Electrical Unit Consumer Units

Product Description

Product Description
Consumer Unit is suitable for residences, apartments, villas, hotels, commercial buildings and other places. Used in conjunction with modular low-voltage power distribution products, it provides a safe, stable and complete indoor low-voltage terminal power distribution solution for the real estate developers, electrical switchgear manufacturers, and end users.
Main Technical Parameter
MSD is give priority to switch and SPD division unit load consumer
Product model Main switch configuration Available loop element
Miniature Switch Disconnector Quantity Surge Protection Device Quantity
AOX1-07M/H-2 AOH-125 100A 1 AOU-65 1 3
AOX1-10M/H-2 AOH-125 100A 1 AOU-65 1 6
AOX1-13M/H-2 AOH-125 100A 1 AOU-65 1 9
AOX1-16M/H-2 AOH-125 100A 1 AOU-65 1 12
AOX1-21M/H-2 AOH-125 100A 1 AOU-65 1 17
Optional matching circuit protection products
Product name Product model Current specification
(MSD) Miniature Switch Disconnector AOH-125 25A, 40A, 63A, 80A, 100A, 125A
(RCD) Residual Current Device AOLR-100 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
(MCB) Miniature Circuit Breaker AON-63 (6kA) 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
(SPD) Surge Protection Device AOU-65 Imax Max Discharge Current 65kA
Max. permissible Strength of Backup Fuse 125A gL
Dimensions (mm)
Aox1-20m/Hu Distribution Box Factory Electrical Equipment Home Electrical Unit Consumer Units
Product Model Circuit Unit Width (B) Mounting Dimension (E)
AOX1-O7M 07 188 138
AOX1-10M 10 241 160
AOX1-13M 13 292 210
AOX1-16M 16 343 260.4
AOX1-21M 21 438 356
Product Catalog
Distribution Box Factory Electrical Equipment Home Electrical Unit Consumer Units

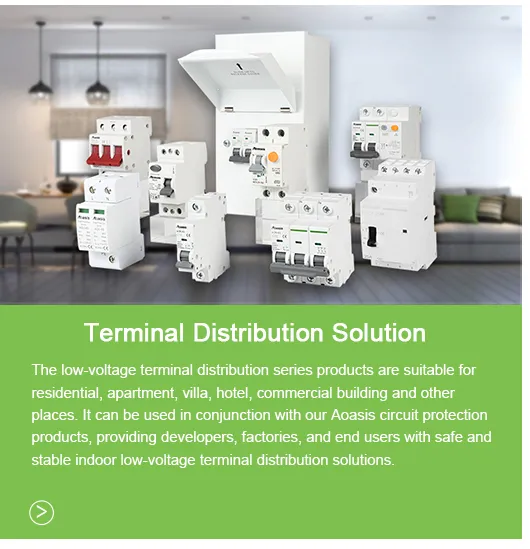

Distribution Box Factory Electrical Equipment Home Summary

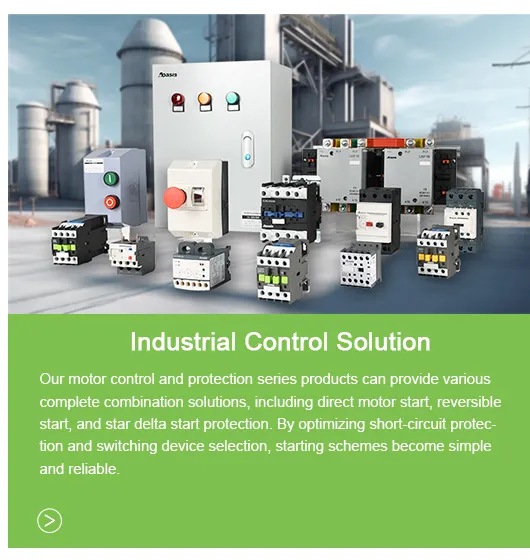

Distribution Box Factory Electrical Equipment Home Summary

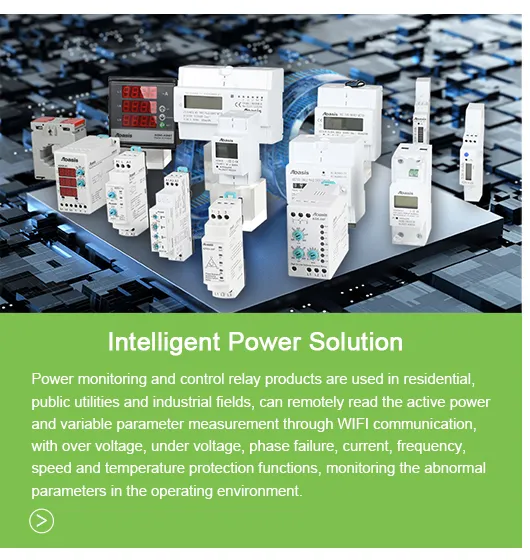

Distribution Box Factory Electrical Equipment Home Summary

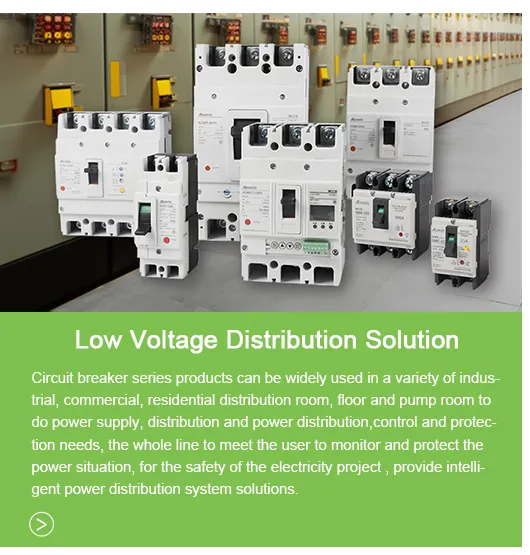

Distribution Box Factory Electrical Equipment Home Summary
Distribution Box Factory Electrical Equipment Home Summary
Distribution Box Factory Summary
Company Profile

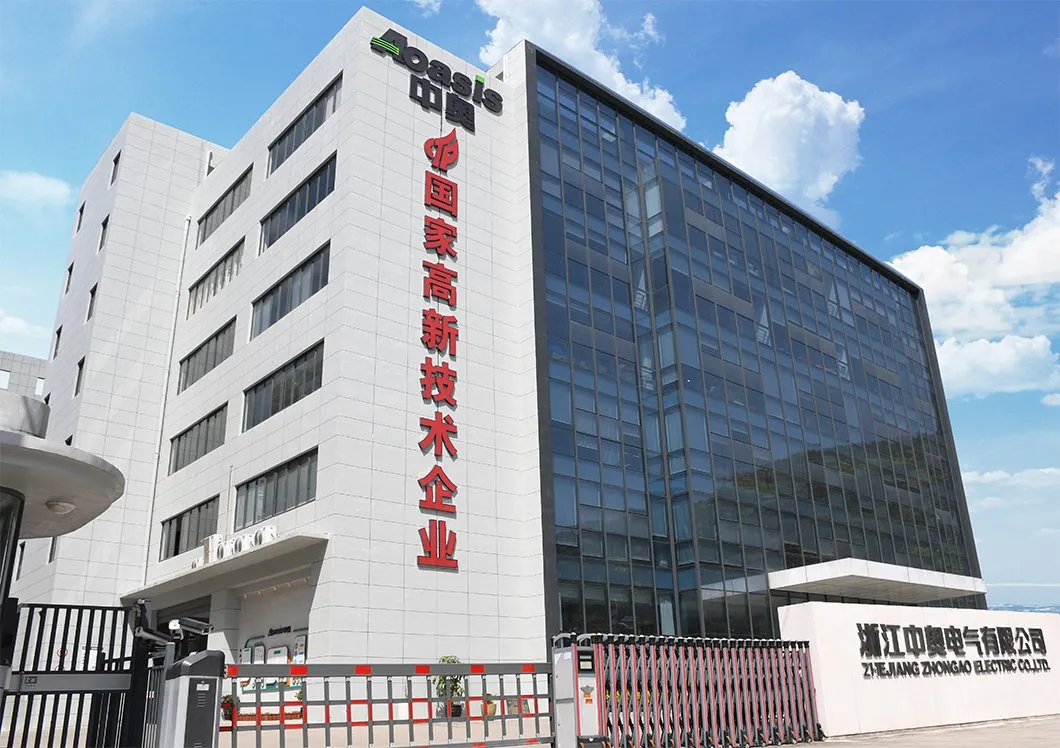

Distribution Box Factory Overview
Distribution Box Factory Assembly Line

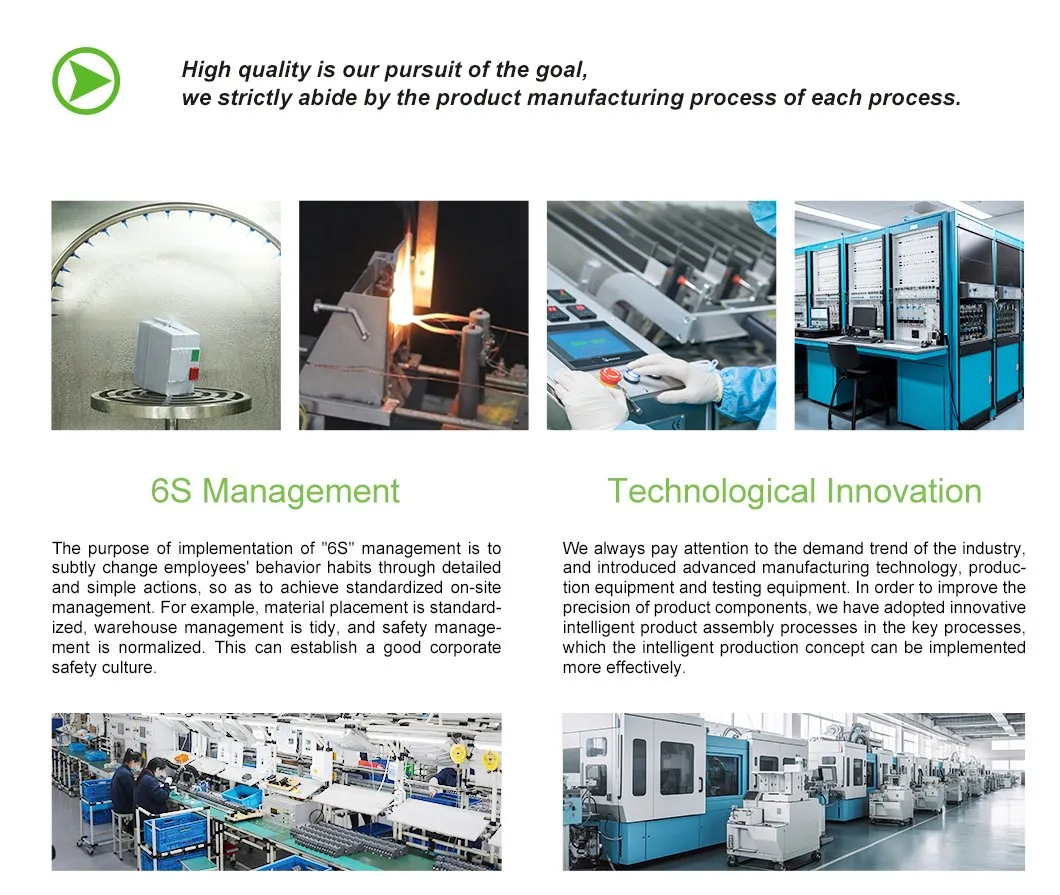

Distribution Box Factory Equipment
Distribution Box Factory Quality Assurance
Distribution Box Factory Production Area
Distribution Box Factory Warehouse
Distribution Box Factory Office Area
Frequently Asked Questions
What's the payment term?
We accept TT, 30% deposit and 70% balance before shipping.
How's the delivery time?
We depend on different products and different quantities. Generally, it takes about 3-15 days. If the quantity is very large, we need to negotiate.
Tell me the standard of package?
Normally are cartons, but also we can pack it according to your requirement.
Could you offer Form A or C/O?
It's totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
Would you accept to use our logo?
If you have good quantity, it absolute no problem to do OEM.
How do you ensure the quality of products?
All products undergo strict quality checks and tests in our specialized facilities to ensure safety, stability, and reliability before shipment.
