Basic Info.
Model NO.AOX1-18M/H
CertificationCCC
FormAll- packaged Type
Operation VoltageLow Voltage
SizeRefer to Spec
Application RangeLow Voltage Consumer Unit
Shell MaterialStainless Steel
Shell Protection GradeIP30
Product NameConsumer Unit
ApplicationMetal Power Transmission
Ways16 Way
Mounting TypeSurface Mounted
FeatureAdjustable DIN Rail for Flush Moun
WindowOpaque
MaterialMetal
Transport PackageStandard Packaging
SpecificationAOX1-M
OriginChina
HS Code8536200000
Production Capacity9999999 piece/Pieces Per Month
Packaging & Delivery
Package Size45.00cm * 23.50cm * 34.50cm
Package Gross Weight20.000kg

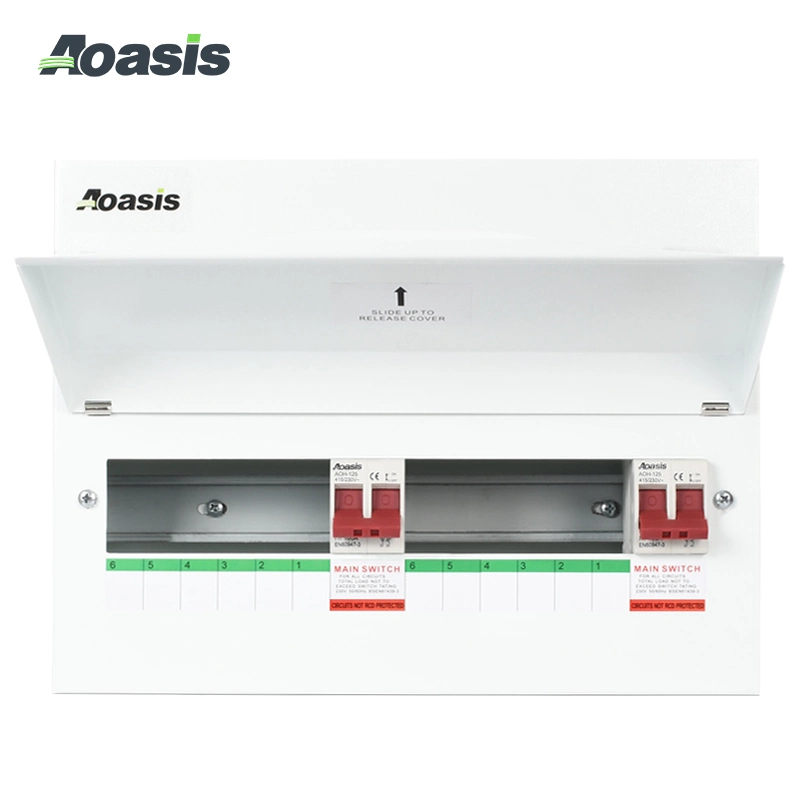

AOX1-M Consumer Unit is suitable for residences, apartments, villas, hotels, commercial buildings and other places. Used in conjunction with modular low-voltage power distribution products, it provides a safe, stable and complete indoor low-voltage terminal power distribution solution for real estate developers, electrical switchgear manufacturers, and end users.
Main Technical Parameter
| MSD is given priority to switch the consumer units |
| Product model |
Main switch configuration |
Available loop element |
| Miniature Switch Disconnector |
Quantity |
| AOX1-07M/H-2 |
AOH-125 100A |
2 |
3 |
| AOX1-10M/H-2 |
AOH-125 100A |
2 |
6 |
| AOX1-13M/H-2 |
AOH-125 100A |
2 |
9 |
| AOX1-16M/H-2 |
AOH-125 100A |
2 |
12 |
| AOX1-21M/H-2 |
AOH-125 100A |
2 |
17 |
Optional matching circuit protection products
| Product name |
Product model |
Current specification |
| (MSD) Miniature Switch Disconnector |
AOH-125 |
25A, 40A, 63A, 80A, 100A, 125A |
| (RCD) Residual Current Device |
AOLR-100 |
16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A |
| (MCB) Miniature Circuit Breaker |
AON-63 (6kA) |
2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| (SPD) Surge Protection Device |
AOU-65 |
Max Discharge current: 65kA
Max Permissible strength of Backup Fuse: 125A gL
|
Dimensions(mm)
| Product Model |
Circuit Unit |
Width(B) |
Mounting Dimension(E) |
| AOX1-07M |
07 |
188 |
138 |
| AOX1-10M |
10 |
241 |
160 |
| AOX1-13M |
13 |
292 |
210 |
| AOX1-16M |
16 |
343 |
260.4 |
| AOX1-21M |
21 |
438 |
356 |
Q1 What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipping.
Q2 How's the delivery time?
A. We depend on different products and different quantities. Generally, it takes about 3-15 days. If the quantity is very large, we need to negotiate.
Q3 Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4 Could you offer Form A or C/O?
A. It's totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
Q5 Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.
Q6 What is the monthly production capacity for these units?
A. The standard monthly production capacity is up to 9,999,999 pieces, ensuring stable and reliable supply for global orders.
