Model NO.
AOX1-12M/HLR
Form
All- packaged Type
Operation Voltage
Low Voltage
Size
Refer to Spec
Application Range
Low Voltage Consumer Unit
Shell Material
Stainless Steel
Shell Protection Grade
IP30
Product Name
Consumer Unit
Application
Metal Power Transmission
Ways
16 Way
Mounting Type
Surface Mounted
Feature
Adjustable DIN Rail for Flush Moun
Window
Opaque
Material
Metal
Transport Package
Standard Packaging
Specification
AOX1-M
Origin
China
HS Code
8536200000
Production Capacity
9999999piece/Pieces Per Month
Package Size
45.00cm * 23.50cm * 34.50cm
Package Gross Weight
20.000kg

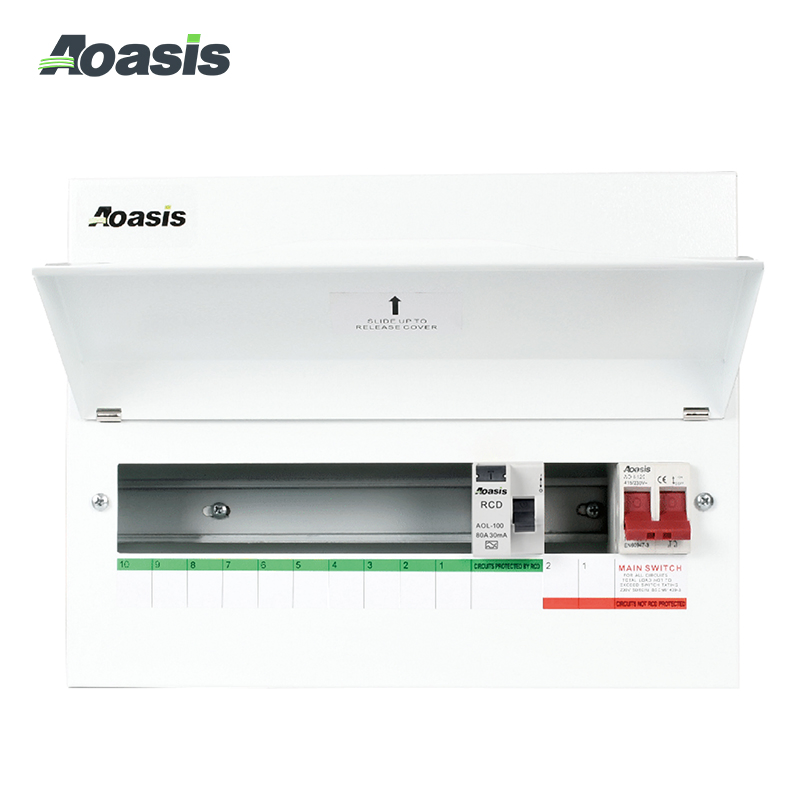

AOX1-M Consumer Unit is suitable for residences, apartments, villas, hotels, commercial buildings and other places. Used in conjunction with modular low-voltage power distribution products, it provides a safe, stable and complete indoor low-voltage terminal power distribution solution for real estate developers, electrical switchgear manufacturers, and end users.
Main Technical Parameter:
MSD is given priority to switch and RCD division unit load consumer
Product model
Main switch configuration
Available loop element
Miniature Switch Disconnecter
Quantity
Residual Current Device
Quantity
AOX1-O7M/HLR
AOH-125 100A
1
AOLR-100 80A 30mA
1
3
AOX1-10M/HLR
AOH-125 100A
1
AOLR-100 80A 30mA
1
6
AOX1-13M/HLR
AOH-125 100A
1
AOLR-100 80A 30mA
1
9
AOX1-16M/HLR
AOH-125 100A
1
AOLR-100 80A 30mA
1
12
AOX1-21M/HLR
AOH-125 100A
1
AOLR-100 80A 30mA
1
17
Optional matching circuit protection products
Product name
Product model
Current specification
(MSD) Miniature Switch Disconnecter
AOH-125
25A, 40A, 63A, 80A, 100A, 125A
(RCD) Residual Current Device
AOLR-100
16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
(MCB) Miniature Circuit Breaker
AON-63 (6kA)
2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
(SPD) Surge Protection Device
AOU-65
Imax Max Discharge Current: 65kA
Product Model
Circuit Unit
Width(B)
Mounting Dimension(E)
AOX1-O7M
07
188
138
AOX1-10M
10
241
160
AOX1-13M
13
292
210
AOX1-16M
16
343
260.4
AOX1-21M
21
438
356
Q1. What's the payment term?
A. We accept TT, 30% deposit and 70% balance before shipping.
Q2. How's the delivery time?
A. We depend on different products and different quantities. Generally, it takes about 3-15 days. If the quantity is very large, we need to negotiate.
Q3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4. Could you offer Form A or C/O?
A. It's totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
Q5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do OEM.
Q6. What materials are used for the shell of the consumer unit?
A. The shell is made of high-quality stainless steel with a protection grade of IP30, ensuring excellent durability and robust safety.
