Product Description

Product Description

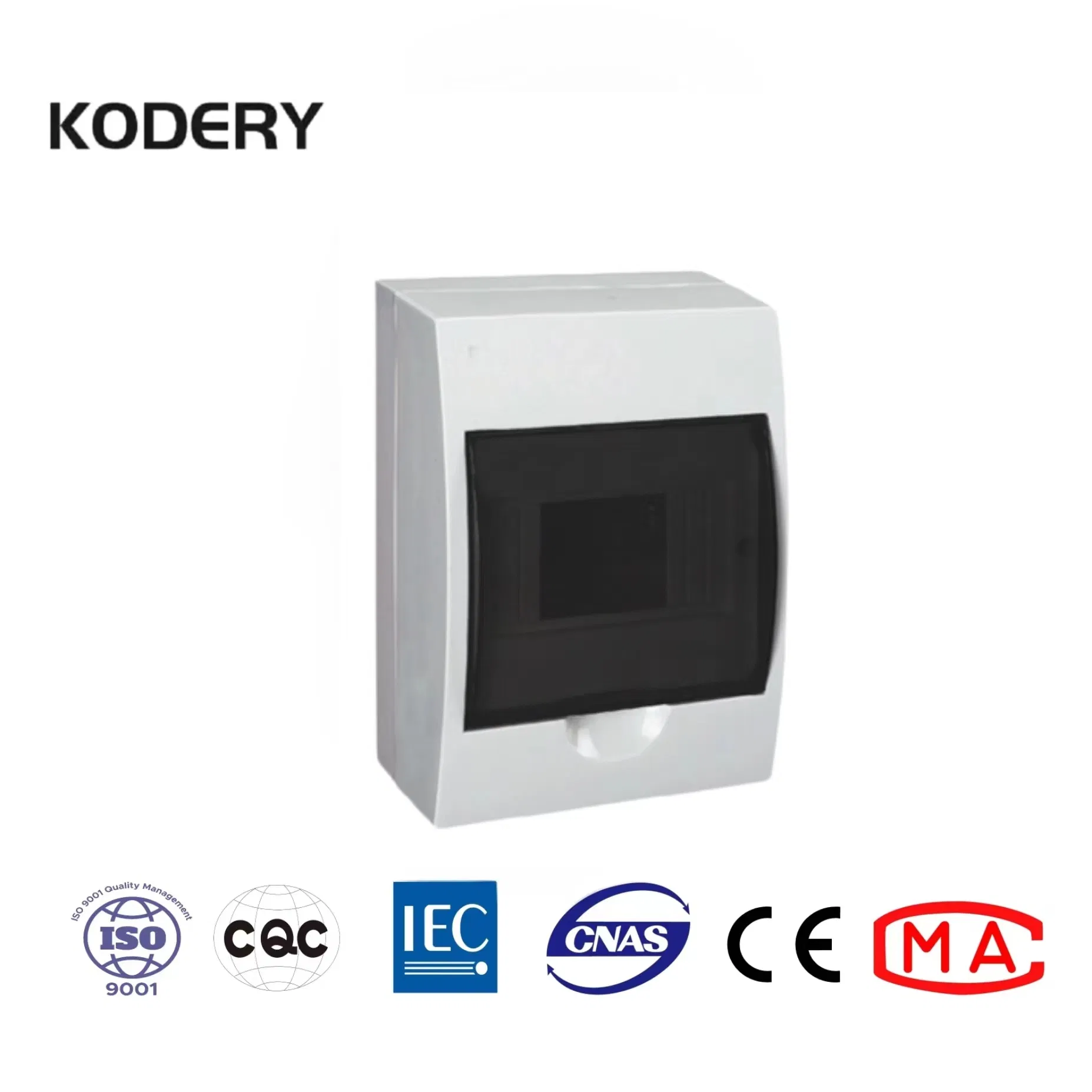

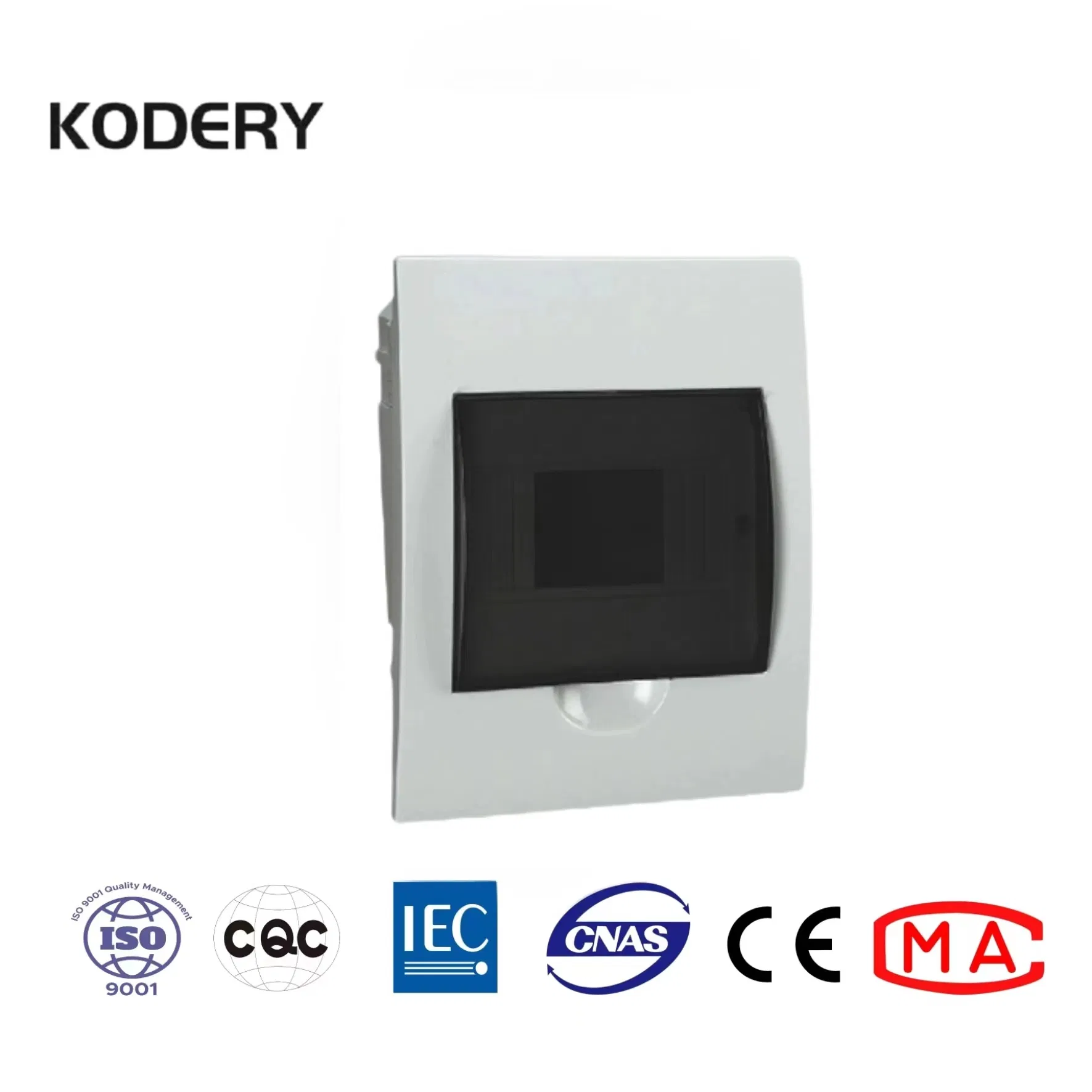

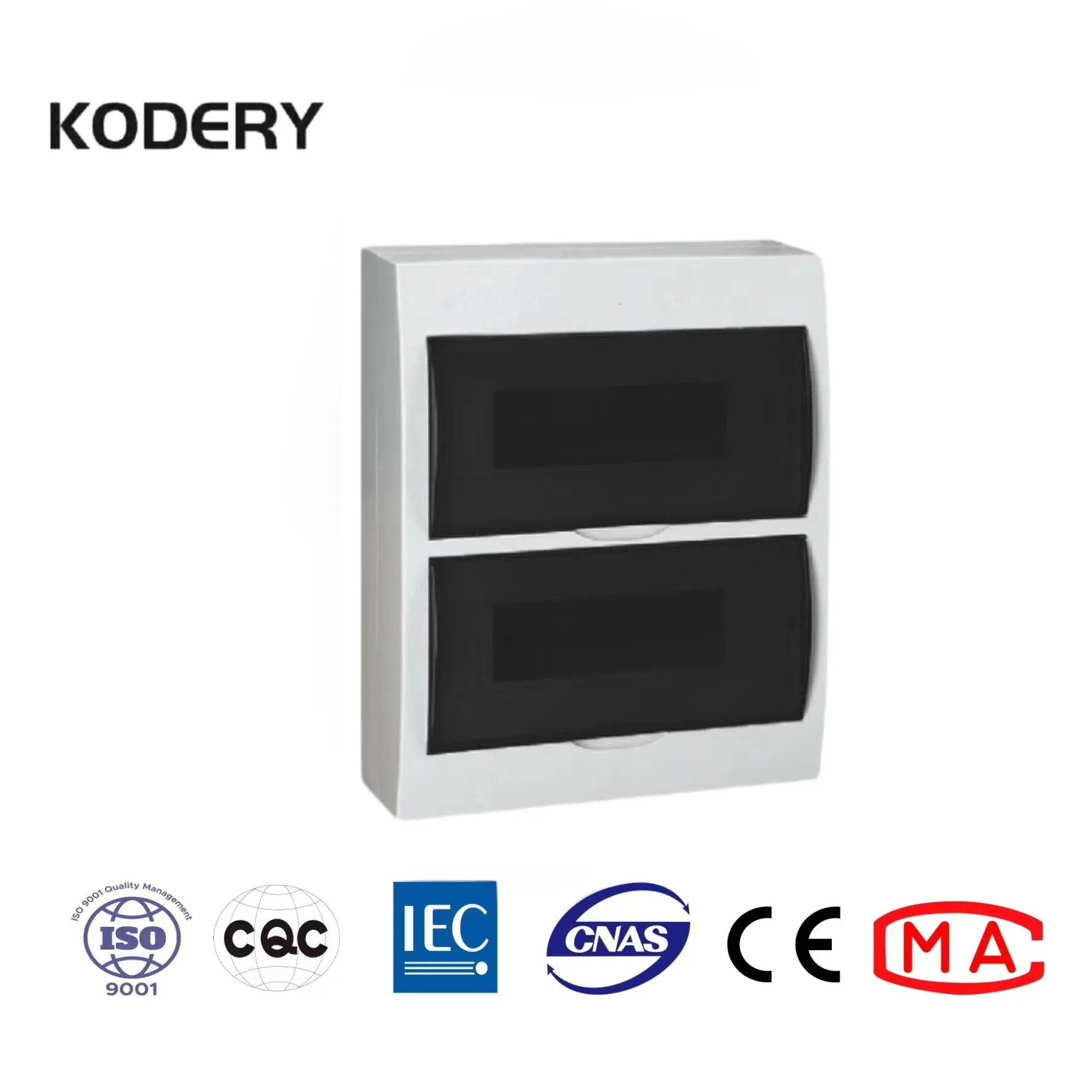

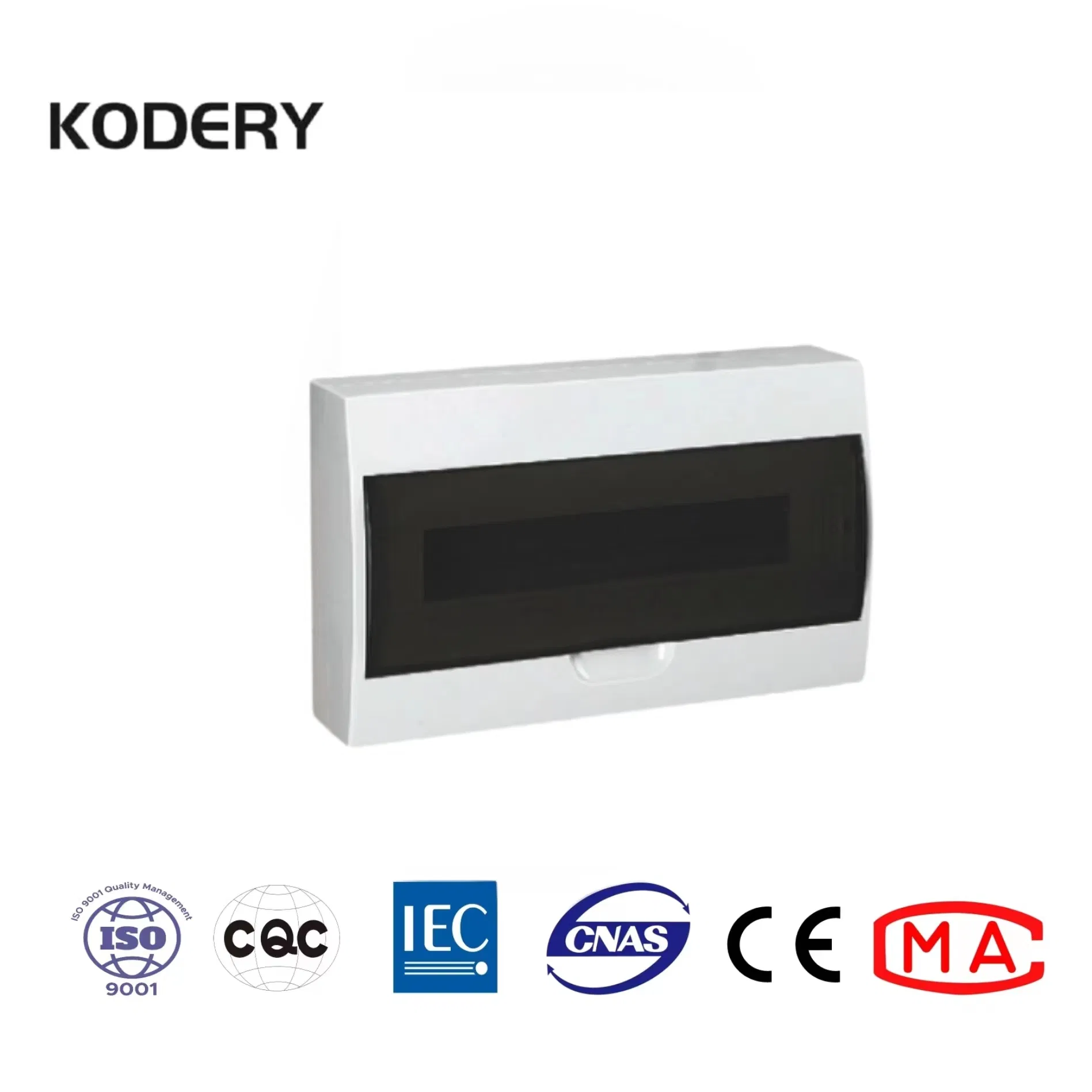

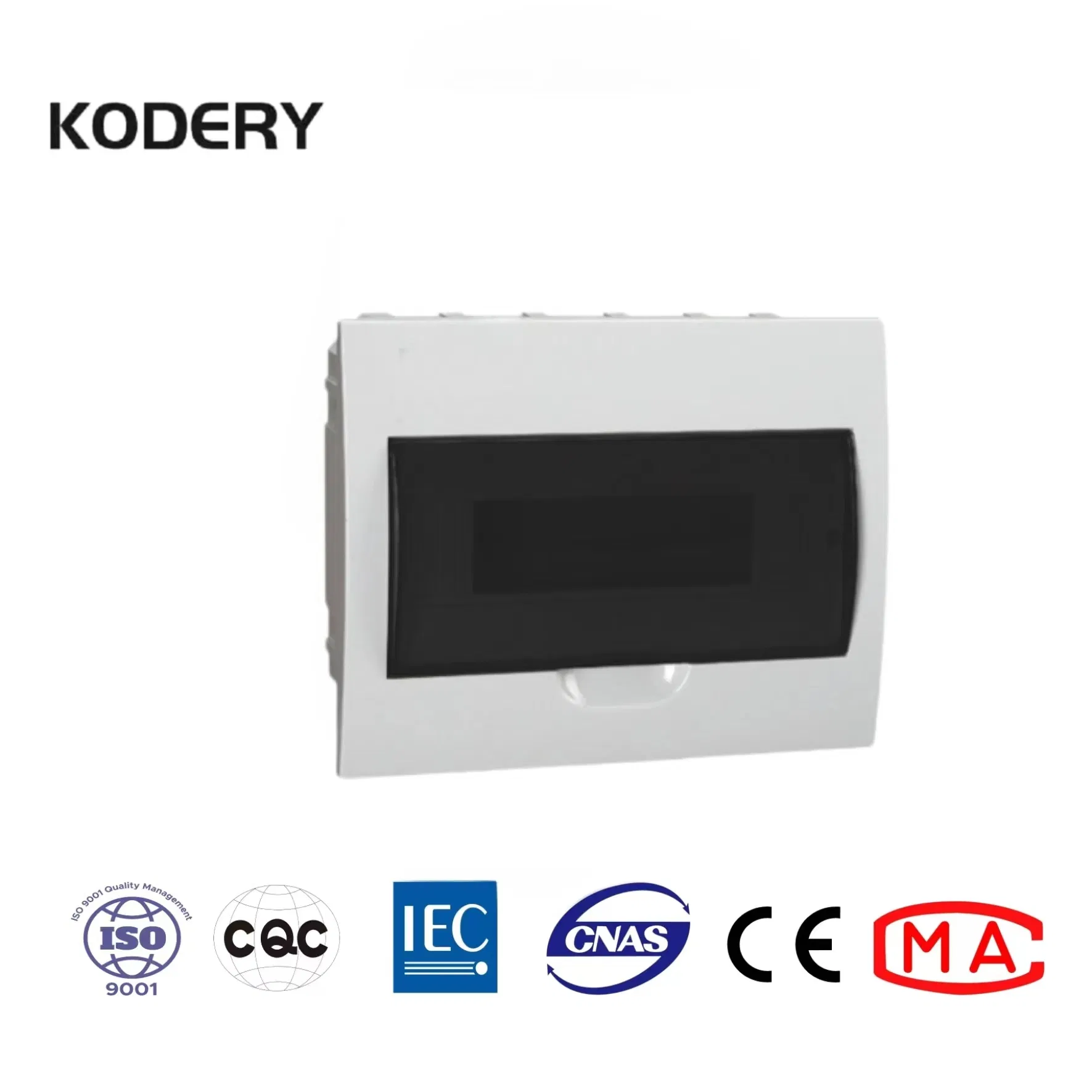

Distribution Box (DB-FT/FN)

This product applies to terminal of AC 50/60 Hz, rated operating voltage up to 400 V and rated current up to 63A. It is equipped with various modular electric components for function of electric energy distribution, control, and protection (short circuit, overload, earth leakage, over-voltage).

◈
Versatile Doors: Equipped with transparent or non-transparent door options.
◈
Easy Access: Single row door opens upward at 90 degrees.
◈
High Safety: Made of insulating, self-extinguishing fire material.
◈
Protection: Indirect contact proof level 2 protection.
Product Parameters
Surface Mounting Specifications
Model Number Material ABS-PC
Ways L (mm) W (mm) H (mm)
DB104/ST/SN 4 ways 52 24 42.5
DB106/ST/SN 6 ways 52 34.5 42.5
DB108/ST/SN 8 ways 52 38.5 42.5
DB112/ST/SN 12 ways 52 27 42.5
DB118/ST/SN 18 ways 54.5 37.5 45.6
DB124/ST/SN 24 ways 55 34.5 56
DB136/ST/SN 36 ways 49.5 32.5 59.5
Detailed Product Display
Distribution Box Detail 1
Distribution Box Detail 2
Distribution Box Detail 3

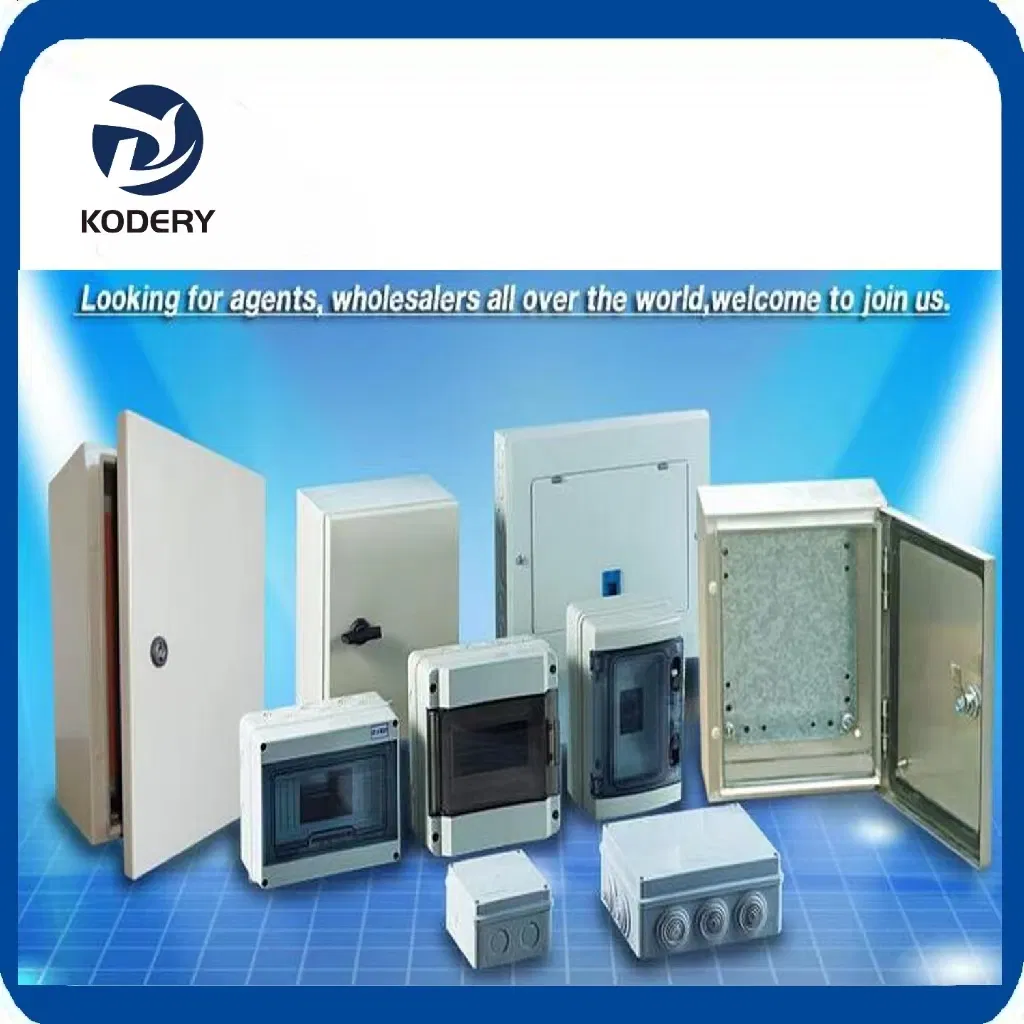

Distribution Box View

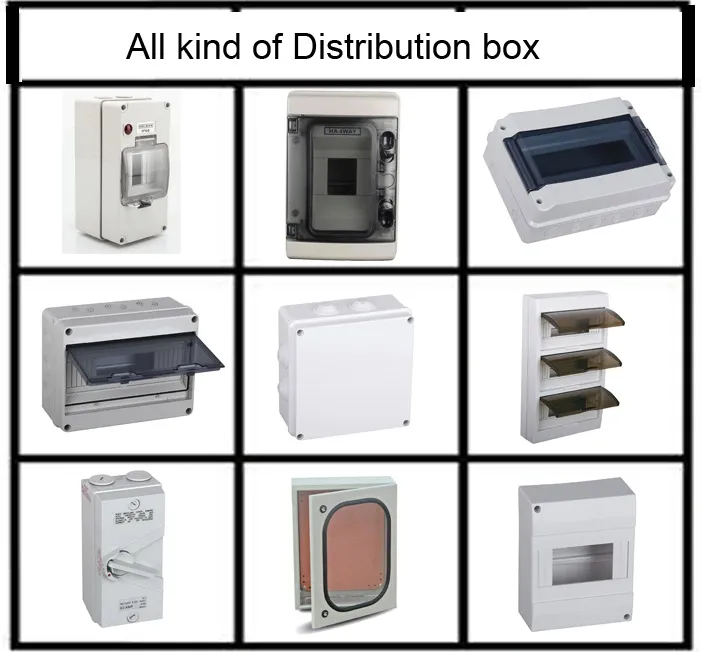

Distribution Box Components
Manufacturing Overview

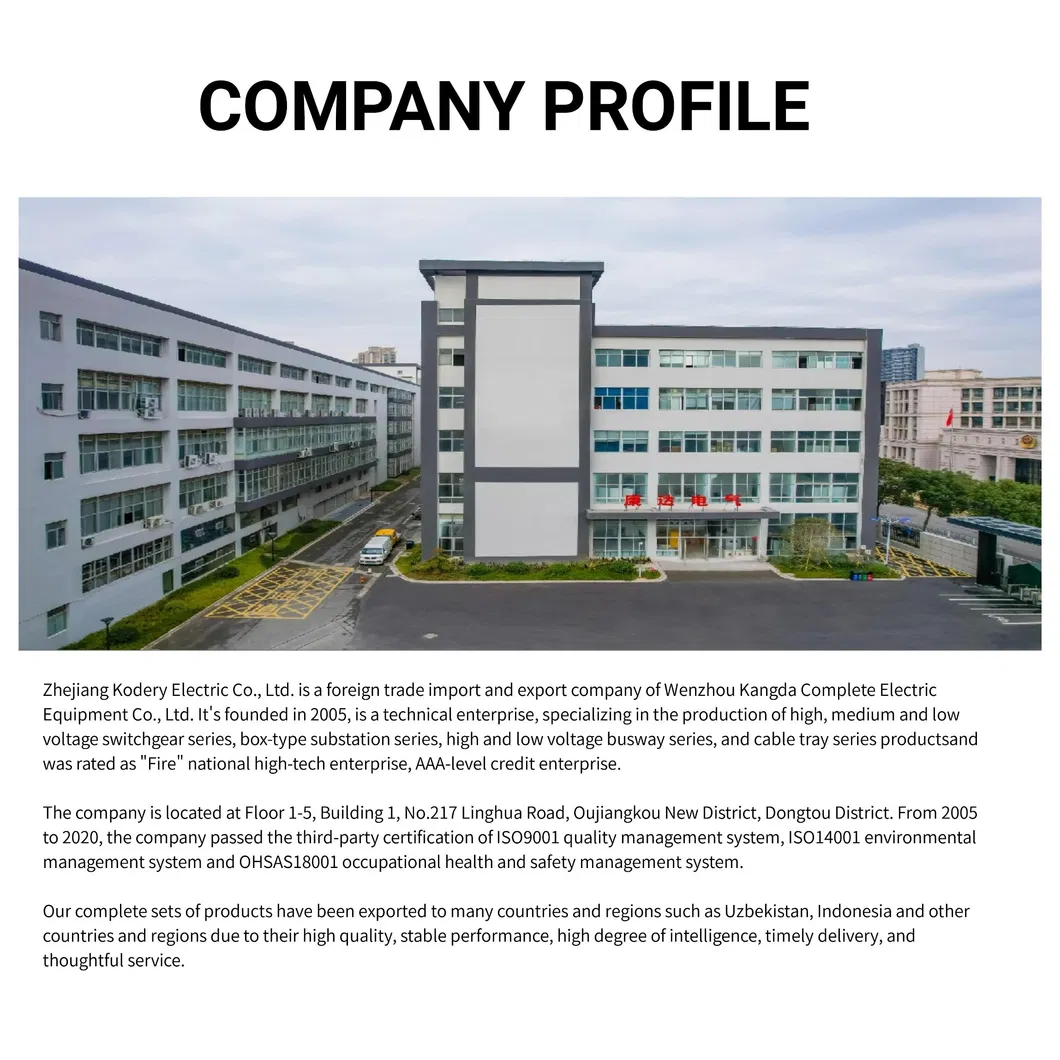

Manufacturing 1

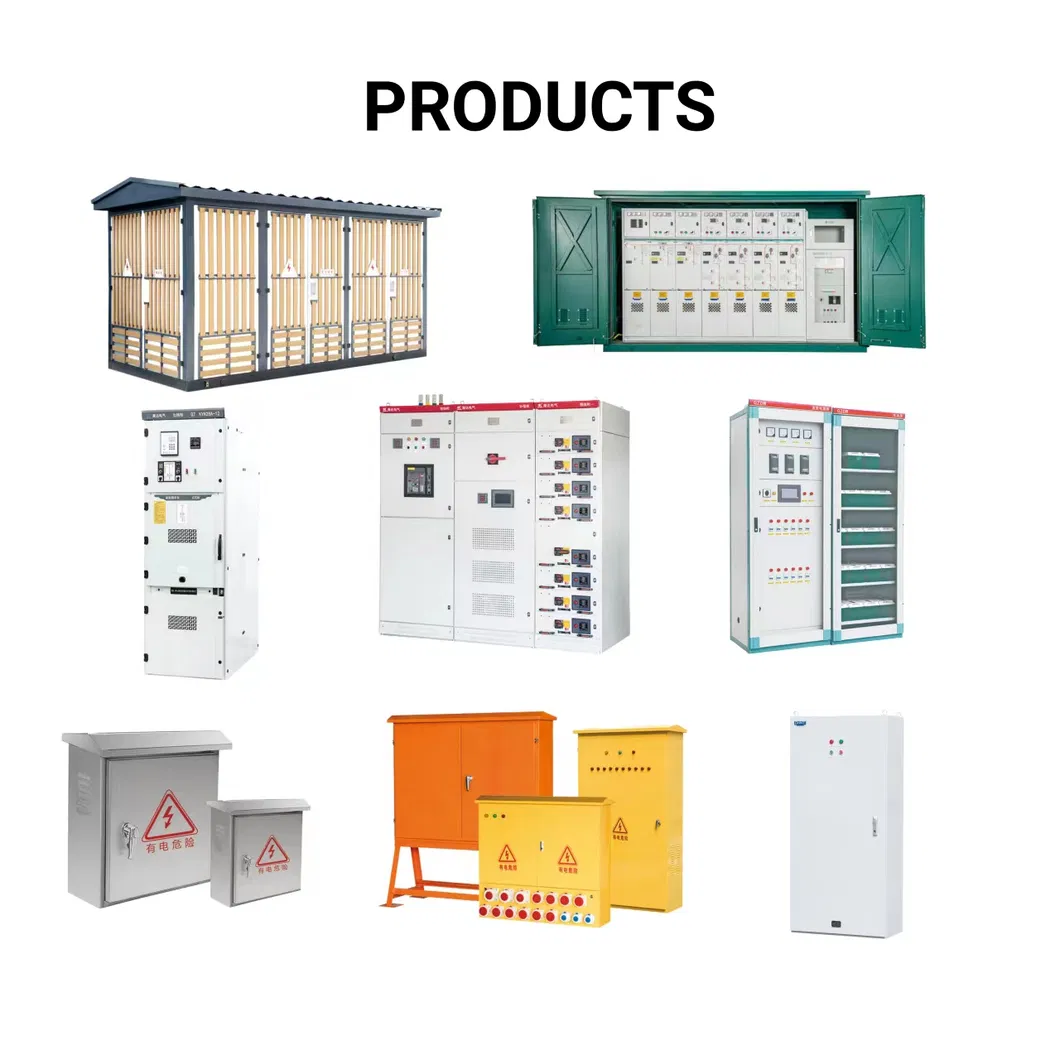

Manufacturing 2

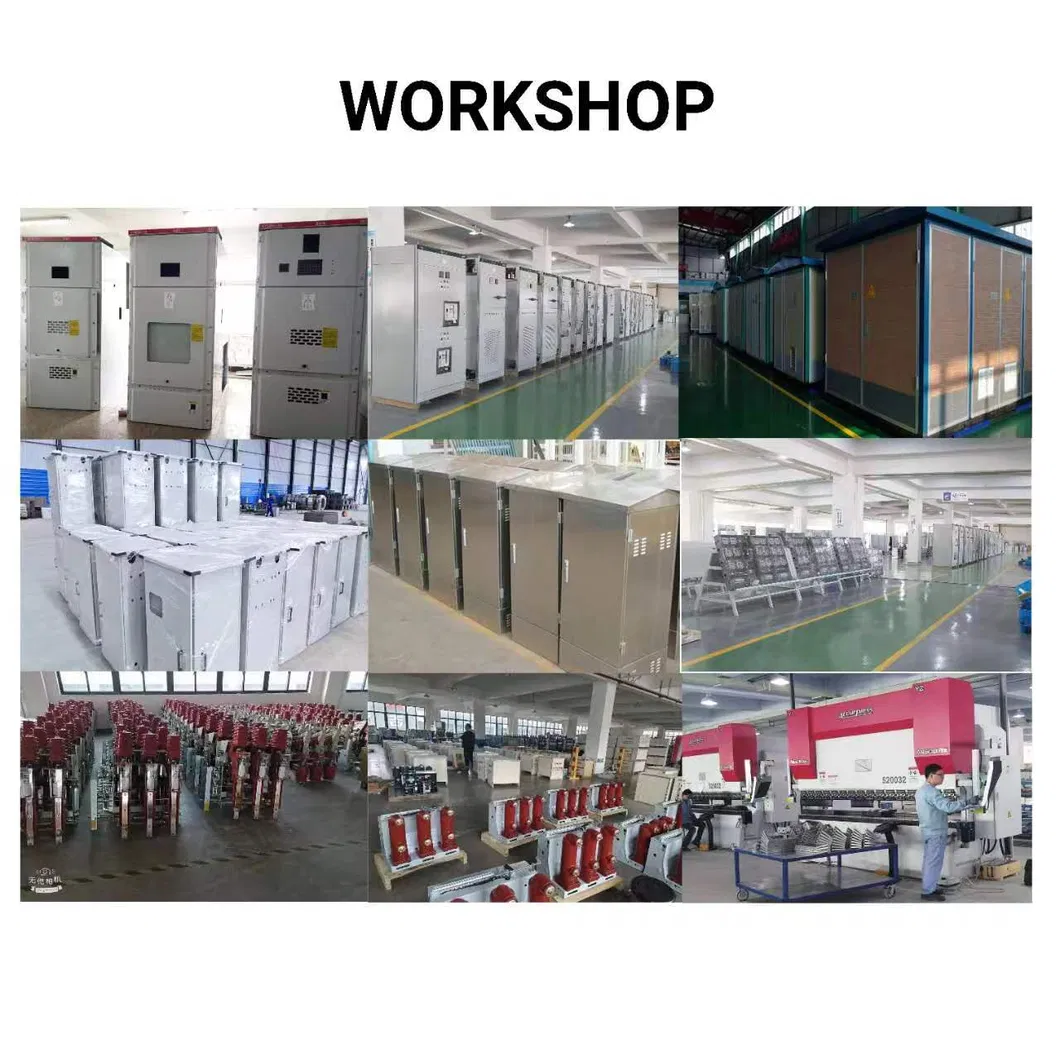

Manufacturing 3

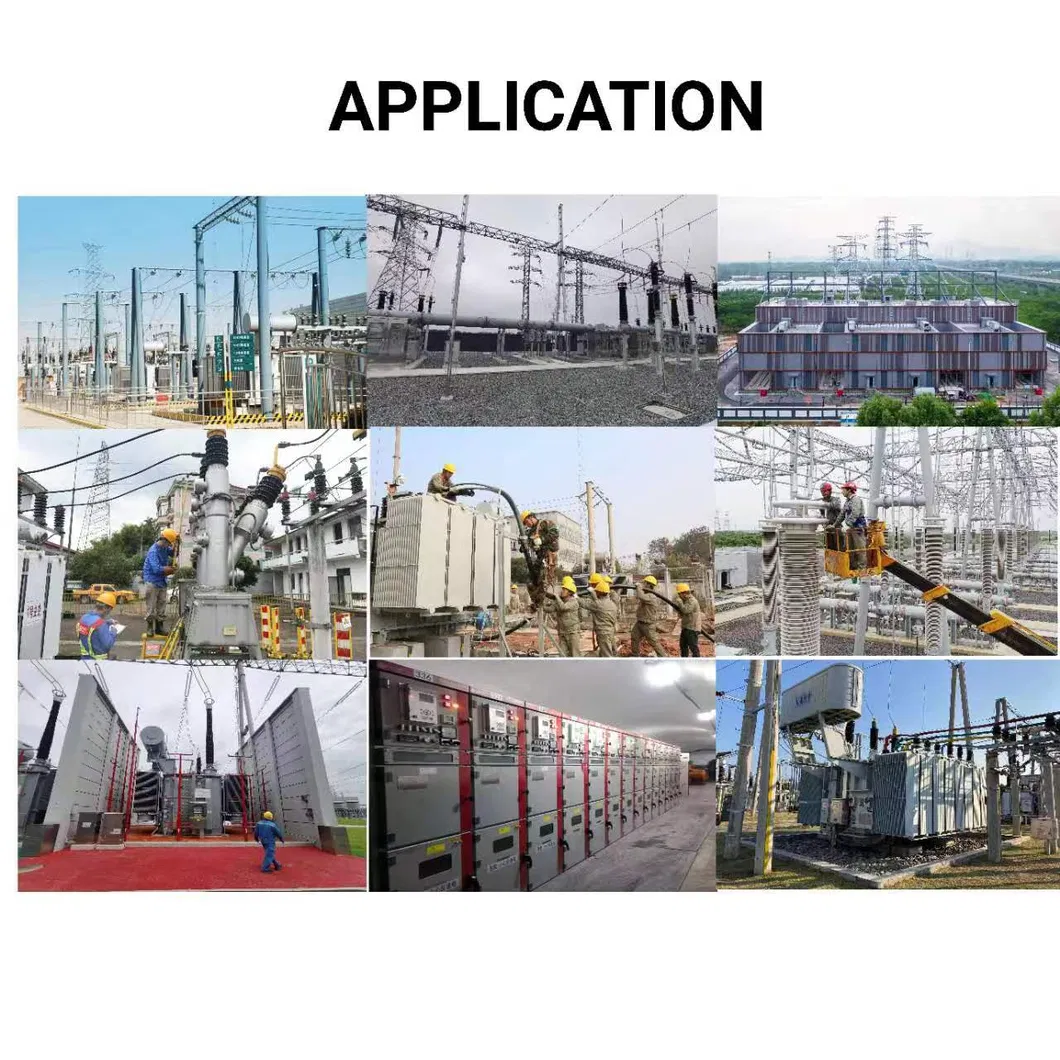

Manufacturing 4
Manufacturing 5
Manufacturing 6
Frequently Asked Questions
What is the rated operating voltage for this distribution box?
The DB-FT/FN series distribution box is designed for rated operating voltages up to 400V.
What materials are used for the distribution box construction?
The box is made from high-quality ABS-PC insulating material which is self-extinguishing and fire-resistant for maximum safety.
What protection features does the DB-FT/FN offer?
It provides comprehensive protection including short circuit, overload, earth leakage, and over-voltage protection.
How many ways or modules can the distribution box accommodate?
Depending on the specific model, it can accommodate anywhere from 4 ways up to 36 ways.
Is the door design customizable?
The product comes with either transparent or non-transparent door options to suit your visual and functional requirements.
What is the protection level of this unit?
The distribution box features level 2 protection, specifically designed to be indirect contact proof.
