Product Description

Overview
Product Description
Product Parameters
Detailed Information
More Products
Basic Info.
Model NO.
CJDB
Certification
ISO9001:2000
Form
All-packaged Type
Voltage
Low Voltage
Application
Power Plants
Material
Steel Plate
Protection
IP30
Standard
BS/En 61439-3
Current
100A
Sizes
2-18 Ways
Product Description

CJDB series distribution box is mainly composed of the casing and modular terminal apparatus, suitable for AC 50/60Hz, and rated voltage of 230V. The load current is less than 100A single-phase three-wire terminal of the circuit. It is used to control power distribution, electrical equipment, online overload, short circuit, and leakage protection.

Construction and Features:

  • Rigid, Raised and Offset DIN rail design
  • Earth and neutral blocks fixed as standard
  • Insulated comb busbar & neutral cable included
  • All metal parts are protected of grounding
  • Compliance to BS/EN 61439-3
  • IP3X Safety
Product Parameters
Parts No.DescriptionUsable Ways
CJDB-4W4Way metal distribution box4
CJDB-6W6Way metal distribution box6
CJDB-8W8Way metal distribution box8
CJDB-10W10Way metal distribution box10
CJDB-12W12Way metal distribution box12
CJDB-14W14Way metal distribution box14
CJDB-16W16Way metal distribution box16
CJDB-18W18Way metal distribution box18

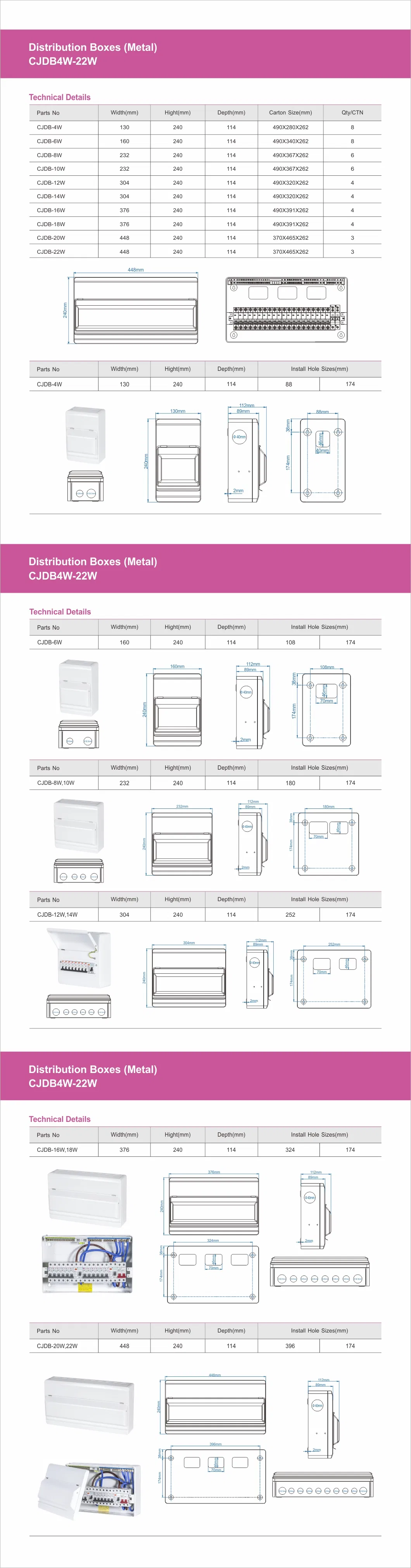

Detailed Information
Detailed Info
About Us
About Us
More Products
Product
Product
Product
Product
Product
Product
Frequently Asked Questions (FAQ)
1. What is the main purpose of the CJDB distribution box?
It is used for power distribution control, as well as providing protection against overloads, short circuits, and leakage in electrical circuits.
2. Is the CJDB series suitable for outdoor installation?
No, the CJDB series has an IP40 protection rating, which is designed for indoor use only.
3. What is the rated voltage and current for this unit?
The rated voltage is 230V, and the load current is typically less than 100A for single-phase three-wire circuits.
4. Do the distribution boxes come with switches and circuit breakers?
No, the product offer is for the metal consumer unit housing only. Switches, circuit breakers, and RCDs are not included.
5. What material is used for the construction of the shell?
The shell is manufactured from high-quality powder-coated sheet steel for durability and safety.
