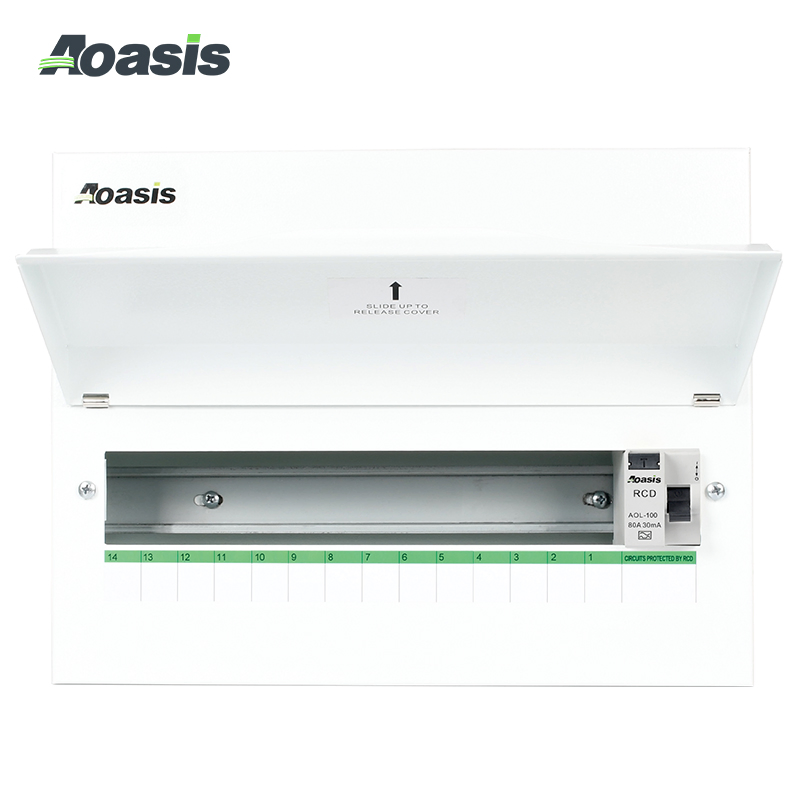

Aoasis Aox1-18m/Lr 100A Power Distribution Box RCD Factory Suppliers Metal Consumer Unit
1 / 1
Aoasis Aox1-18m/Lr 100A Power Distribution Box RCD Factory Suppliers Metal Consumer Unit

Aoasis Aox1-18m/Lr 100A Power Distribution Box RCD Factory Suppliers Metal Consumer Unit

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview
Product Description
Product Catalog
Company Profile
FAQ
Basic Info
Model NO.
AOX1-18M/LR
Certification
CCC
Form
All- packaged Type
Operation Voltage
Low Voltage
Size
Refer to Spec
Application Range
Low Voltage Consumer Unit
Shell Material
Stainless Steel
Shell Protection Grade
IP30
Product Name
Consumer Unit
Application
Metal Power Transmission
Ways
16 Way
Mounting Type
Surface Mounted
DIN Rail Type
Adjustable DIN Rail for Flush Mount
Window
Opaque
Material
Metal
Transport Package
Standard Packaging
Specification
AOX1-M
Origin
China
HS Code
8536200000
Production Capacity
9999999 pieces Per Month
Packaging & Delivery
Package Size
45.00cm * 23.50cm * 34.50cm
Package Gross Weight
20.000kg
Product Description
AOX1-M Consumer Unit is suitable for residences, apartments, villas, hotels, commercial buildings and other places. Used in conjunction with modular low-voltage power distribution products, it provides a safe, stable and complete indoor low-voltage terminal power distribution solution for real estate developers, electrical switchgear manufacturers, and end users.
Main Technical Parameter:
2 RCD is given priority to switch the consumer units
Product model Residual Current Device Available loop element
Model Quantity
AOX1-07M/LR-2 AOLR-100 80A 30mA 2 3
AOX1-10M/LR-2 AOLR-100 80A 30mA 2 6
AOX1-13M/LR-2 AOLR-100 80A 30mA 2 9
AOX1-16M/LR-2 AOLR-100 80A 30mA 2 12
AOX1-21M/LR-2 AOLR-100 80A 30mA 2 17
Optional matching circuit protection products
Product name Product model Current specification
(MSD)
Miniature Switch Disconnector		 AOH-125 25A, 40A, 63A, 80A, 100A, 125A
(RCD)
Residual Current Device		 AOLR-100 16A, 20A, 25A, 32A, 40A, 63A, 80A, 100A
(MCB)
Miniature Circuit Breaker		 AON-63 (6kA) 2A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A
(SPD)
Surge Protection Device		 AOU-65 Imax Max Discharge Current 65kA
Max. Permissible strength or Backup Fuse 125A gL
Dimensions(mm):
Power Distribution Box RCD Factory Suppliers Metal Consumer Unit Dimensions
Product Model Circuit Unit Width (B) Mounting Dimension (E)
AOX1-07M 07 188 138
AOX1-10M 10 241 160
AOX1-13M 13 292 210
AOX1-16M 16 343 260.4
AOX1-21M 21 438 356
Product Catalog
Power Distribution Box RCD Factory Suppliers Metal Consumer Unit Catalog Header

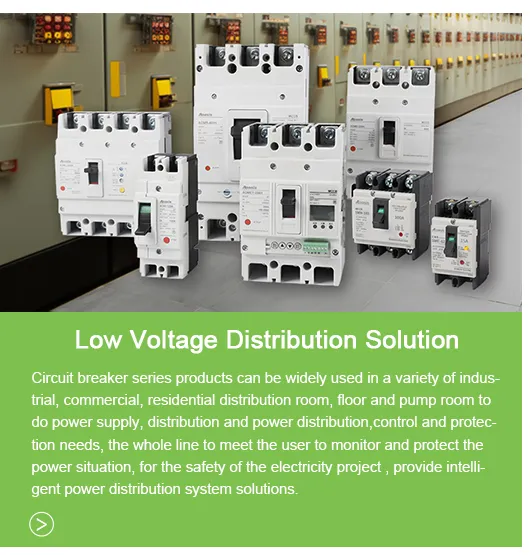

Low Voltage Terminal Distribution Catalog New Energy DC Products Catalog Monitoring Measuring and Control Relays Catalog Motor Control and Protection Catalog Circuit Breaker Products Catalog Contactors and Overload Relays Catalog
Company Profile

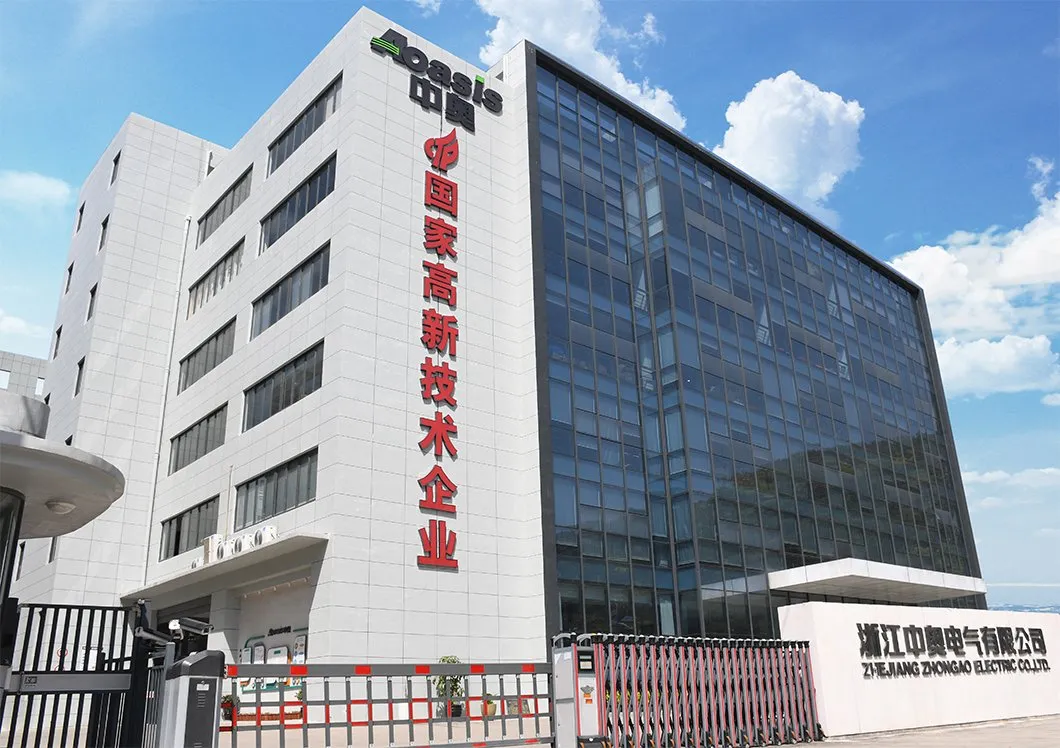

Company Overview Image 1 Company Overview Image 2 Company Overview Image 3 Company Overview Image 4 Company Overview Image 5 Company Overview Image 6 Company Overview Image 7
FAQ
Q1What's the payment term?
We accept TT, 30% deposit and 70% balance before shipping.
Q2How's the delivery time?
We depend on different products and different quantities. Generally, it takes about 3-15 days. If the quantity is very large, we need to negotiate.
Q3Tell me the standard of package?
Normally are cartons, but also we can pack it according to your requirement.
Q4Could you offer Form A or C/O?
It's totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
Q5Would you accept to use our logo?
If you have good quantity, it absolute no problem to do OEM.
Q6What applications is the Consumer Unit suitable for?
The consumer unit is suitable for residences, apartments, villas, hotels, commercial buildings and other terminal power distribution places.
