In an era defined by rapid industrial automation, decentralized renewable energy integration, and stringent grid safety protocols, the selection of premium-grade voltage switches and circuit controllers has moved beyond simple procurement. It is now a critical factor in system resilience, operational safety, and long-term cost optimization.
Industrial infrastructure demands robust switching topologies capable of handling thermal stress, avoiding electrical arc degradation, and facilitating reliable manual and automated transfers. As an established authority in custom OEM voltage switch design, Wenzhou Bowser Electric Co., Ltd. bridge the gap between complex engineering specifications and scalable manufacturing capabilities. By implementing advanced metallurgy in electrical contacts, robust thermoset polymers in housing design, and sophisticated arc extinguishing chambers, we deliver solutions that consistently exceed international performance metrics.
A common failure point in low-to-medium voltage switchgear is contact degradation caused by repeated electrical arcing during connection and disconnection cycles. Our latest switch architectures utilize optimized silver-tin-oxide (AgSnO2) contact materials. This alloy configuration exhibits exceptional resistance to contact welding and material erosion under high inductive loads, offering a 35% longer life cycle compared to standard silver-nickel alternatives.
We deliver engineered reliability through verified quality control processes and experienced manufacturing structures.
Dedicated to exploring circuit breaker designs, energy management layouts, and safety configurations.
Protecting key proprietary technologies across global markets and high-demand industries.
Maintained through strict multi-stage quality control parameters and rigorous real-load testing.
Providing localized voltage switch models compliant with UL, CE, GB, and IEC frameworks.
Operating across international markets requires switches designed for multi-voltage topologies. Our production pipelines accommodate 110V-240V AC residential and commercial systems, alongside specialized high-voltage industrial and utility architectures up to 1200V DC. This ensures reliable operation across North American, European, and Asia-Pacific grid setups.
The rise of solar PV systems has changed how electrical switching devices are used. DC switching presents distinct challenges compared to AC systems: DC arcs do not have natural zero-crossing points, making them harder to extinguish. This requires specialized isolation mechanisms, magnetic blowouts, and double-break contact configurations to protect personnel and hardware.
Grid regulations are increasingly demanding. Wenzhou Bowser Electric designs and manufactures its entire portfolio in compliance with ISO 9001 quality management standards, as well as CE, CB, and IEC safety certifications. This approach reduces compliance risks and supports smoother grid integration for engineering procurement projects.
Translating specific project constraints into high-performance, compliant electrical components.
We adapt dielectric insulation profiles, rated impulse withstand voltage (Uimp) ratings, and short-circuit breaking capacities (Icn) to align with challenging environments, including high-altitude sites and marine installations.
From IP20 DIN-rail modules for indoor distribution boards to IP66 weather-sealed enclosures for utility-scale solar PV sites, we protect internal contacts from dust, humidity, salt air, and corrosive chemicals.
Our teams engineer customizable switch layouts, including rotary selectors, key-lock toggles, automatic motor-driven operators, and modular snap-fits, allowing seamless integration into existing system panels.
We adjust the thickness and composition of contact surfaces based on the load profile (resistive, inductive, or capacitive) to optimize current density and prevent premature electrical degradation.
Excellence is built step-by-step, combining modern automation with meticulous testing at every stage.
The field of electrical distribution is transitioning from traditional passive protection to active, communicative, and intelligent grid interfaces. This transformation is driven by two main technological requirements: the need for real-time diagnostic insight and the growth of decentralized DC distribution networks.
Standard circuit switches are increasingly expected to perform beyond simple manual operations or basic thermal-magnetic trips. The industry is adopting switches with integrated current, temperature, and leakage sensors. Real-time diagnostic data can be transmitted to centralized Energy Management Systems (EMS) using standard protocols like Modbus-RTU or Ethernet/IP. This shift enables maintenance teams to detect thermal anomalies and contact wear before they lead to hardware failures.
Solar PV topologies operating at 1000V to 1500V DC require reliable isolation switches. Without natural zero-crossing current points to extinguish arcs, specialized solutions are needed. These include magnetic blowouts that push arcs into splitter plates, and double-break structures that isolate contact connections quickly, protecting systems from sudden overcurrents.
Data facilities, medical installations, and automated assembly operations depend on continuous power. Modern Automatic Transfer Switches (ATS) utilize compact mechanical interlocks and high-speed electrical drive mechanisms to switch between grid power and backup generators. Standard changeover times are now routinely limited to under 50ms, helping protect sensitive computing and industrial hardware from voltage dropouts.
Integrating reliable switching technology into critical application fields.

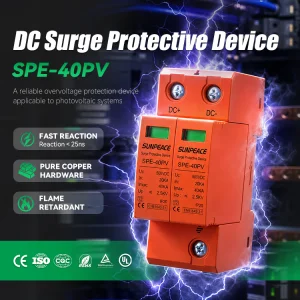

We design specialized isolation switches, surge arresters, and DC circuit controllers designed to handle high voltages and temperature variations, supporting stable performance in demanding solar installations.

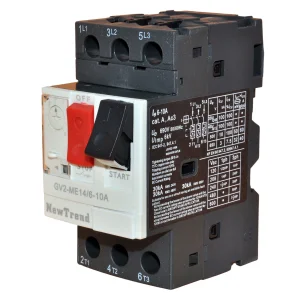

From heavy-duty motor starters to compact panelboard switch units, our components help protect production machinery from electrical phase errors, surges, and overcurrent conditions.
We provide modular transfer systems, compact distribution structures, and electrical circuit breakers engineered for high breaking capacity, helping protect municipal sites and commercial real estate.
Answers to common technical queries from system designers, site engineers, and distribution managers.
