Product Description

Product Description

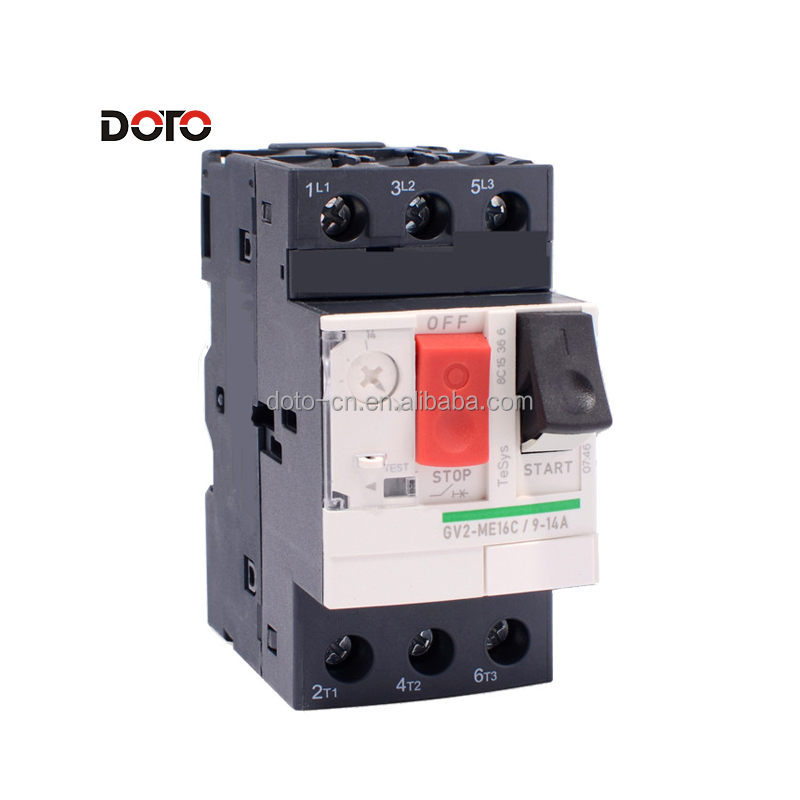

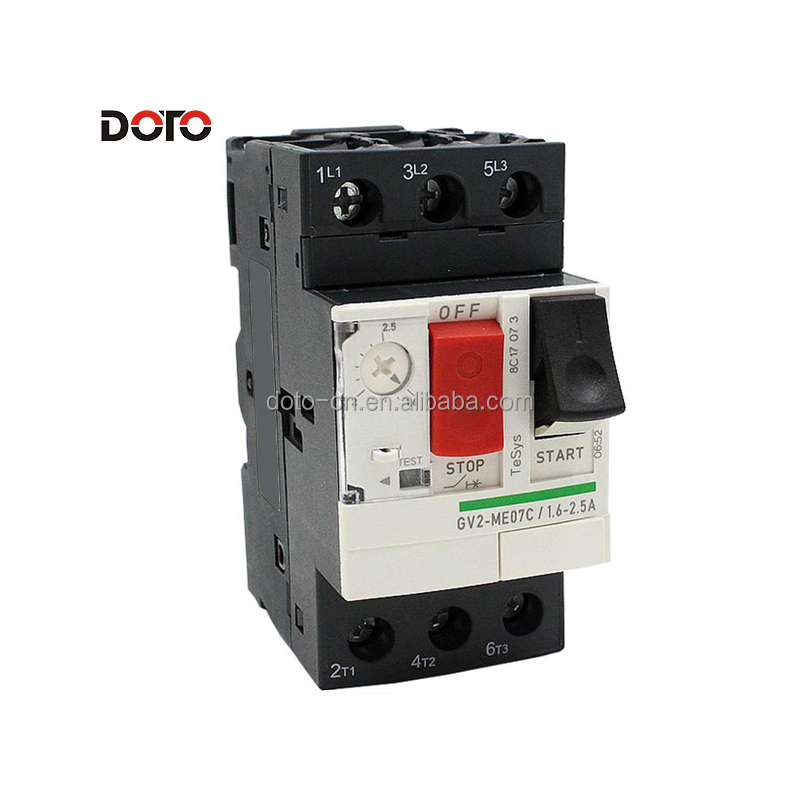

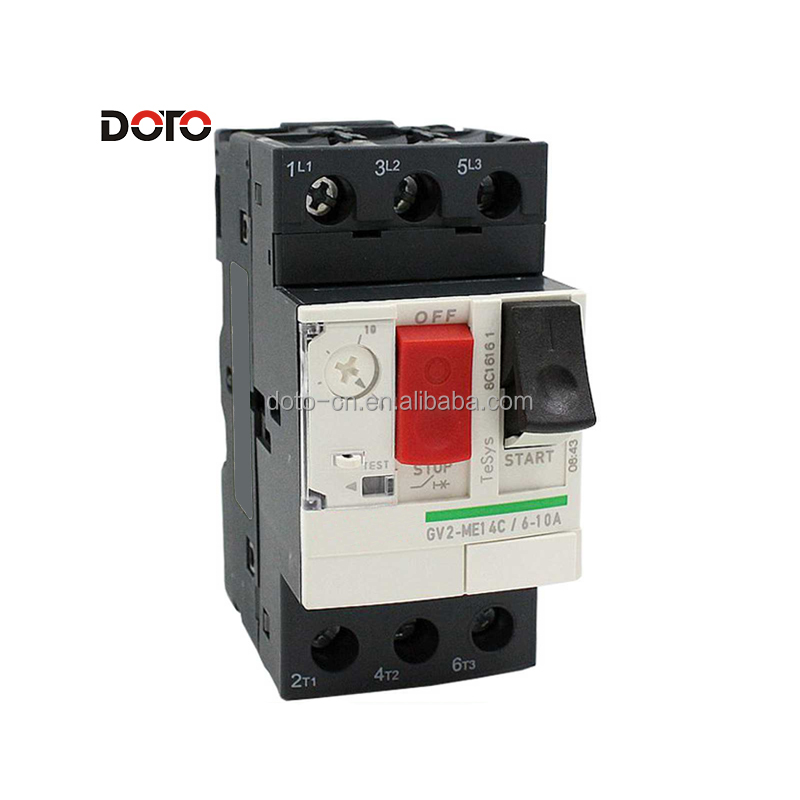

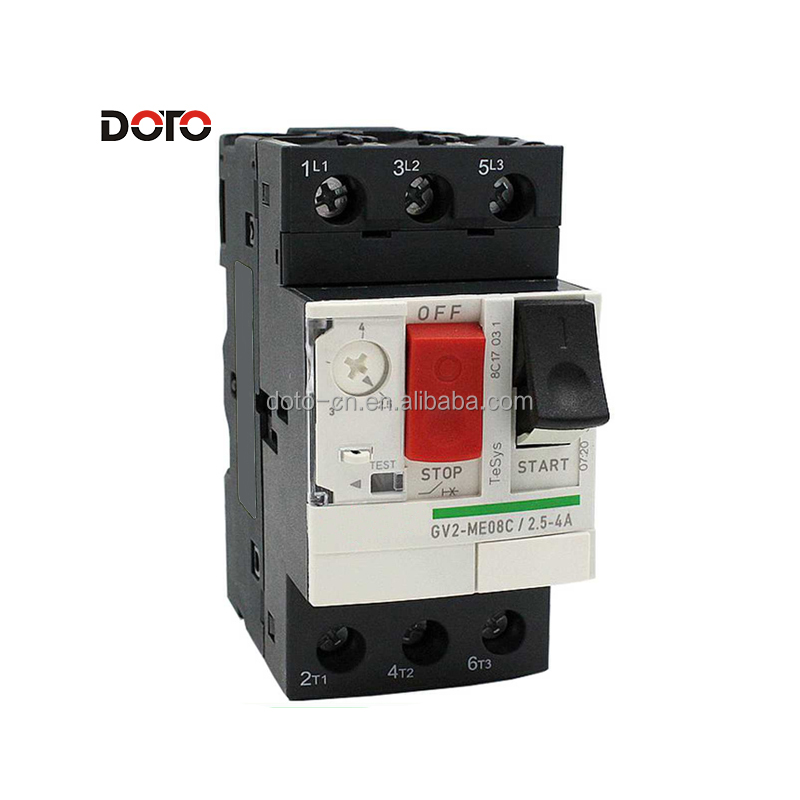

GV2ME14C 08C 10C 16C 22C 32C Motor Start Protection Switch Transfer Switch Schneider Motor Circuit Breaker
Model Current range Tripping current
GV2-ME01C 0.1A~0.16A 1.5A
GV2-ME02C 0.16A~0.25A 2.4A
GV2-ME03C 0.25A~0.4A 5A
GV2-ME04C 0.4A~0.63A 8A
GV2-MEO5C 0.63A~1A 13A
GV2-MEO6C 1A~1.6A 22.5A
GV2-MEO7C 1.6A~2.5A 33.5A
GV2-MEO8C 2.5A~4A 51A
GV2-ME10C 4A~6.3A 78A
GV2-ME14C 6A~10A 138A
GV2-ME16C 9A~14A 170A
GV2-ME20C 13A~18A 223A
GV2-ME21C 17A~23A 327A
GV2-ME22 20A~25A 327A
GV2-ME32C 24A~32A 416A

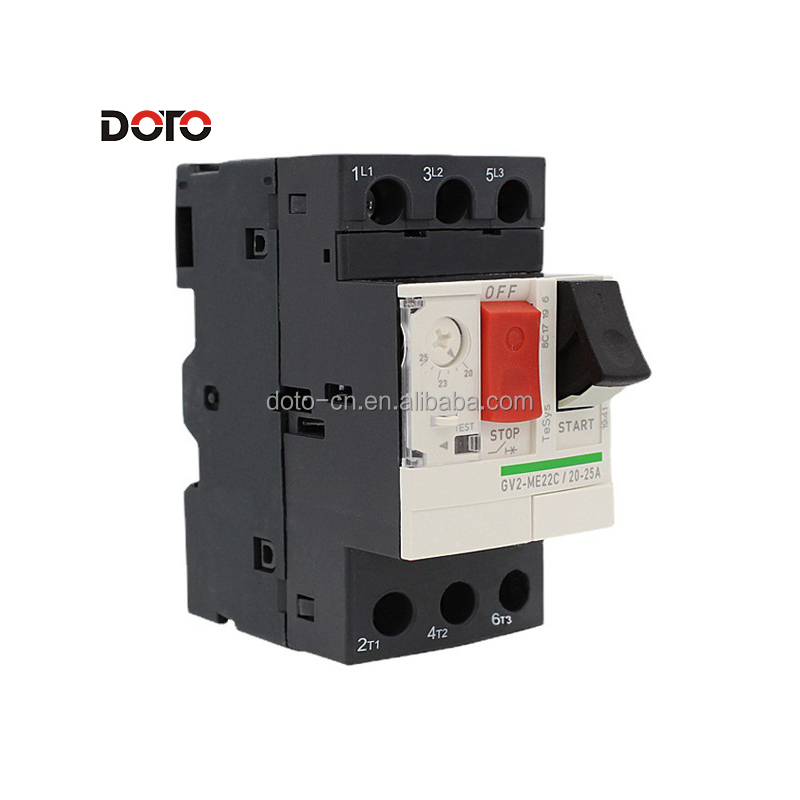

Motor Circuit Breaker Detail 1
Motor Circuit Breaker Detail 2
Motor Circuit Breaker Detail 3
Motor Circuit Breaker Detail 4

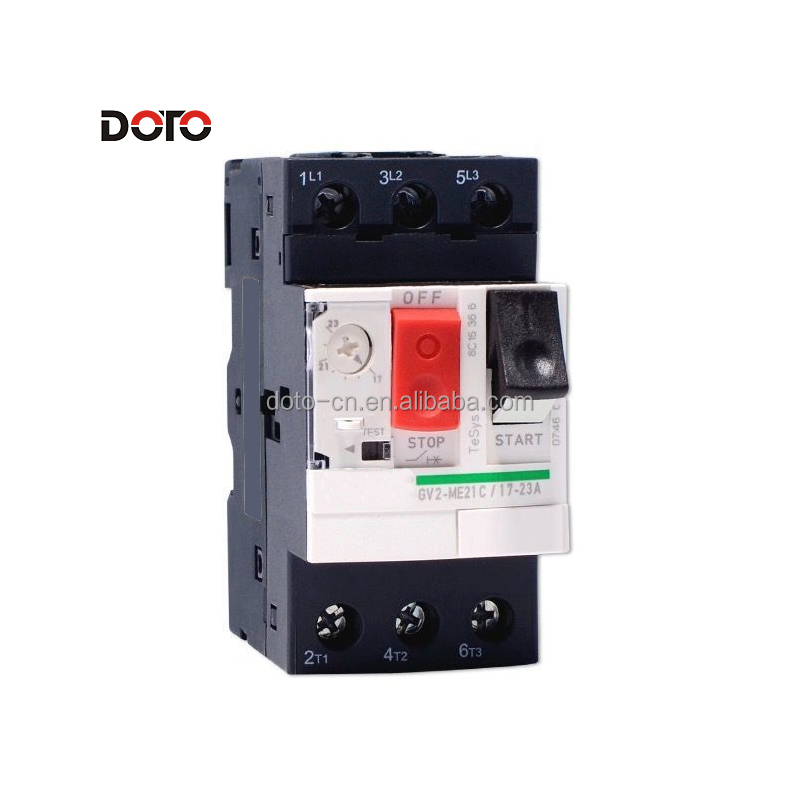

Motor Circuit Breaker Detail 5

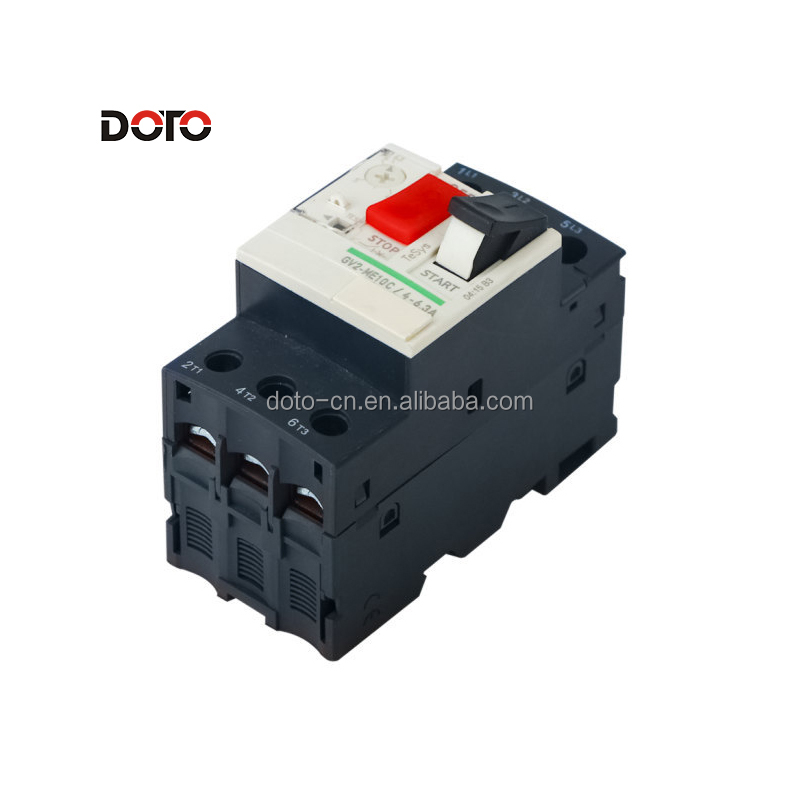

Motor Circuit Breaker Detail 6

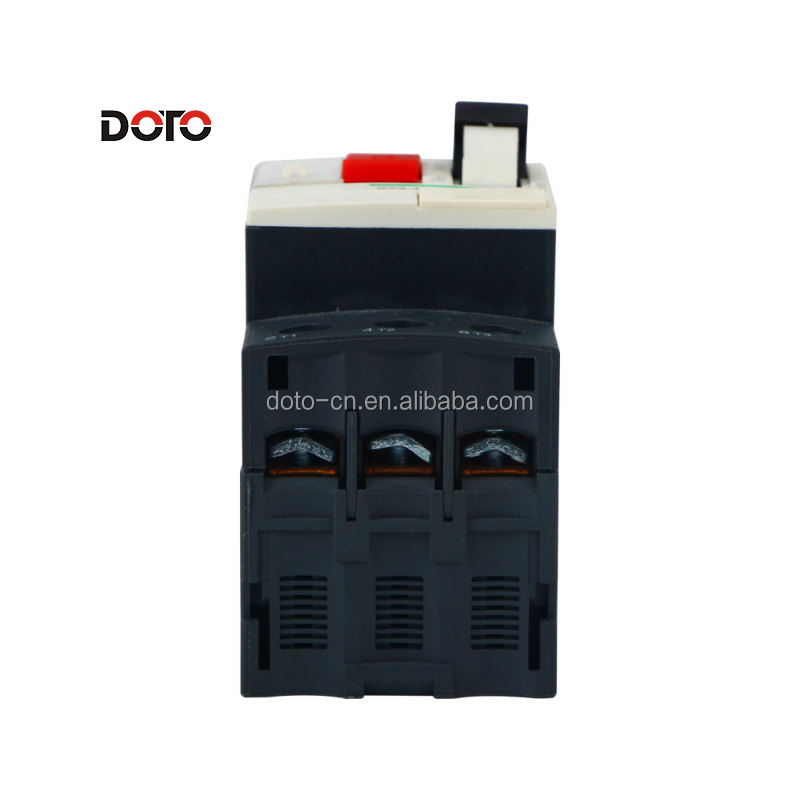

Motor Circuit Breaker Detail 7

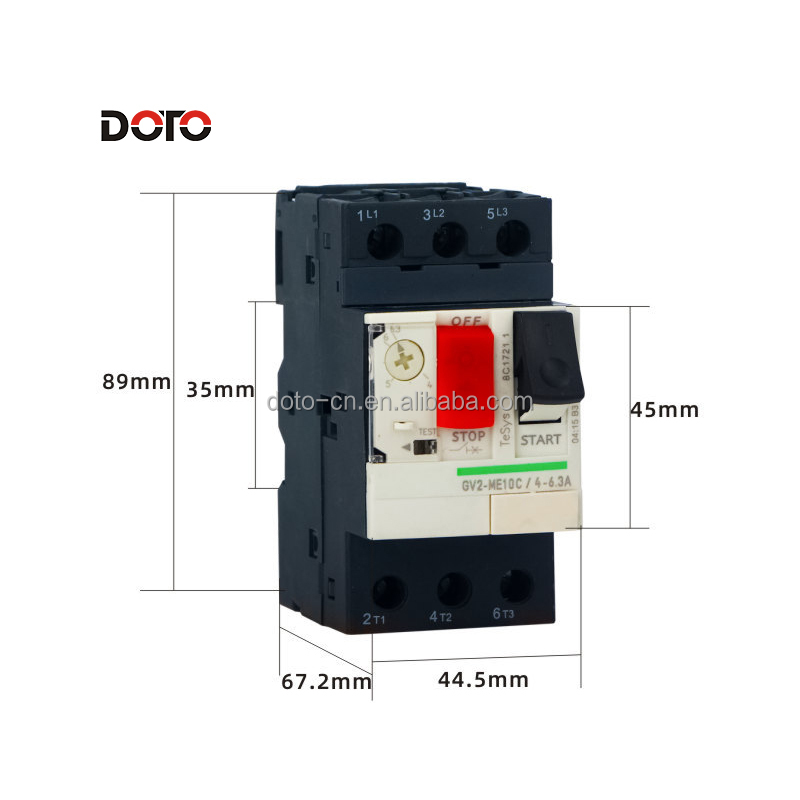

Motor Circuit Breaker Detail 8

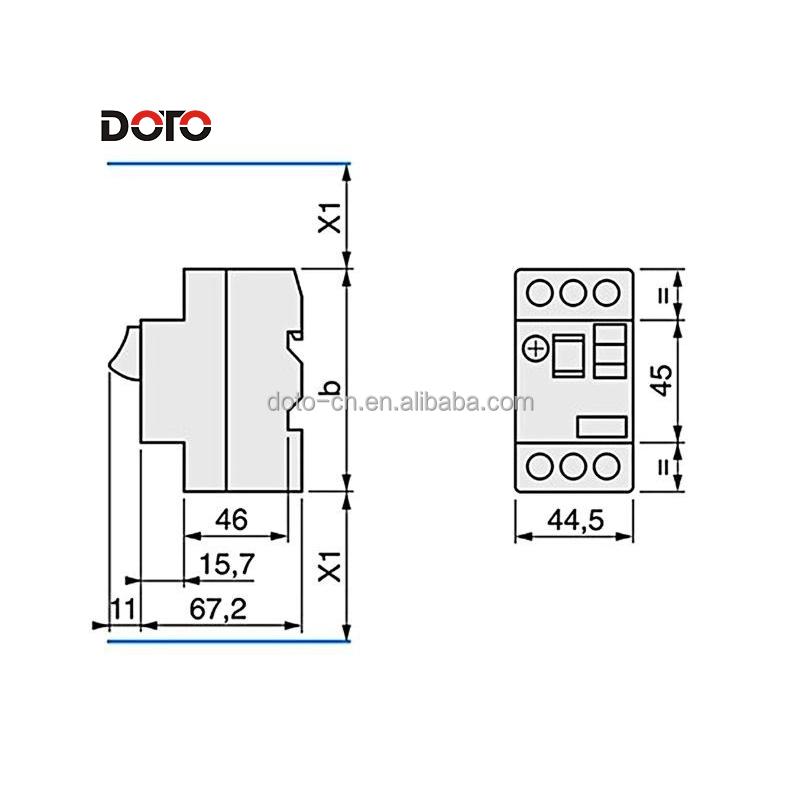

Motor Circuit Breaker Detail 9

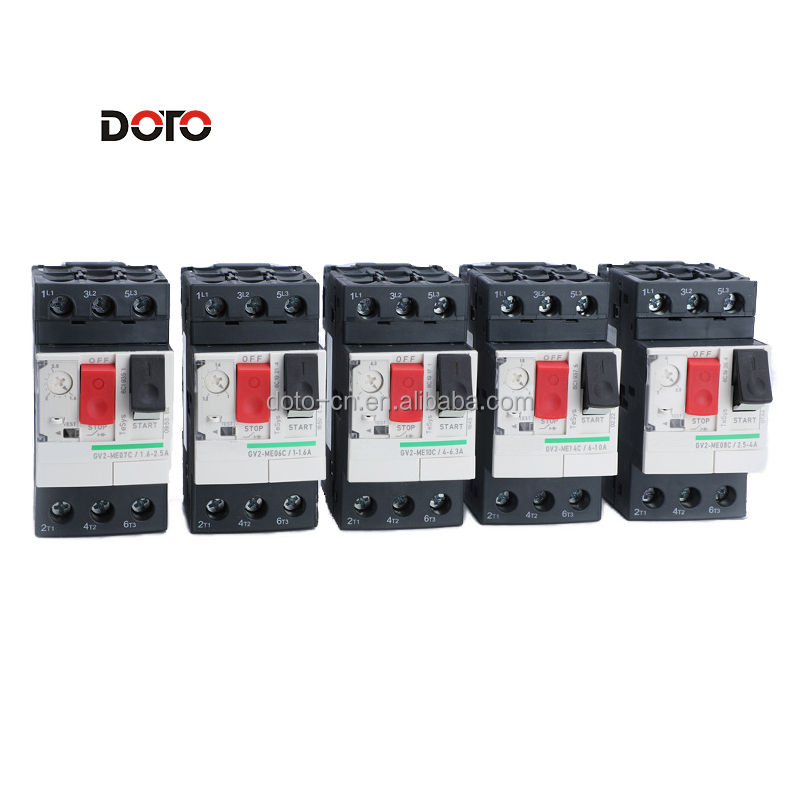

Motor Circuit Breaker Detail 10
Packaging & Shipping

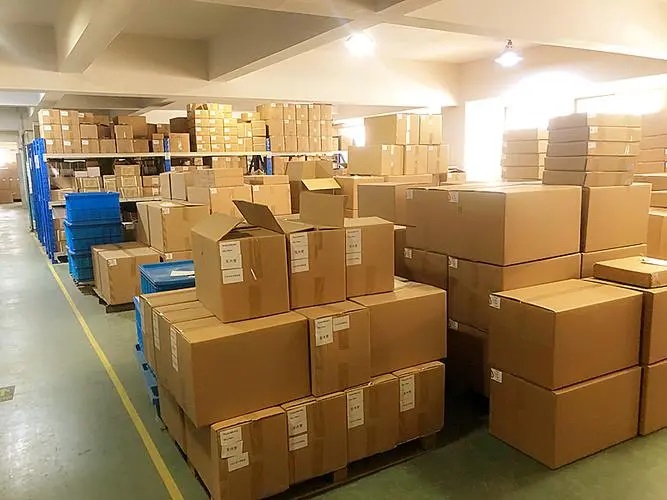

Packaging and Shipping details
Certifications
Product Certifications
Frequently Asked Questions
Q1: What is the main function of the GV2ME series Motor Circuit Breaker?
A1: The GV2ME series is designed for motor control and protection. It integrates thermal-magnetic protection to safeguard electric motors against faults such as short circuits, overloads, and phase failures.
Q2: How do I select the right current range for my motor circuit breaker?
A2: You should select a model whose current adjustment range covers the full-load current (FLA) rating specified on your motor's nameplate. Use the adjustable dial on the breaker to set the exact match.
Q3: Does the GV2ME series offer manual control capabilities?
A3: Yes, the GV2ME series features intuitive pushbutton control (Start/Stop) allowing manual operation to connect or disconnect the motor safely.
Q4: What is the difference between thermal and magnetic tripping mechanisms in these switches?
A4: The thermal protection element guards against sustained overloads by slowly heating up and tripping. The magnetic element provides instantaneous trip action during high-current short-circuit events to prevent immediate damage.
Q5: Can these motor circuit breakers be used in single-phase motor applications?
A5: Yes. For single-phase applications, you must loop the current through all three poles in series to ensure the phase-failure protection mechanism operates correctly.
