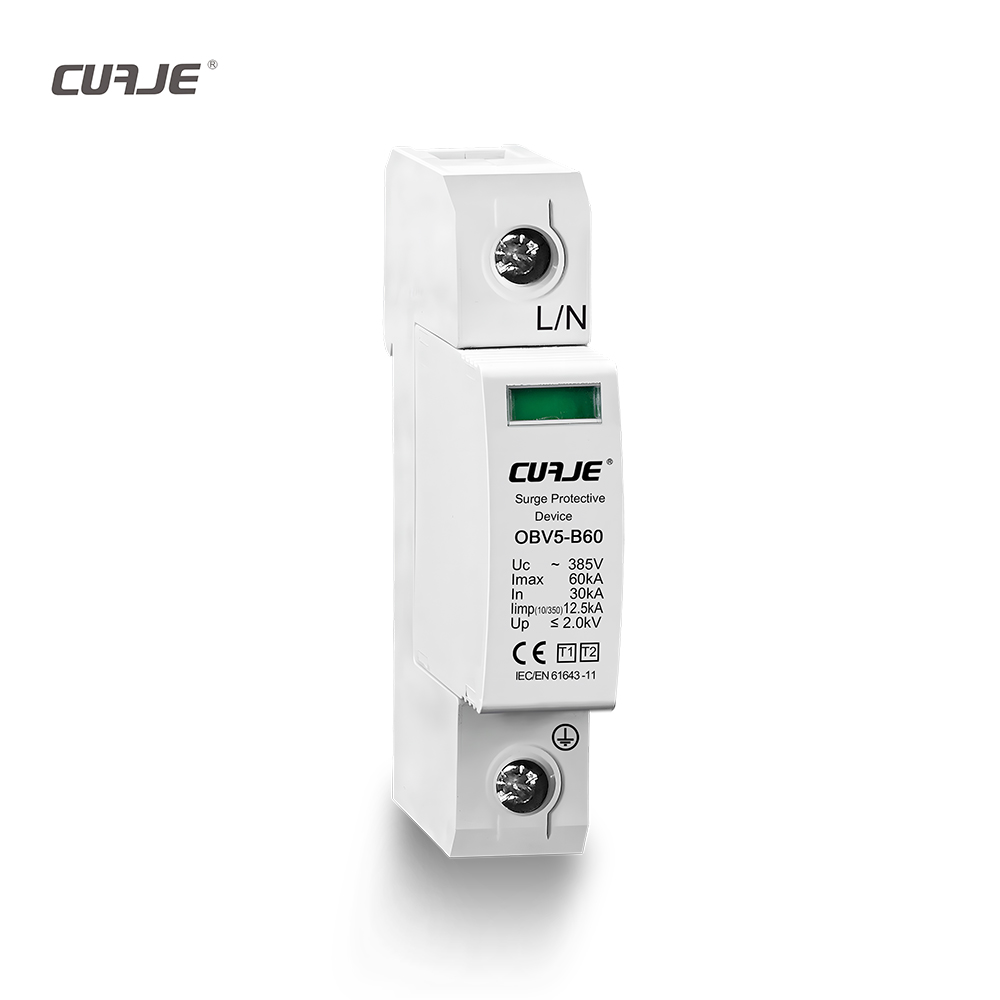

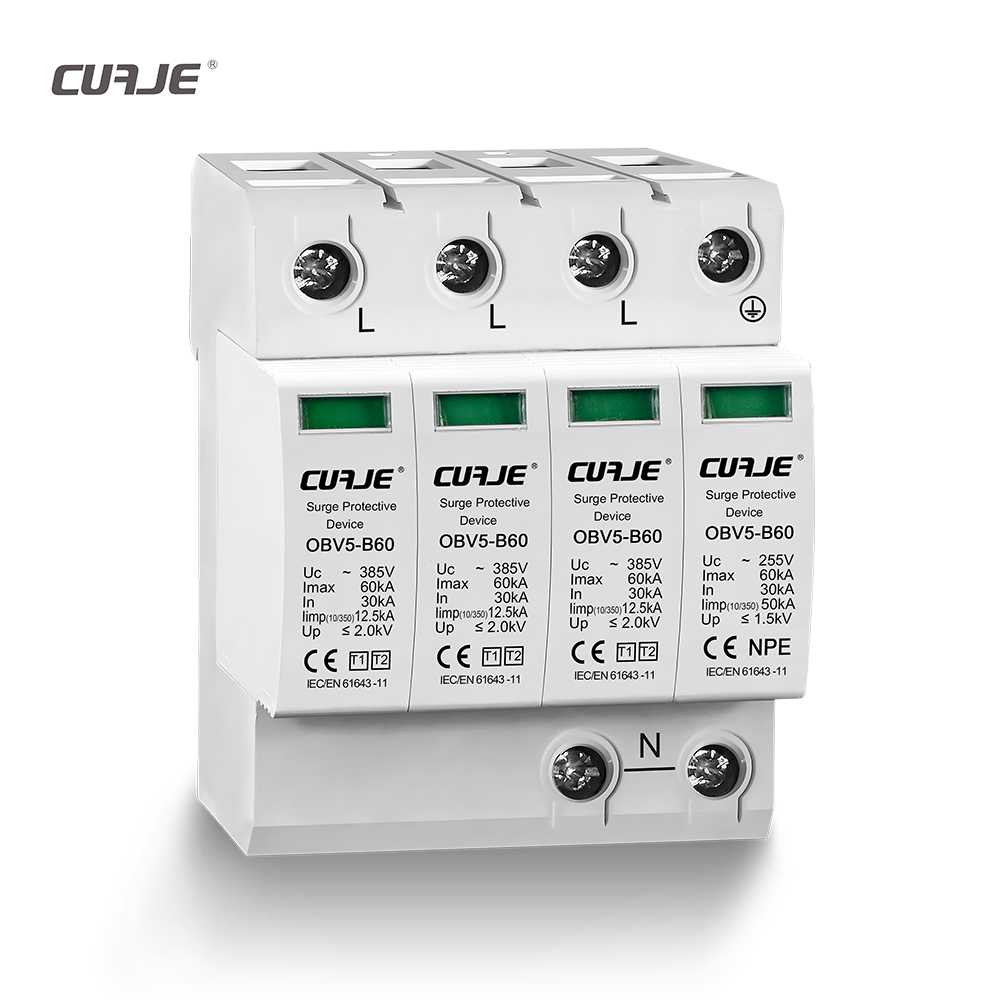

Industrial 3-Phase 4-Pole Power Surge Protective Device 60KA Lightning and Surge Protection CUAJE T1+T2 IEC61643-1

Product Description

Product Description

Power surge protective device 3phase 4pole surge protection device 60KA lightning and surge protection
The Class B surge protective device OBV5-B60 meet the type 1+2 requirement class according to IEC 61643-11. These devices protect low-voltage consumer systems from overvoltages of all types and are available in single-pole to four-pole versions. The use of high-performance varistors permits a rapid response time and a low protection level, without any line follow current. If circumstances are uncertain and there is a risk of fire from an overload, the internal cut-off unit disconnects the arrestor from the mains if necessary. In addition, the QR code printed on the arrestor allows direct access to the online installation instructions.
Connectable lightning current and surge arrestors
High arresting capacity up to 50 kA (10/350μs)
Visual status display
Available with optional remote signalling
Vibration-proof
Combination arrestors for buildings with lightning protection
Simple standard hat rail mounting
Labelled connections
Usable in systems with lightning protection class 3+4
Model: OBV5-B60
Maximum continuous voltage AC Uc V 275/320/385/440
SPD to EN 61643-11 - - Type 1+2
SPD to IEC 61643-1 - - class I+II
Lightning impulse current (10/350μs) Iimp kA 12.5
Nominal discharge current (8/20μs) In kA 30
Maximum discharge current (8/20μs) Imax kA 60
Voltage protection level Up kV <1.5/1.8/2.0/2.2
Response time tA ns <25
Maximum back-up fuse - A 125
Temperature range θ °C -40°C ~ +85°C
Protection rating - - IP 20
Max. cable cross-section flexible (fine-wire) - mm² 25
Max. cable cross-section rigid (single wire/multi-wire) - mm² 35

Dimensions

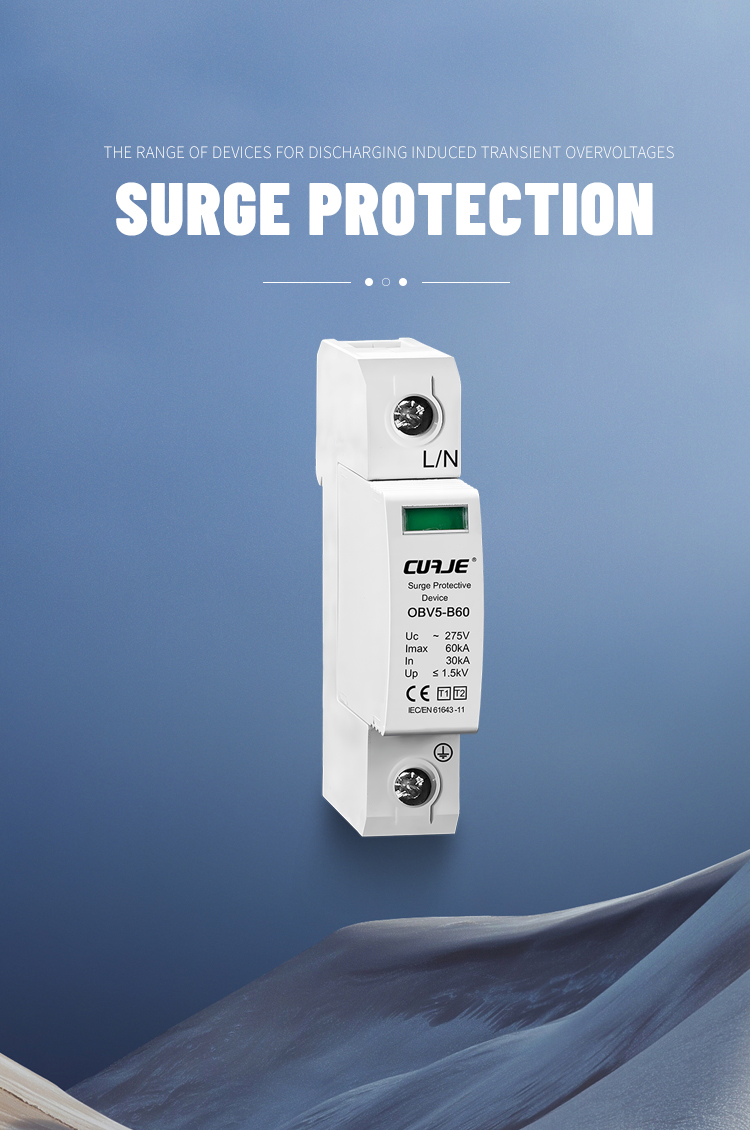

Dimension Diagram 1
Dimension Diagram 2

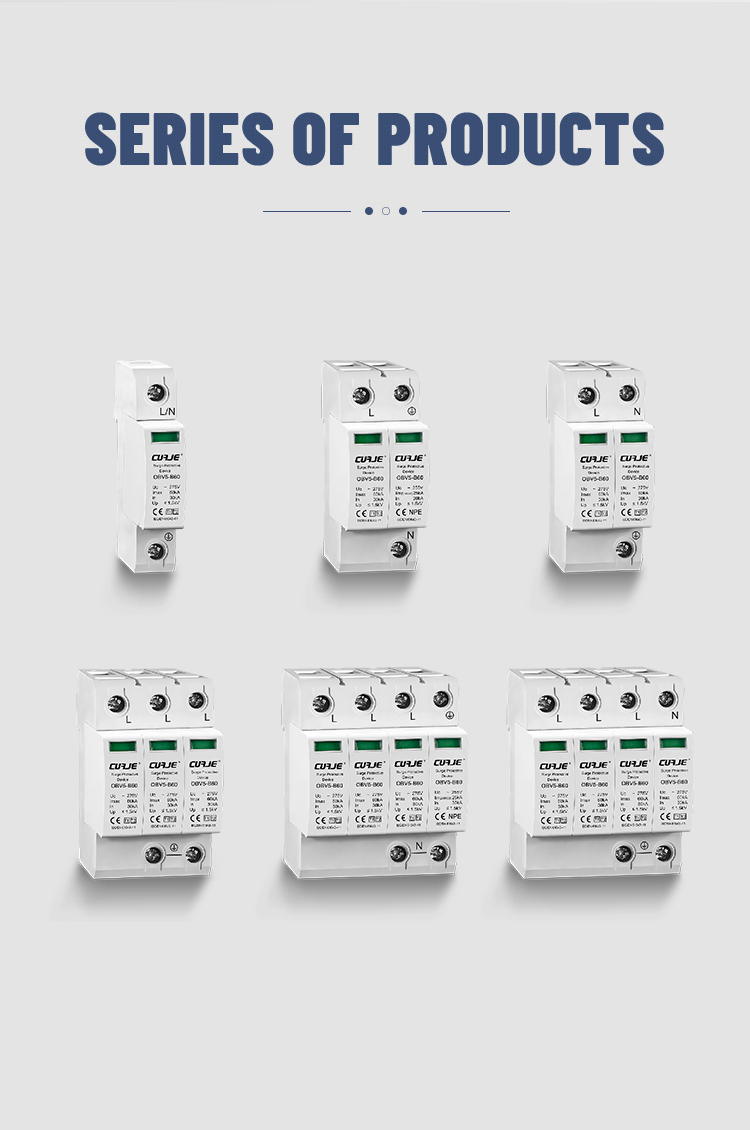

Dimension Diagram 3

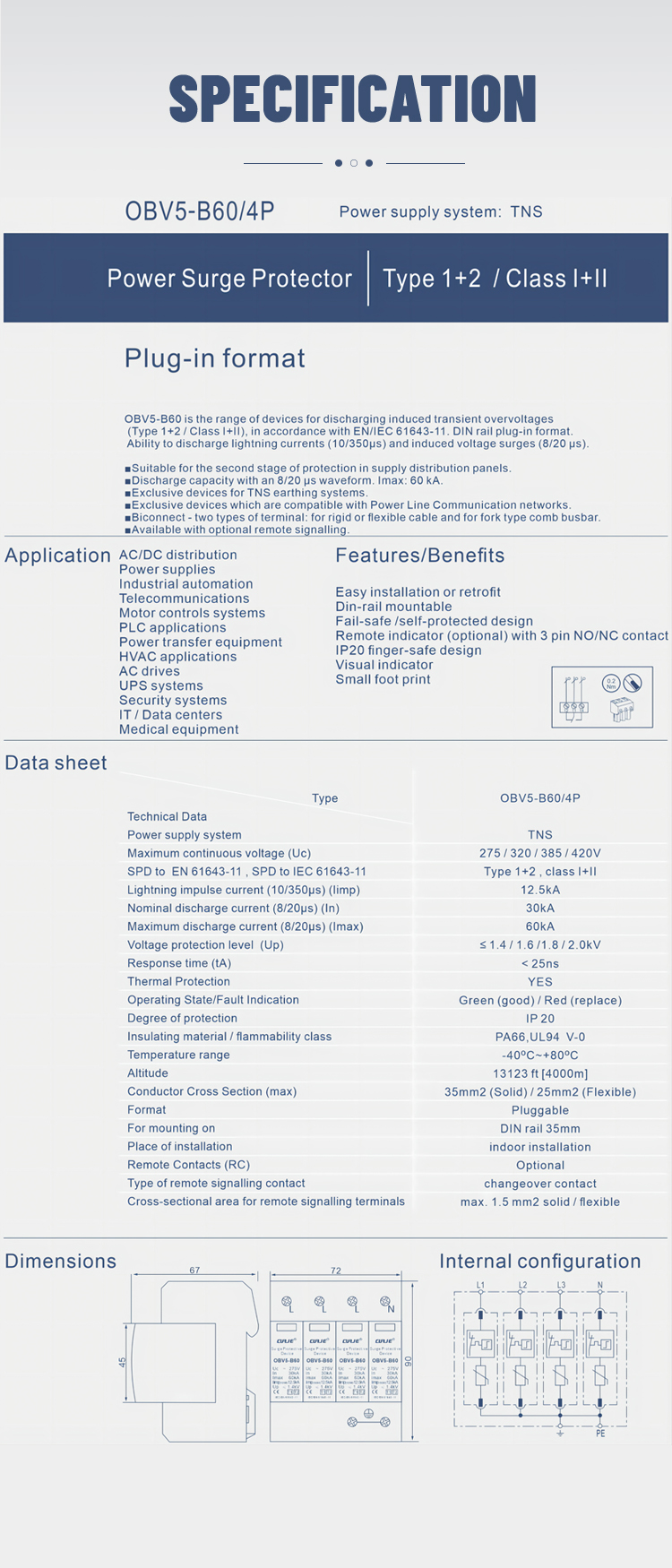

Dimension Diagram 4

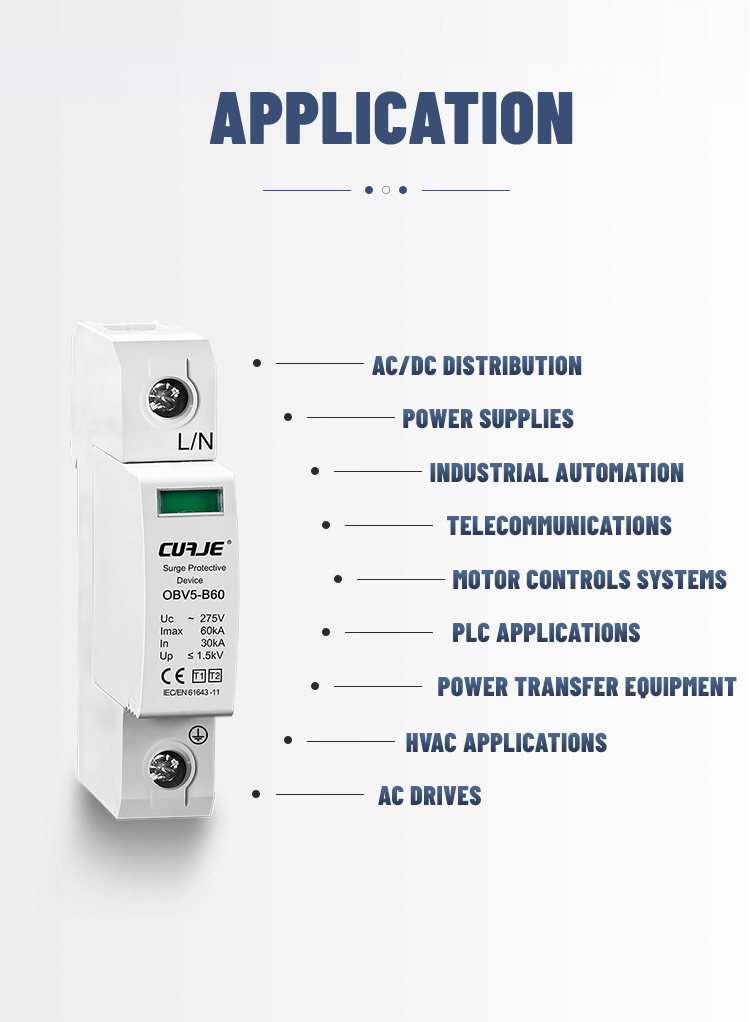

Dimension Diagram 5
Dimension Diagram 6

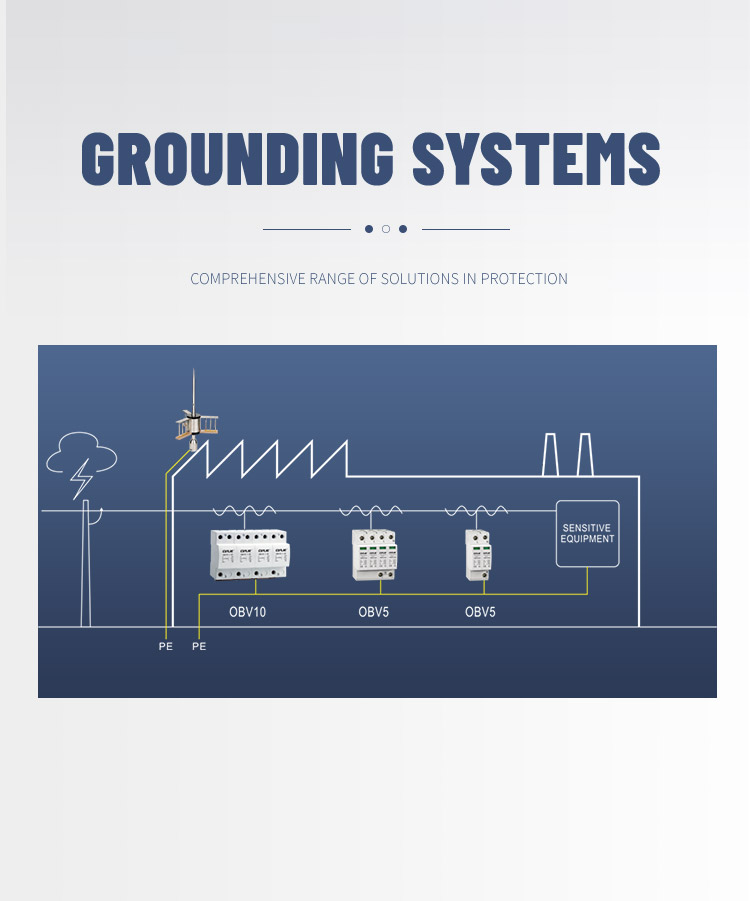

Dimension Diagram 7
Dimension Diagram 8

Application

Application Diagram

Production Showcase

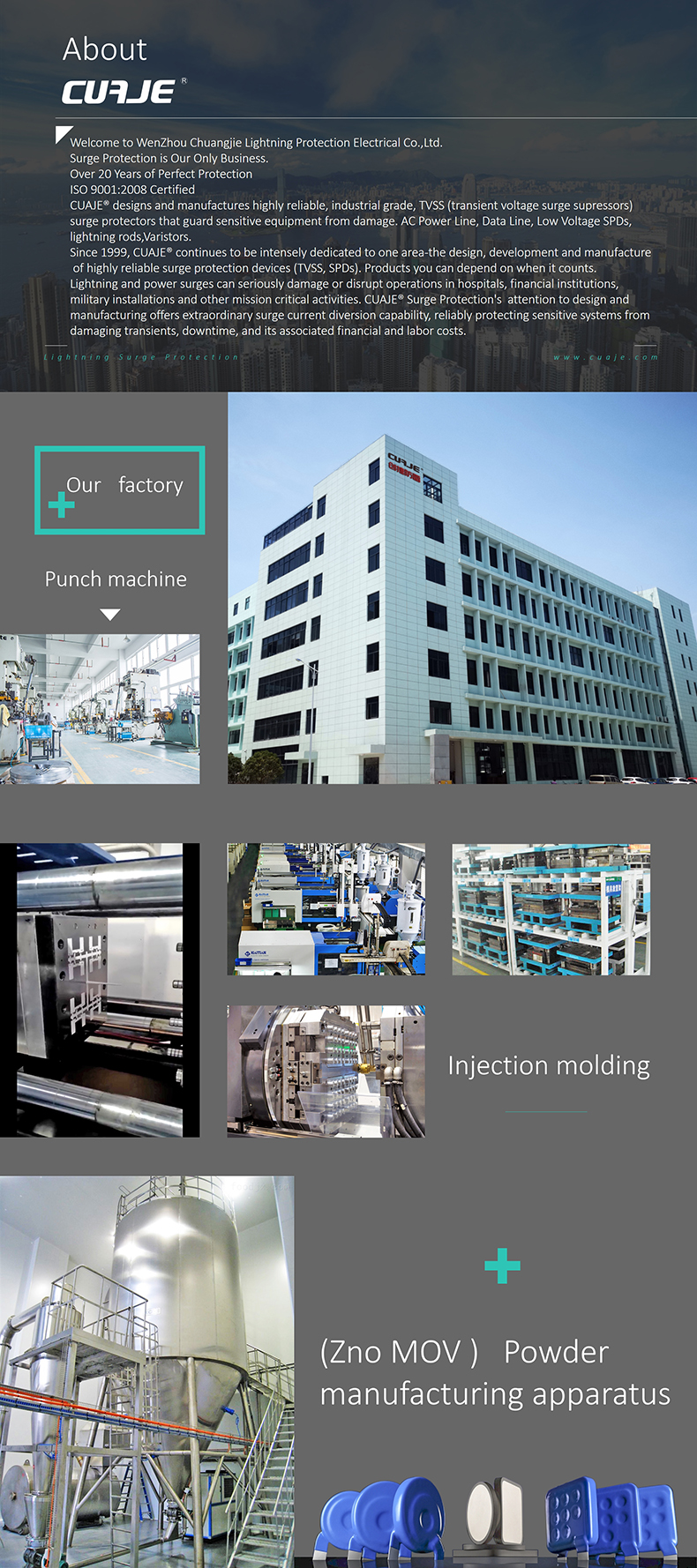

Production Facility 1

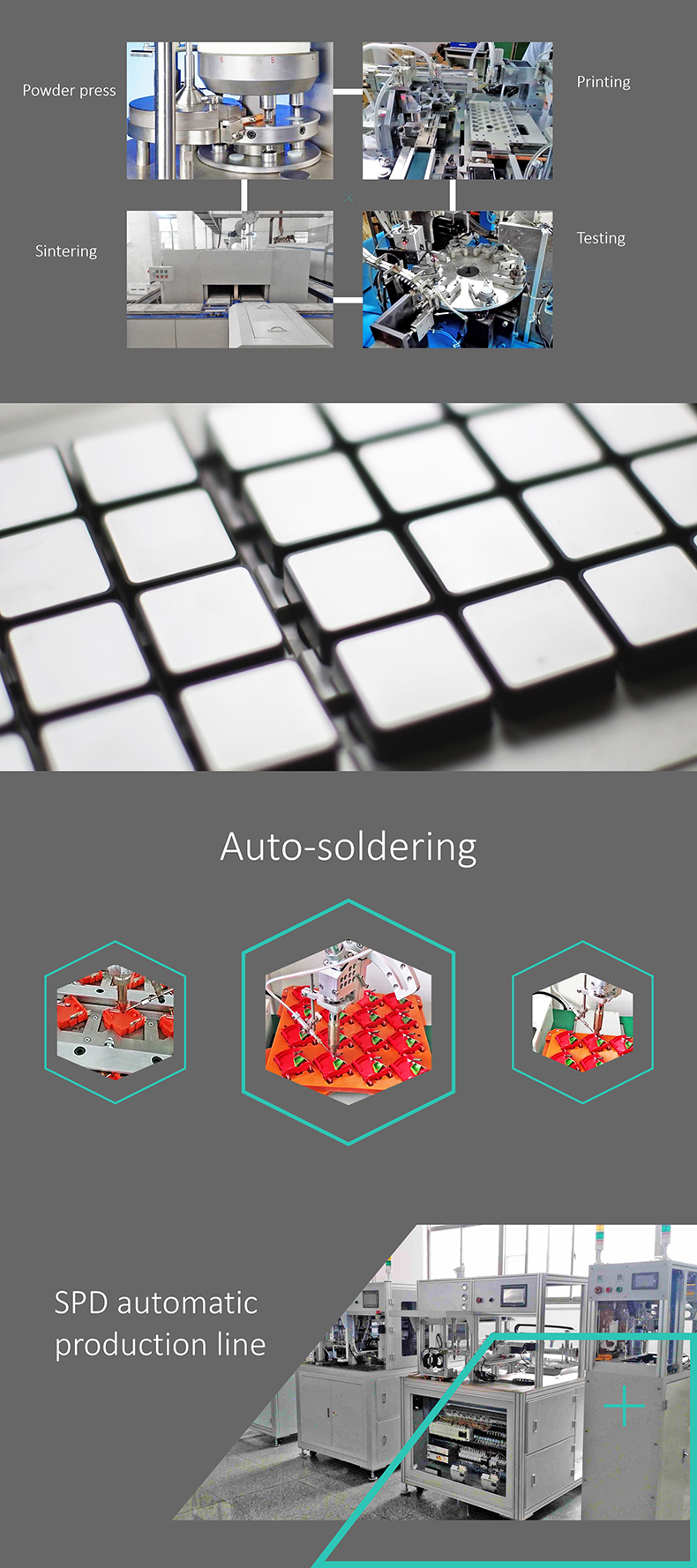

Production Facility 2

Packaging & Shipping

Packaging

Standard export carton

Shipping

3 days after receiving payment

Frequently Asked Questions

QCan I get some samples?
Yes, sample orders are welcomed.
QCan I use my own Logo or design on goods?
Yes, customized logo and design on mass production are available.
QWhat is the delivery time?
3 days for samples, 7-15 days for mass production.
QWhat is the payment term?
T/T, L/C at sight, Western Union, Paypal, etc.
QCan I trust you?
Absolutely YES. We are a verified supplier with many years of reliable history.
QMay I visit your factory?
Sure, welcome any time. We can also pick you up at the airport or station.
