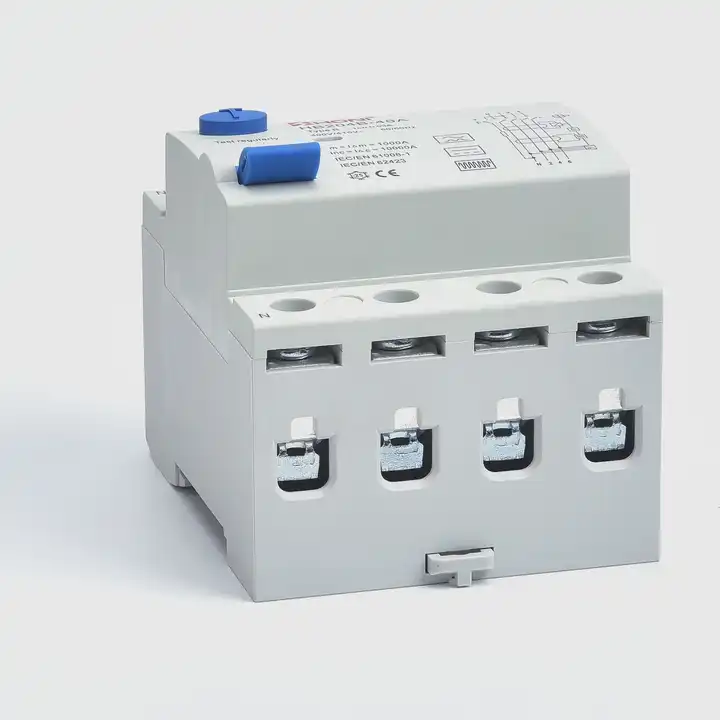

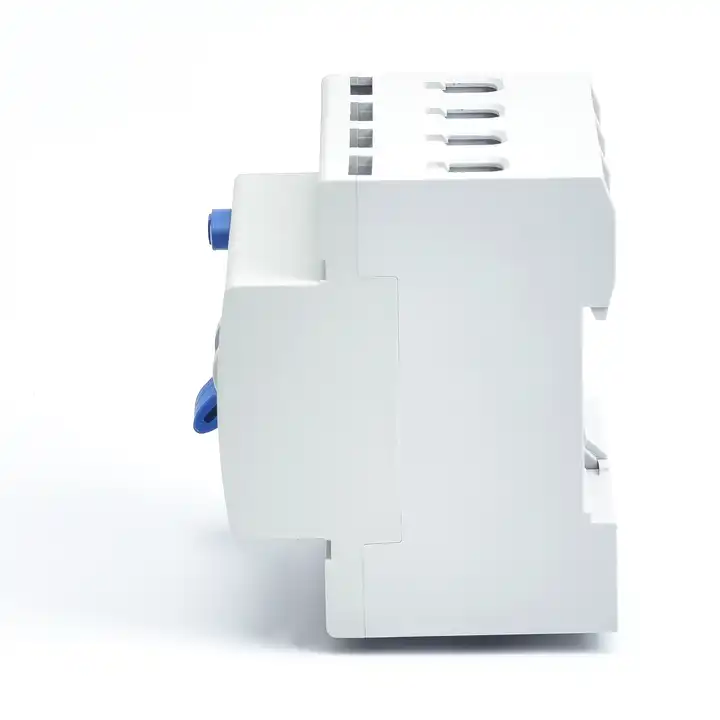

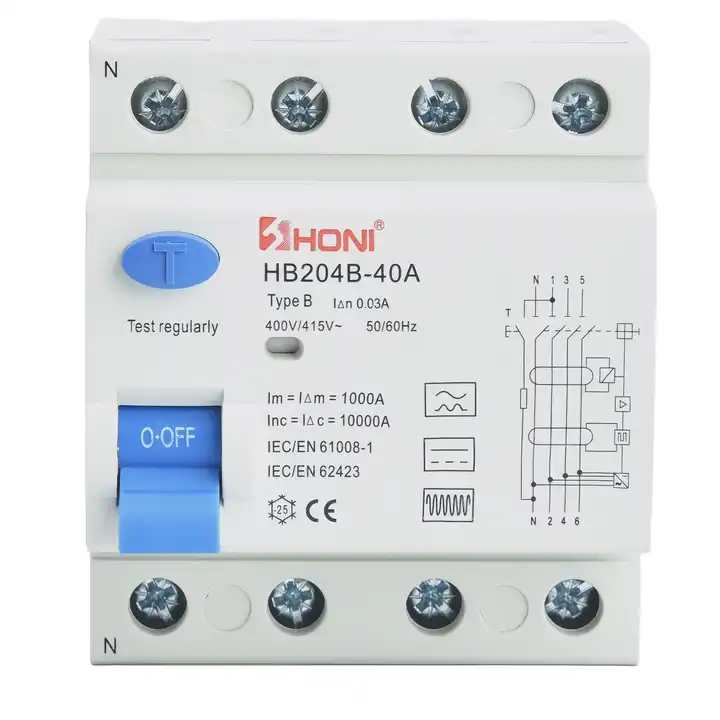

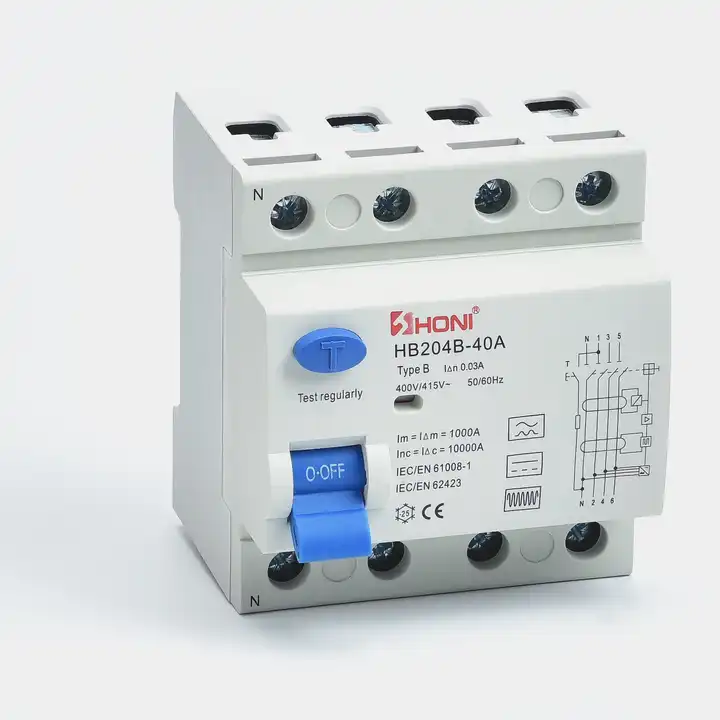

HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker
HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker
HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker
HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker
HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker
1 / 5
HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker
HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker
HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker
HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker
HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker

HB204B-40A Type B RCCB 4P 40A 10ma 30ma 100ma 300ma Residual Current Circuit Breaker

Send Inquiry

Product Description

Product Description
Product Image

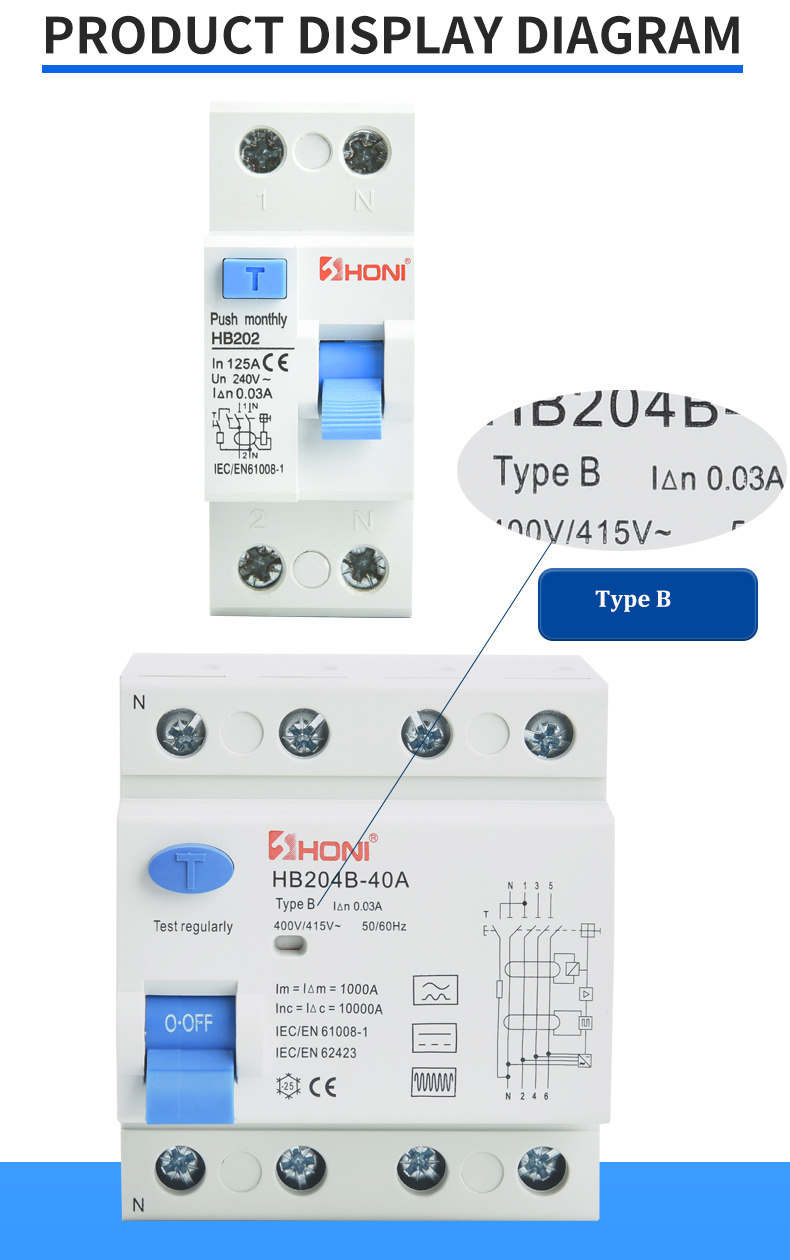

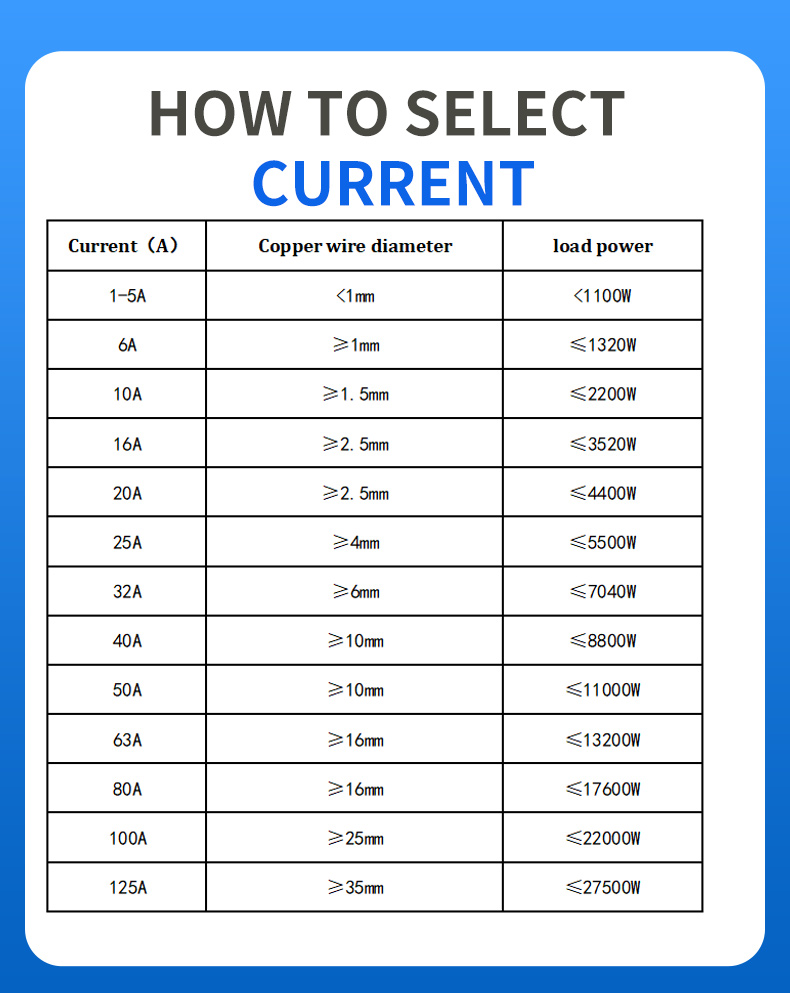

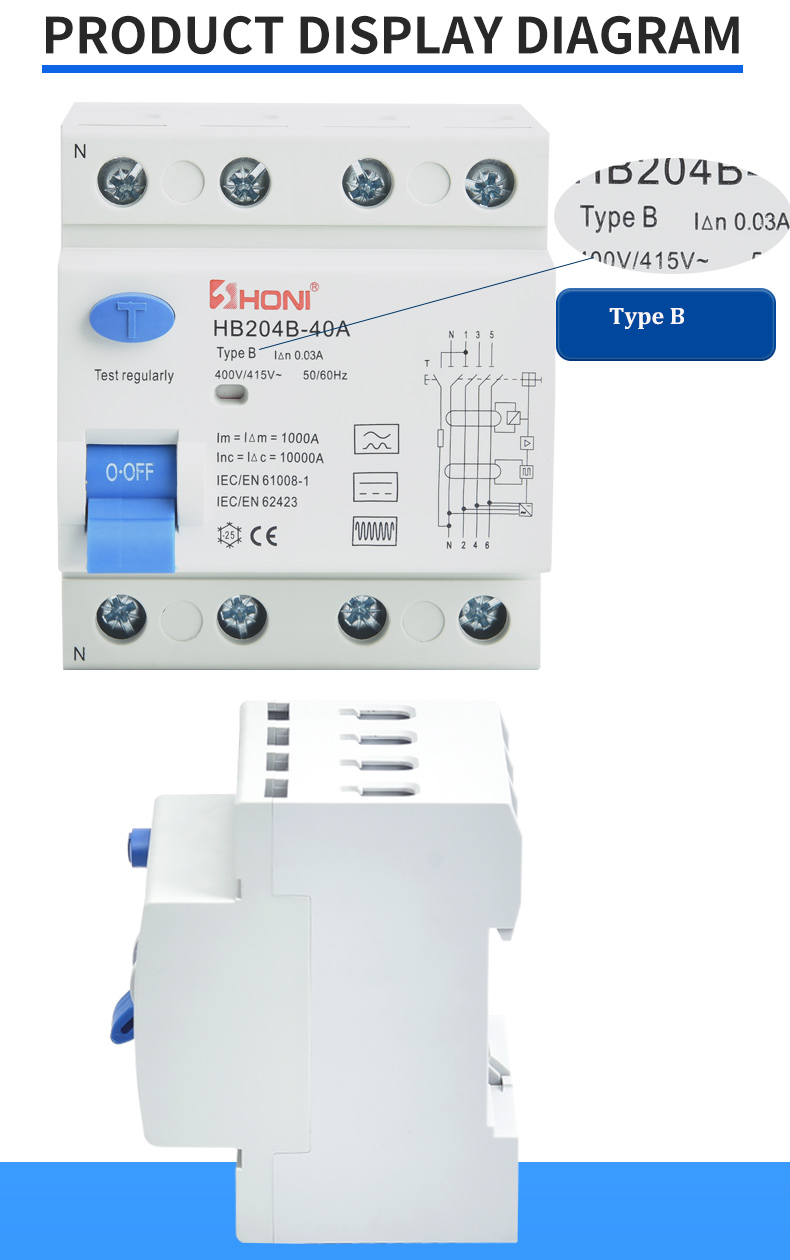

Product Details
Product Details
Product Details
Product Details
Product Details
Product Details
Product Details
Product Details
Product Details
Specification
Item Value
Place of Origin China
Model Number HO204B-40A
Type Air
Poles Number 3P+N
Rated Voltage 400V
BCD Curve C
Rated Frequency 50/60hz
Breaking Capacity 10kA
Pole No. 3P+N
Rated current (A) 16A 25A 32A 40A 63A 80A
Rated residual operating current 0.03A,0.1A,0.3A,0.5A

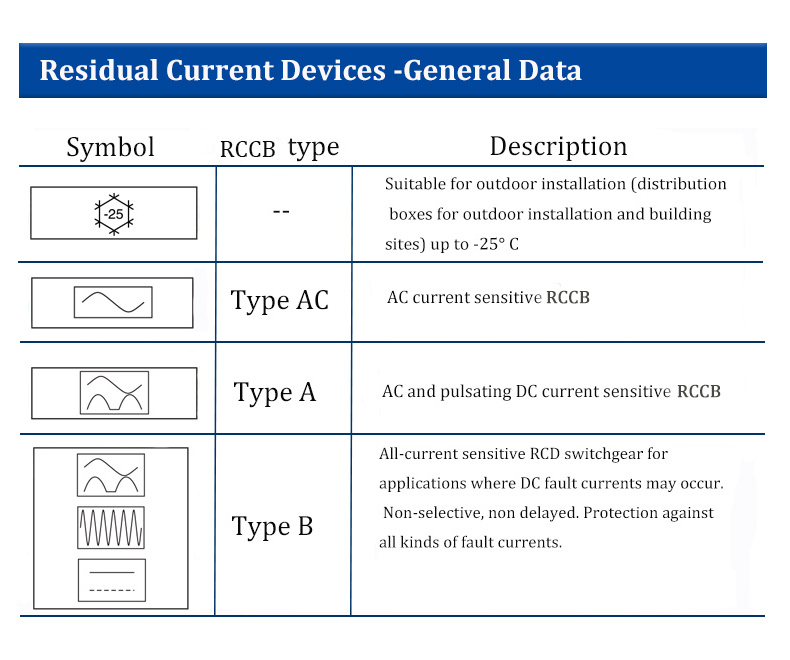

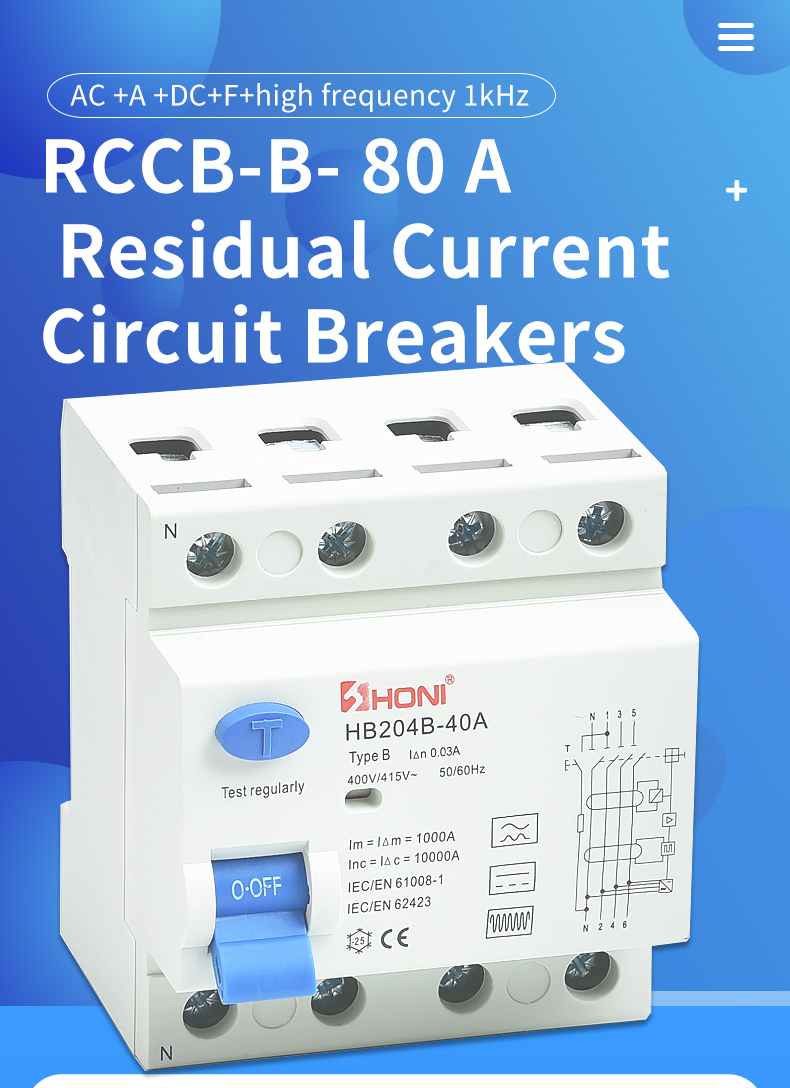

Rated residual current type AC +A +DC+F+high frequency 1kHz
Rated impulse withstand voltage (Uimp) 4 kV
Breaking capacity 10KA
Mechanical Life 20000
Certificate CE CB RoHS TUV
Application EV Charger, solar system
Standard IEC61008/EN61008
Packing & Delivery
STANDARD EXPORT CARTON
2P: 20POLES / CARTON | CARTON SIZE: 40.5*19.5*18.5 CM | 25kG
4P: 20POLES / CARTON | CARTON SIZE: 40.5*19.5*18.5 CM | 28kG
Packing Info
Regular packing
