Note: This link price is only for AFDD2-40 1P+N A type. If you need other specifications, please feel free to contact us.
Product Description

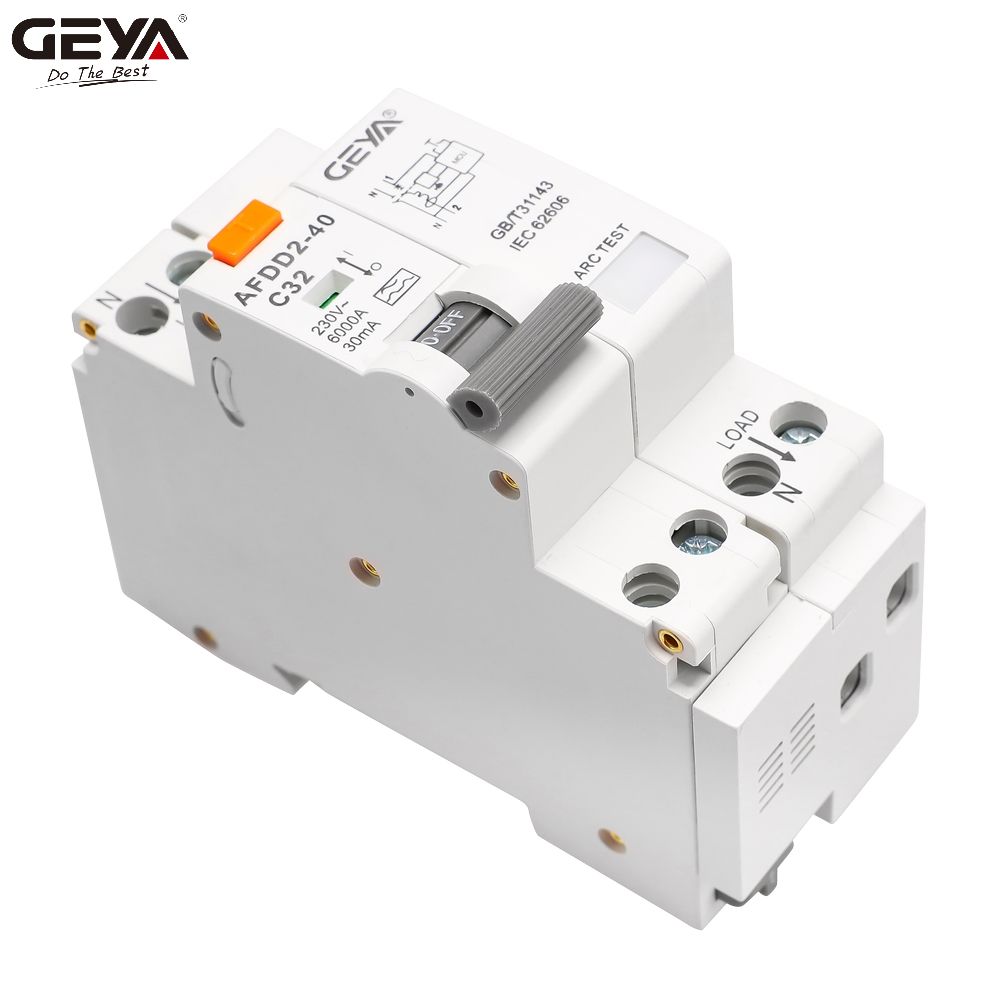

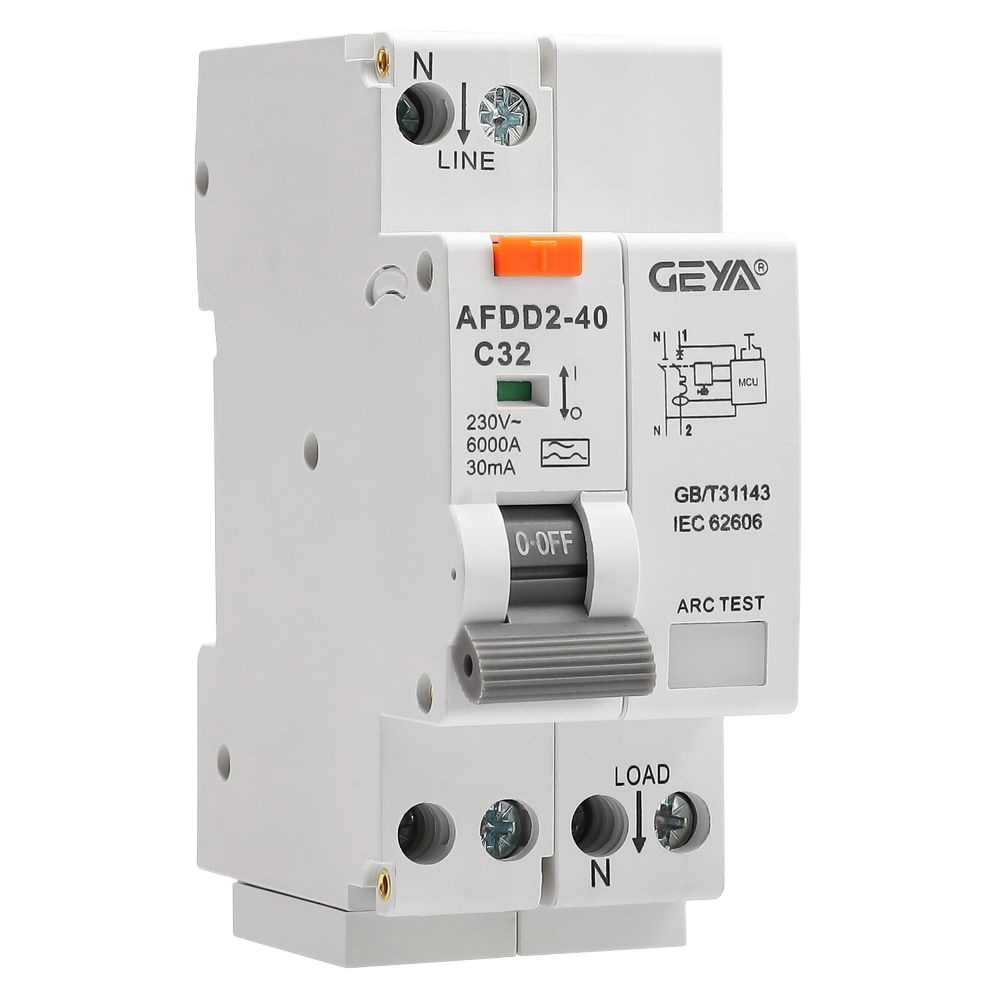

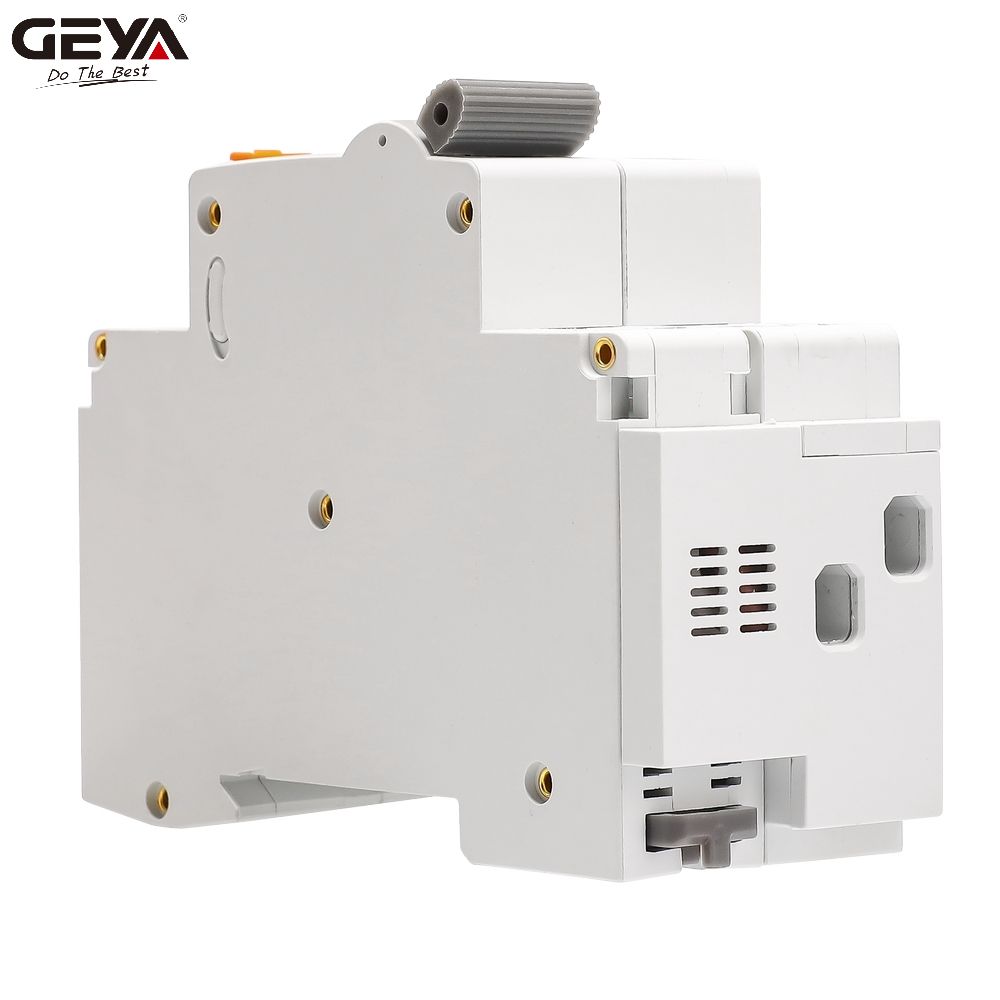

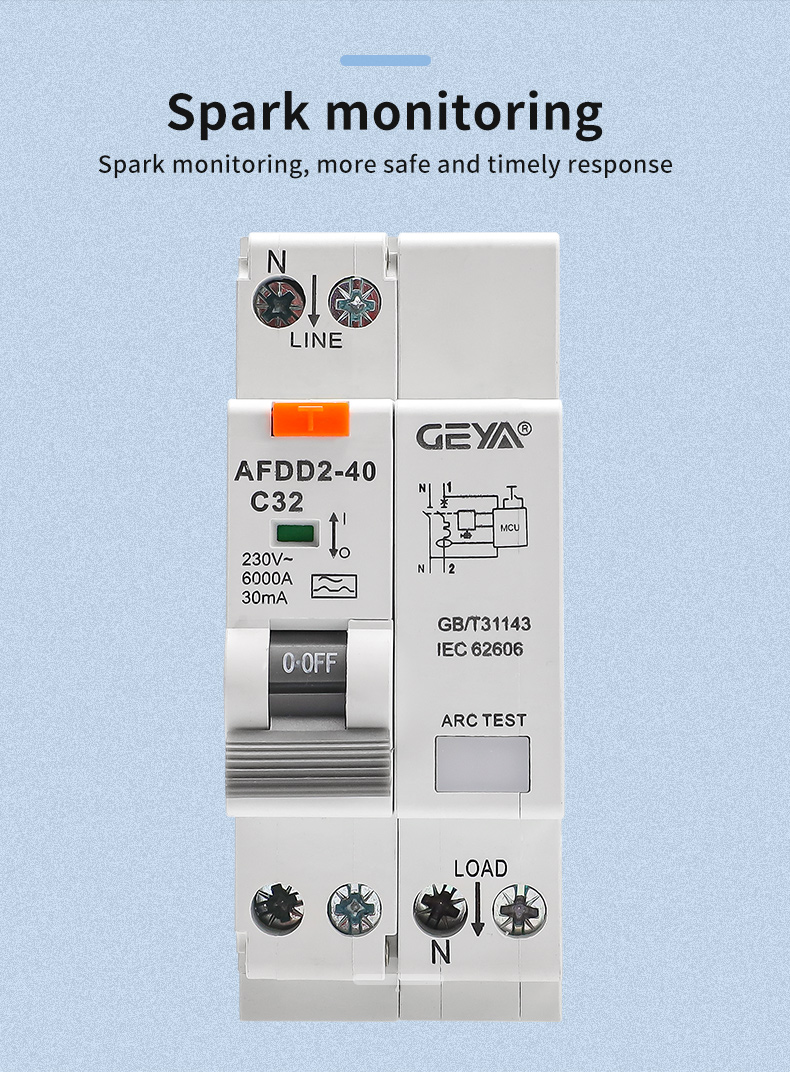

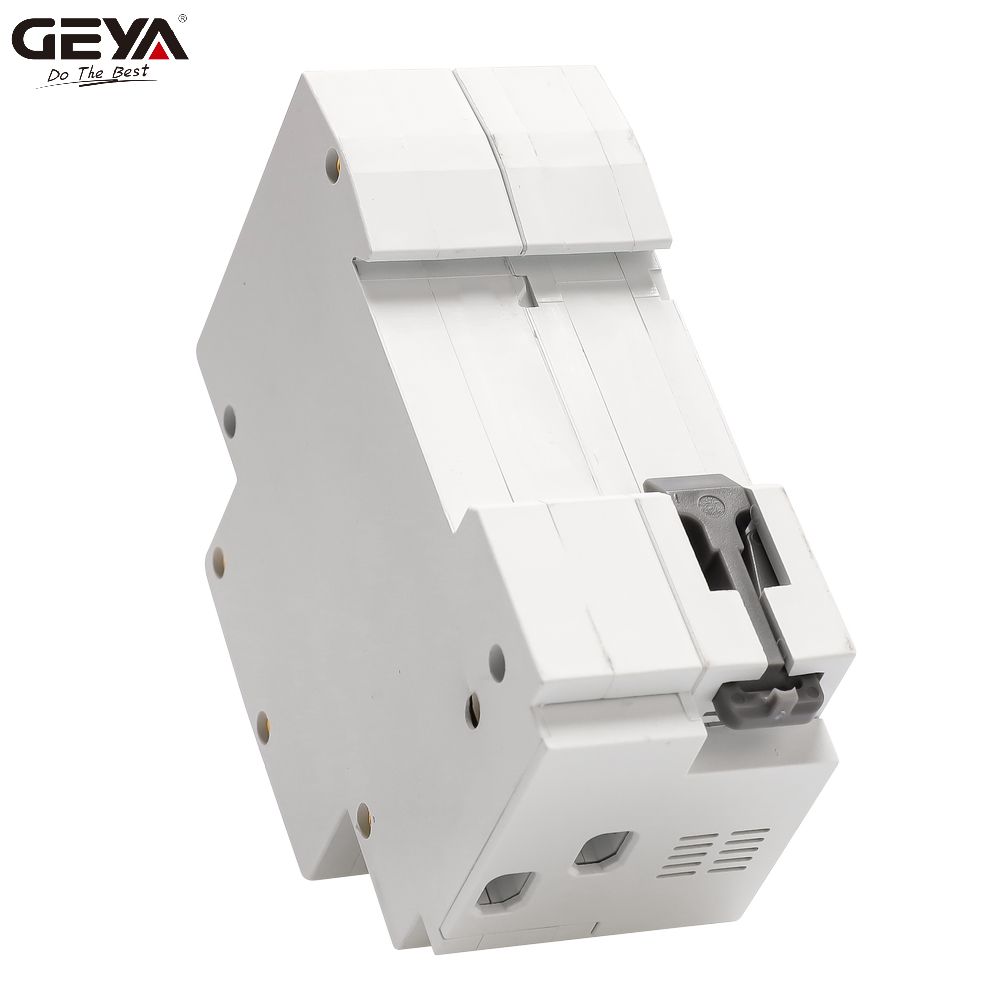

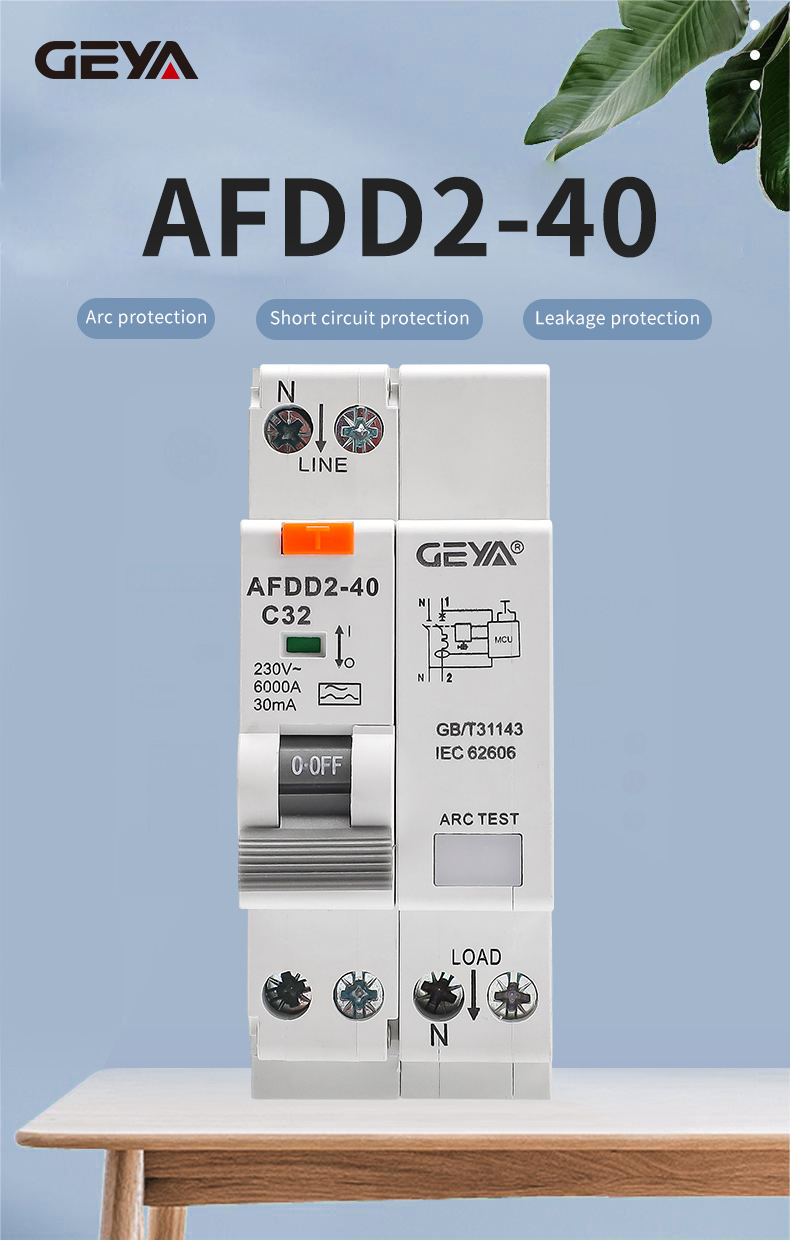

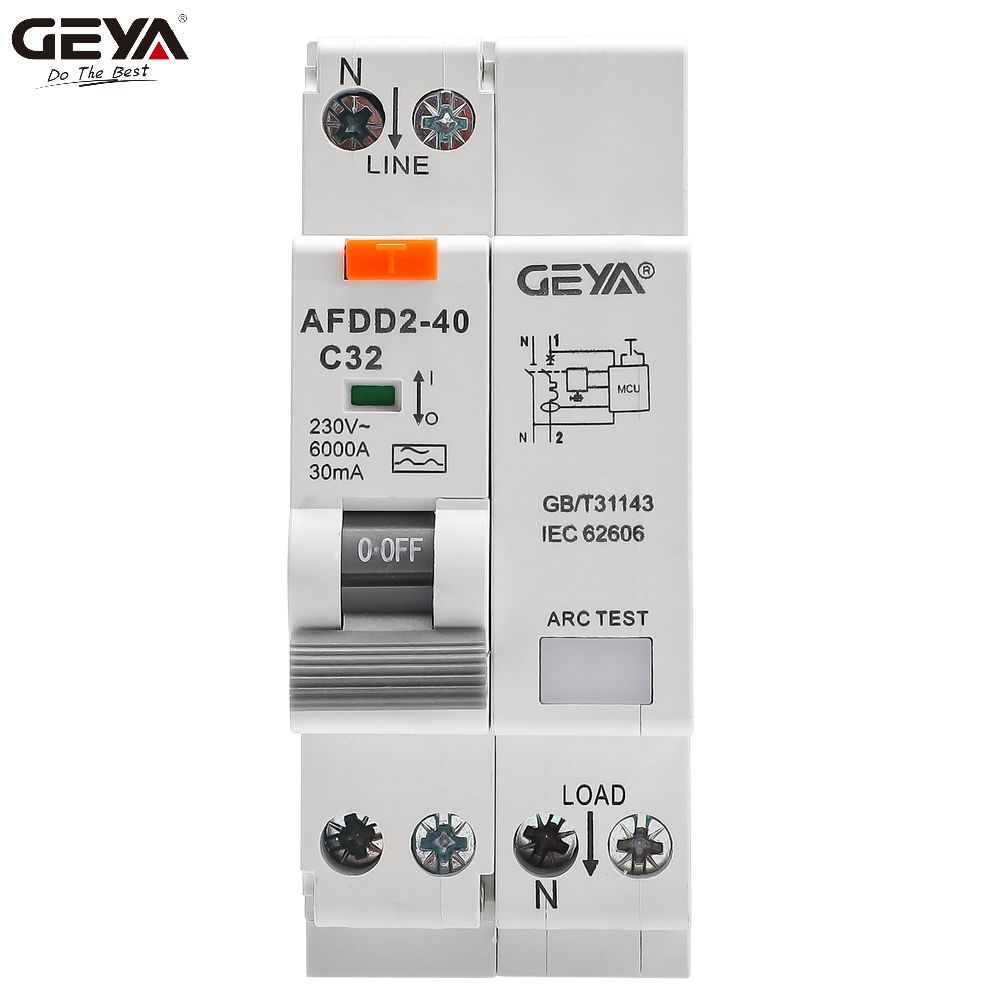

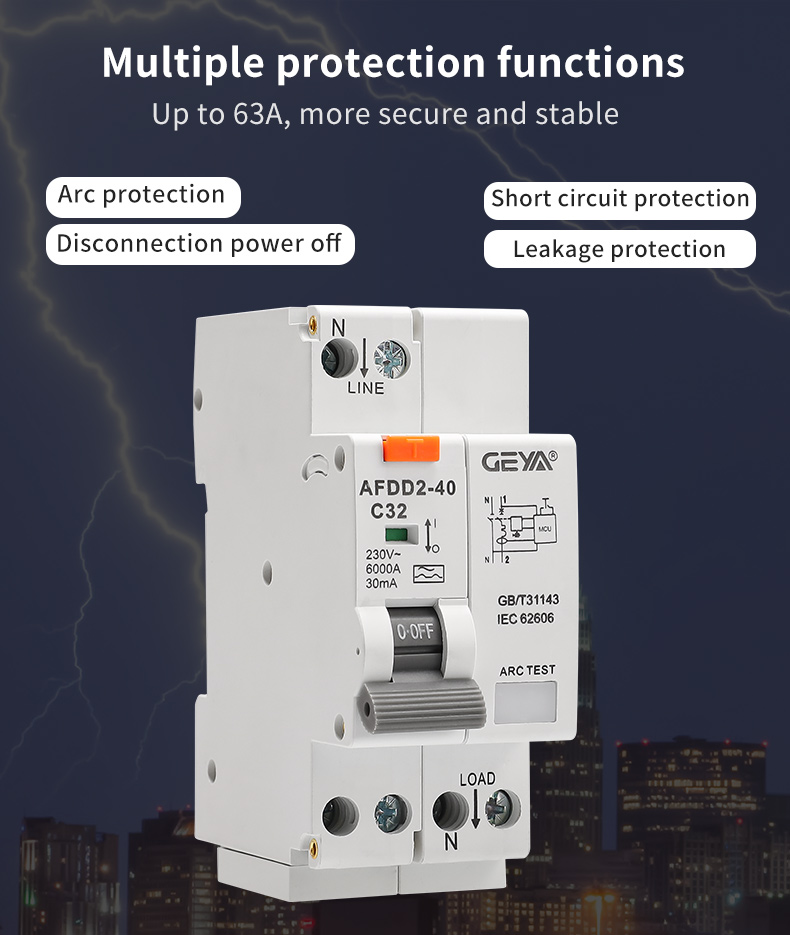

AFDD2-40 arc circuit breaker incorporates MCB, RCD, and arc fault detection module, providing comprehensive protection against short circuits, overloads, leakage current, and arc faults.
Overview:
The zero-sequence transformer of the RCD detects leakage current, and the arc fault module identifies arc faults. This allows the product to effectively disconnect the circuit in case of either fault.
Application:
Applicable to AC circuits with rated current up to 40A, this device provides protection for branch circuits in lighting distribution and power distribution systems. The arc fault detection module effectively identifies arc faults caused by aging, damage, or high humidity in the insulation layer.
Main Technical Parameters:
- Rated voltage (Ue): AC 230V
- Rated frequency: 50Hz ±2%
- Rated insulation voltage (Ui): 400V
- Rated impulse withstand voltage (Uimp): 4KV
- Rated current (In): 6A, 10A, 16A, 20A, 25A, 32A, 40A
- Number of poles: 1P+N (N pole disconnectable)
- Magnetic tripping type: B-type, C-type
- Rated short circuit capacity (Ics/Icn): 6KA
- Insulation material class: III a

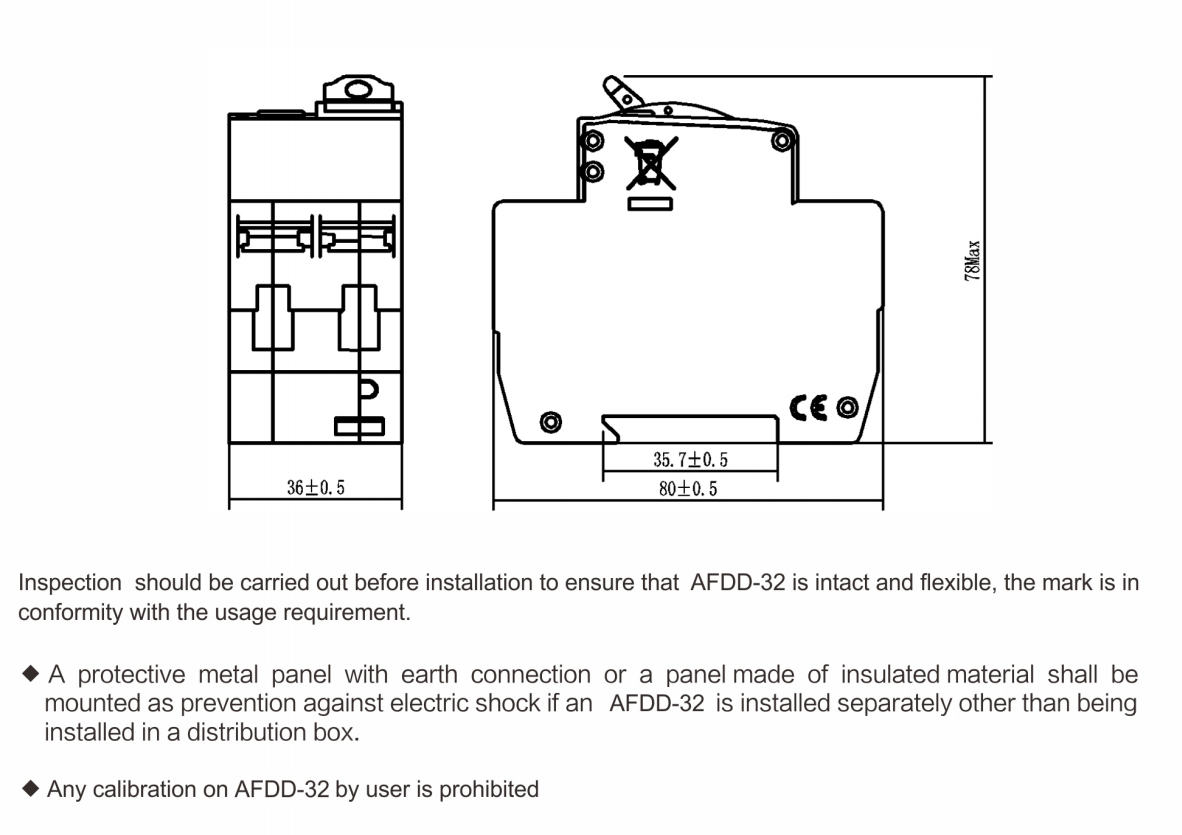

- Grid distance: 40mm
- Rated sensitivity: 30mA type A, AC

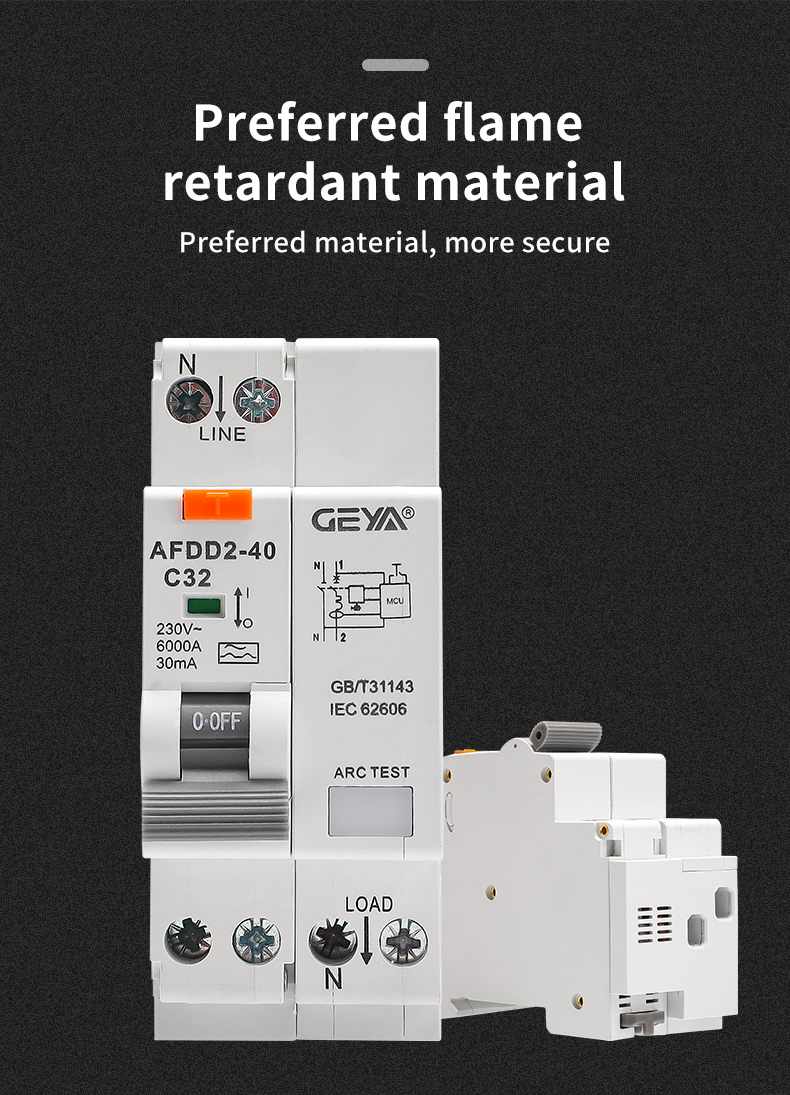

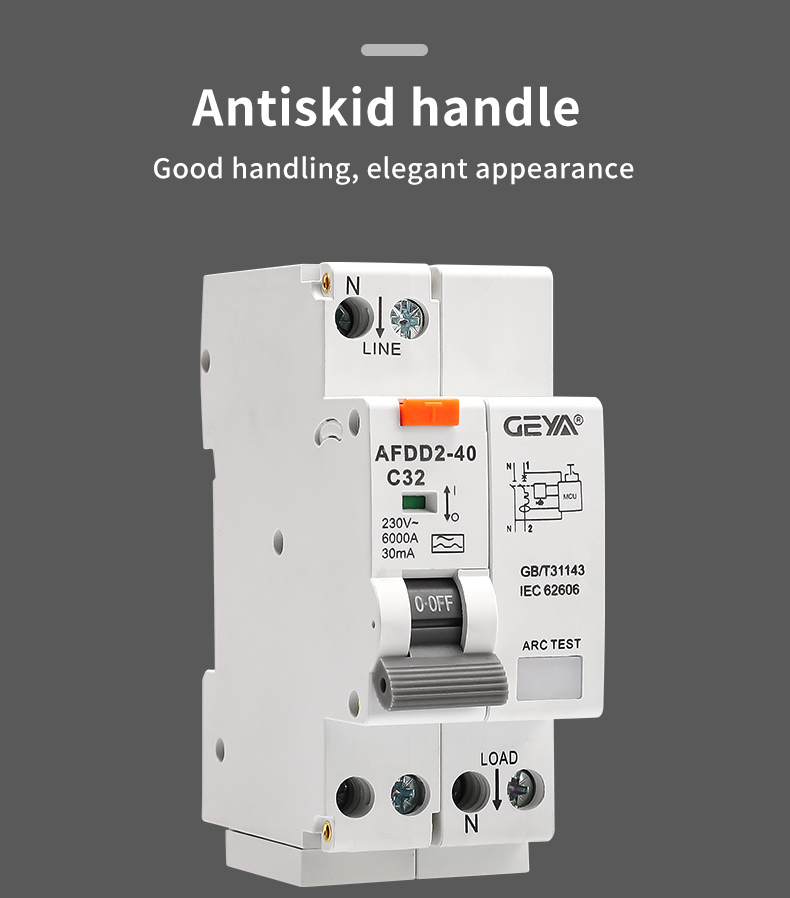

Product Gallery
Specification
| Item | Value |
| Place of Origin | ZHE |
| Brand Name | GEYA |
| Model Number | AFDD2-40 |
| Type | Mini |
| Rated Voltage | AC230V |
| BCD Curve | B C |
| Rated Frequency | 50Hz |
| Rated insulation voltage(Ui) | 230V |
| Rated impulse withstand voltage(Uimp) | 4KV |
| Rated current(In) | 6A, 10A, 16A, 20A, 25A, 32A |
| Magnetic tripping type | B-type, C-type |
| Rated short circuit capacity(Icn) | 6KA |
| Insulation material class | III a |
| Grid distance | 40mm |
