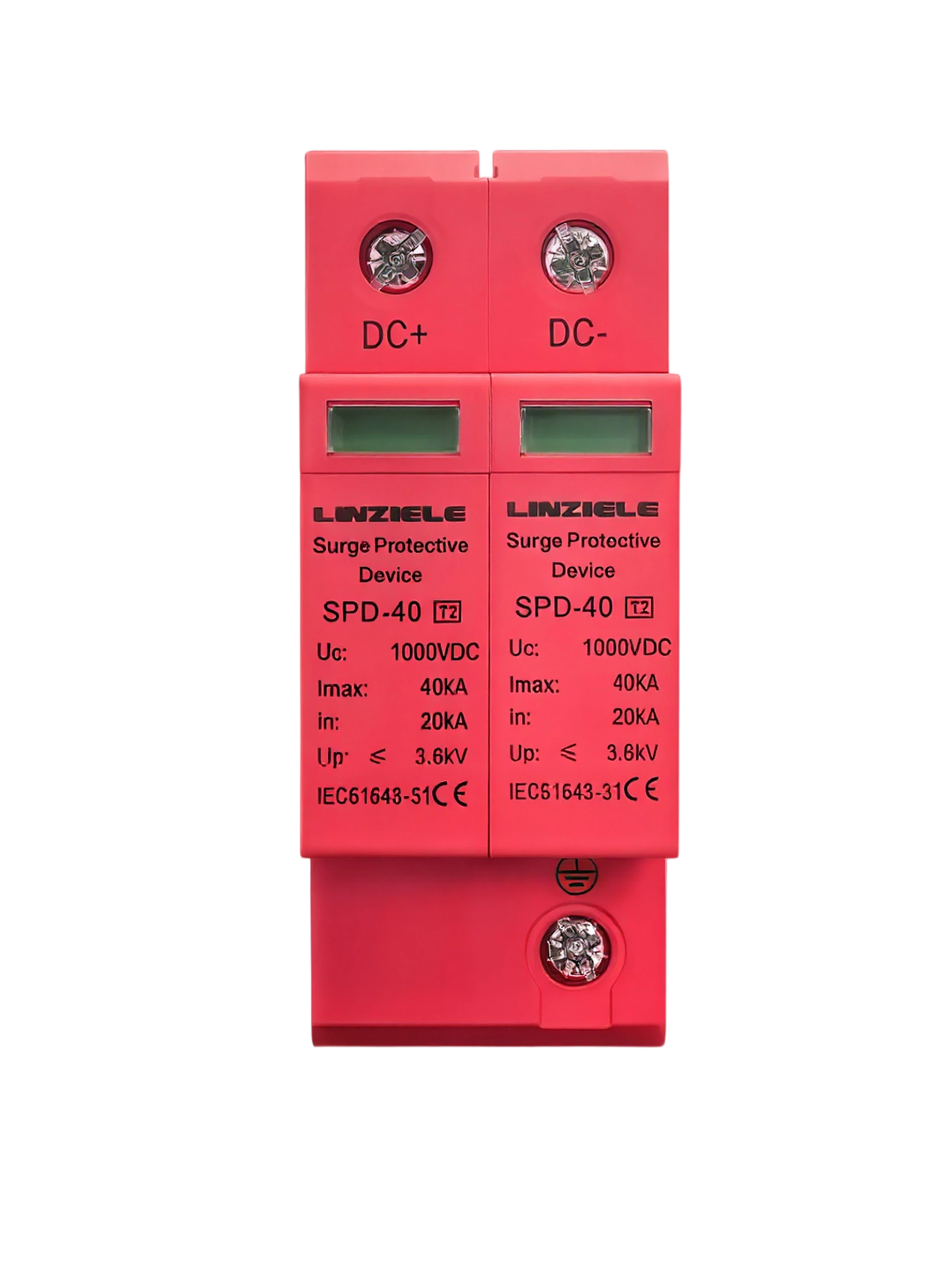

DC SPD-40 T2 2P 40KA 1000V Surge Protective Device Solar PV Lightning Voltage Protector For Electronic Equipment Power Systems

Product Description

Product Information
Product Image
DC Model DC SPD-40 Max continuous working voltage 1000VDC
Nominal discharge current 20kA Max discharge current 40kA
Response time < 25ns Voltage protection level ≤ 1.8kV
Min. sectional area of incoming wire L/N 4mm² Min. sectional area of incoming ground wire PE 8mm²
Method of Installation 35mm Din Rail Certificate CE
Protection level of outer Shell IP20 Circuit breaker or Fuse matched 40A

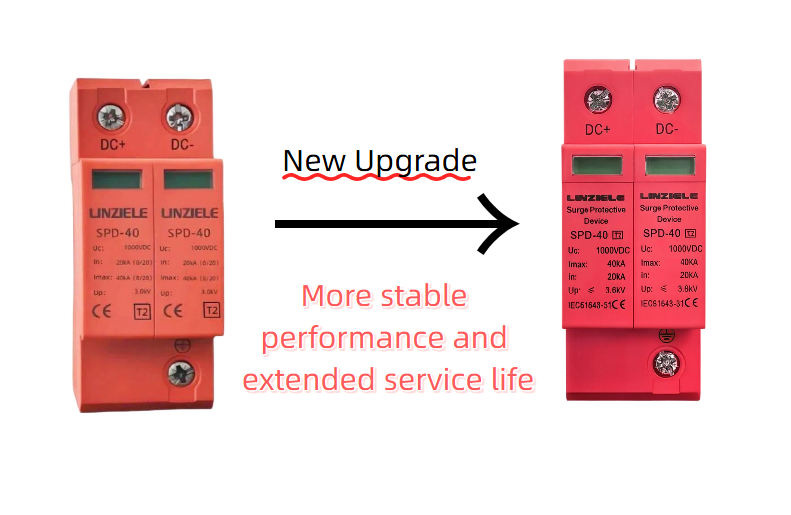

Dimensions
Detail Image 1
Detail Image 2

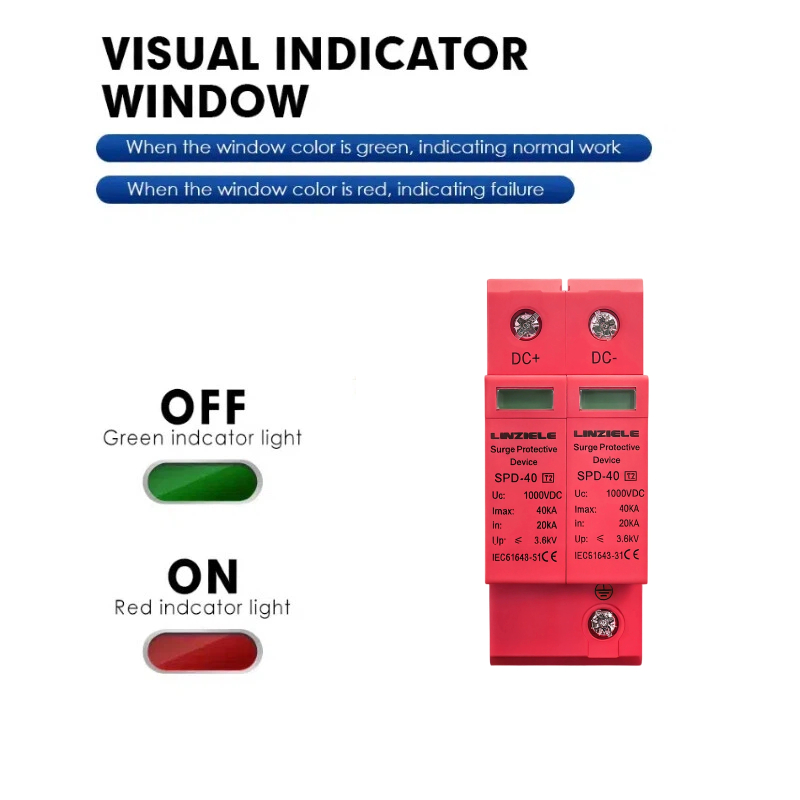

Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Detail Image 7
Detail Image 8
Company Profile
Factory Overview
Our company mainly focuses on low-voltage mini circuit breaker manufacturing and exporting for 8 years. Our NT50 safety breakers, DZ47 (C45, C65) miniature circuit breakers and comfortable ELCB and RCCB are popular types. We have more than 80 workers and 5 manufacturing lines with complete testing and QC team and facilities. Our products mainly exported to Southeast Asia, Middle East and South American market and have cooperated with many well-known brands. We are expecting to build cooperation with friends with our qualified products and experienced services.
Manufacturing Line
Testing Area
Warehouse
Logistics Mode
Logistics Information
FAQ
Q Are you trading company or manufactory ?
We are manufacturer.
Q Can you customize the mats in size, design and logo?
Yes, we support the size, design and logo of the customized products.
Q Do you provide samples ?
Yes, we could provide samples as your requirement. However you need to pay for the sample and freight cost. It needs 5-7 days to prepare samples.
Q What's your shipment method?
We ship by Express, by air, by sea, by train.
Q If I want to release order, what's the payment method you accept ?
We accept T/T, Paypal, Western Union, L/C, Trade Assurance.
