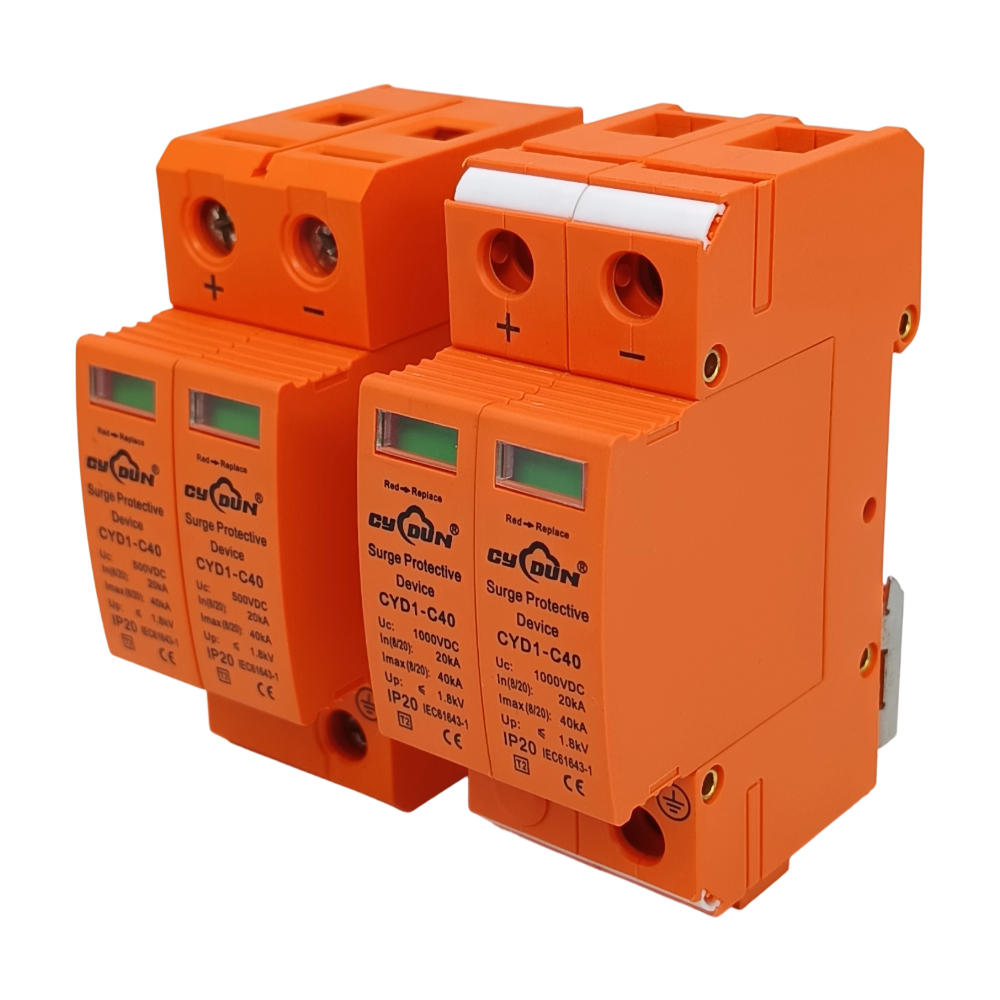

CYD1-GD -PV is applied low voltage standard IEC/EN 61643-11 to protect against DC power line system and other equipment from over voltage and instantaneous over voltage damage. It has advantages of large discharge current, fast respond time and low residual voltage.

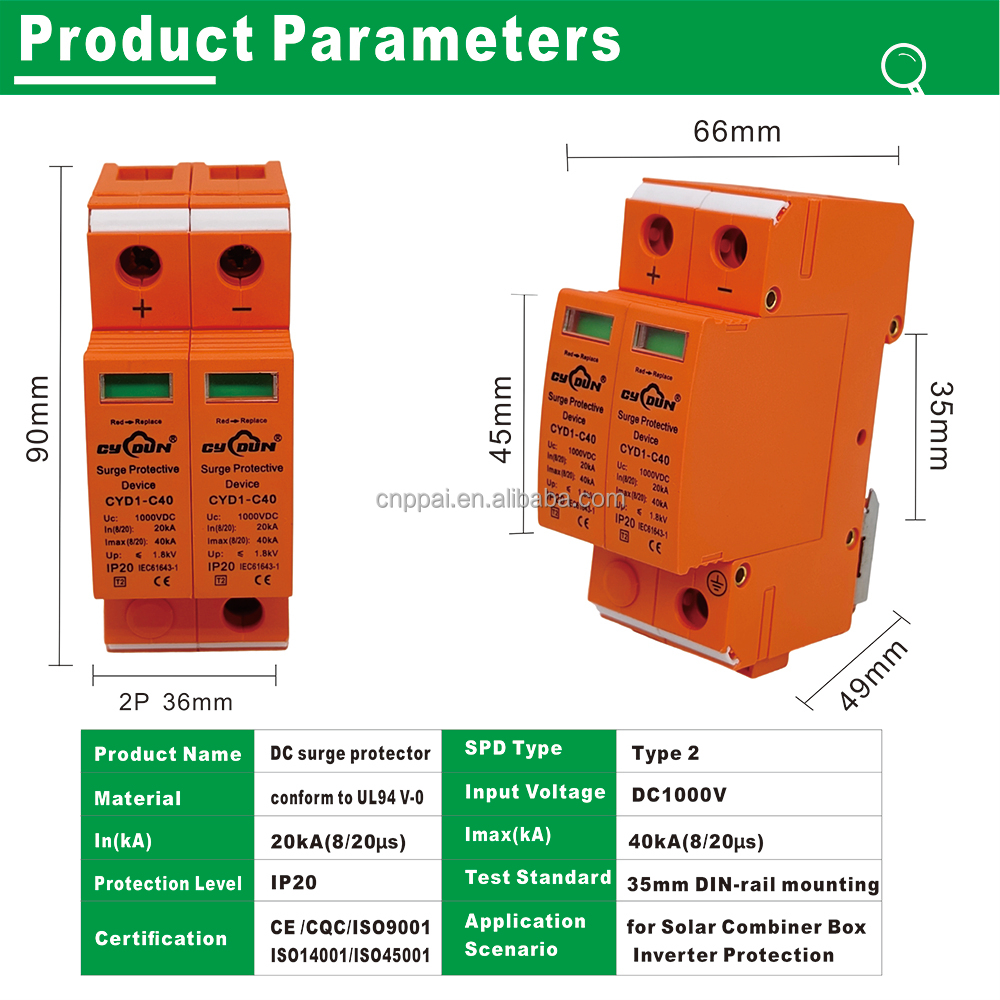

| Technical Parameters | |
| Model | CYD1-C40 |
| SPD Type | Type 2 |
| Technology | MOV (Metal Oxide Varistors) |
| Max. continuous operating voltage [Ucpv] | 500Vdc |
| Nominal discharge curent(8/20us) [ln] | 20kA |
| Max.discharge current (8/20us) [lmax] | 40KA |
| Voltage Protection level [Up] | ≤1.8kV |
| Short-circuit current rating [Isccr] | 25kA |
| Response time [tA] | ≤25ns |
| Thermal Disconnection Device | Insertion |
| Max. Backup Fuse | 63A gPV FUSE |
| Mechanical Data | |
| SPD configuration | DC system |
| Plugable | Available |

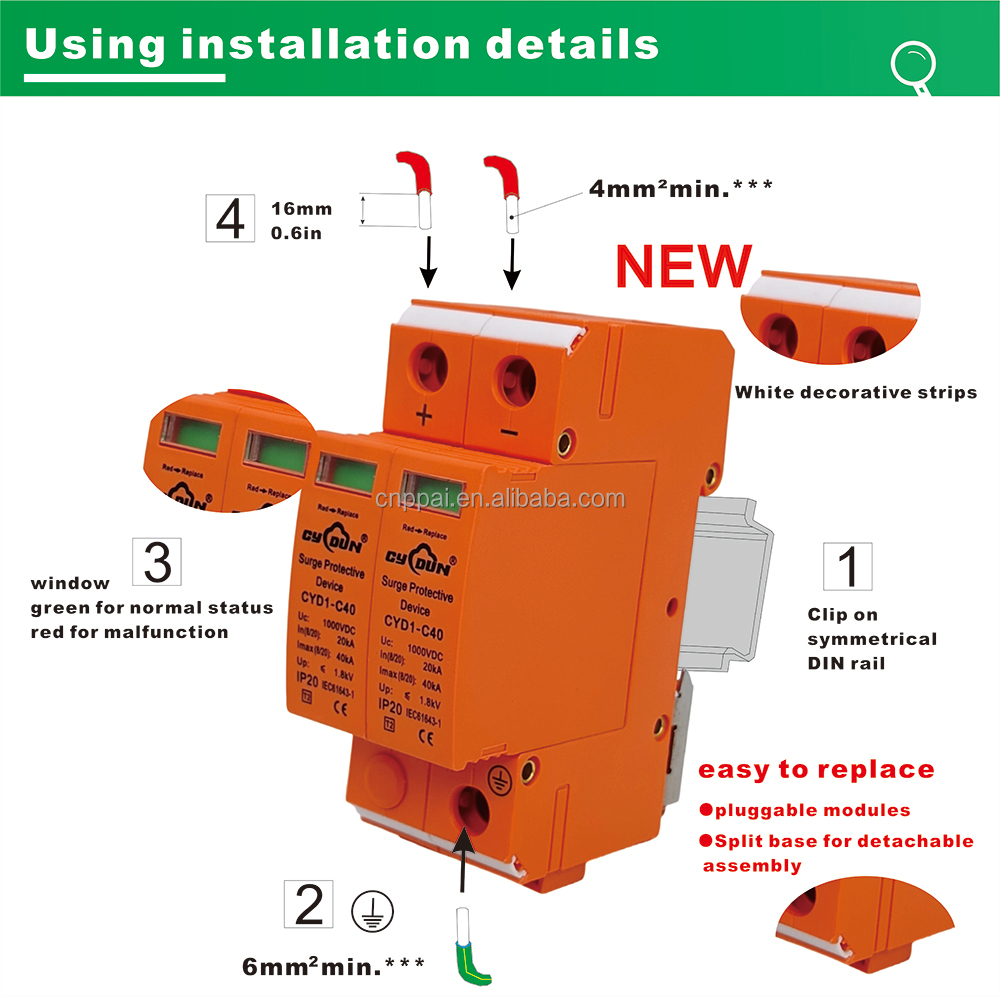

| Mounting | 35mm DIN rail |
| Enclosure Material | Thermoplastic, conform to UL94 V-0 |
| Operating Temperature Range | -40°C...-80°C |
| Protection rating | IP20 |
| Normal/fault Display | Green / Red |
| Remote Signal | Optional |
| Wiring for remote signaling | Max.1.5mm solid/flexible |
| Max.Voltage / Current for remote signaling | 250V/0.1A; 125V/0.2A; 75V/0.5A |
| Certificate | CQC, CE, TUV, CB, IEC, RoHS, REACH |
We can provide free samples to customers, but only one piece, and customers need to bear the freight.
Of course, we can customize any product according to customer requirements and provide corresponding design solutions.
All your inquiries will be replied to within 24 hours.
We offer a two-year warranty for our customers.
We accept T/T, Paypal, Western union, L/C, and Trade Assurance.
It depends on the purchase quantity. Generally, it is about 3 - 40 days. Less than 300 pieces within 5 days, 300 - 2000 pieces within 7 - 15 days, and 2000 - 20000 pieces within 15 - 40 days.
