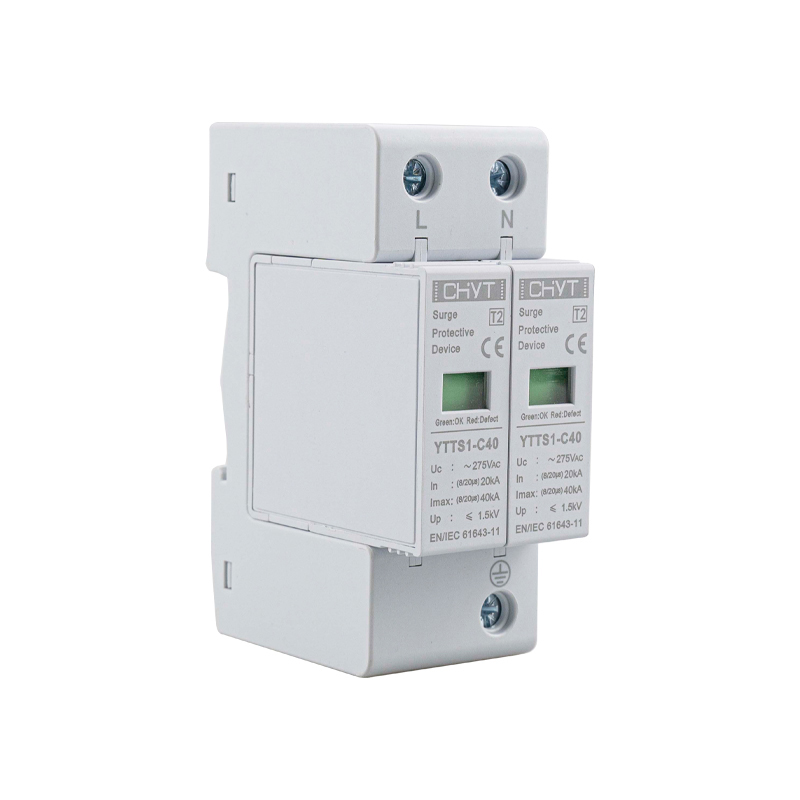

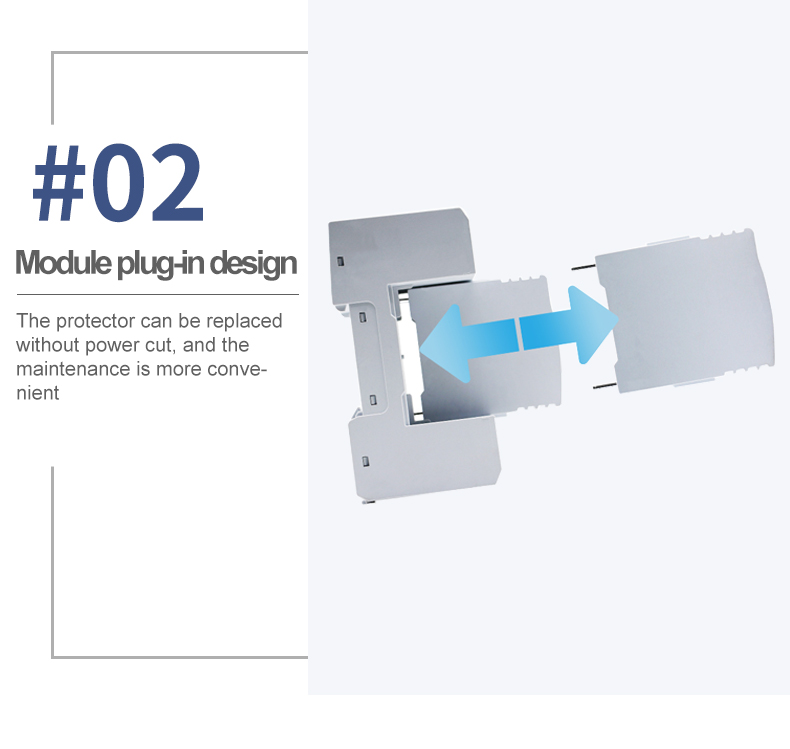

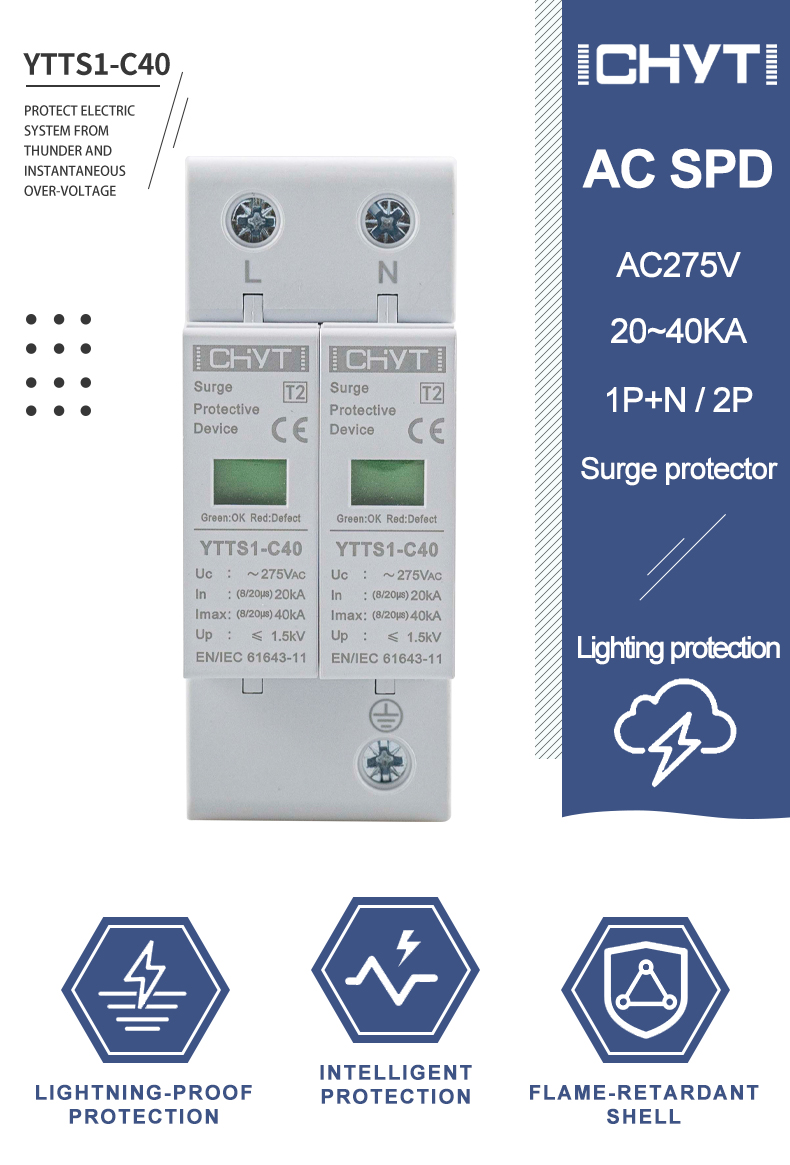

YTTS1-C40 series surge protection device is suitable for TN-S, TN-C-S, TT, IT etc, power supply system of AC 50/60Hz, <380V, installed on the joint of LPZ1 or LPZ2 and LPZ3. It's designed according to IEC61643-1, GB18802.1, it adopts 35mm standard rail, there is a failure release mounted on the module of surge protection device, When the SPD fails in breakdown for over heat and over-current, the failure release will help electric equipments separate from the power supply system and give the indication signal, green means normal, red means abnormal, it also could be replaced for the module when has operating voltage.

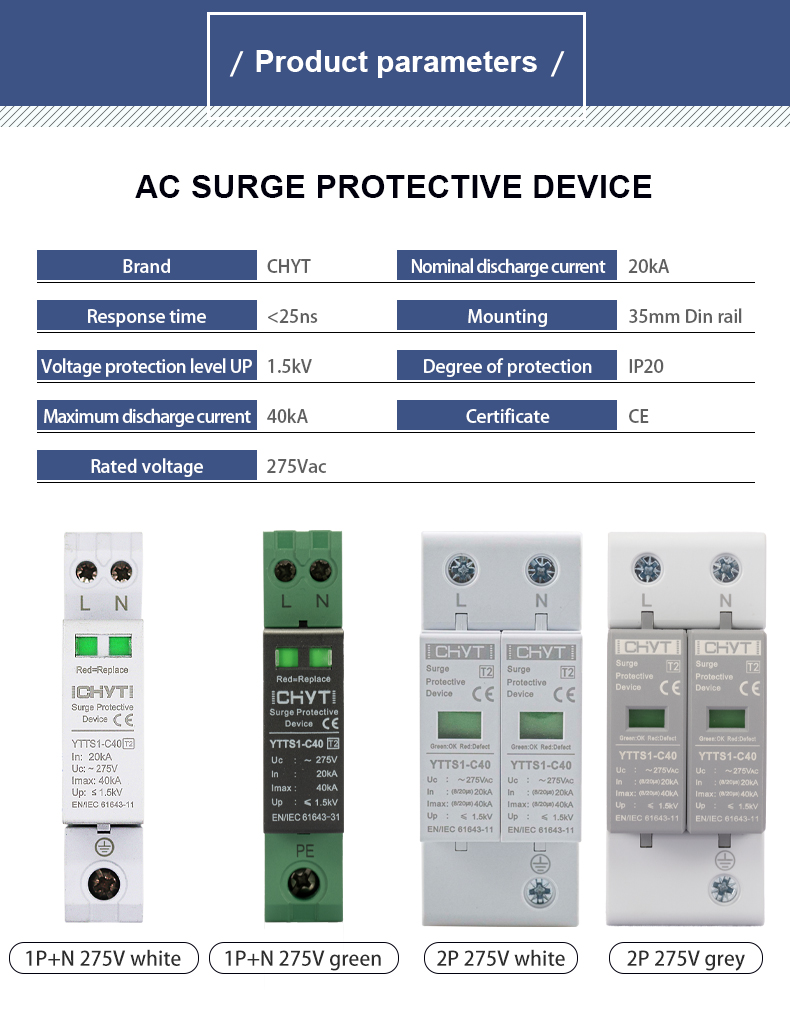

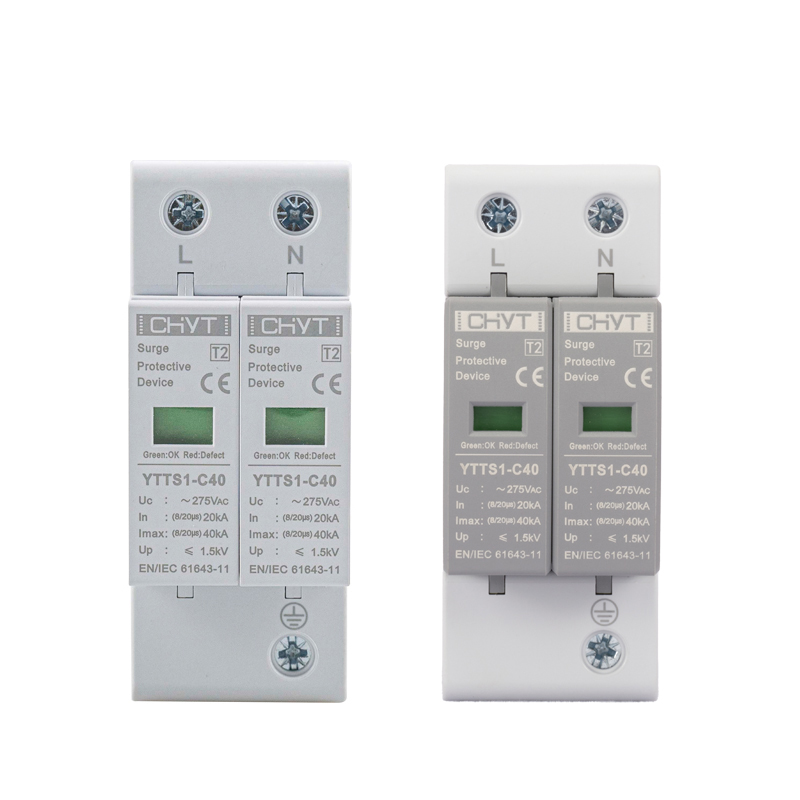

| Product Model | YTTS1-C40 |

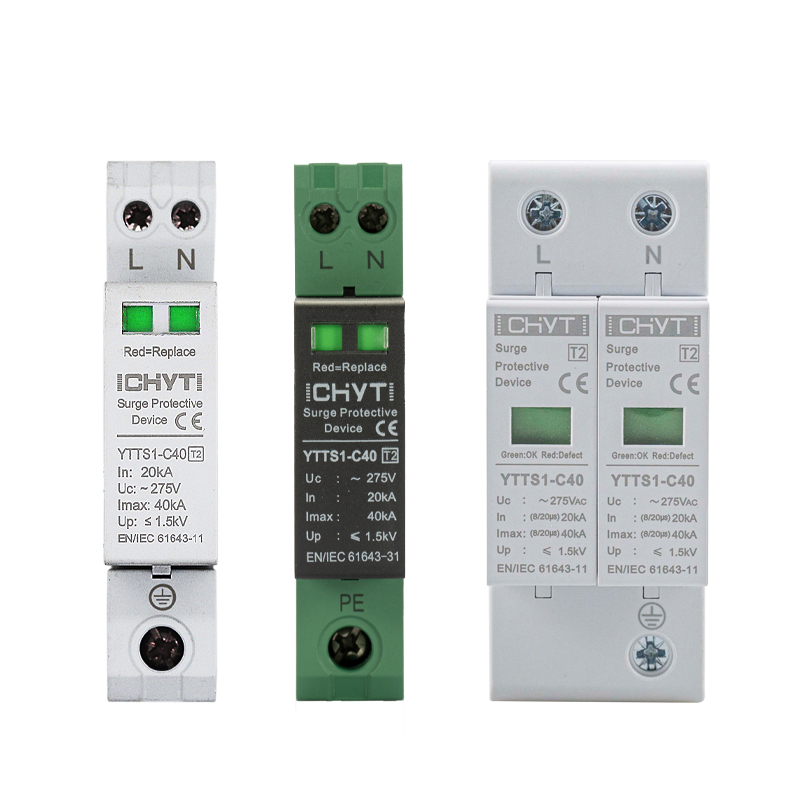

| Pole | 2P Compact type / 2P |
| Rated Frequency | One port |
| SPD Category | Combined type |
| Test Category | Class II test |
| Maximum Continuous Operating Voltage Uc | 275VAC |
| Voltage Protection Level Up(8/20μs) | ≤1.5kV |
| Nominal Discharge Current ln(8/20μs) | 20kA |
| Maximum Discharge Current lmax(8/20μs) | 40kA |
| Response Time tA | ≤25ns |

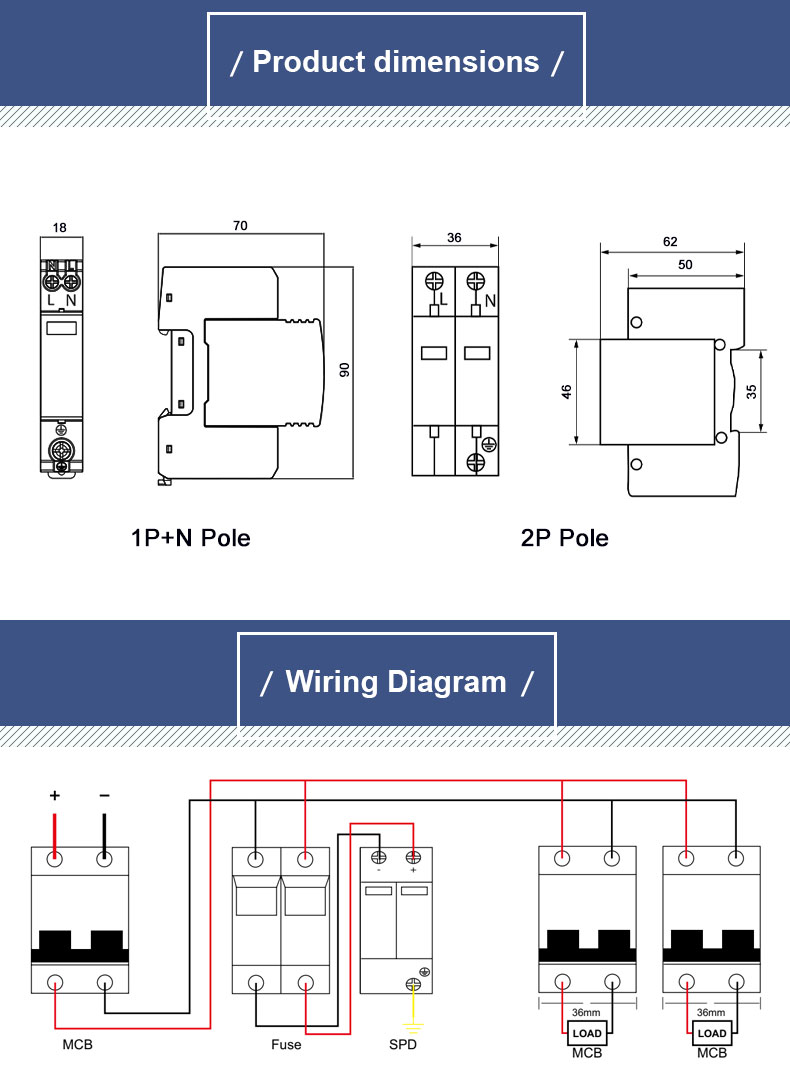

| Size | 18x90x72 / 36x90x72 |

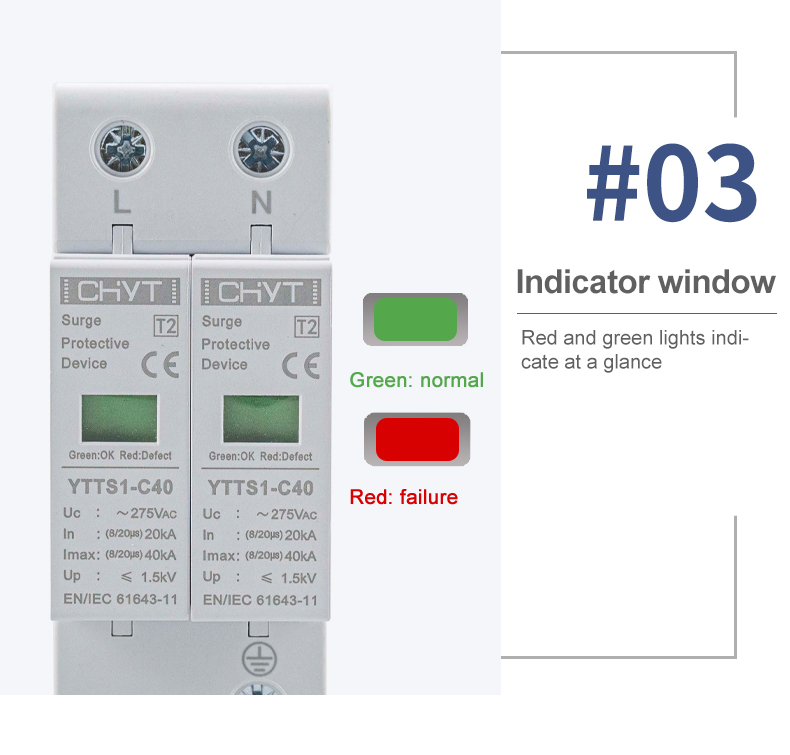

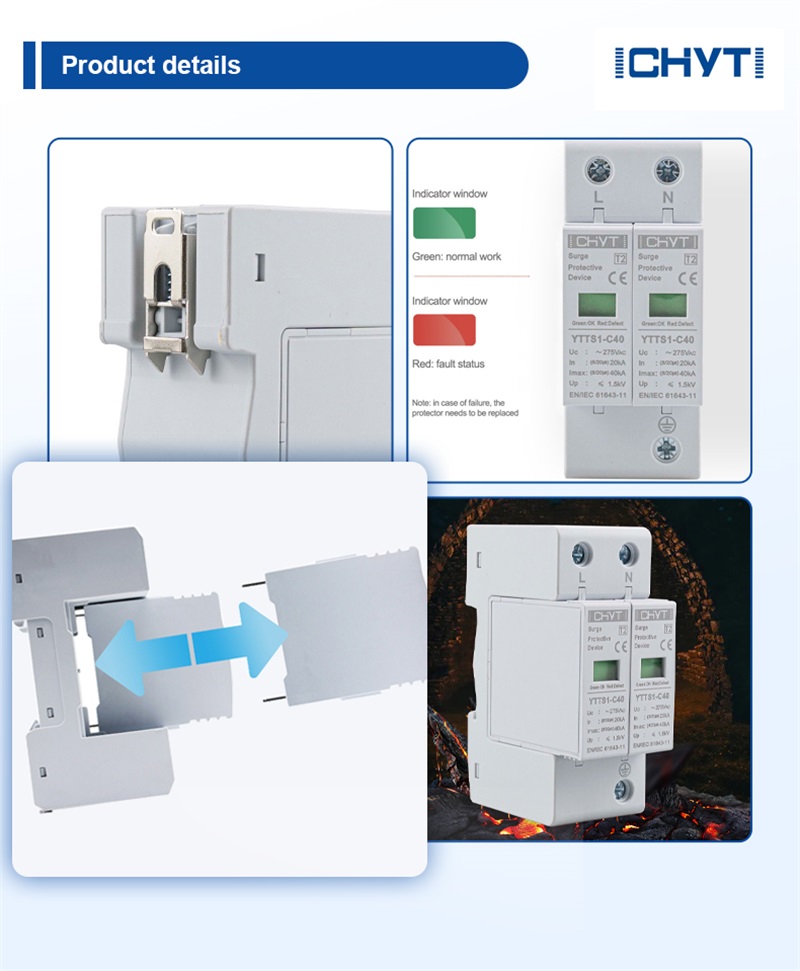

| Failure Indication | Green: Normal Red: Failure |
| Sectional Area Of Wires | 6~25mm2 |

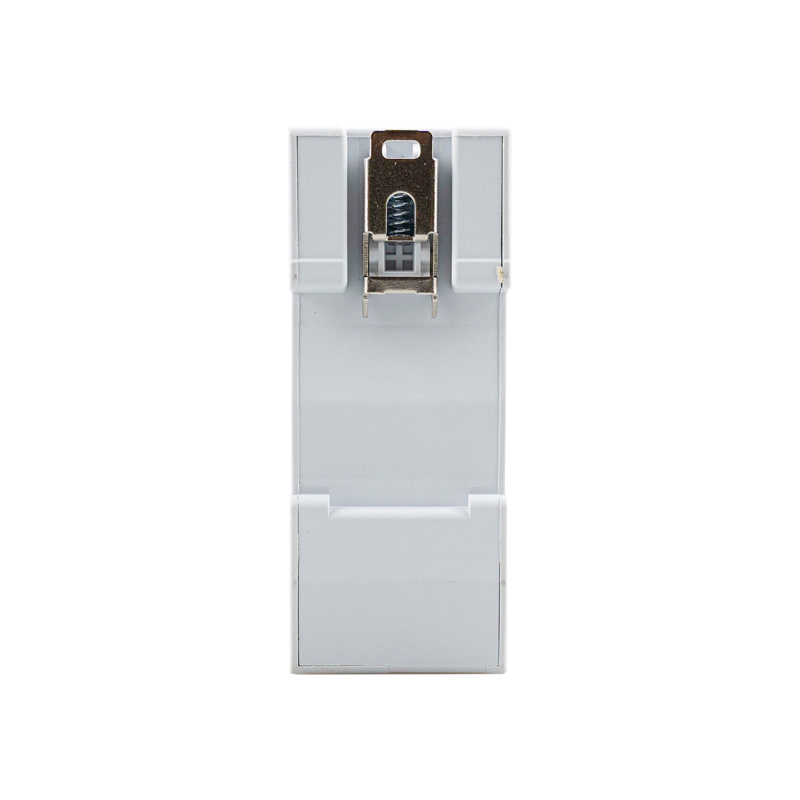

| Installation Method | 35mm standard rail |
| Working Environment Temperature | -40°C ~ +85°C |

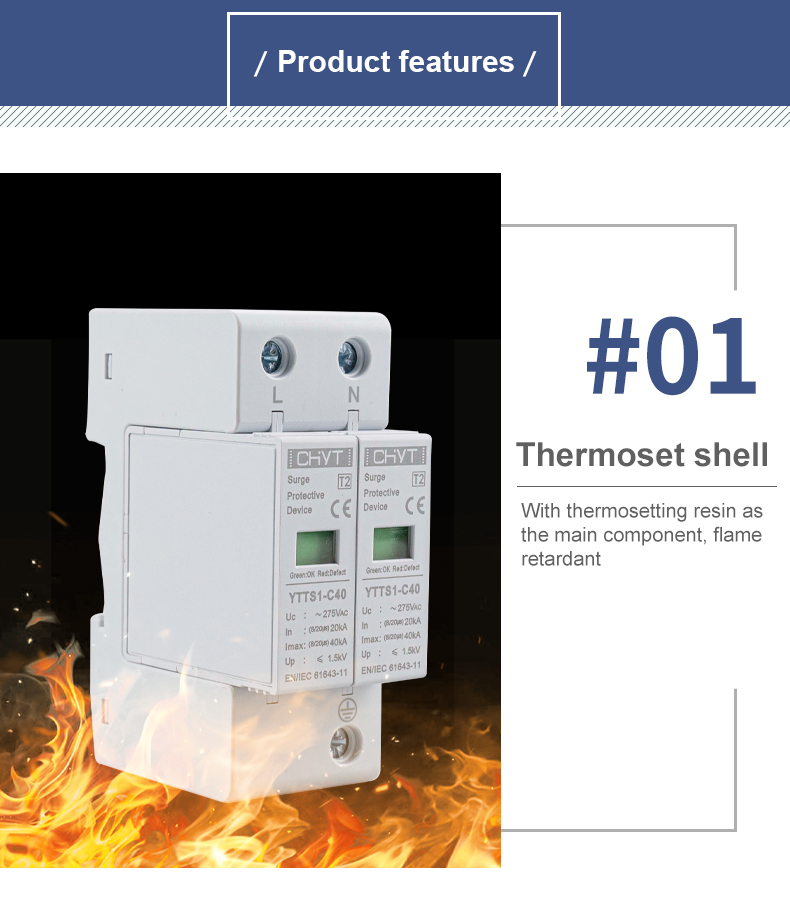

| Sheathing Material | Plastic |
| Protection Level | IP20 |
| Executive Standard | IEC 61643 |

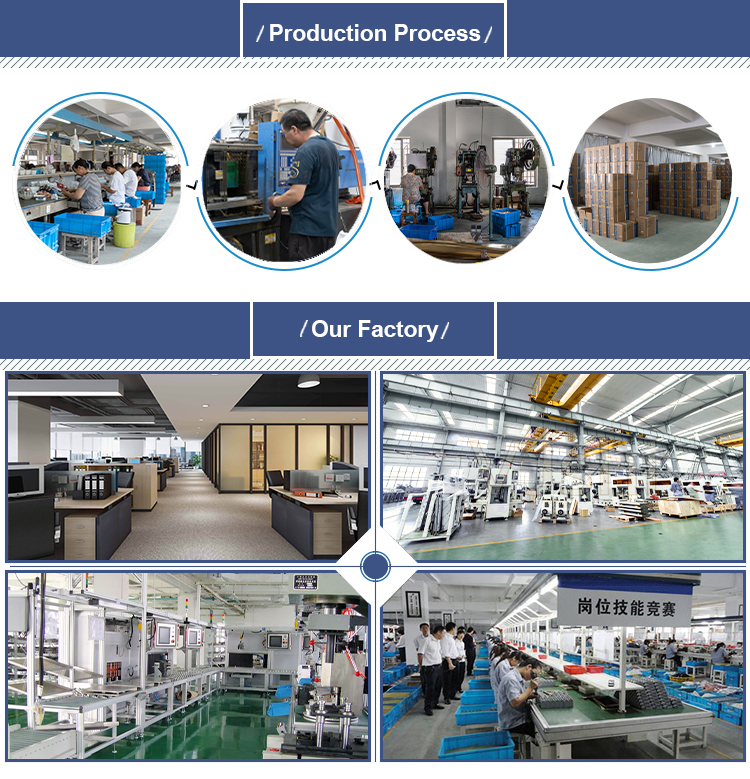

We are a professional solar PV electric components manufacturer. We're specialized in DC circuit breakers, Surge Protective Devices, PV fuses, isolator switches, MC4 connectors etc. Our experience of working in the electrical industry for more than 10 years allows us to create solar DC components that comply with the latest DC standards. We can assure you perfect quality and excellent service. We're looking forward to having a good-long term cooperation with you.
