AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD
AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD
AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD
AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD
AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD
1 / 5
AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD
AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD
AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD
AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD
AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD

AFDD MCB Arc Fault Detection Device 2pole 6KA AFDD

Send Inquiry

Product Description

◈

Overview

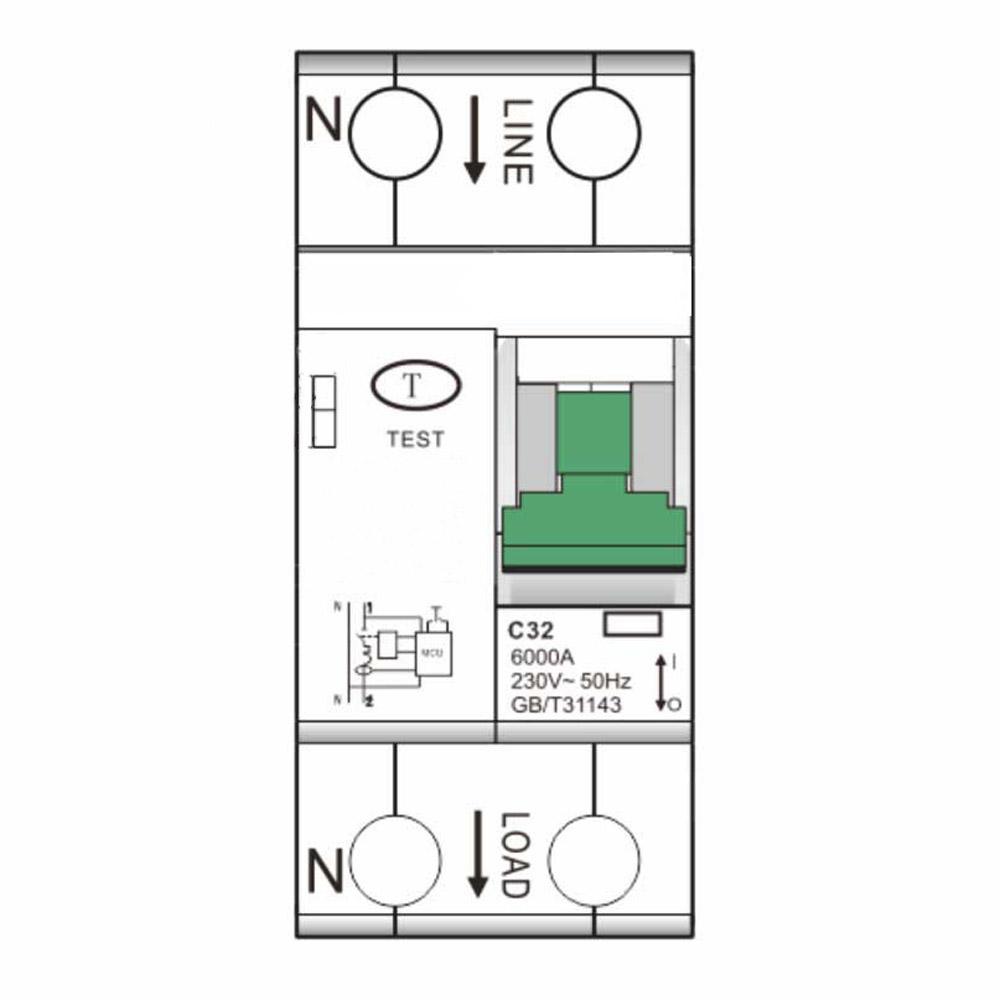

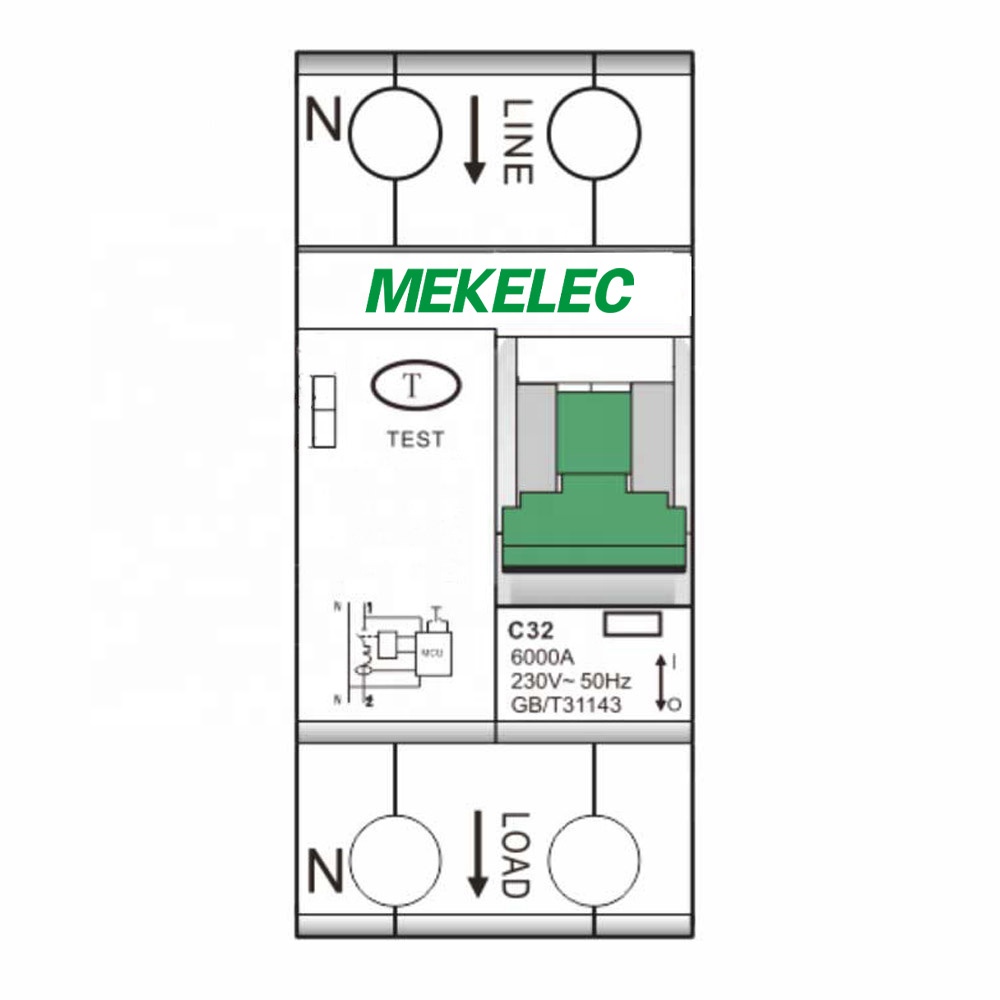

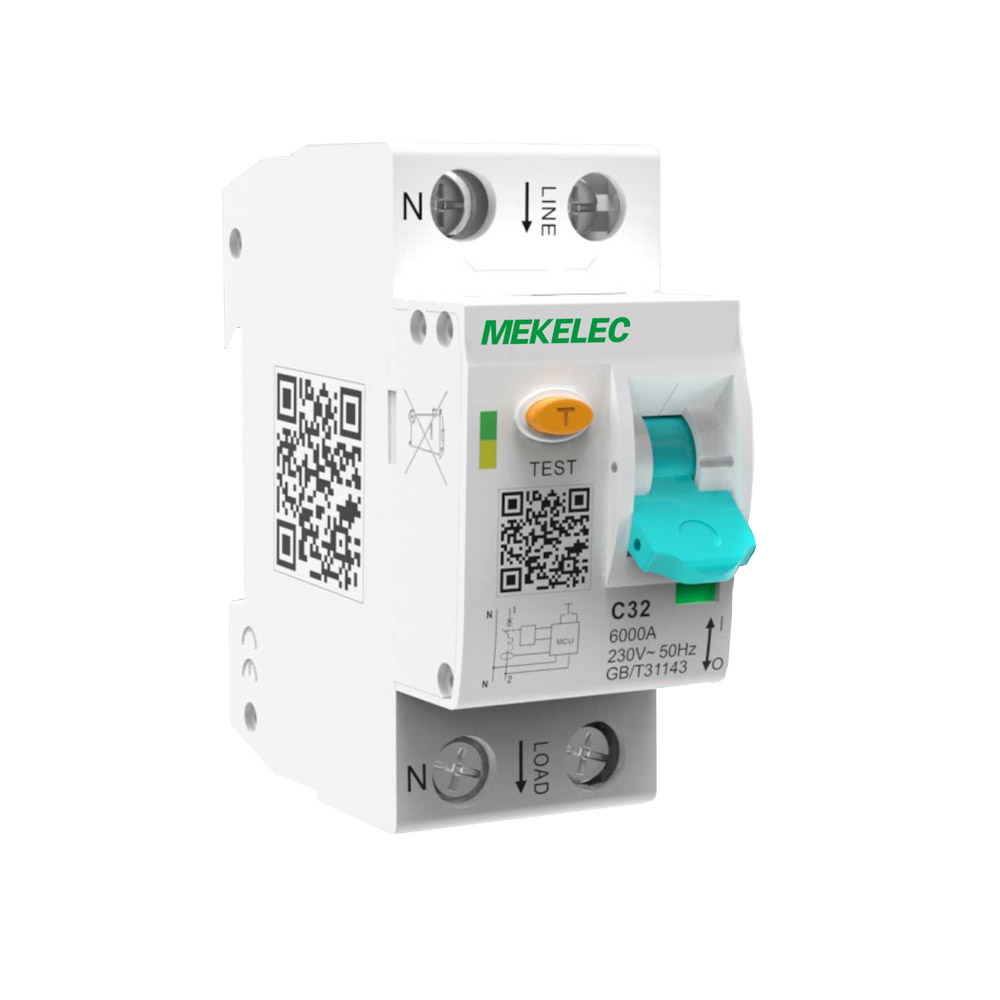

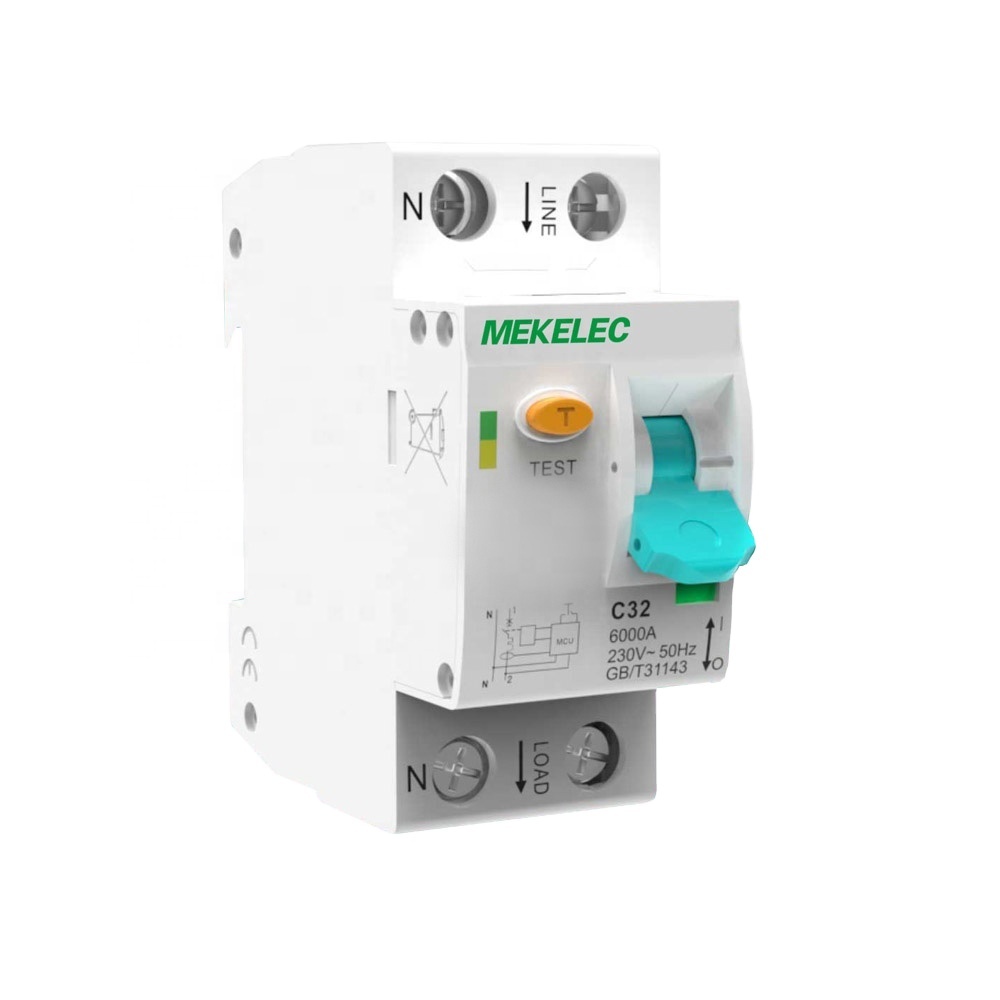

TMAFD1-32 incorporating MCB and arc fault detection module, provides protection against short circuit, overload and arc fault. The incorporated arc fault module detects and identify arc fault, which enable the product effectively disconnect the protected circuit against arc fault.
◈

Application

TMAFD1-32, applicable to AC circuit with rated current up to 32A, is widely used for household and similar installations. The arc fault detection module of TMAFD1-32 can effectively detect and identify arc faults happened to different circuit connected in series, in parallel and to earth resulted from disabled insulation layer due to aging, damaging or high humidity. The product trips and disconnects a protected circuit upon detection of arc faults.
◈

Normal Operating Conditions

  • Ambient temperature: -25°C to +40°C (Average daily highest temperature: +35°C)
  • Relative humidity: Maximum 50% at 40°C; 90% at 20°C
  • Rated voltage: AC 230(240)V
  • Rated current (In): 6, 10, 16, 20, 25, 32A
  • Trip curve: B, C
  • Rated frequency: 50/60Hz
Product Model: Arc Fault Detection Device TMAFD1-32 Standard: GB/T31143
Rated Current (In): 6, 10, 16, 20, 25, 32A Rated Voltage: AC 230(240)V
Rated Breaking Capacity: 6KA (Icn) / 6KA (Ics) Trip Curve: B, C
Insulation Voltage: 400V Rated Frequency: 50/60Hz
Protection Degree: IP20 Installation: DIN Rail 35mm
Tightening Torque: 2.5NM Connection Capacity: 25mm²
Electrical Life: 4000 Cycles Mechanical Life: 20000 Cycles
?

Frequently Asked Questions

How can I obtain a product sample?
Before the first formal order is placed, samples can be provided. Please afford the sample cost and express shipping fees.
What is the lead time for samples?
For existing items, the sample preparation time is typically within 7-15 days.
Can the products be customized with our brand or specific colors?
Yes, we offer customization for branding and color options, provided that the Minimum Order Quantity (MOQ) requirements are met.
How is product quality guaranteed?
We implement strict detection processes during production and perform rigorous sampling inspections before shipment to ensure intact packaging and high performance.
What are the primary protection functions of the TMAFD1-32?
It provides comprehensive protection against short circuits, overloads, and specifically identifies and disconnects dangerous arc faults.
Is the device suitable for high-humidity environments?
The device is designed to operate in up to 90% relative humidity at 20°C and can effectively detect arc faults caused by insulation degradation due to high humidity.
