Bowser Electric










| Specification Item | Details |
|---|---|

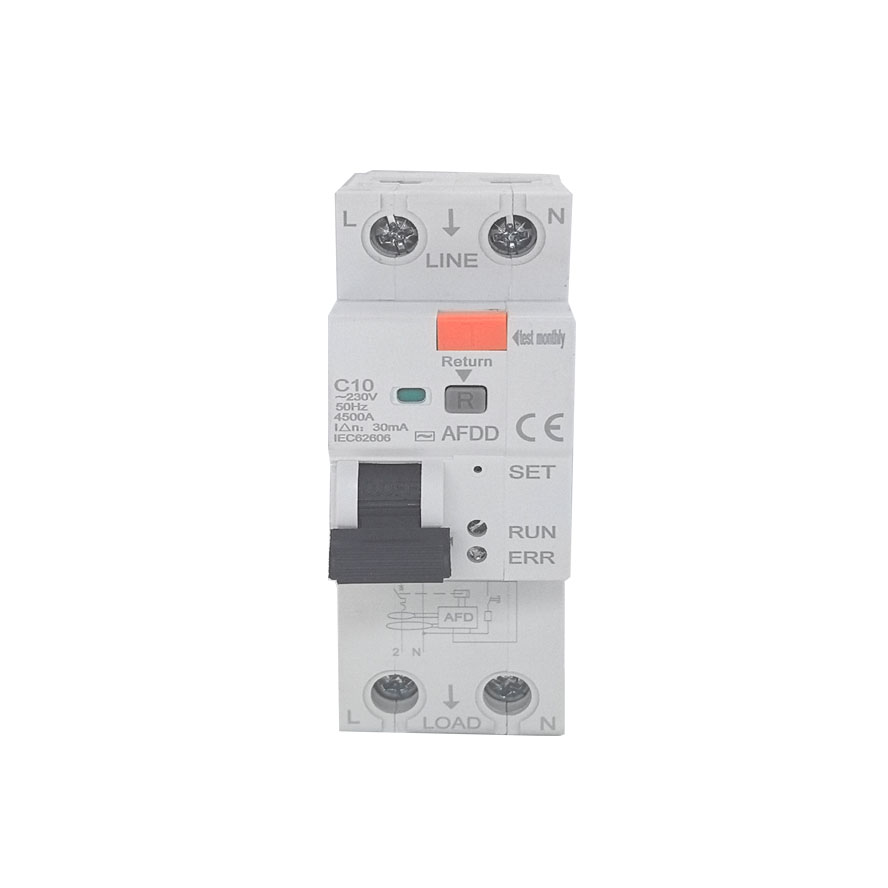

| Model Number | AFDD |
| Type | Air |
| Poles Number | 1P+N, 2P, 3P, 4P |
| Rated Voltage | 230V |
| BCD Curve | C, D |
| Rated Frequency | 50/60Hz |
| Breaking Capacity | 4kA |
| Monitoring Alarm | Fault arc alarm (load below Ac63A) |

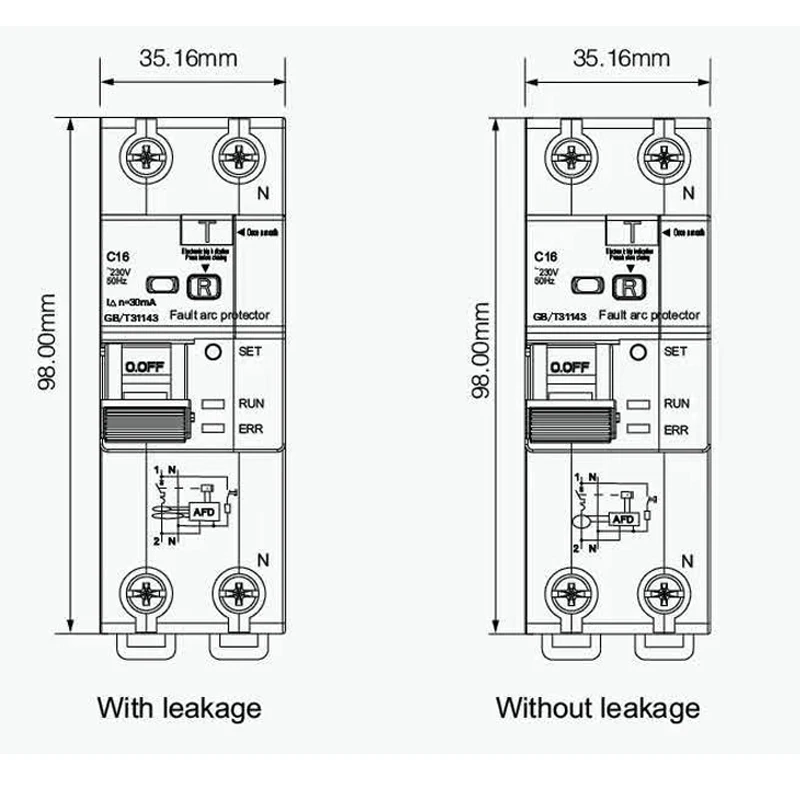

| Overall Dimensions | 1P: 54*94*65 / 2P: 72*94*65 |
| Characteristic | C, D |
| Electric Current | Rated value: Ac63A and below |
| Surge Impact Interference | 6kA |
| Pulse Group Anti-Interference | 6kA |
| Protection Level | IP20 |
| Wiring Capacity | 1~25mm² |
| Operating Ambient Temperature | -23°C ~ +55°C |
