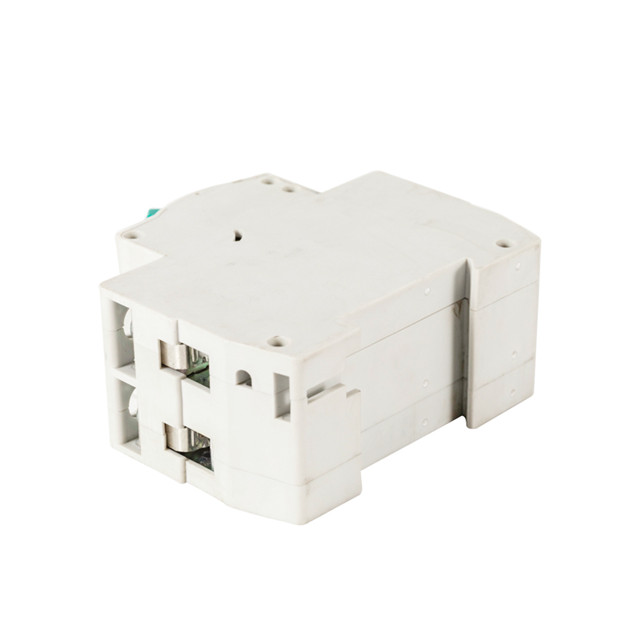

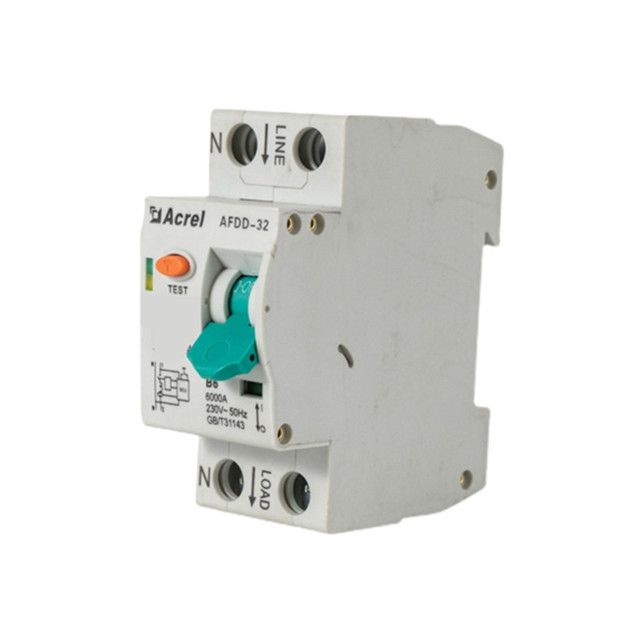

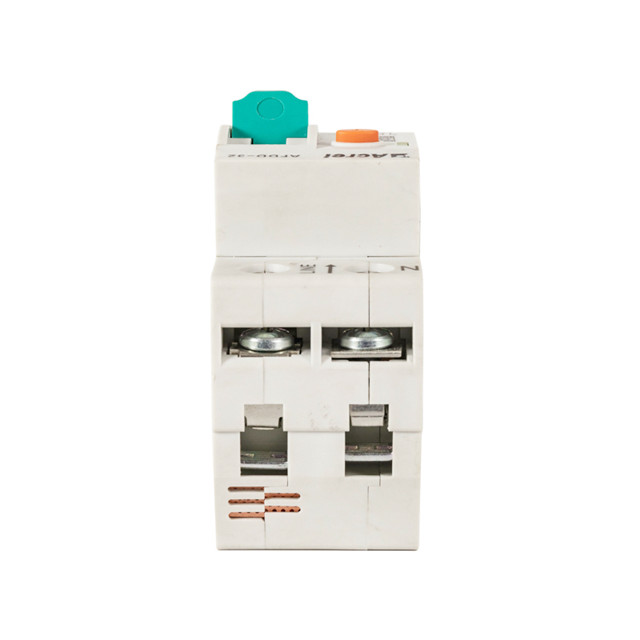

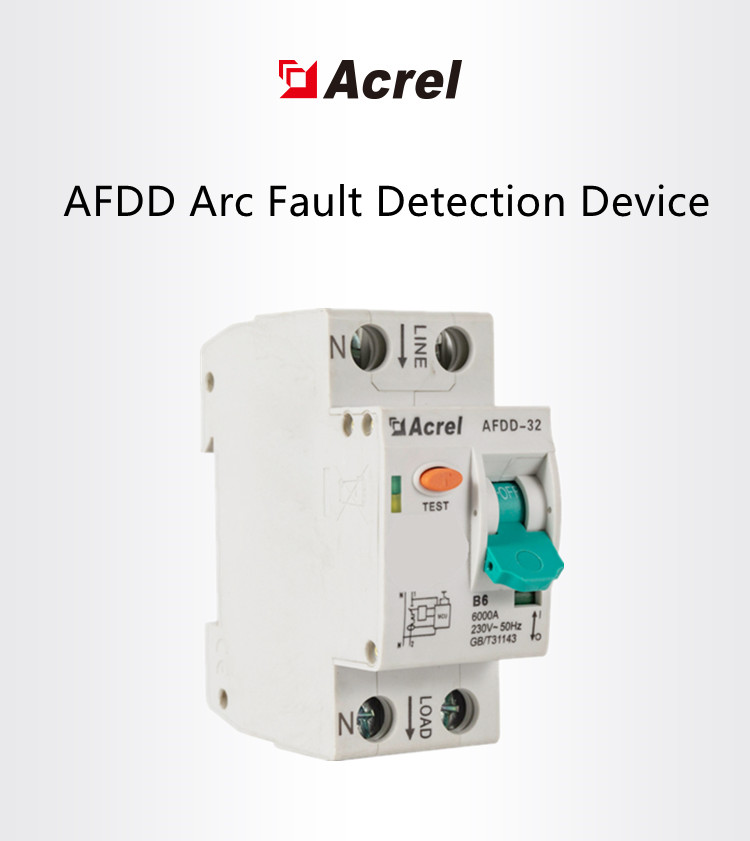

AFDD-32 arc fault protection device is composed of small circuit breaker, trip structure and arc detection module. It has the functions of short circuit protection, overload protection and arc fault protection. It is used in AC circuits with rated current up to and including 32A. Arc fault protection device in the protector can detect and distinguish arc fault, parallel arc fault and grounding arc fault in the line. When the fault arc is detected in the line, it will automatically tripped and cut off the power supply, in order to prevent electrical fire.
| Parameter | Detail |
|---|---|
| Rated voltage | AC 220V |
| Rated current | AC 6A, 10A, 16A, 20A, 25A, 32A |
| Frequency | 50Hz |
| Alarm | Light alarm |
| Release | B, C type release |
| Nominal insulation voltage (Ui) | 400V |
| Rated impulse withstand voltage (Uimp) | 4KV |
| Pole | 1P+N |
| Working short circuit capacity (Ics) | 6KA |
| Rated short circuit capacity (Icn) | 6KA |
| Insulating material level | Ⅱa |
| Grid distance | 40mm |
| Working environment | -5 ~ +55℃ |
| Humidity | 40℃ (50%), 20℃ (90%) |
| Elevation | ≤2000m |
| Installation | 35mm Din rail |
If you have any special requirements, for example another current input and pole, please feel free to contact us.

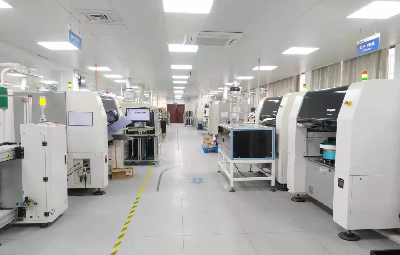

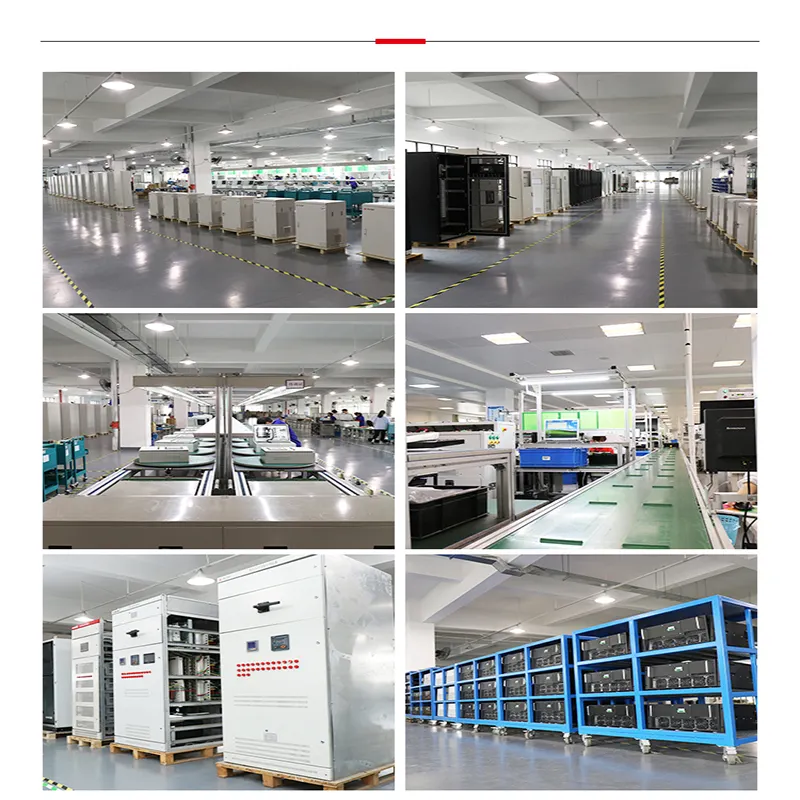

A: We are factory. Warmly welcome you to visit and investigate our factory.
A: Generally it is 3-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for lower price. If you place the order, all or part of the sample charge will be deducted from the goods. Please contact us.
A: Usually, 100%TT in advance. If you have projects for another payment terms, please feel free to contact us.
A: The AFDD-32 arc fault protection device features short circuit protection, overload protection, and arc fault protection. It detects parallel arc faults, series arc faults, and grounding arc faults in the electrical line.
A: It is designed for quick and easy installation using a standard 35mm Din rail.
