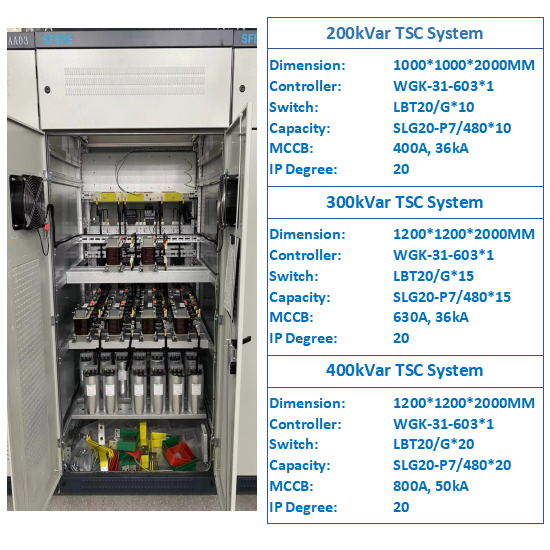

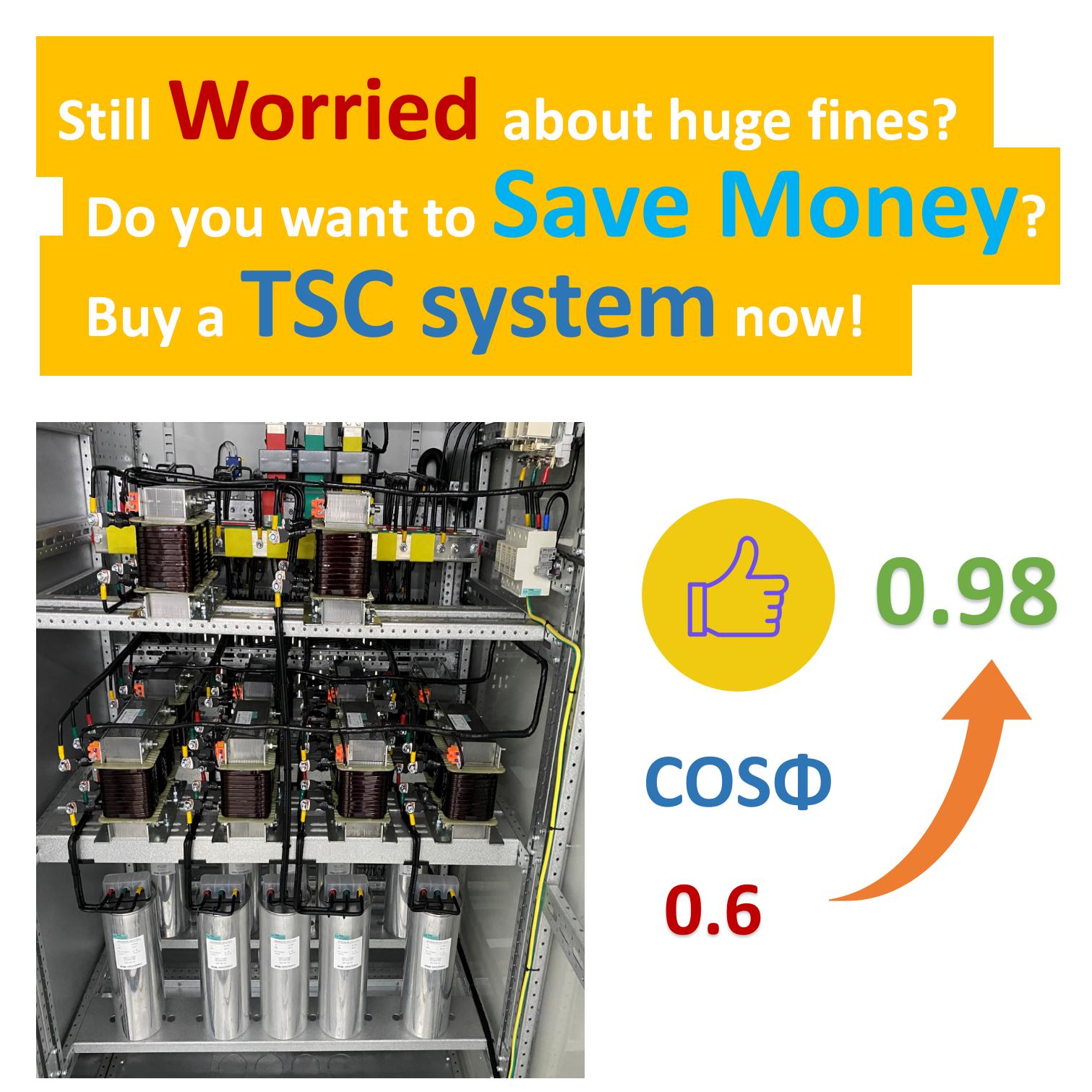

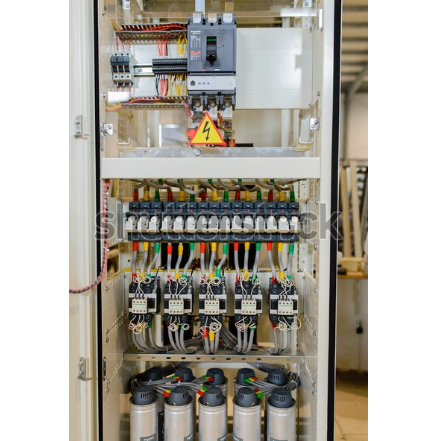

Thyristor Switched Capacitor system is designed for 0.4kV low voltage distribution network. It mainly includes the Thyristor Switches, Capacitors and Reactors, using as a new generation of compensation module with functions of energy saving, reduction of line loss, power factor enhancement and improvement of power quality.
LBT series dynamic switching unit refers to a kind of contactless rapid switch with high reliability, and it is used in dynamic power factor compensation equipment. It is especially applicable to switching occasions requiring rapid and no-wear switching. It is usually applied into occasions where reactive change is frequent, such as lifting equipment, elevator and electric welding machine.
| Working Power Source | AC220V ±20% |
| Switching Capacity | 15 ~ 50Kvar |
| Control Voltage | 5 ~ 15V DC |
| Switching Time | ≤ 20ms |
| Contact Voltage Resistance | 1600V |
| Cooling Mode | Active air cooling |
| Environmental Temperature | -25℃ ~ +70℃ |
| Environmental Humidity | ≤ 85% |
| Allowable Maximum Altitude | ≤ 2,000m (5,000m can be customized) |
| Service Life | 10^6 times |
| External Dimension | 116 (width) × 214 (height) × 186 (depth) (unit: mm) |
| Installation Hole Dimension | 35 (width) × 198 (height) (unit: mm) |

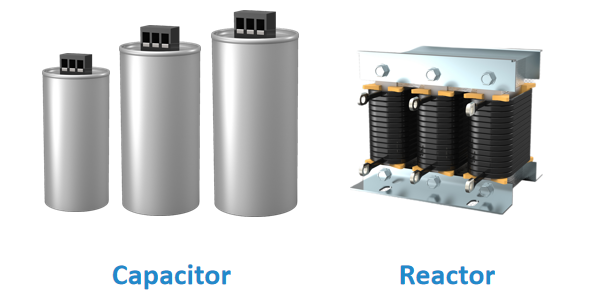

SLG series is a combination of filter reactors and capacitors that are accurately matched and calculated according to reactance coefficient and output capacity through professional design.
| Component | Parameters | Value |
|---|---|---|
| Capacitor | Over current | 1.7In |
| Rated voltage | 480V | |
| Capacity tolerance | -1% ~ +3% | |
| Tangent of loss angle | tanδ ≤ 0.1 | |
| Three-phase imbalance rate | < 105% | |
| Relative humidity | ≤ 85% | |
| Ambient temperature | -25℃ ~ +55℃ | |
| Reactor | Rated voltage | 400V (3 phase) / 230V (single phase) |
| Over current | 1.7In | |
| Inductive error | ± 3% | |
| Installation | Horizontal or vertical | |
| Ambient temperature | -25℃ ~ +105℃ |
| Items | Parameters | |
|---|---|---|

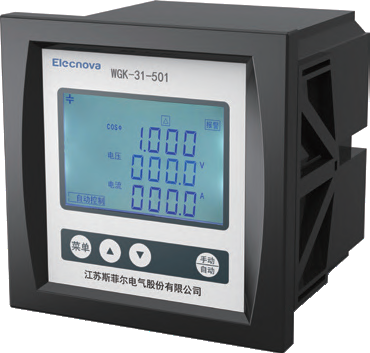

| Number of output contacts | 12 | |
| Signal input | Wiring | 3phase 4 wire for combined compensation |
| Voltage Range | Phase voltage 20 ~ 220V | |
| Voltage Overload | Continuous: 1.2 times; instantaneous: 2 times | |
| Voltage Power consumption | < 1VA | |
| Current Range | 5A | |
| Current Overload | Continuous: 1.2 times; instantaneous: 2 times | |
| Current Power consumption | < 1VA | |
| Frequency | 45 ~ 65 Hz | |
| Power supply | AC/DC 80 ~ 270V | |
| Switching output | Capacity 3A / 250VAC (3A / 30VDC) relay or level (not less than 8mA) output | |
| Communication | RS485, 1200 ~ 9600bps, Parity method: N81, N82, E81, O81 | |
| Accuracy | Electricity: 1.0, Power: 2.0, Frequency: ±0.1Hz, Harmonic measurement: B | |
| Display mode | LCD display: 128*64 LCD, contrast can be set | |
| Protection degree | Panel IP66, case IP30 | |
| Environment | Working temperature: -15 ~ 55ºC Storage temperature: -20 ~ 75ºC |
|
| Outline dimension and weight | Outline dimension: 120 × 120 × 114mm Weight: 0.6kg |
|
