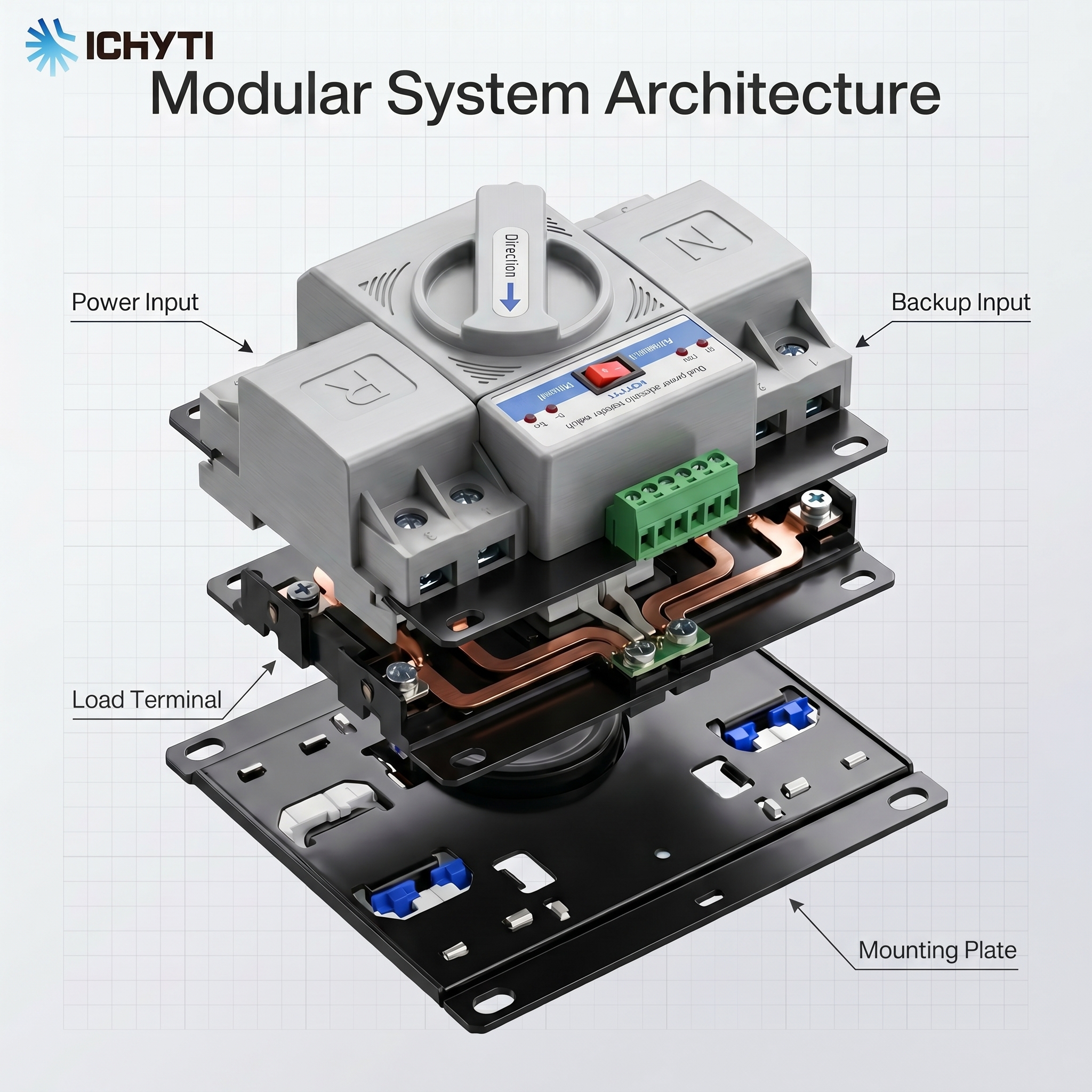

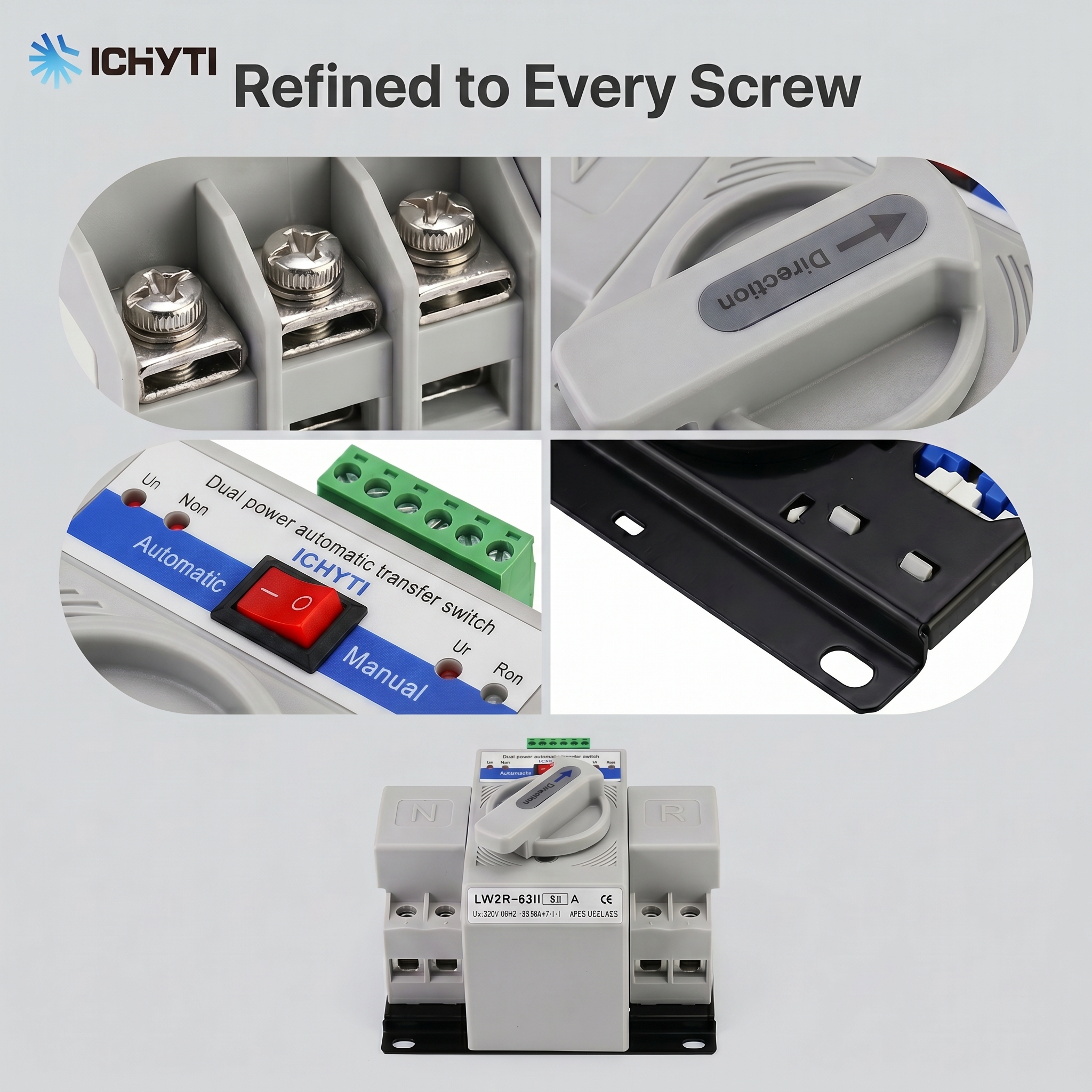

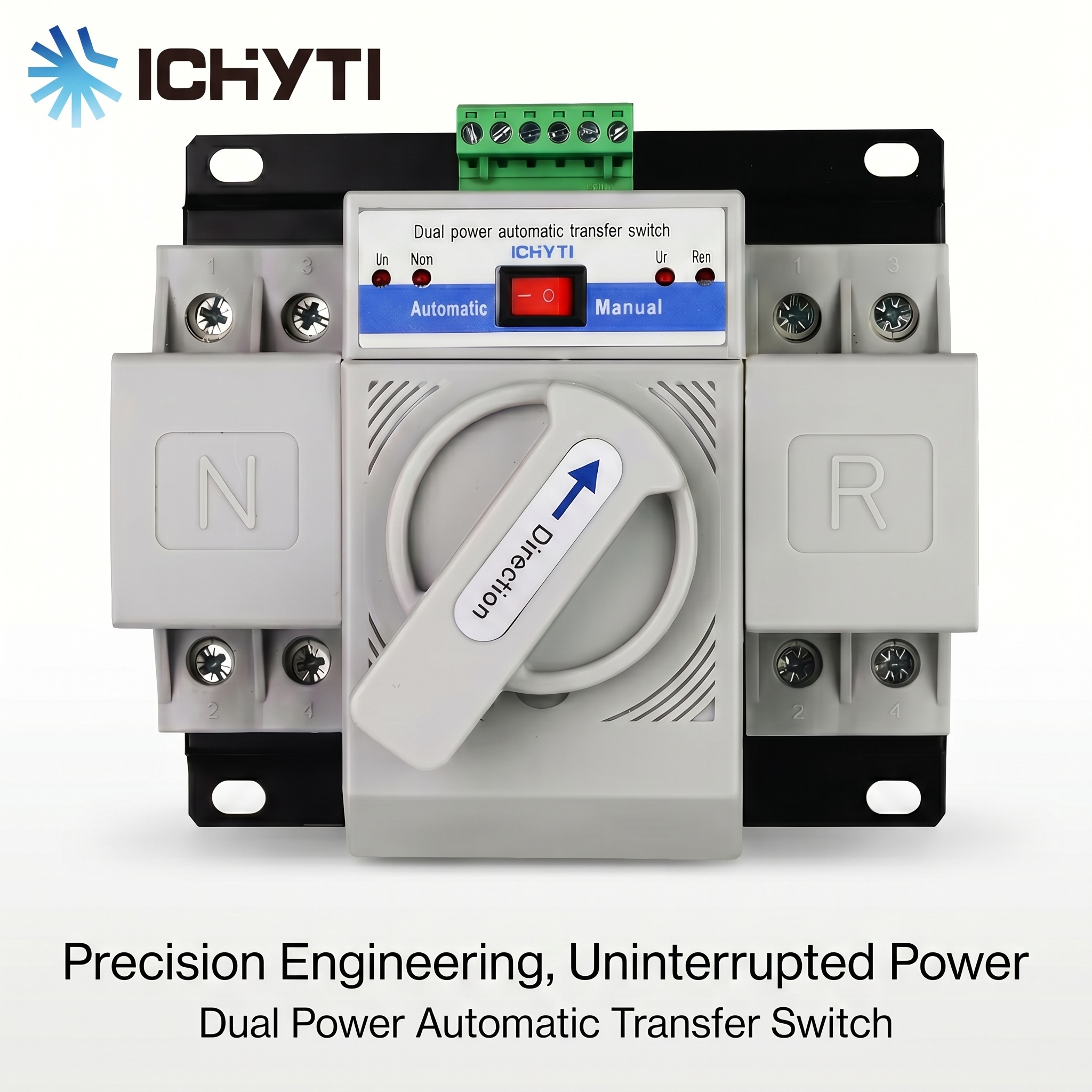

LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator
LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator
LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator
LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator
LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator
1 / 5
LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator
LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator
LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator
LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator
LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator

LW2R-63 2P 63A 230V Automatic Transfer Switch ATS Dual Power Changeover for Generator

Send Inquiry

Product Description

Product Description
Product introduction
LW2R-63 series automatic transfer switch is designed and developed according to universal customers' requirements. This switch uses DZ47(C45=CB2) miniature circuit breaker(improved type) as the actuating element, is equipped with the new type control mechanism. With the smallest volume among the similar products, it also has the functions like the fire control and power generation, and it is specially used in the important power supply locations where the power failure is not allowed.
Product features
  • Reasonable structure, small volume, nice appearance, provided with protective shield, safer and more reliable power supply.
  • Complete protective functions, including open phase and loss-of-voltage protection.
  • Noiseless, energy saving, simple installation, easy operation, reliable and stable performance.
Specification
Product Model LW2R-63
Rated Current le: A 63A
Insulation Voltage Ui AC690V 50/60Hz
Rated Voltage Ue AC230V AC400V AC400V
Grade CB Class
Pole 2P 3P 4P
Rated impulse withstand voltage 4KV
Rated short circuit making capacity Icm 6KA
Rated short circuit breaking capacity Icn 4.5KA
Electrical Life 2000 times
Mechanical Life 5000 times
Controller Type A(basic type)
Control Circuit Us AC230V 50/60Hz
Operating transfer time (no time delay) ≤3s
Details Images

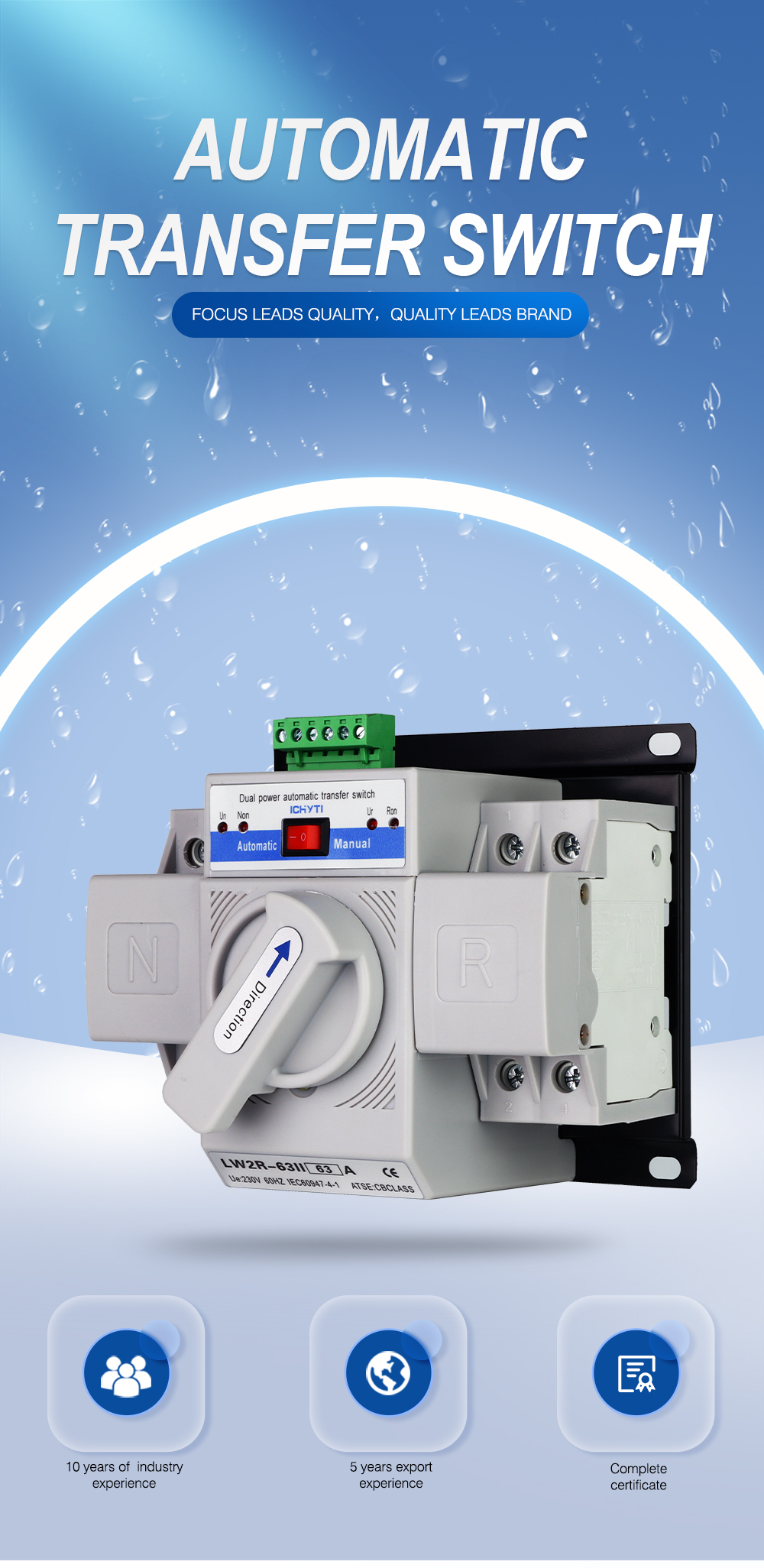

Detail Image 1
Detail Image 2
Detail Image 3

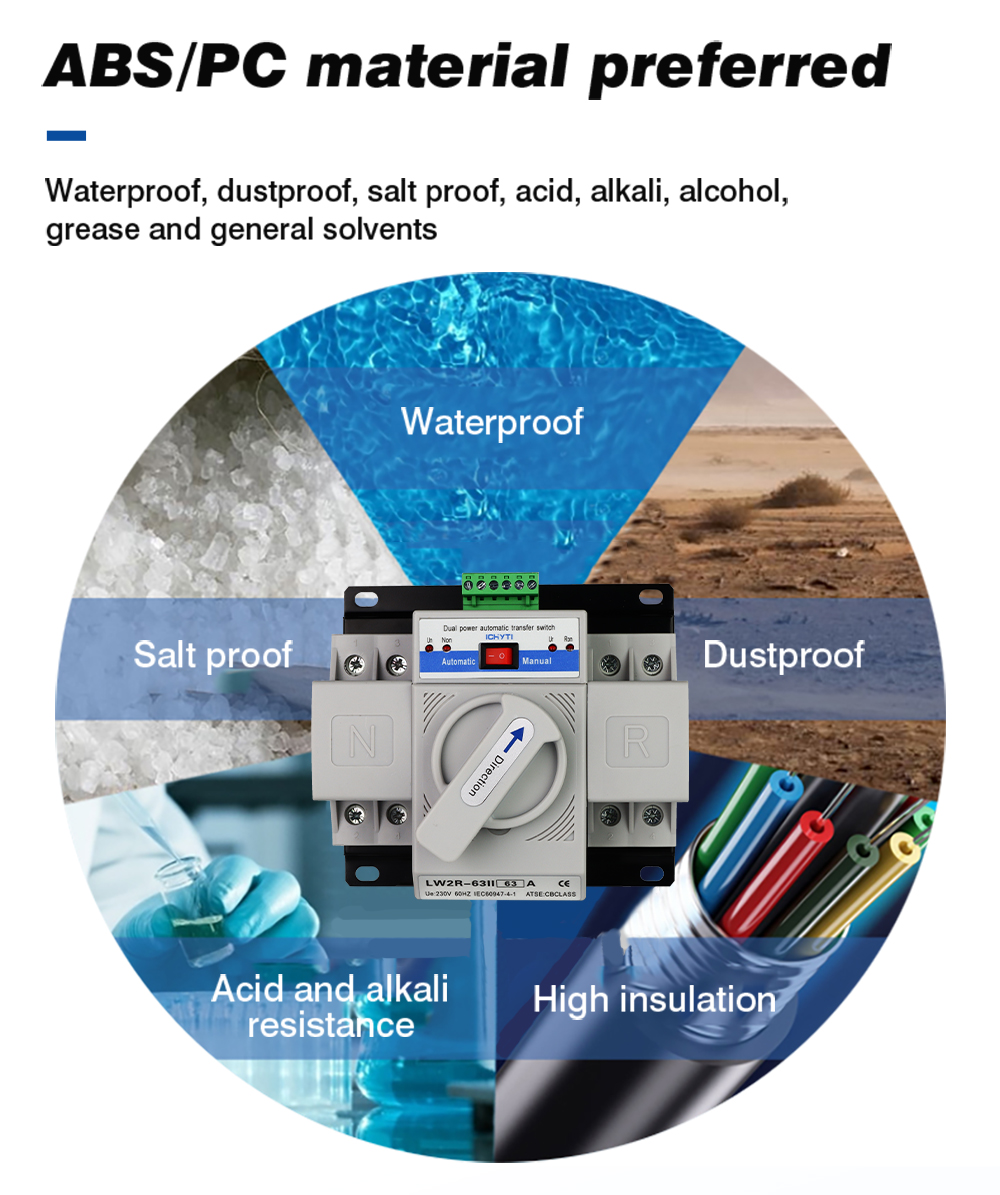

Detail Image 4

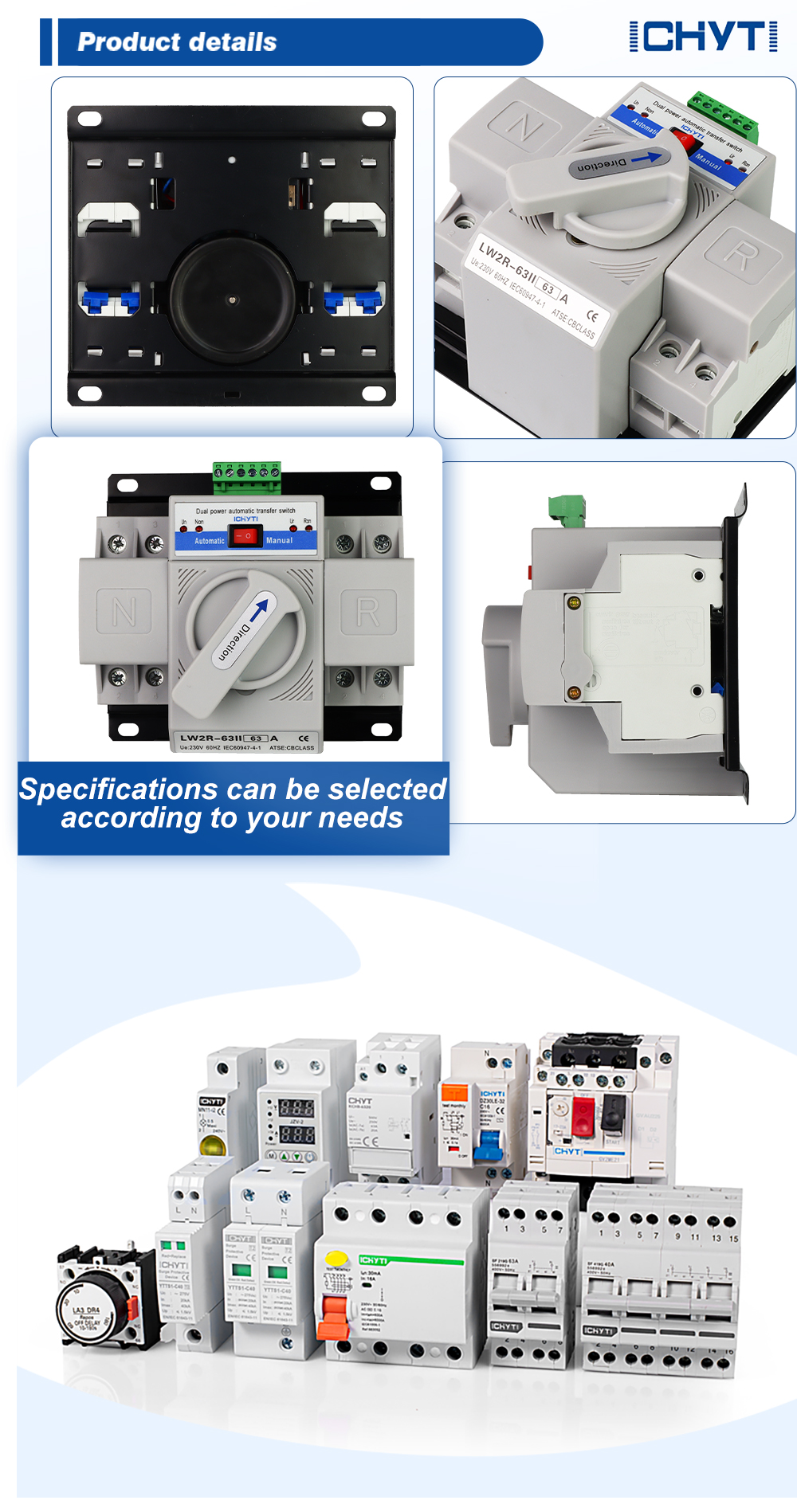

Detail Image 5

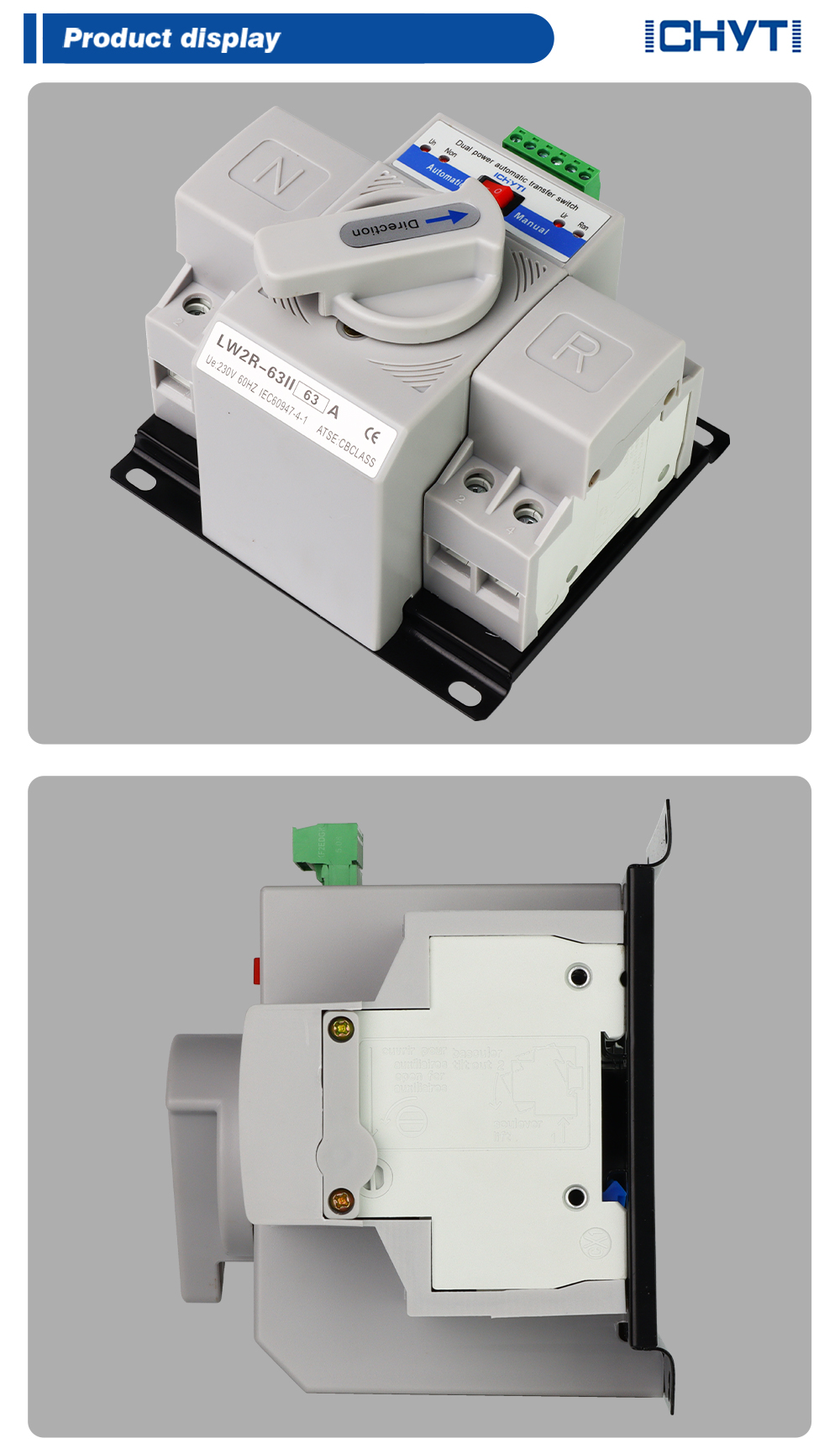

Detail Image 6

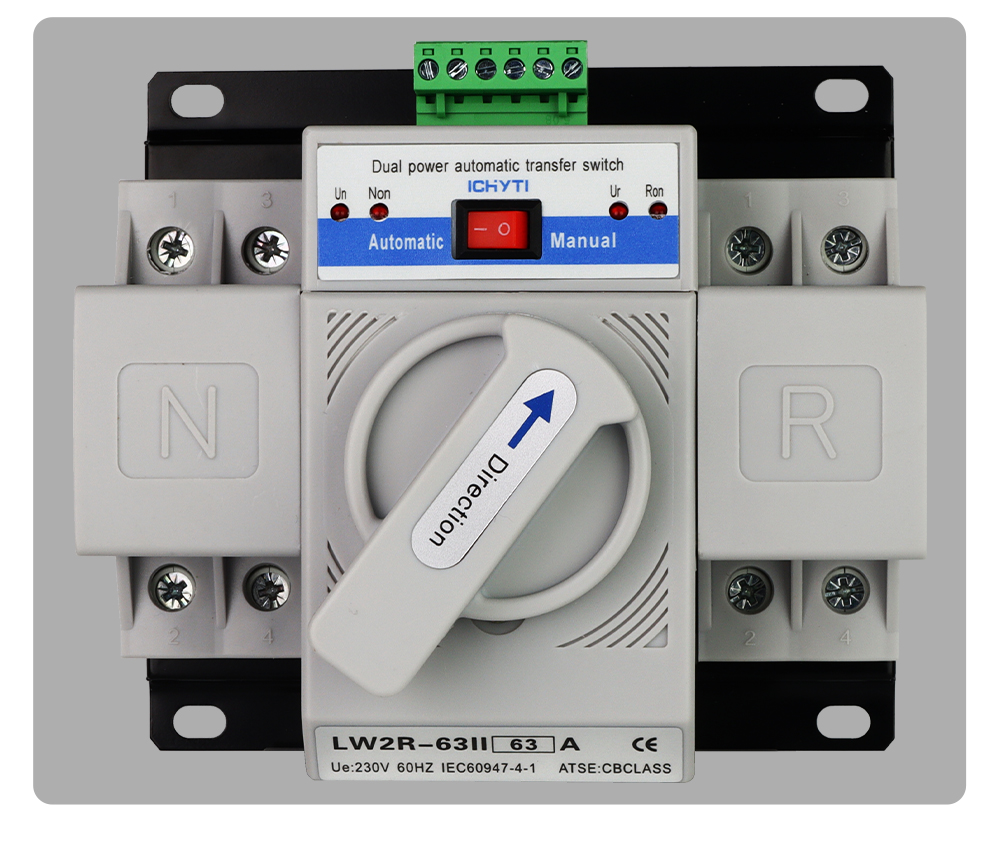

Detail Image 7

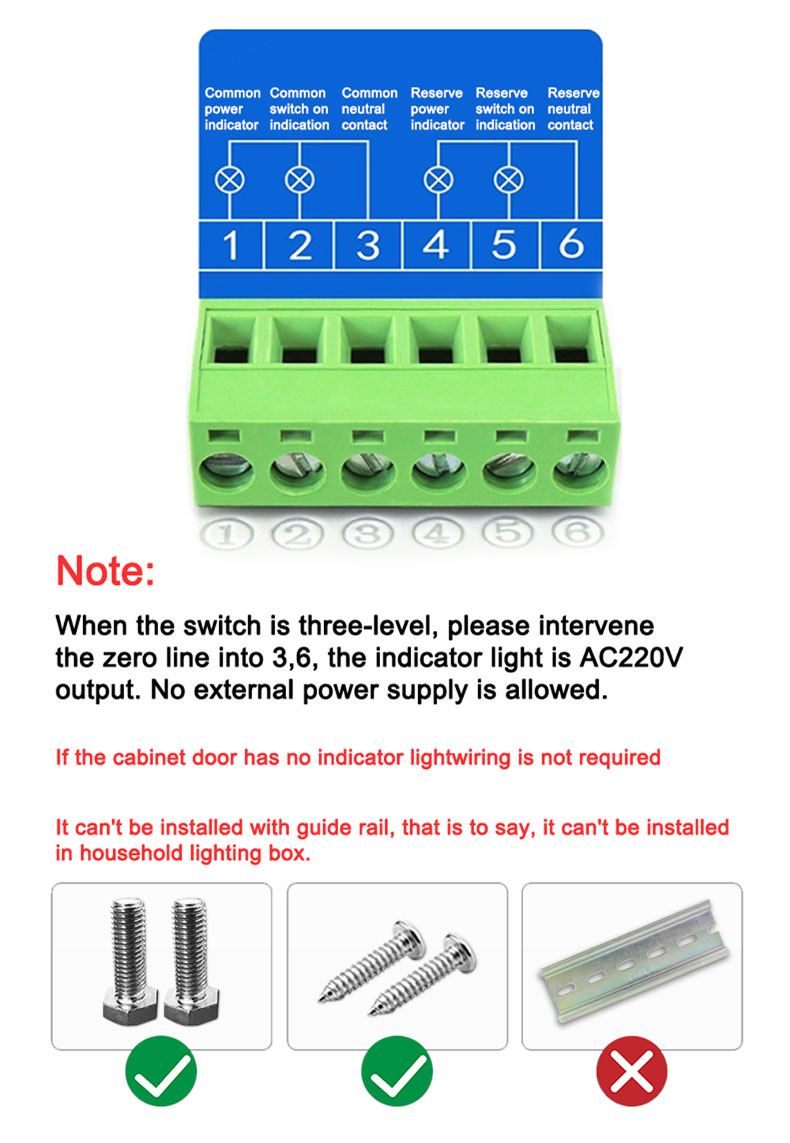

Detail Image Large
Related Products
Related Products Grid 1
Related Products Grid 2
Packing & Delivery
Packing and Delivery details
FAQ
Why should you buy from us not from other suppliers?
The product specifications are complete, the variety is rich, and we have more than ten years of production, research and development and sales experience. The team is young and energetic.
When I can receive quotation and detail information after send the enquiry?
Reply will be sent in 48hours.
Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Can I get a sample for test before place order?
Of course!
How's the delivery? Because I really need them is urgently?
Samples cost 5-7 days. Bulk order cost 12-15 days.
What's your shipment method?
We ship by Express, by air, by sea, by train.
If you have another questions, pls feel free to contact us.
