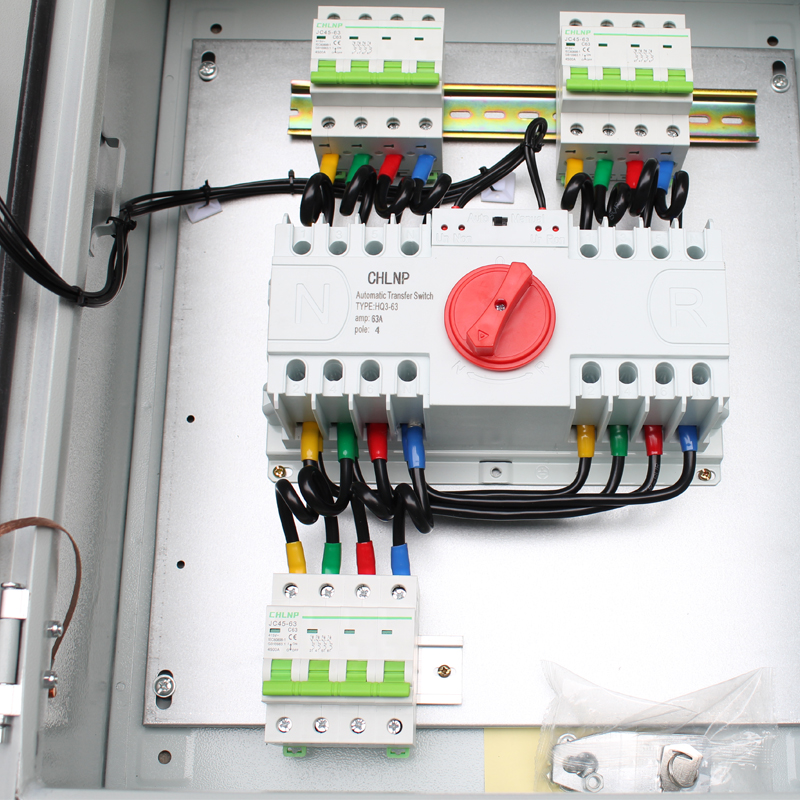

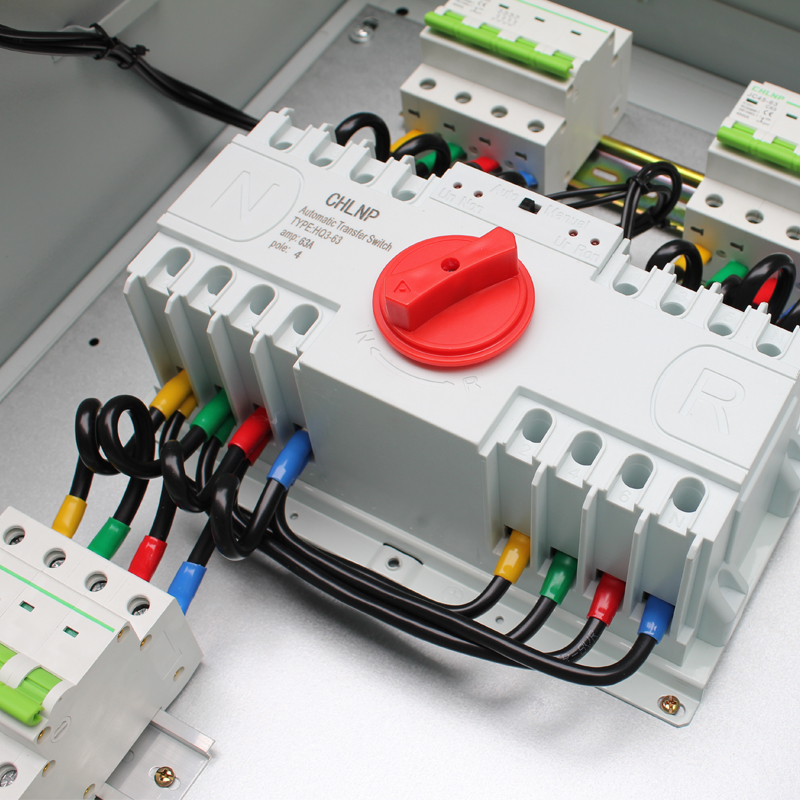

16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch
16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch
16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch
16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch
16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch
1 / 5
16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch
16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch
16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch
16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch
16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch

16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch

Send Inquiry

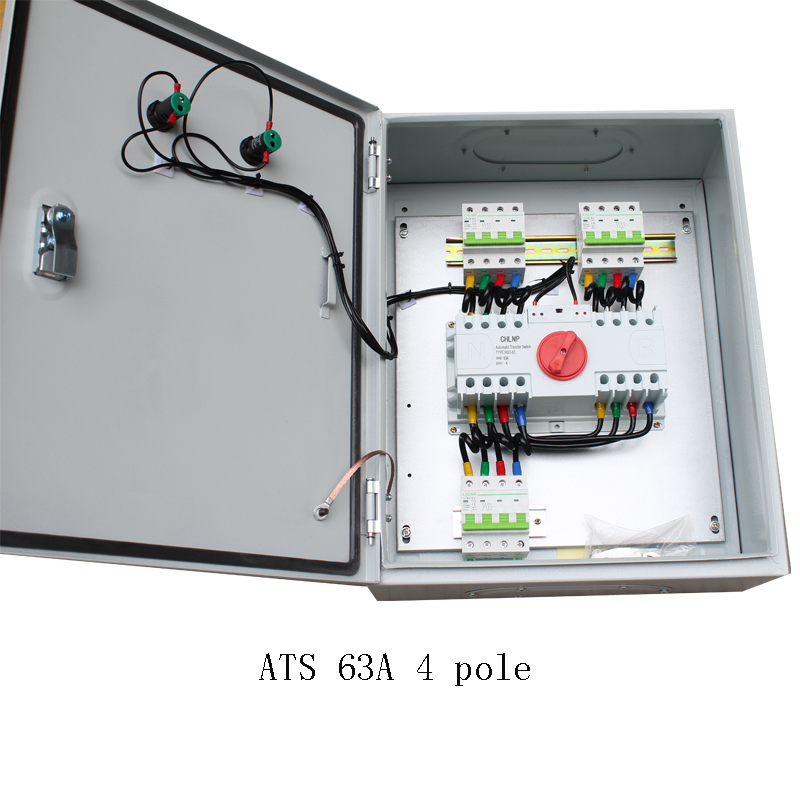

Product Description

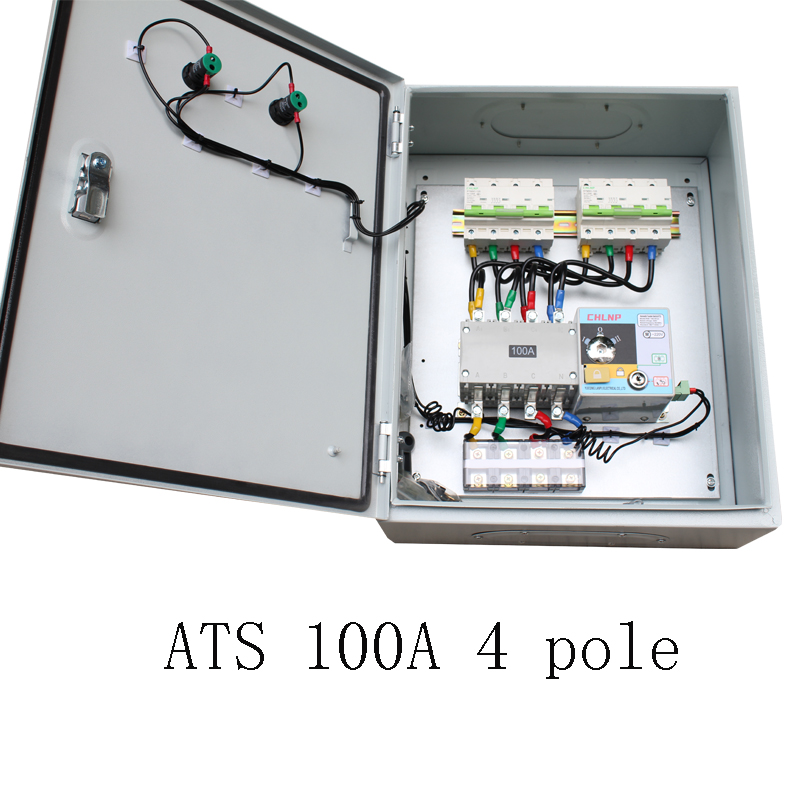

16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch

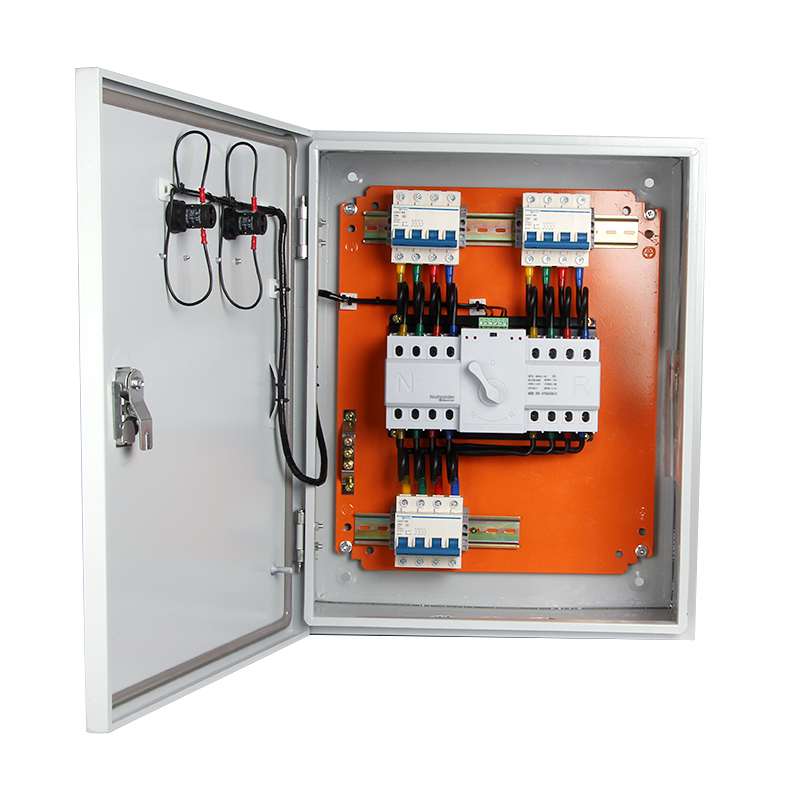

Application
HQ5 ATS used in Generator system, to changeover two power sources. Widely used at the field of important power supply site, which transport, distribution power supply system and automatization system. For fire protection, hospital, bank, building etc, where doesn't allowed power off.
1. Basic Specification
Agreed thermal current lth 20 40 63 80 100 125 160 250 400 630 800 1000 1250 1600 2000 2500 3200
Rated insulation voltage Ui 750V 1000V
Rated impulse withstand voltage Uimp 8KV 12KV
Rated voltage of the switch copper AC 440V
Rated work curret le AC-33A 20 40 63 80 100 125 160 250 400 630 800 1000 1250 1600 2000 2500 3200
Rated connection capability 10 le
Rated breaking capability 10 le
Rated conditional short-circuit current 100KA 70KA 100KA 120KA 80KA
Rated short-time withstand current IS 7KA 9KA 13KA 26KA 50KA 55KA
Transfer time I-II or II -I 0.45s 0.6s 1.2s 2.4s
Control voltage of the switch motor DC24V   AC220V  AC280V

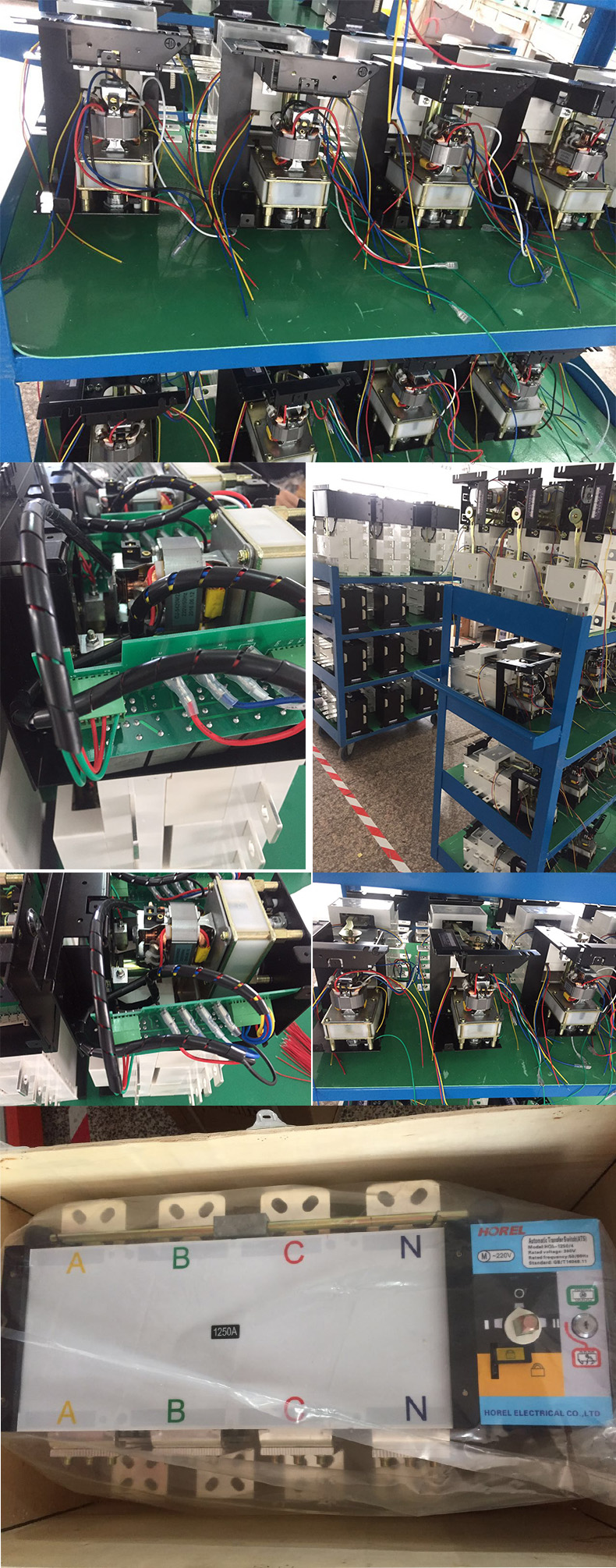

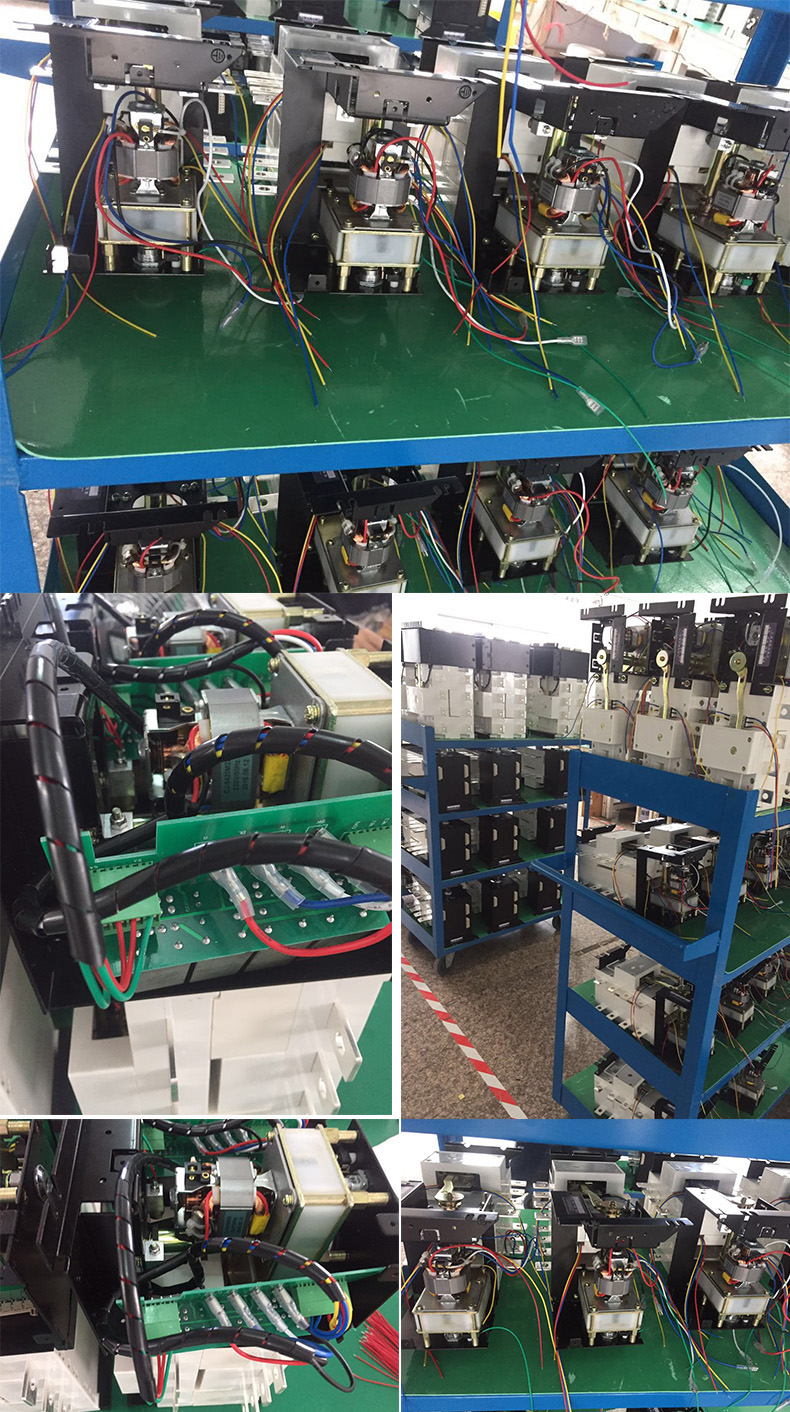

16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch 16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch 16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch 16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch 16A 63A 100A 2p 3p 4p ATS 230V Automatic Transfer Switch ATS Electrical Switch

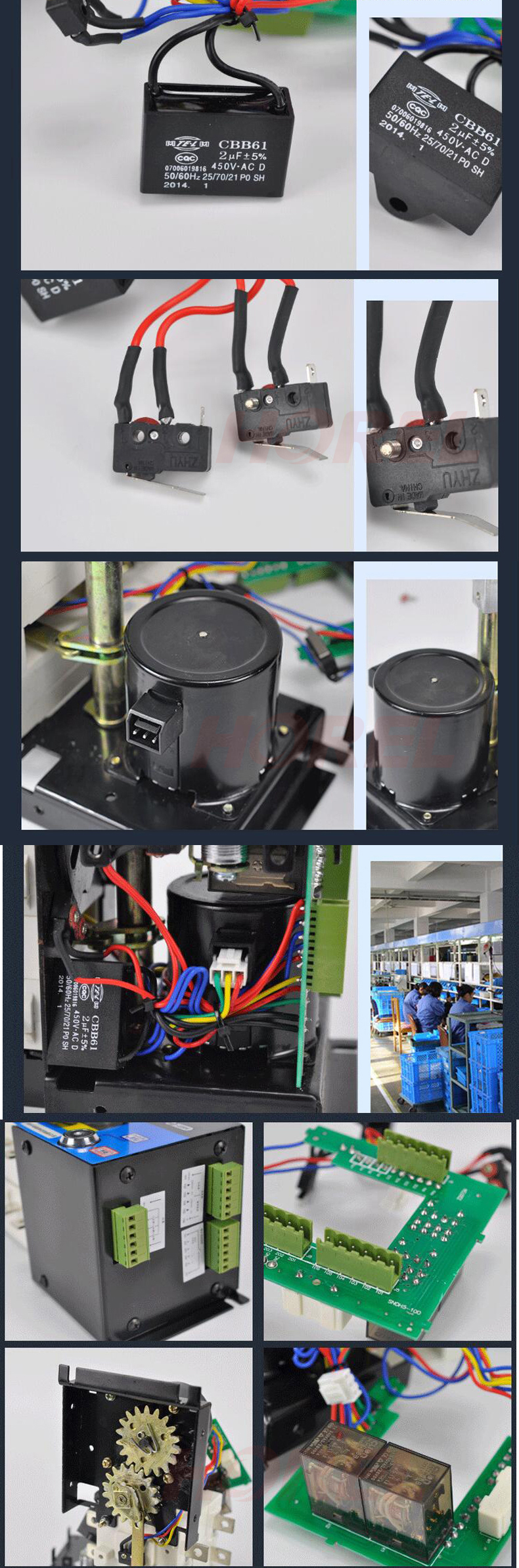

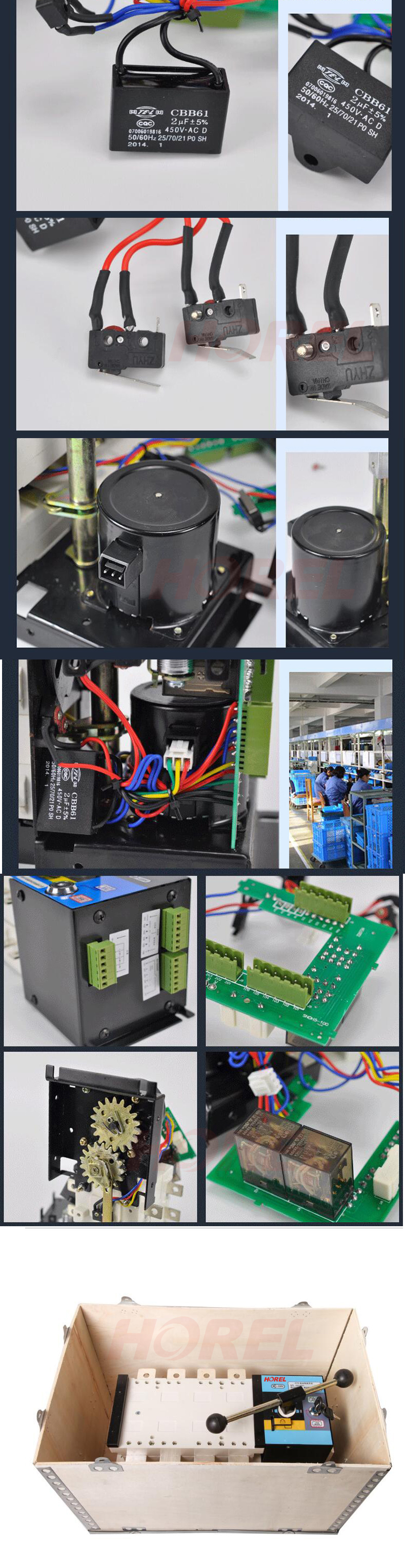

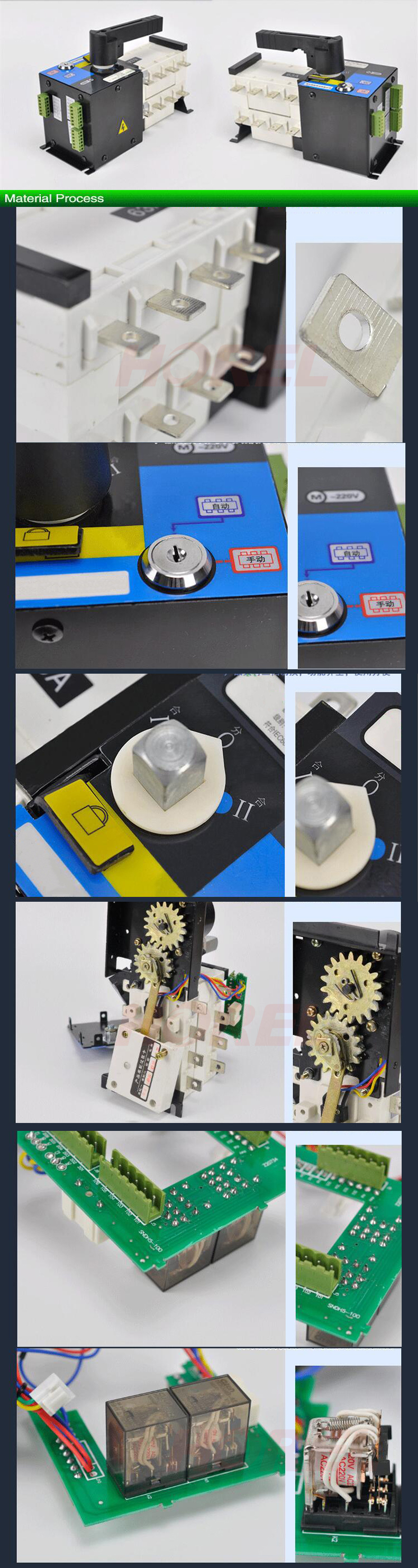

Performance
1
Double complex contact, horizontal and vertical type frame basically, it have come to "Zero" arc(no arc chute).
2
Reliable machine interlock and electric interlock, the executive union parts adopt independency overload disconnect switch, it makes more reliable and safety.
3
"zero" technique, can force to set "zero" under emergency situation(break off two ways power supply at the same time). Meet the requirement of the fire protection linkage.
4
Operate overload disconnect switch change over adopt singless electromotor drive, switch over smooth and reliable, no noise, little wallop.
5
Operate machine drive motor use only under the executive overload disconnect switch change over instantaneous current across, outstanding energy saying.
6
Perform overload disconnect switch with mechanism interlock device. It ensure the common use, standby power working reliable and not interference.
7
Distinct on and off position indicator, padlock function etc. safe realize the isolator between electric power and overload.
8
High security, high automatization, high reliability, use life more than 8000 times.
Frequently Asked Questions (FAQ)
What are the primary applications of the HQ5 Automatic Transfer Switch (ATS)?
The HQ5 ATS is designed for generator systems to safely change over between two power sources. It is widely applied in critical power supply sites such as transportation networks, distribution systems, automation setups, fire protection systems, hospitals, banks, and commercial buildings where power interruption is not allowed.
What is the standard transfer time of the HQ5 ATS?
The transfer time (from position I to II or II to I) varies based on current capacity. It ranges from 0.45 seconds for lower ratings up to 250A, 0.6 seconds for up to 630A, 1.2 seconds for up to 2000A, and 2.4 seconds for up to 3200A.
Does this ATS feature mechanical and electrical interlocking?
Yes, the HQ5 ATS integrates reliable mechanical and electrical interlock systems. The executive union parts adopt an independent overload disconnect switch, ensuring secure operation and preventing simultaneous connection to both power lines.
What is the "zero" position technique on this transfer switch?
The "zero" technique allows the switch to force a complete disconnection from both power supplies simultaneously during emergency situations. This function satisfies strict fire protection linkage requirements by ensuring no power enters the designated area.
What are the available control voltage configurations for the switch motor?
The control voltage for the HQ5 ATS motor drive supports DC24V, AC220V, and AC280V configurations.
What is the expected mechanical service life of this switch?
Due to its high automation, optimized mechanical layout, and energy-saving motor drive system, the HQ5 ATS features high reliability with a rated operation lifetime of over 8,000 cycles.
