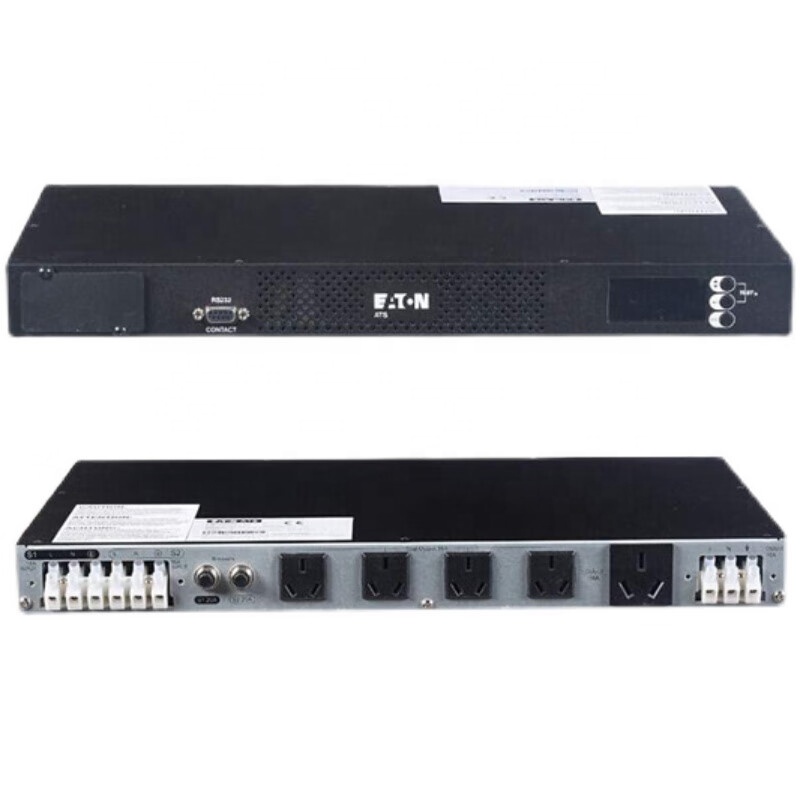

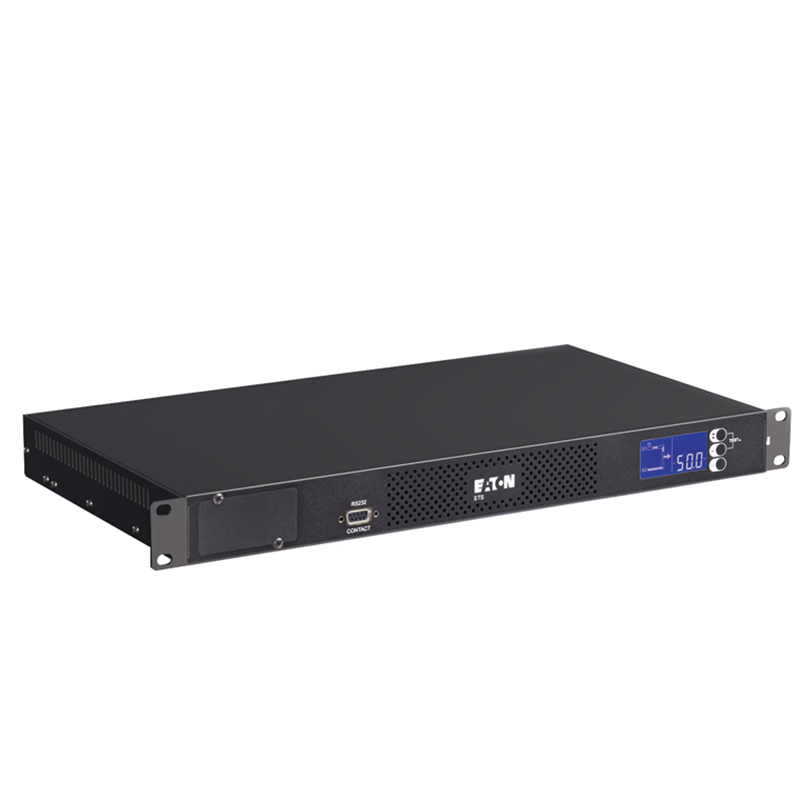

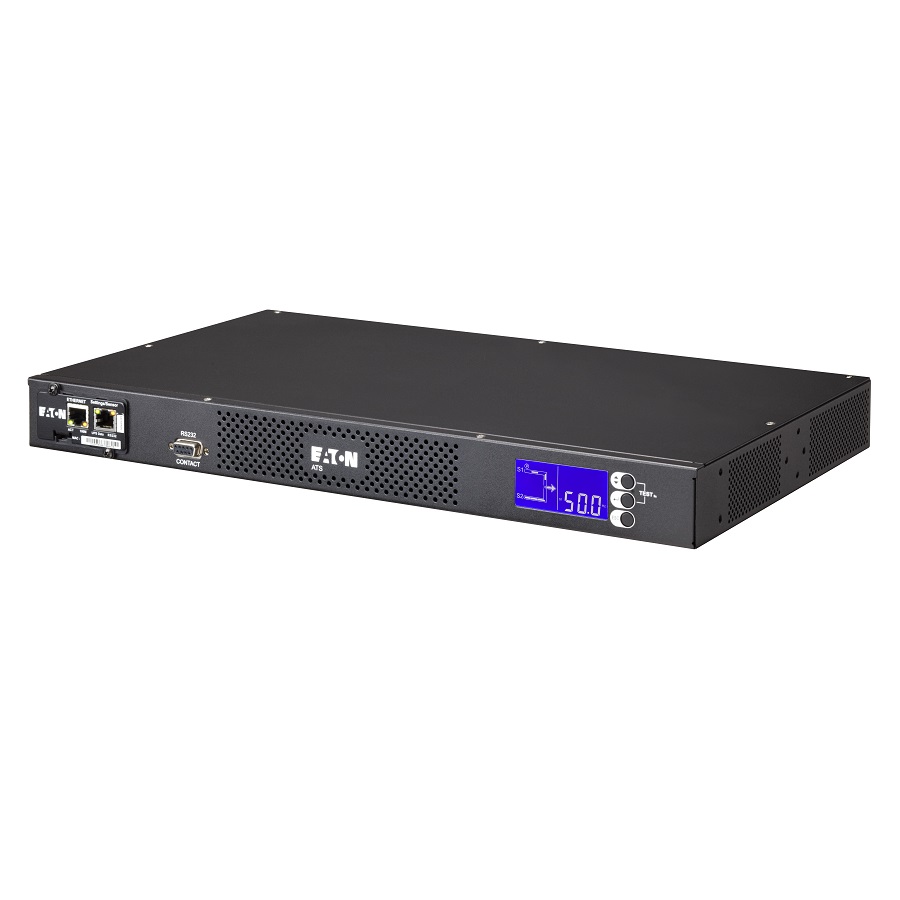

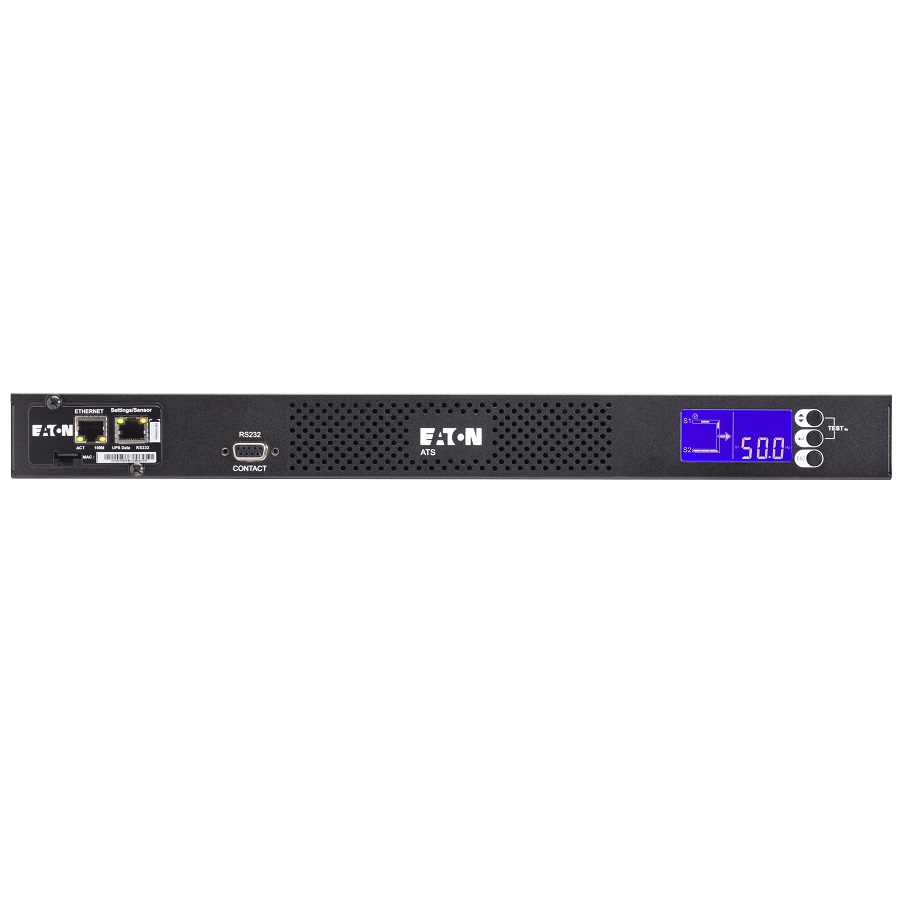

Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch
Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch
Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch
Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch
Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch
1 / 5
Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch
Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch
Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch
Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch
Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch

Eaton ATS EATS16 Dual Power Input Static Switching Switch 16A IEC Socket Standard Network Card STS Automatic Transfer Switch

Send Inquiry

Product Description

Product Display
Product View

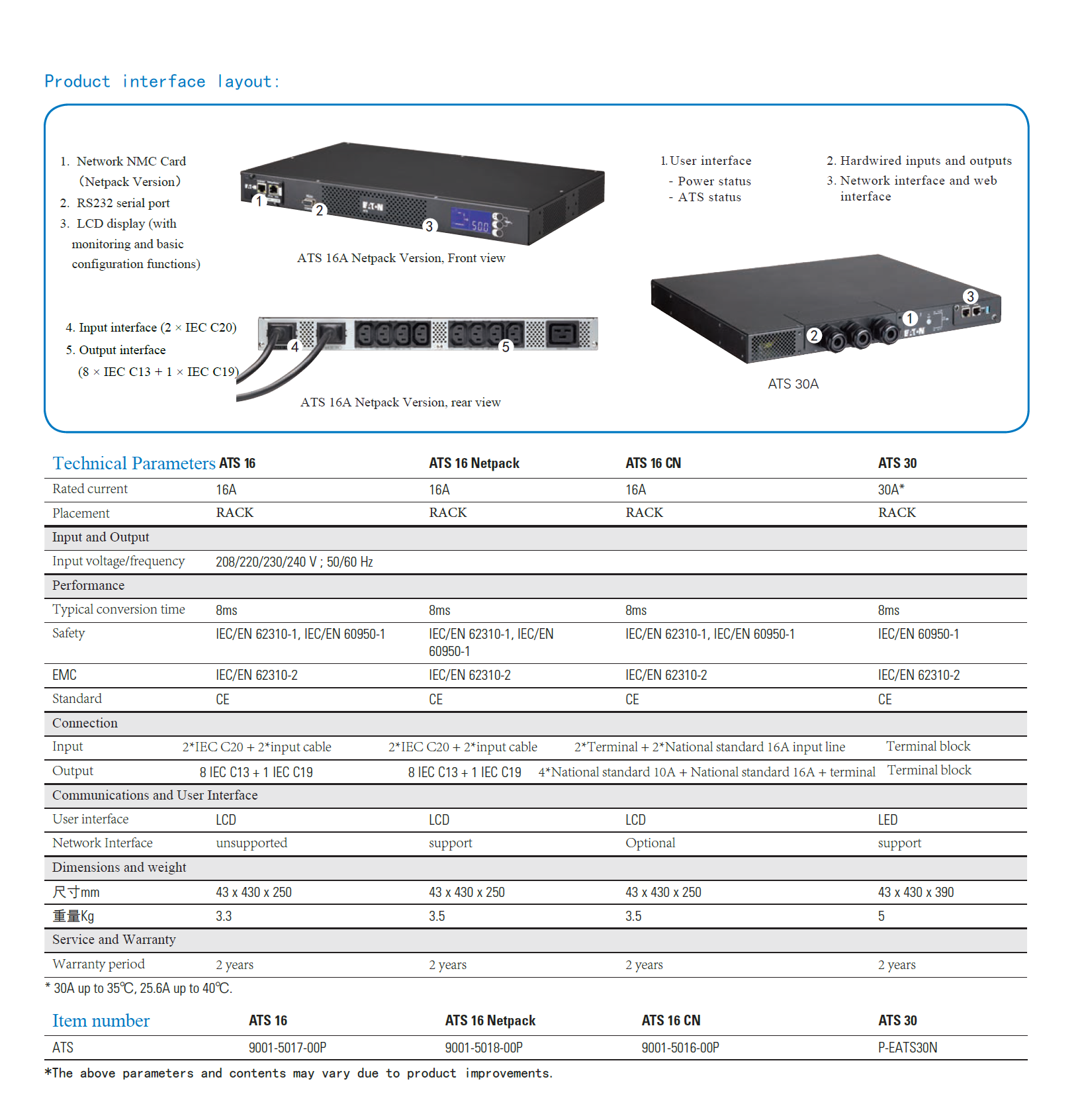

TECHNICAL SPECIFICATIONS ATS 16 ATS 16 Netpack ATS 30
Nominal current 16A 16A 30A*
Input/output
Nominal voltage/input frequency 208/220/230/240 V ; 50/60Hz
Performance
Typical transfer time 8 ms
Safety IEC/EN 62310-1,IEC/EN 60950-1 IEC/EN 62310-1,IEC/EN 60950-1 IEC/EN 60950-1
EMC IEC/EN 62310-2
Marking CE
Connection
Inputs 2IEC C20 + 2 input cables Hardwired
Outputs 8 IEC C13 + 1 IEC C19 Hardwired
Communication and user interface

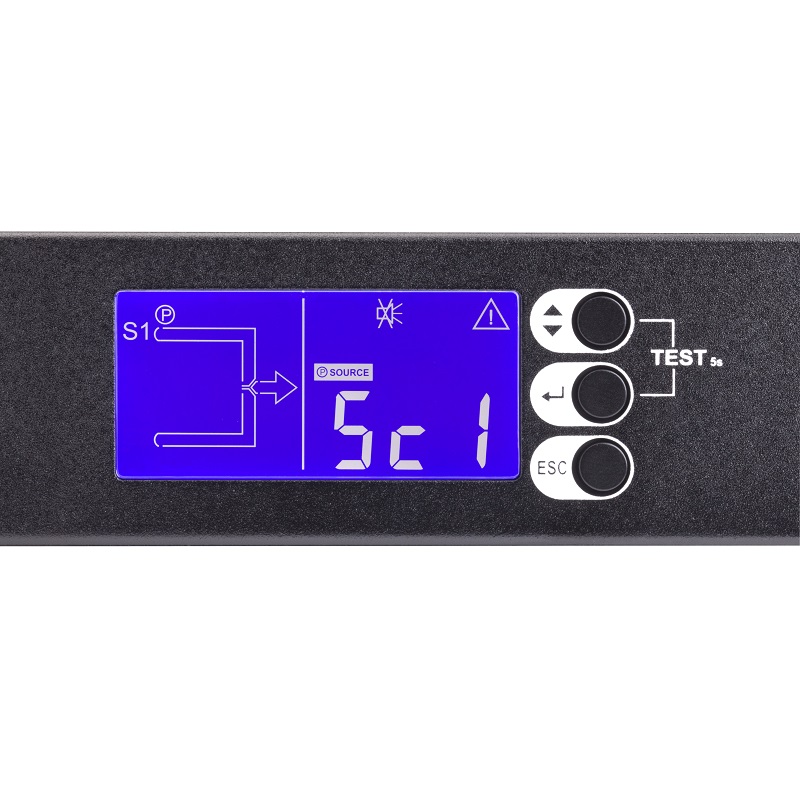

User interface LCD LED
Network communication No Yes
Dimensions and weight
Dimensions H x W x D 43 x 430 x 250mm 43 x 430 x 250mm 43 x 440 x 390mm
Weight 3,3 kg 3,5 kg 5 kg
Customer Service & Support
1 years guarantee Standard exchange of the product
* 30A up to 35°C, 25.6A up to 40°C.
Part Numbers
ATS EATS16 EATS16N EATS30N
Set of two 16 A connecting cables IEC female connector / USE-DIN male connector length 1.5 m 66 397
1 cable / IEC 10 A male to IEC 16 A female 66 029
Product Details
Feature 1

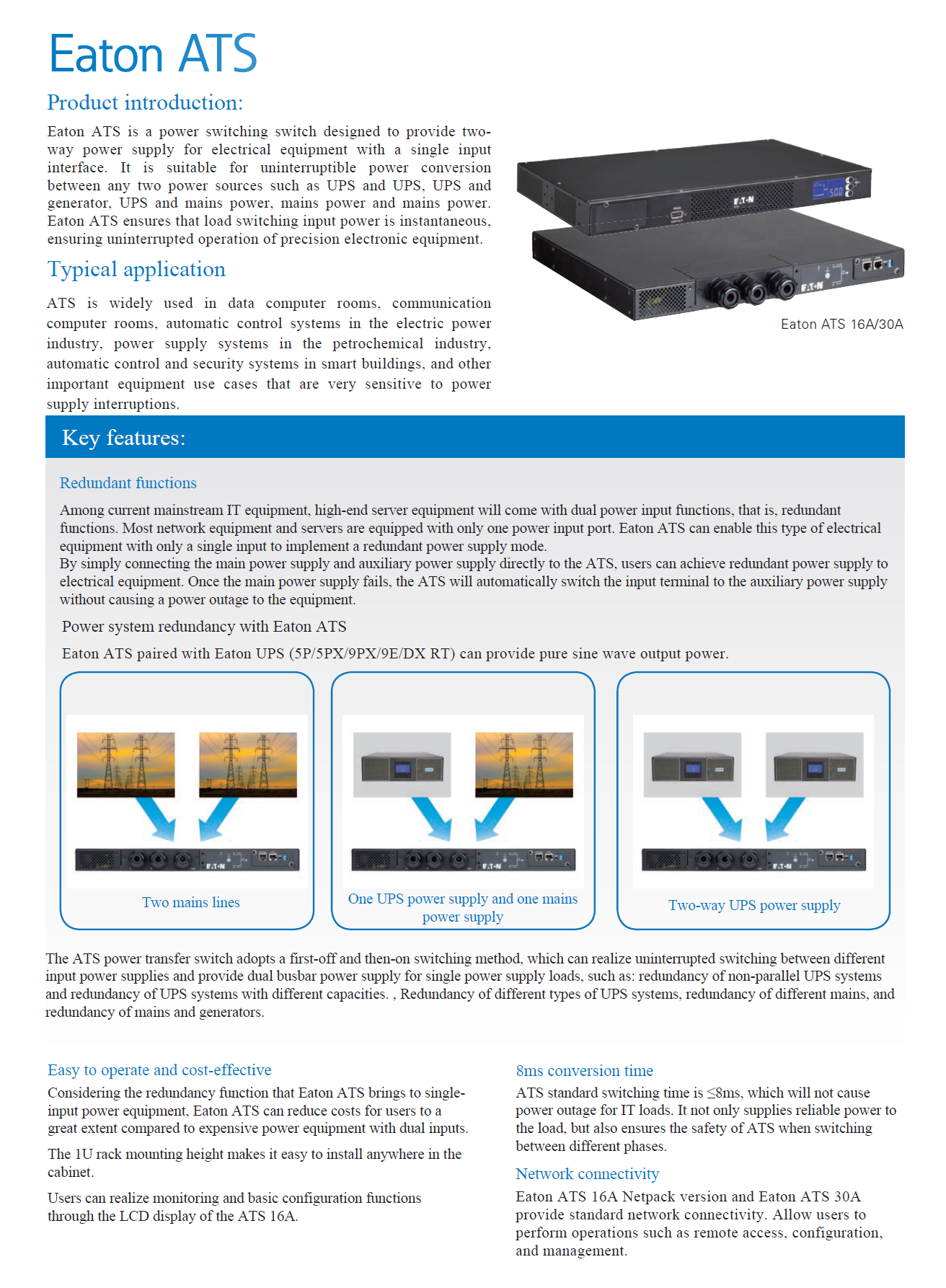

Feature 2
Feature 3
Feature 4
Product Info
Additional details

🏢 COMPANY PROFILE

We are a high-tech company focusing on one-stop data centers, PV new energy, and smart power supply and distribution. We provide users with infrastructure products such as UPS system, HVAC, MDC, smart power supplies, and PV new energy.

As a technical facilities provider, we also cooperate with well-known brands such as Eaton, Vertiv, Santak, APC, etc. to provide customers with the best choice.

We follow the carbon neutrality strategy and based on the development concept of independent innovation, constantly pursue leadership in energy-saving technology and innovation in production processes, and have established a complete R&D and quality assurance system. Provide customers with data center infrastructure and photovoltaic new energy solutions.

Factory Overview
Production Line 1
Production Line 2
Manufacturing
Testing Equipment 1
Testing Equipment 2
R&D Setup

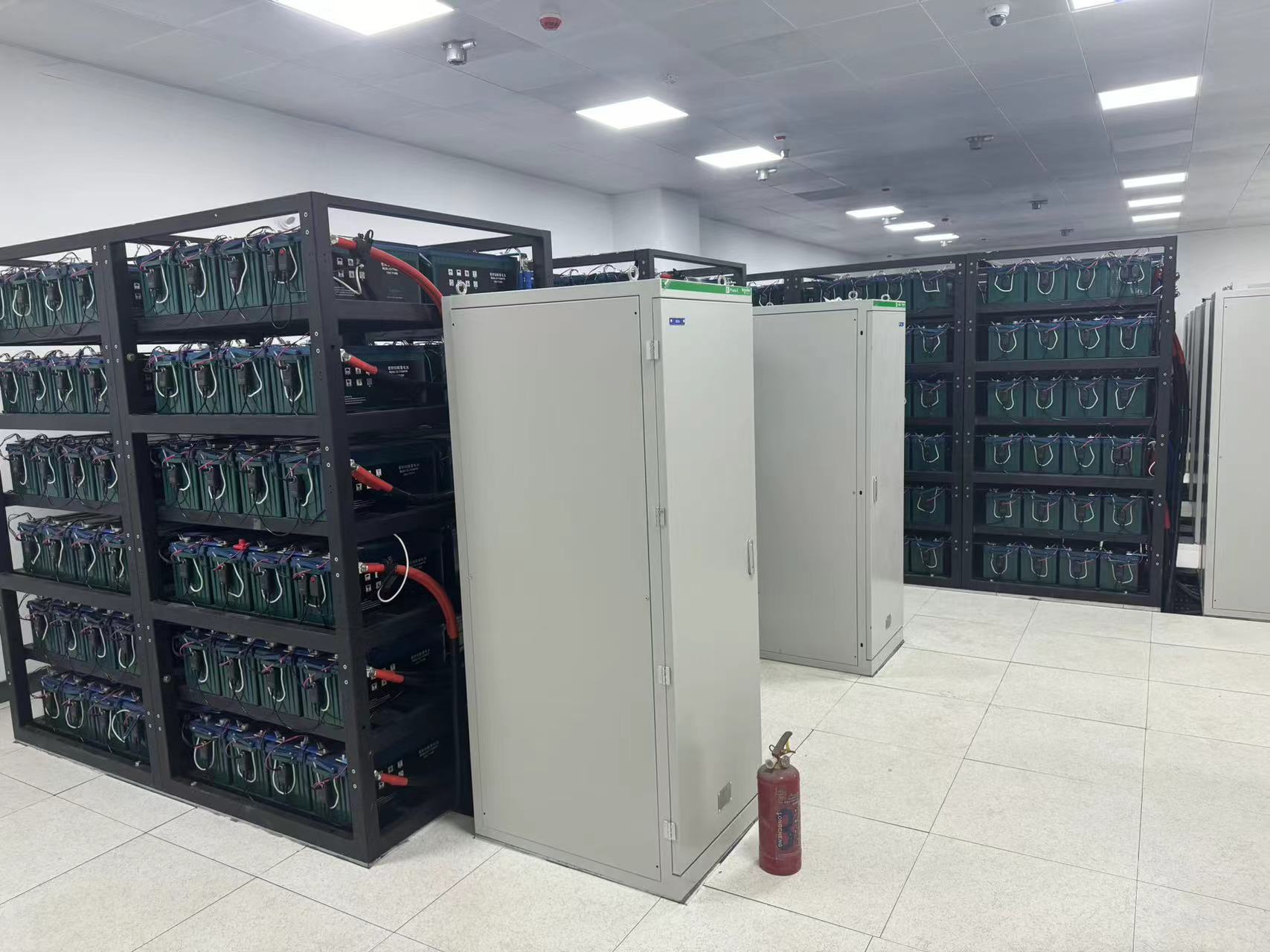

Quality Control
Hardware Display 1

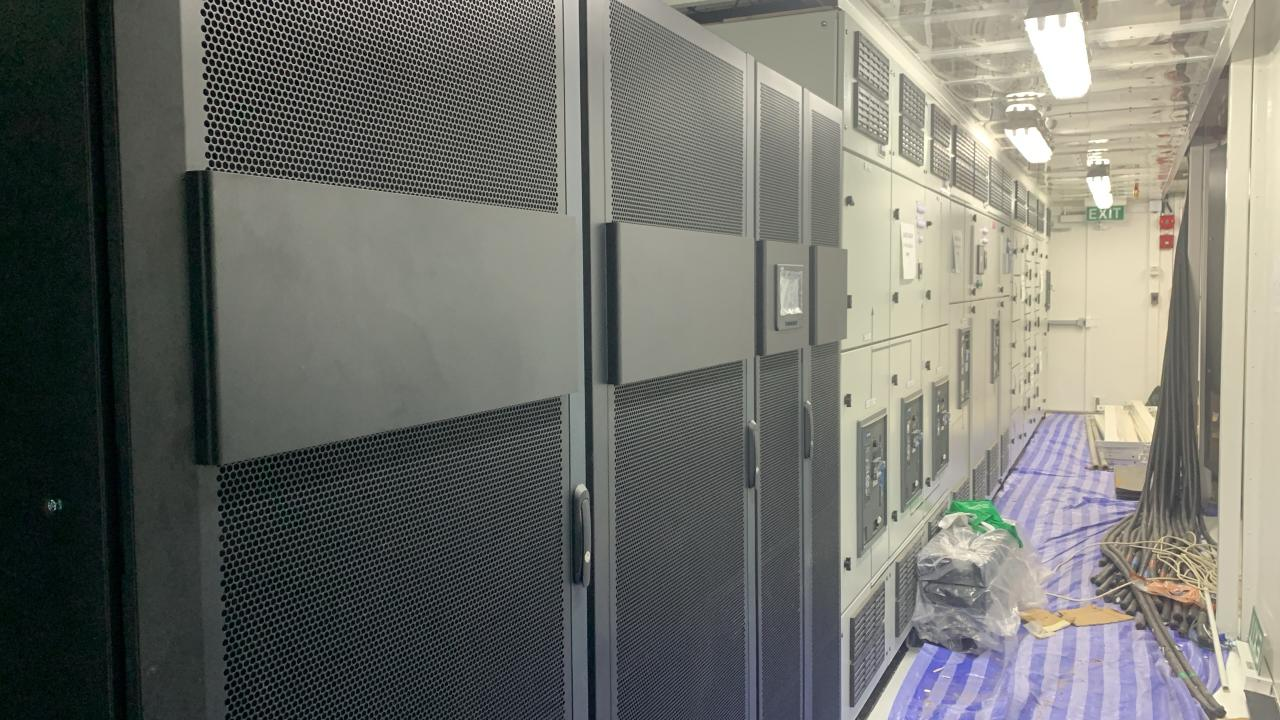

Hardware Display 2

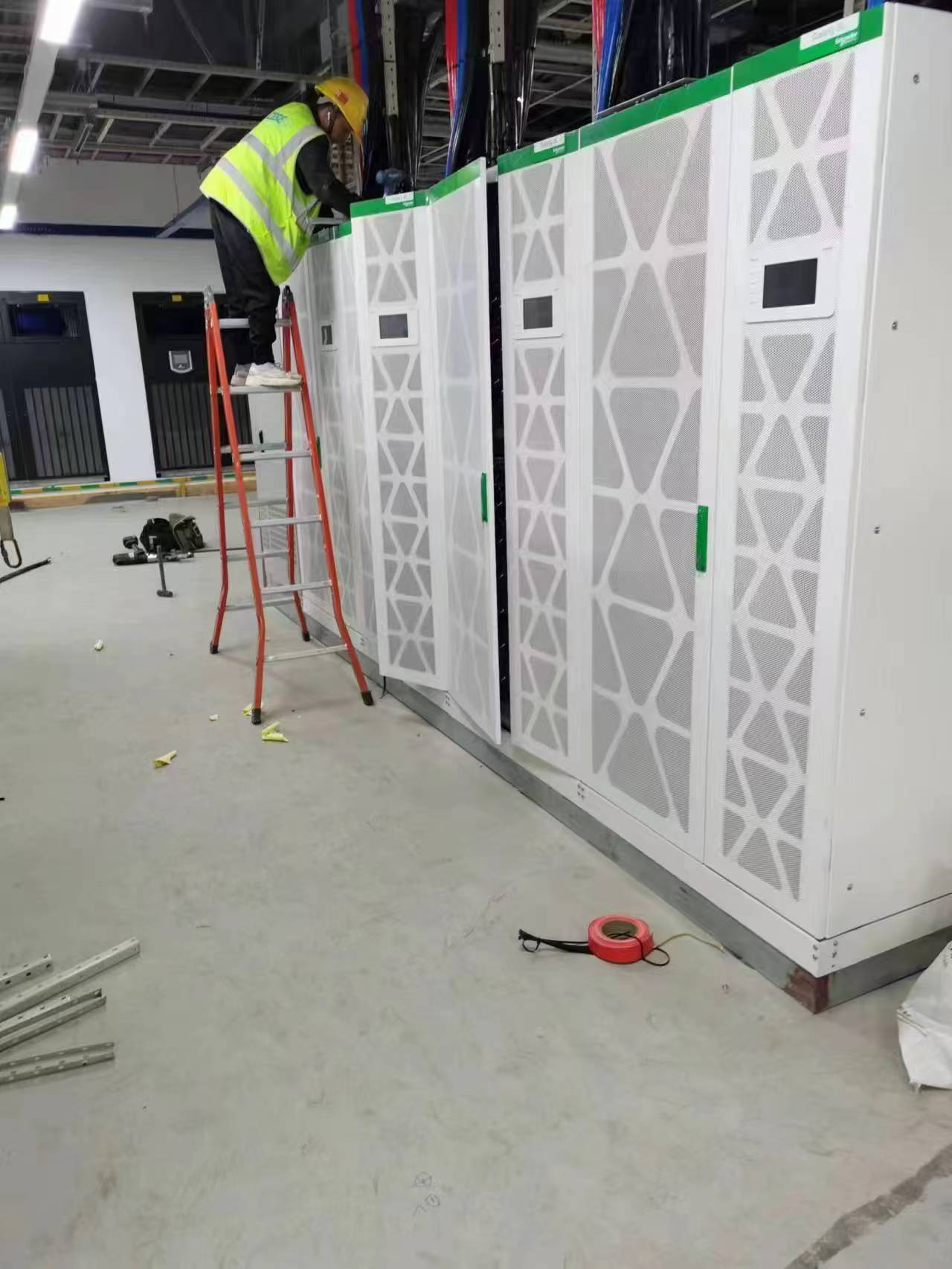

Hardware Display 3
Product Showcase 1
Product Showcase 2
Product Showcase 3
Product Showcase 4

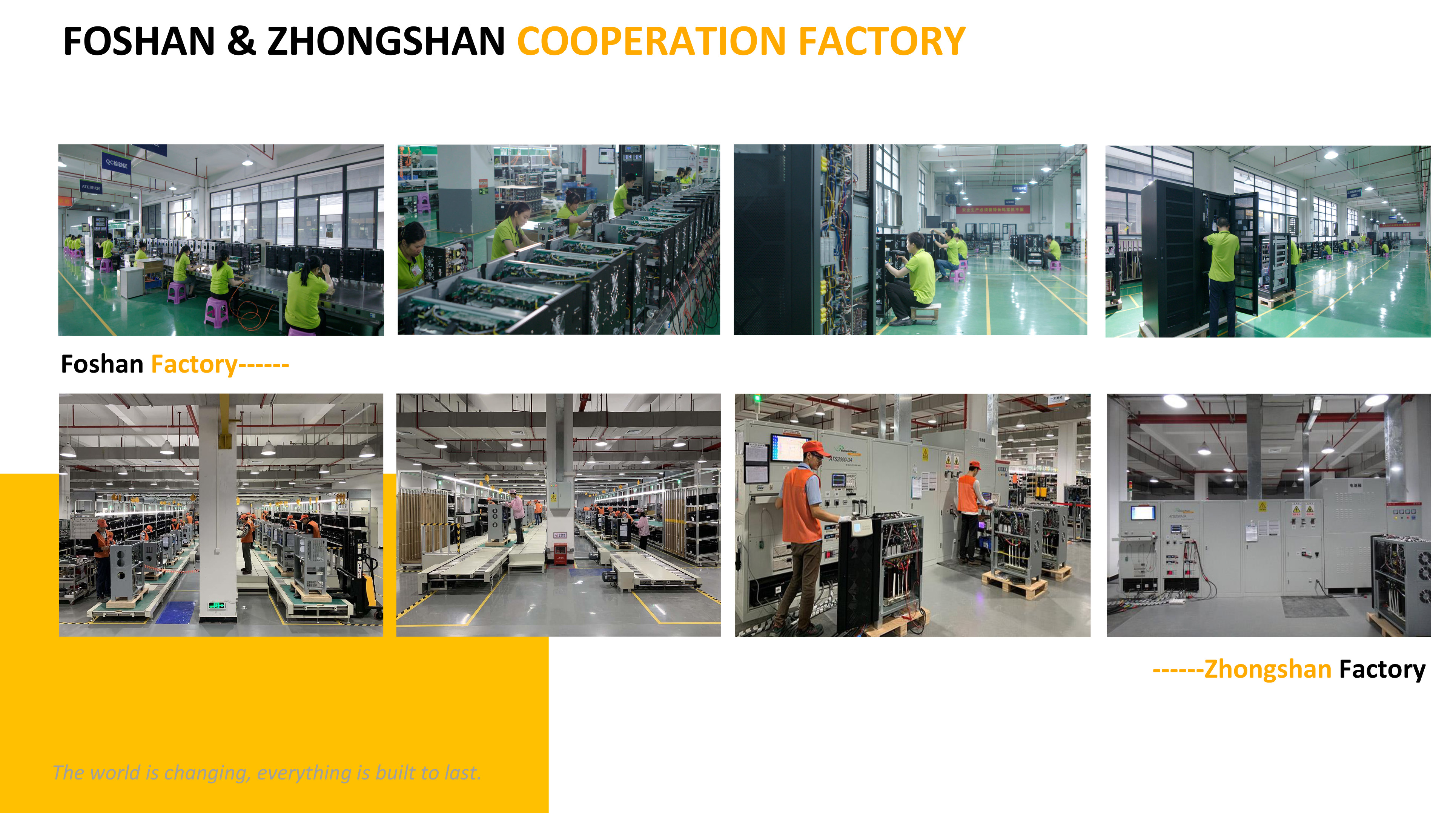

Product Showcase 5
Product Showcase 6
Product Showcase 7
Product Showcase 8
Product Showcase 9

❓ FREQUENTLY ASKED QUESTIONS

1. Who are we?
We are a professional manufacturer and supplier starting from 2015, selling to Mid East (23.00%), Southeast Asia (21.00%), South America (20.00%), Africa (10.00%), Oceania (6.00%), South Asia (5.00%), North America (5.00%), Eastern Asia (2.00%), Western Europe (2.00%), Central America (2.00%), Northern Europe (2.00%), Southern Europe (1.00%), and Eastern Europe (1.00%). There are total about 101-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; and always a final Inspection before shipment.
3. What can you buy from us?
UPS, Lithium Battery, Lead Acid Battery, Room Cooling, and PDU.
4. Why should you buy from us not from other suppliers?
We are a global group company founded in the 1980s. We have a history of producing industrial batteries and uninterruptible power supplies for more than 30 years, with established manufacturing and investment facilities.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian.
6. What is the typical transfer time for the ATS 16/30?
The typical transfer time is 8 ms, ensuring continuous operation for all connected devices.
