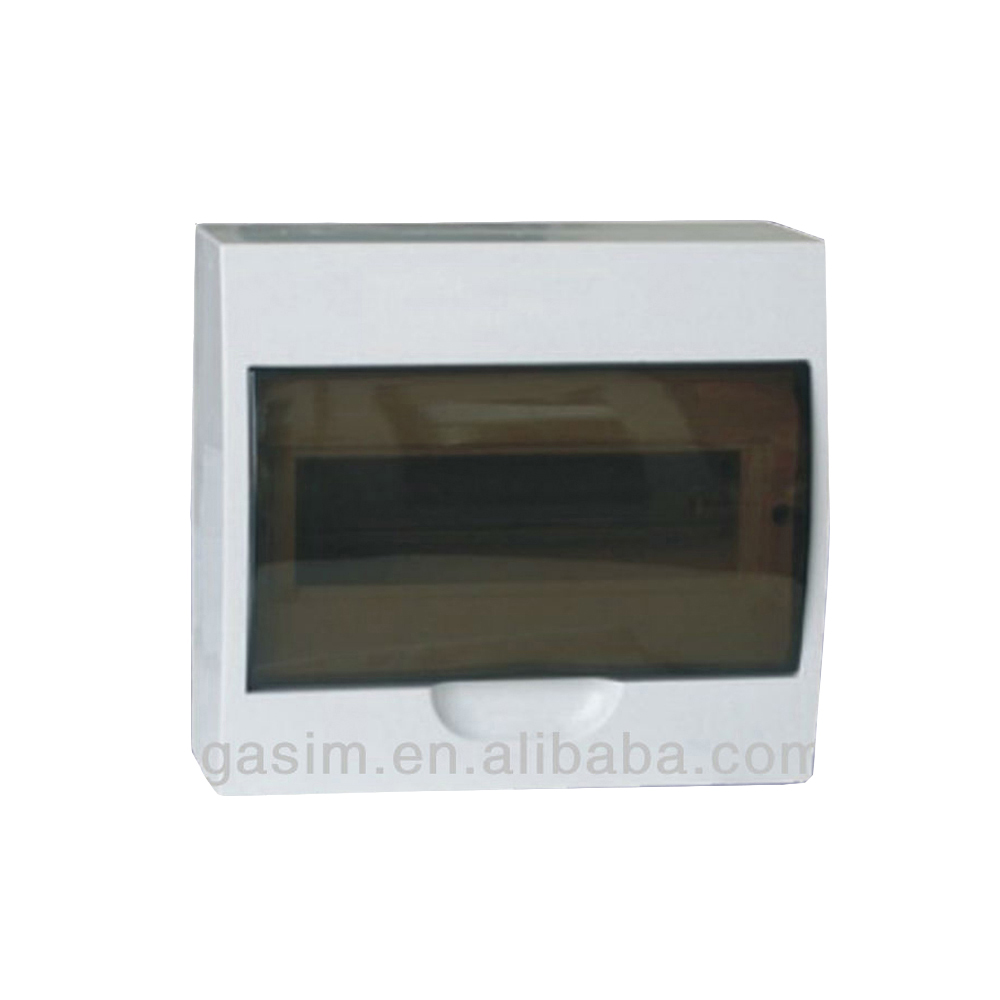

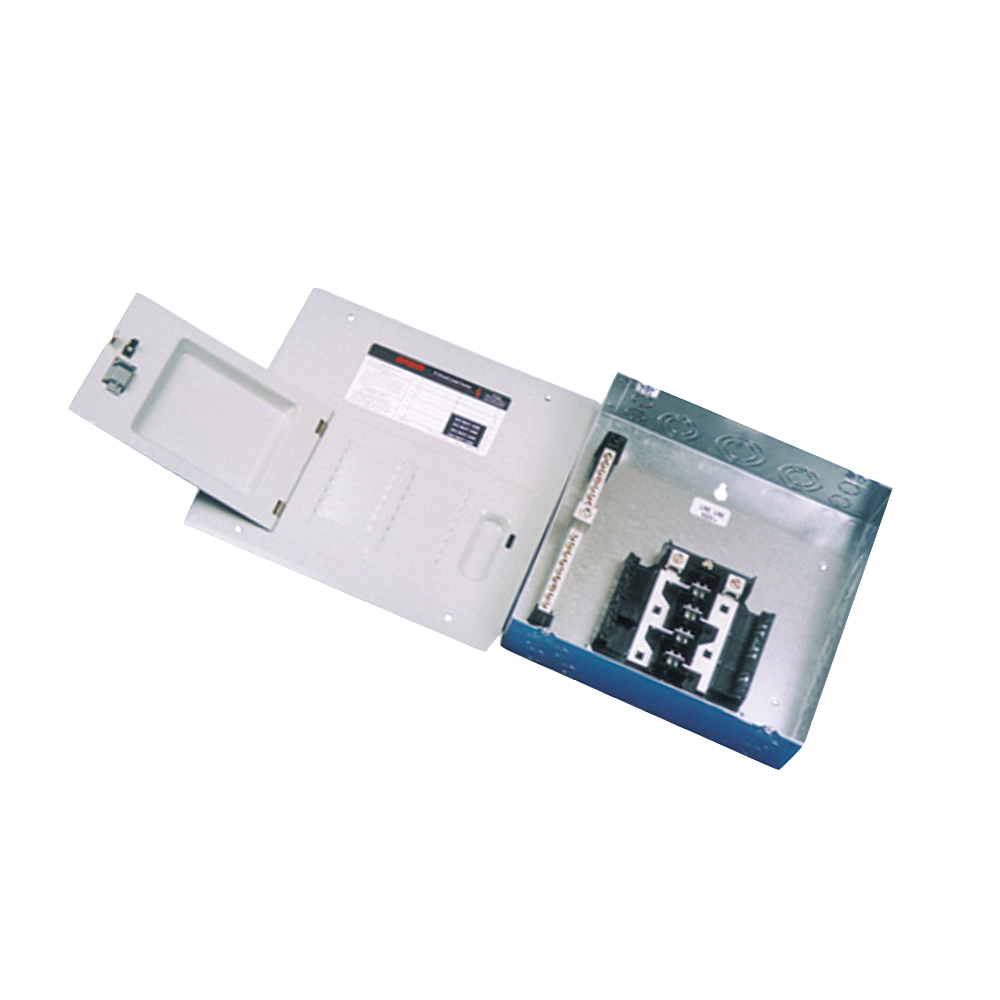

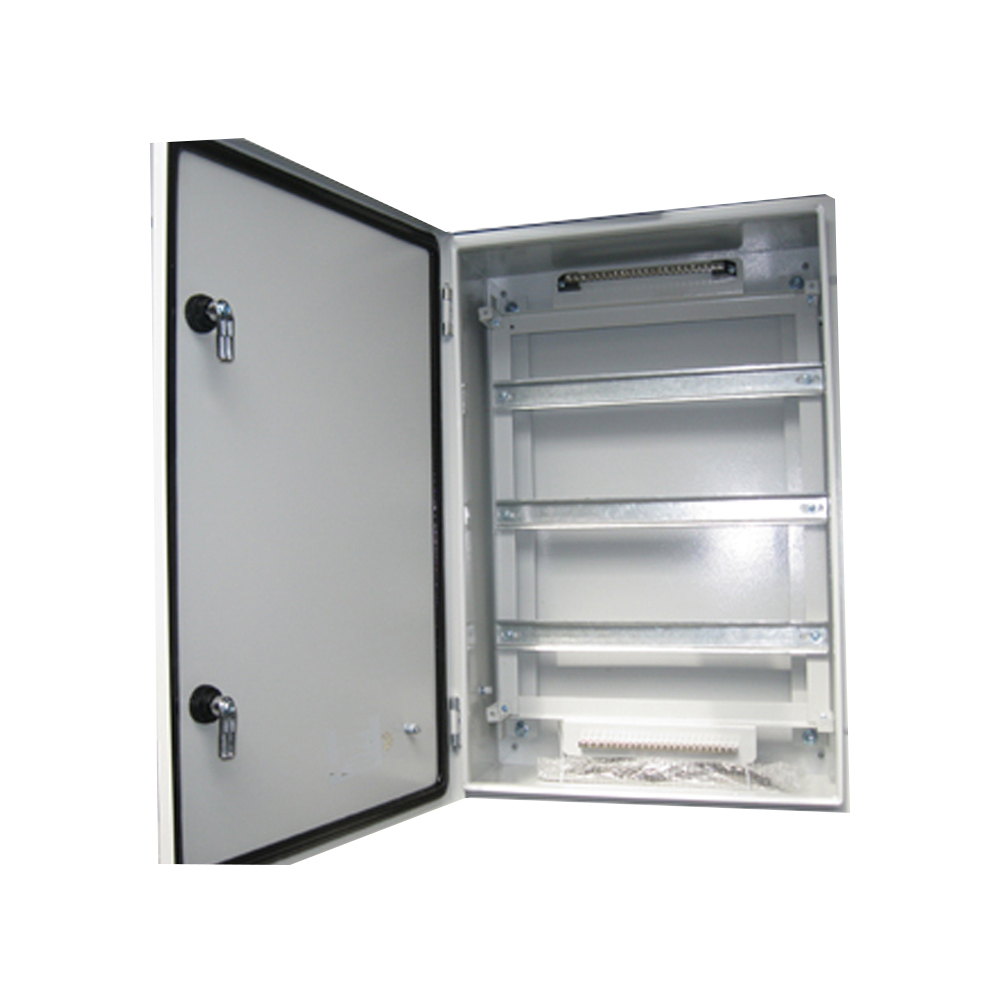

| Distribution board GSDB | ||||
|---|---|---|---|---|
| Standard Model Specification |

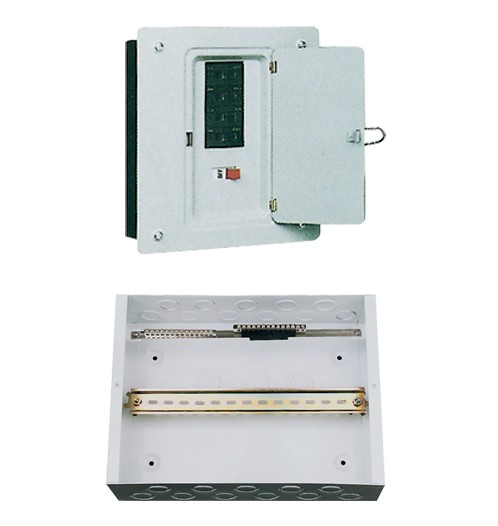

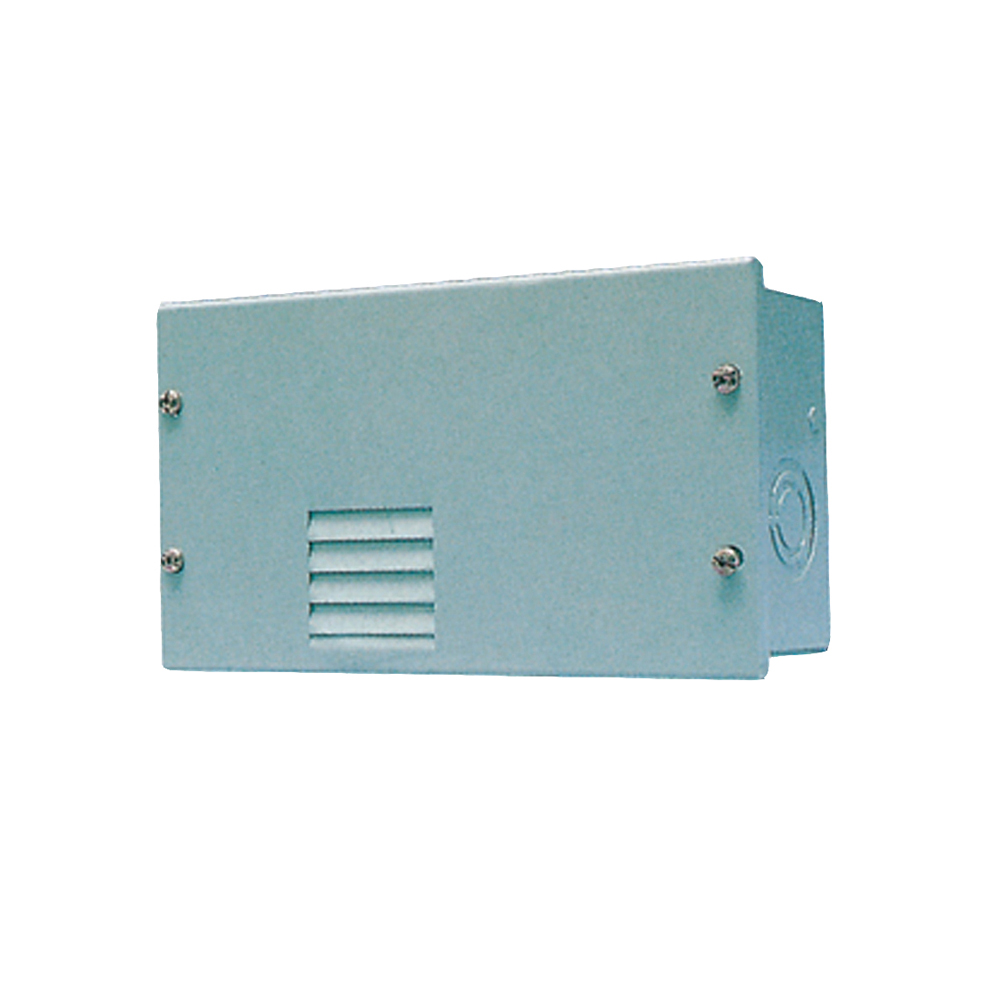

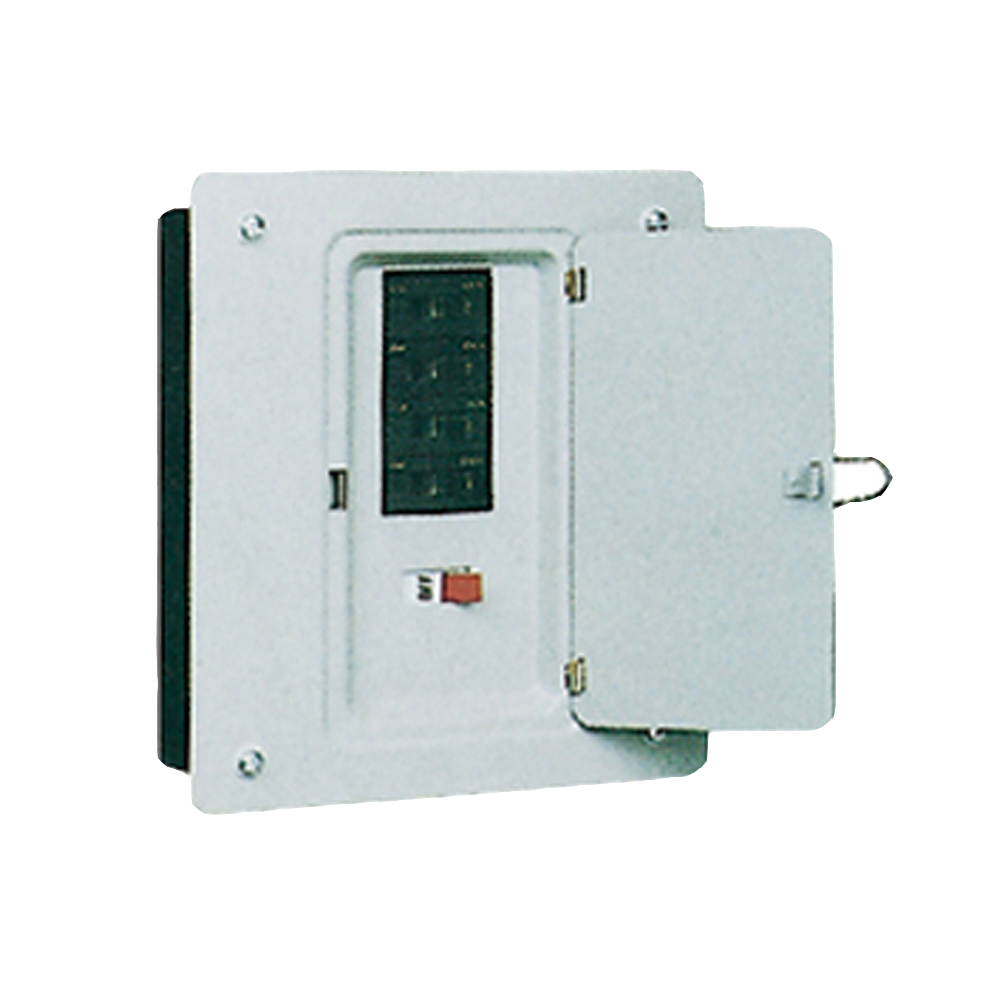

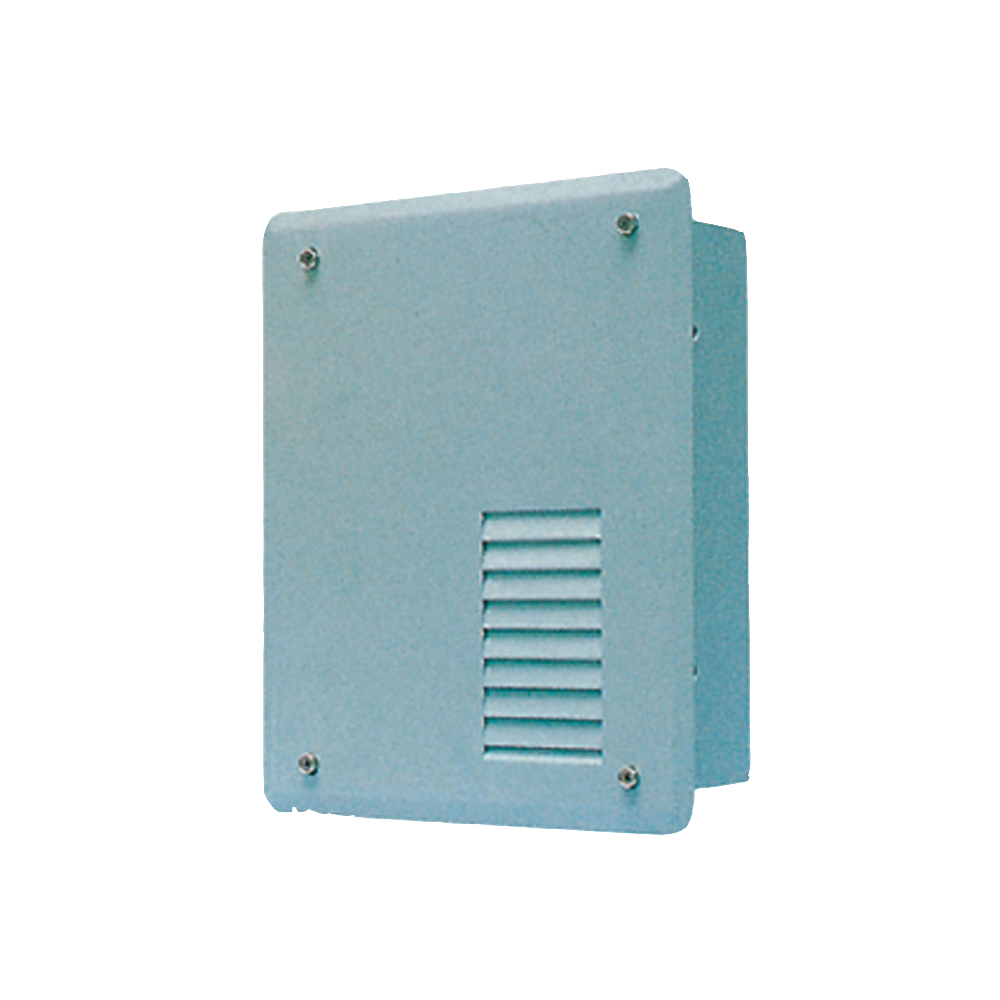

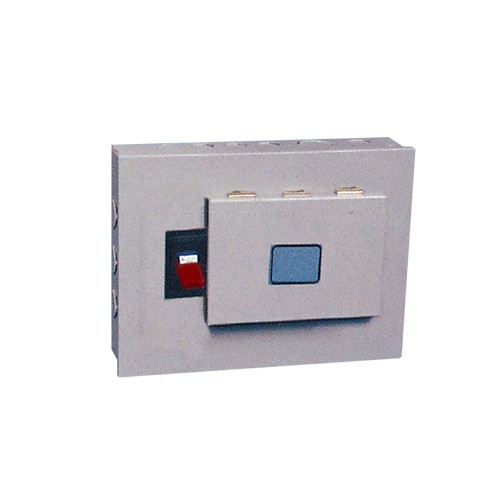

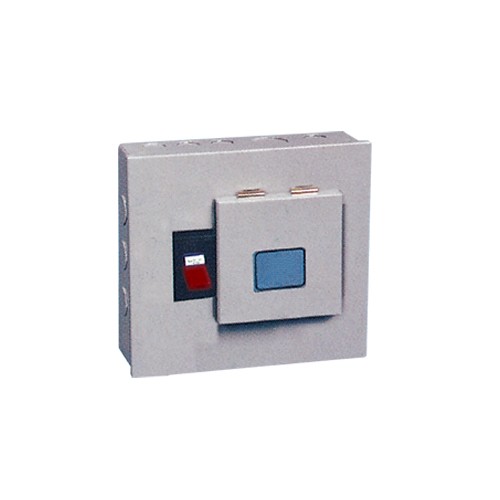

GSDB-1M distribution system is suitable for circuit of AC 50/60 HZ, rated voltage up to AC 660V, rated current up to 125A of distribution control of modern building such as large office mansion, hotel, commerce department, industrial and mining enterprises and so on. It can protect electric appliances from overload voltage & current. It also can short and frequent switch ON/OFF under normal operating condition. It is one of the most reliable general distribution system in the world.
GSDB-2C distribution board are designed to accept any combination of C50 single pole, double pole, triple pole MCB's and RCBO's.

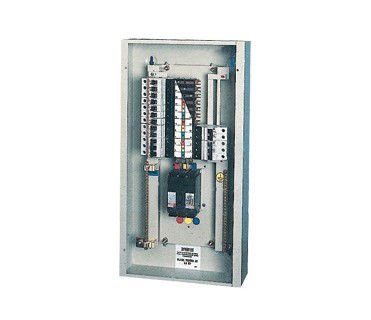

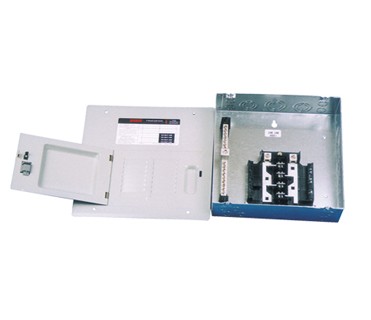

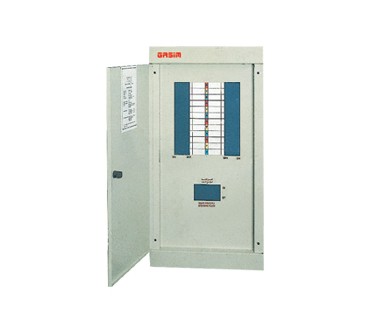

All boards are fitted with phase, neutral and earthing busbars, associated MCB connection straps and phase identified barriers. Both flush mounting and apparent mounting type are available.

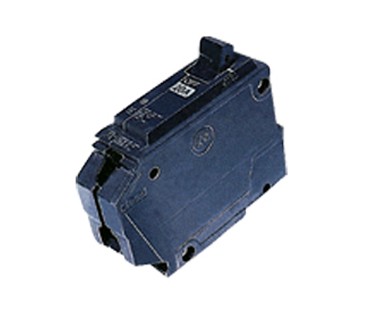

| Phase | Indoor Enclosure | Maximum Spaces: 1" THQL | Maximum Spaces: 1/2" THQL | ||
|---|---|---|---|---|---|
| 1P | 2P | 1P | 2P | ||
| 1 Phase | SPN 2Way | 2 | 1 | 4 | 2 |
| 1 Phase | SPN 4Way | 4 | 2 | 8 | 4 |
| 1 Phase | SPN 8Way | 6 | 3 | 12 | 6 |
| 3 Phase | TPN 2Way | 6 | 3 | 12 | 6 |
| 3 Phase | TPN 4Way | 12 | 6 | 24 | 12 |
| 3 Phase | TPN 8Way | 24 | 12 | 48 | 24 |
| Model | Type | Available Configurations (Ways) | |||||
|---|---|---|---|---|---|---|---|
| GSDB-1M | 1 Phase | 4 way | 6 way | 8 way | 12 way | - | - |
| 3 Phase | 3 way | 4 way | 6 way | 8 way | 12 way | 16 way | |
| GSDB-2C | 1 Phase | 4 way | 6 way | 9 way | 12 way | - | - |
| 3 Phase | 4 way | 6 way | 8 way | 10 way | 12 way | - | |

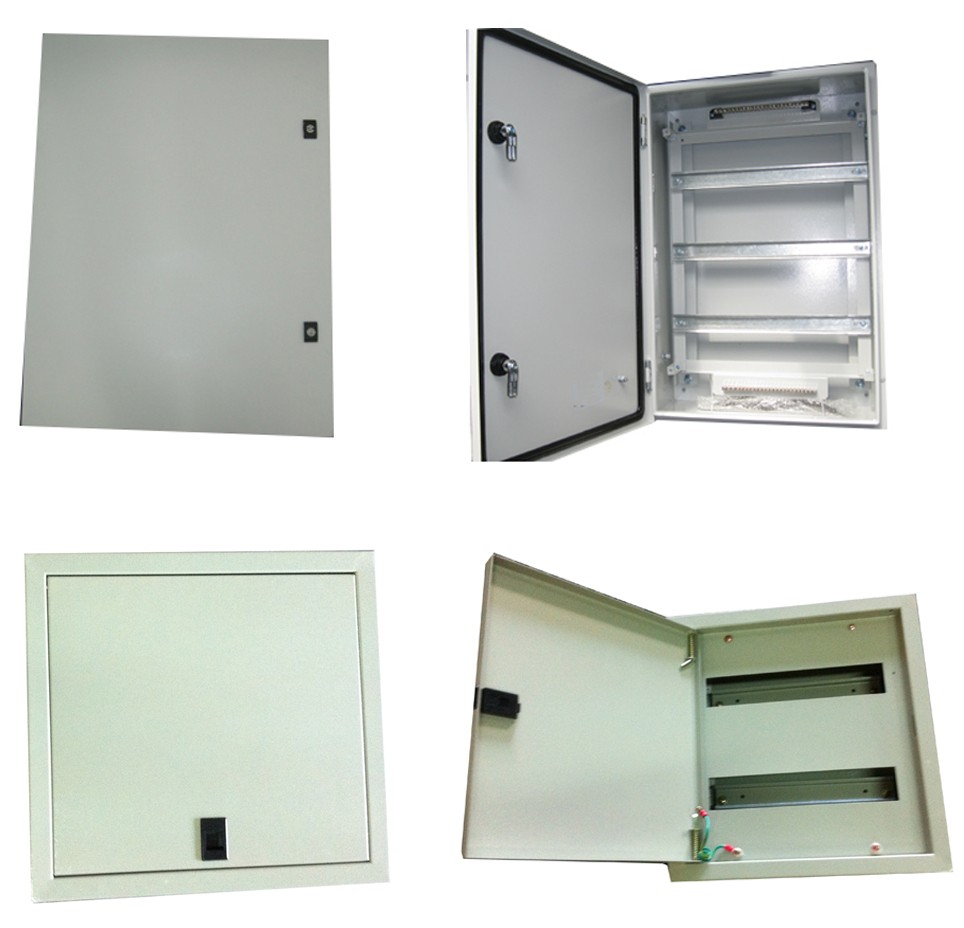

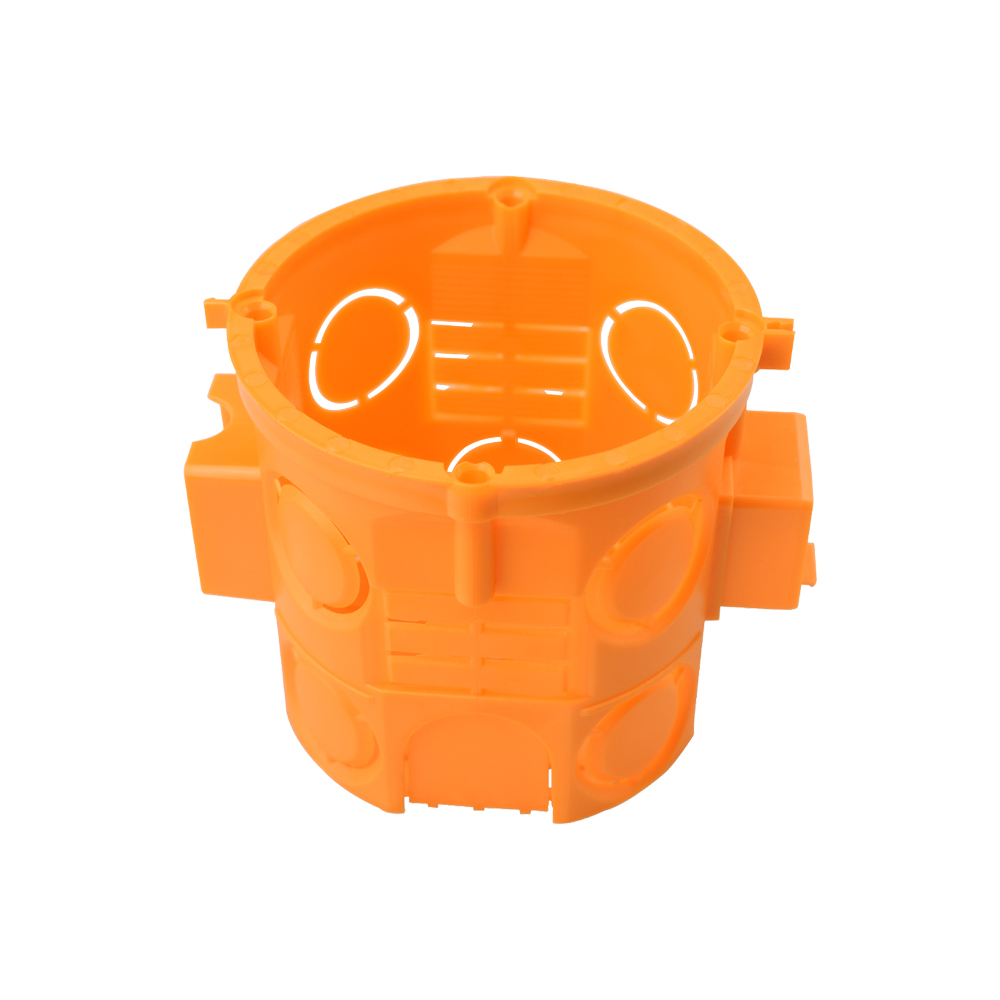

Other products: mcb, rccb, mccb, junction box, distribution box...
Professional Manufacturing Distribution board welcome: Product, Package...
Our Distribution board can be ordered as samples.
We will reply to your inquiry within 24 hours.
After dispatch, we track products for you once every two days until receipt. Contact us for any issues to receive a prompt solution.
Generally, we pack our AC Surge Arresters in neutral white boxes and brown cartons. If you have a legally registered patent, we can pack the goods in your branded boxes after obtaining your authorization letters.
T/T 30% as deposit, and 70% before delivery. We will show you photos of the products and packages before you pay the remaining balance.
We offer EXW, FOB, CFR, CIF, and DDU delivery terms.
Generally, it takes 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Yes, we can produce using your samples or technical drawings. We can also construct the necessary molds and fixtures.
Yes, we carry out 100% testing on all products prior to shipment.
