| Body Material | Steel sheet | Main Switch | 100 A Isolator |
| Body Color | RAL7035 | Copper Bar | 2.5mm |
| Body Thickness | 1.2mm | - | - |

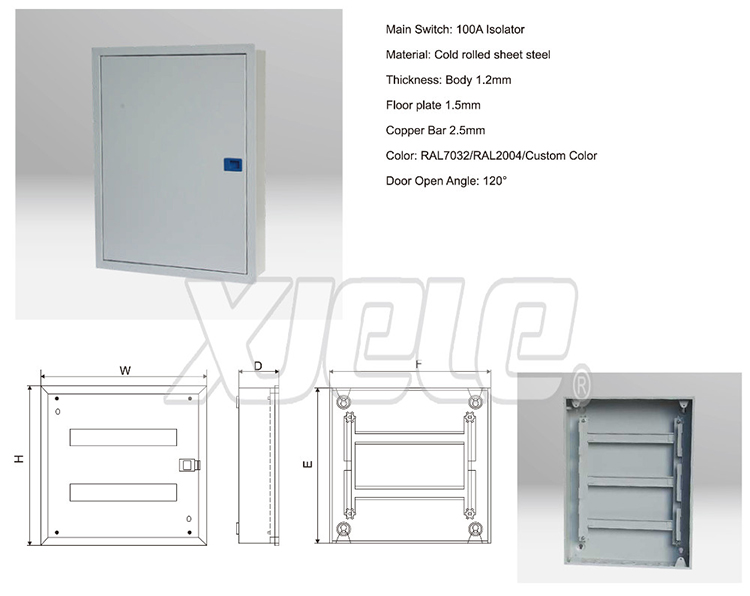

| Surface Model | Height H (mm) | Width W (mm) | Depth D (mm) | Dimension E (mm) | Dimension F (mm) |
|---|---|---|---|---|---|
| 1*16WAY | 280 | 450 | 110 | 270 | 440 |
| 2*16WAY | 430 | 450 | 110 | 420 | 440 |
| 3*16WAY | 580 | 450 | 110 | 570 | 440 |
| 4*16WAY | 730 | 450 | 110 | 720 | 440 |
| 5*16WAY | 880 | 450 | 110 | 870 | 440 |
| 6*16WAY | 1030 | 450 | 110 | 1020 | 440 |
| Flush Model | Height H (mm) | Width W (mm) | Depth D (mm) | Dimension E (mm) | Dimension F (mm) |
|---|---|---|---|---|---|
| 1*16WAY | 290 | 460 | 110 | 270 | 440 |
| 2*16WAY | 440 | 460 | 110 | 420 | 440 |
| 3*16WAY | 590 | 460 | 110 | 570 | 440 |
| 4*16WAY | 740 | 460 | 110 | 720 | 440 |
| 5*16WAY | 890 | 460 | 110 | 870 | 440 |
| 6*16WAY | 1040 | 460 | 110 | 1020 | 440 |
We are professionally committed to the production, research, development, and sale of wall-mounted sheet steel electric enclosures, non-standard irons, stainless steel, aluminum alloy, plastic electrical, electronic cabinets, boxes, and terminals.
With "The best for you" motto, we combine innovation and high quality. We want to be your best choice for distribution boxes and cabinets. Our products are sold widely to more than 30 countries and regions.

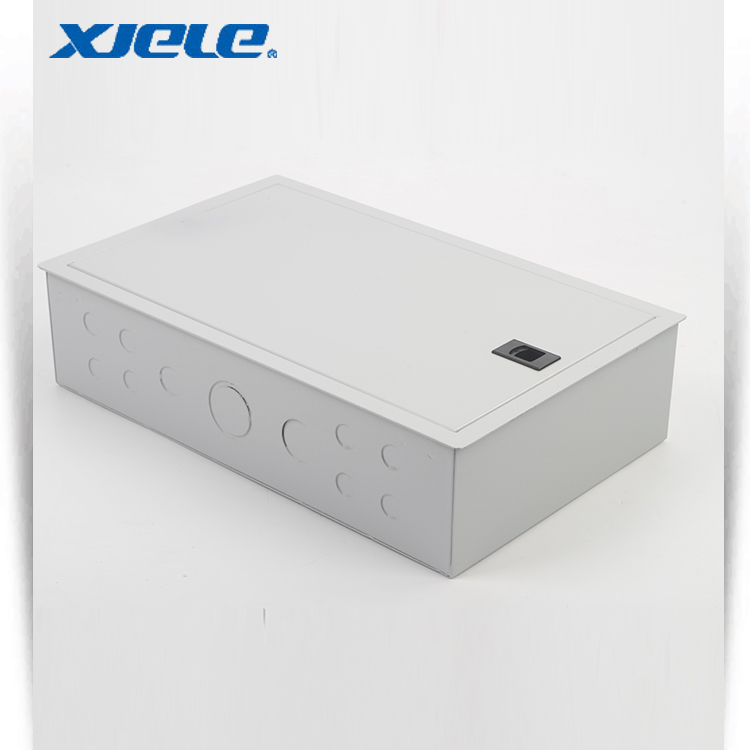

Our standard metallic distribution boxes are manufactured from high-quality steel sheet body structure (typically 1.2mm thickness) ensuring strength and environmental resistance.

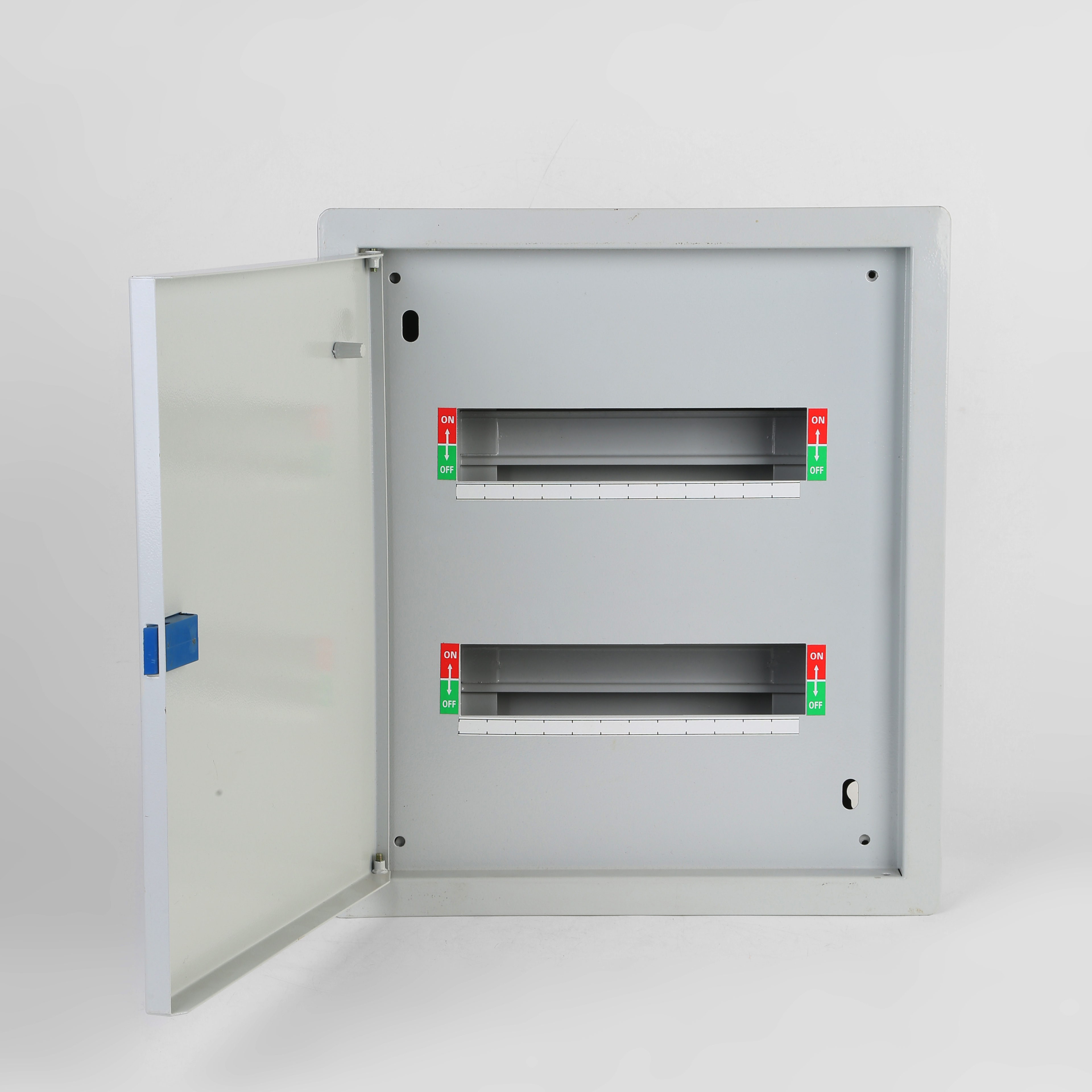

Yes, we provide distinct models for both Surface Mount and Flush Mount installations, ranging from 1*16WAY up to 6*16WAY to accommodate various layout demands.
Our standard body color is RAL7035 light grey, which is globally recognized and matches most industrial and commercial environments seamlessly.
Yes, our standard configurations such as the 24-way flush mount panels come equipped with a 2.5mm copper bar and a 100 A Isolator main switch.
Absolutely. Besides our standard steel enclosures, we design, develop and produce custom non-standard irons, stainless steel configurations, aluminum alloys, and plastic electrical cabinets.
