Steel Specifications
Body & door manufactured in 1.2 / 1.5mm sheet steel.
Mounting plate with folded edge in 2.0mm sheet steel.
Surface Finish
Dipcoat-primed finish.
Powder-coated in textured RAL7032 or RAL7035 outside.
Reversible door opening with 120° wide access.
Protection Rating
Protection degree: IP66 waterproof and dustproof.
Impact resistance: IK10 durable structure.
Standard Supply

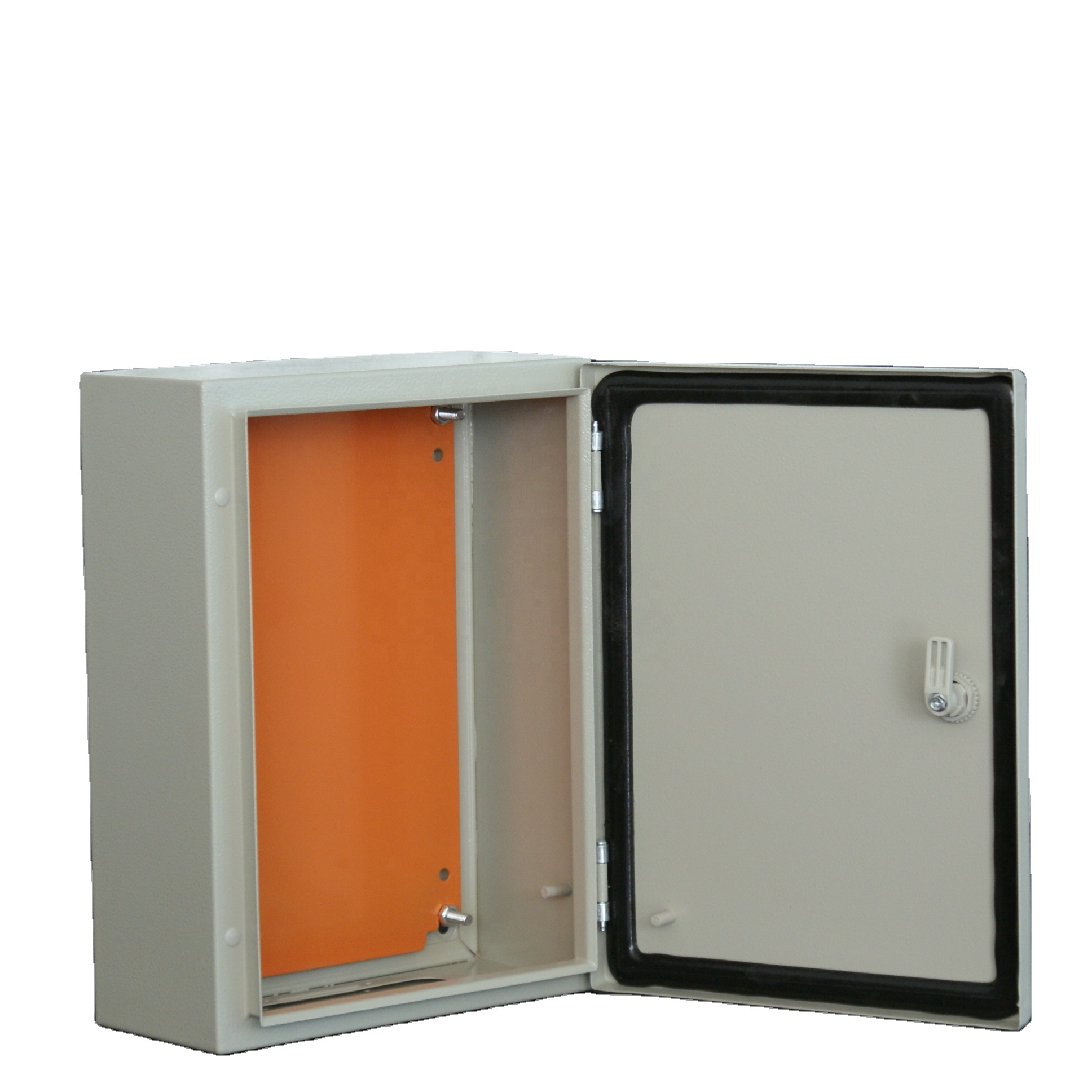

Enclosure body and front door.
Galvanized mounting plate or orange mounting plate.
Metal lock or plastic lock options with key.
Installation screws, sealing gasket, and gland plate.
Our Advantages
20 years of OEM & ODM production experience.
Professional Spain design and styling.
Outstanding color retention over 5 years.
Dedicated professional team for support.
Trade Terms
Payment: T/T, Western Union.
Production Lead Time: 7 ~ 25 days.
FOB Shipping Port: Ningbo or Shanghai, Mainland China.
Dimensions (mm)
Reference
Height (mm)
Width (mm)
Depth (mm)
Thickness (mm)
Door
Body
MP
BJS1-2020/150
200
200
150
1.2
1.2
2.0
BJS1-3025/150
300
250
150
BJS1-3025/200
300
250
200
BJS1-33/150
300
300
150
BJS1-33/200
300
300
200
BJS1-34/200
300
400
200
BJS1-43/150
400
300
150
BJS1-43/200
400
300
200
BJS1-44/200
400
400
200
BJS1-46/250
400
600
250
BJS1-46/300
400
600
300
BJS1-54/150
500
400
150
BJS1-54/200
500
400
200
BJS1-54/250
500
400
250
BJS1-55/250
500
500
250
BJS1-64/150
600
400
150
BJS1-64/200
600
400
200
BJS1-64/250
600
400
250
BJS1-65/150
600
500
150
BJS1-65/200
600
500
200
BJS1-65/250
600
500
250
BJS1-66/250
600
600
250
BJS1-66/300
600
600
300
BJS1-68/300
600
800
300
BJS1-75/200
700
500
200
1.5
1.2
2.0
BJS1-75/250
700
500
250
BJS1-86/200
800
600
200
BJS1-86/250
800
600
250
BJS1-86/300
800
600
300
BJS1-86/400
800
600
400
BJS1-88/200
800
800
200
BJS1-88/300
800
800
300
BJS1-810/300
800
1000
300
BJS1-106/250
1000
600
250
1.5
1.5
2.0
BJS1-106/300
1000
600
300
BJS1-108/250
1000
800
250
BJS1-108/300
1000
800
300
BJS1-108/400
1000
800
400
BJS1-1010/300
1000
1000
300
BJS1-1012/300
1000
1200
300
BJS1-128/300
1200
800
300
BJS1-128/400
1200
800
400
BJS1-1210/300
1200
1000
300
Other sizes and thickness available on request. Cut-outs and drilled holes to your specifications.
We can provide customization according to your drawings or design scheme.

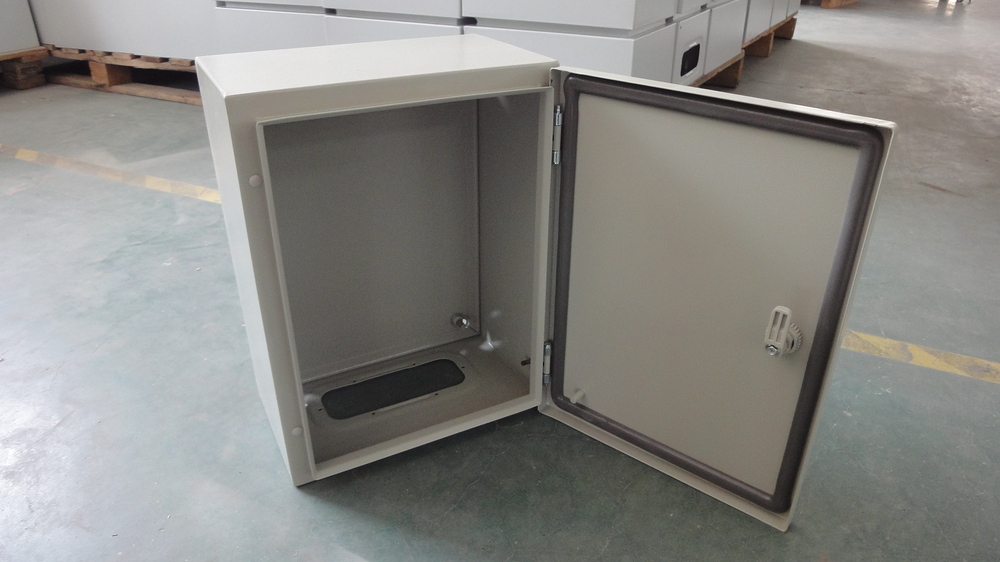

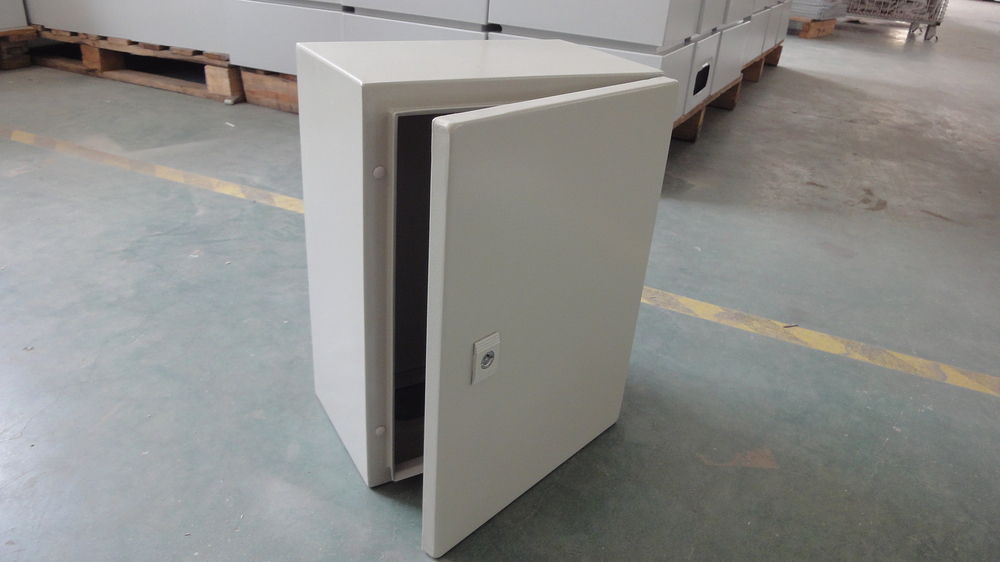

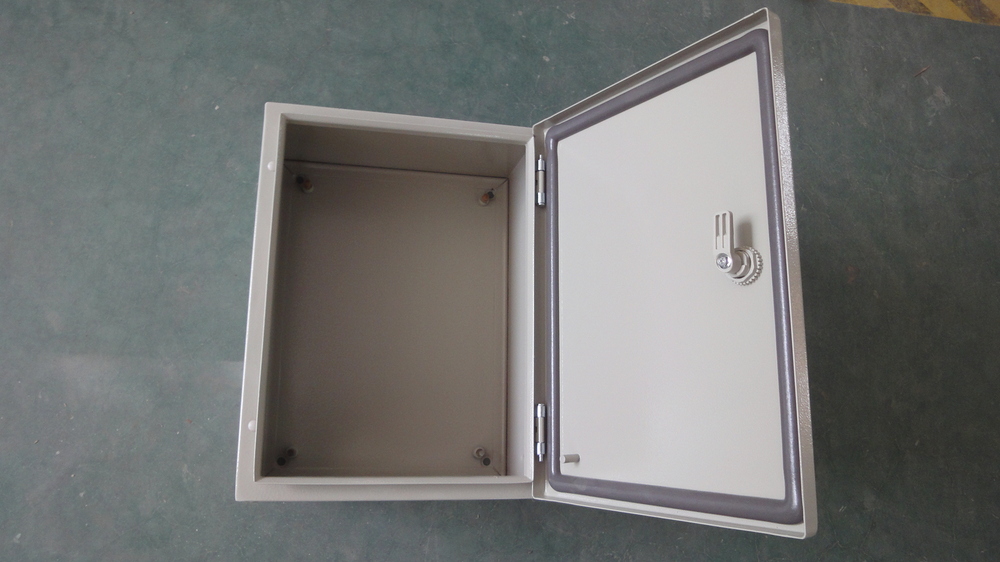

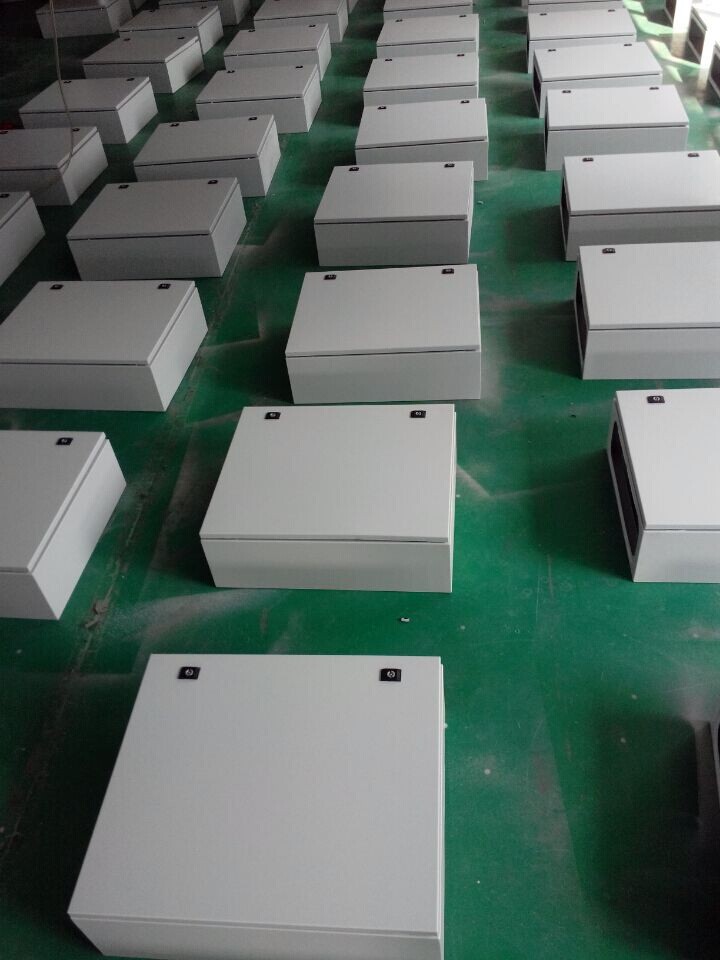

Product Gallery
Frequently Asked Questions
What is the protection rating of this distribution box?
This distribution box features an IP66 protection degree and IK10 impact resistance, making it highly waterproof, dustproof, and capable of withstanding heavy mechanical impacts in demanding environments.
What materials and thicknesses are used in the construction?
The body and door are manufactured from high-quality 1.2mm or 1.5mm sheet steel. The internal mounting plate has a folded edge and is made of 2.0mm sheet steel.
What accessories are included in the standard supply?
The standard supply package includes the distribution box body, the door, a galvanized or orange mounting plate, a metal or plastic lock with its key, installation screws, a sealing gasket, and a gland plate.
Can I order customized sizes or custom cut-outs?
Yes. We offer complete customization according to your engineering drawings or design schemes. You can request custom sizes, thicknesses, specific cut-outs, and pre-drilled holes.
What is the surface finish and color durability?
The enclosure and door are finished with a dipcoat-primed layer and powder-coated with textured RAL7032 or RAL7035 on the outside. The professional design ensures the color remains stable for over 5 years.
What are the payment and shipping terms?
We accept payments via T/T and Western Union. The standard production lead time is 7 to 25 days, and shipping is conducted FOB via Ningbo or Shanghai port in Mainland China.
