CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker
CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker
CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker
CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker
CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker
1 / 5
CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker
CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker
CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker
CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker
CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker

CE Certificates Mccb 550volt 200 Amp Molded case Circuit Breaker

Send Inquiry

Product Description

Product Description
Product Introduction
YTTM1 series Moulded Case Circuit Breaker is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is apply to rating current 1250A or less, direct current rating voltage 1500V or less. Products according IEC60947-2, GB14048.2 standard.
Product Features
Small volume, breaking capacity high, electric arcing short, anti-vibration.
Additional Accessories
MX24V: Shunt Release 24Vdc   |   MX220V: Shunt Release 220Vac   |   OF: Auxiliary contact
Specification
Product Model YTTM1-125 YTTM1-250 YTTM1-400 YTTM1-630 YTTM1-800 YTTM1-1250
Rated Current (A) 16, 20, 25, 32, 40, 50, 63, 80, 100, 125 100, 125, 140, 160, 180, 200, 225, 250 250, 315, 350, 400 400, 500, 630 630, 700, 800 800, 1000, 1250
Rated Operating Voltage Ue (V) DC 500V, 550V, 750V, 1000V
Rated Insulation Voltage Ui (V) 1000V 1000V 1500V 1500V 1500V 1500V
Uimp (kV) 8kV
Breaking Capacity (kA) Icu (Ics=75% Icu) 250V 35 50 50 50 65 65
500V 25 35 35 35 50 50
750V 15 25 25 25 35 35
1000V 10 15 15 15 20 20
Mechanical Life Times 7000 7000 4000 4000 2500 2000
Breaking Times (ms) 20
Details Images

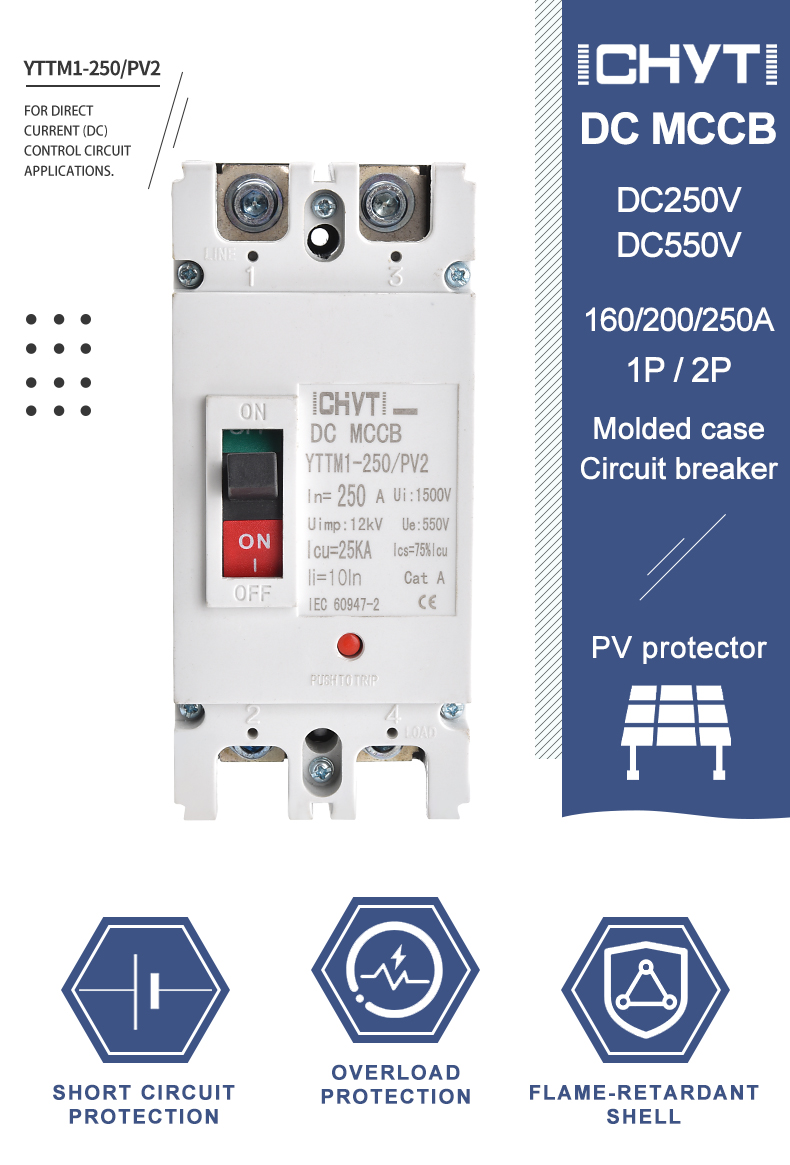

Details Image 1

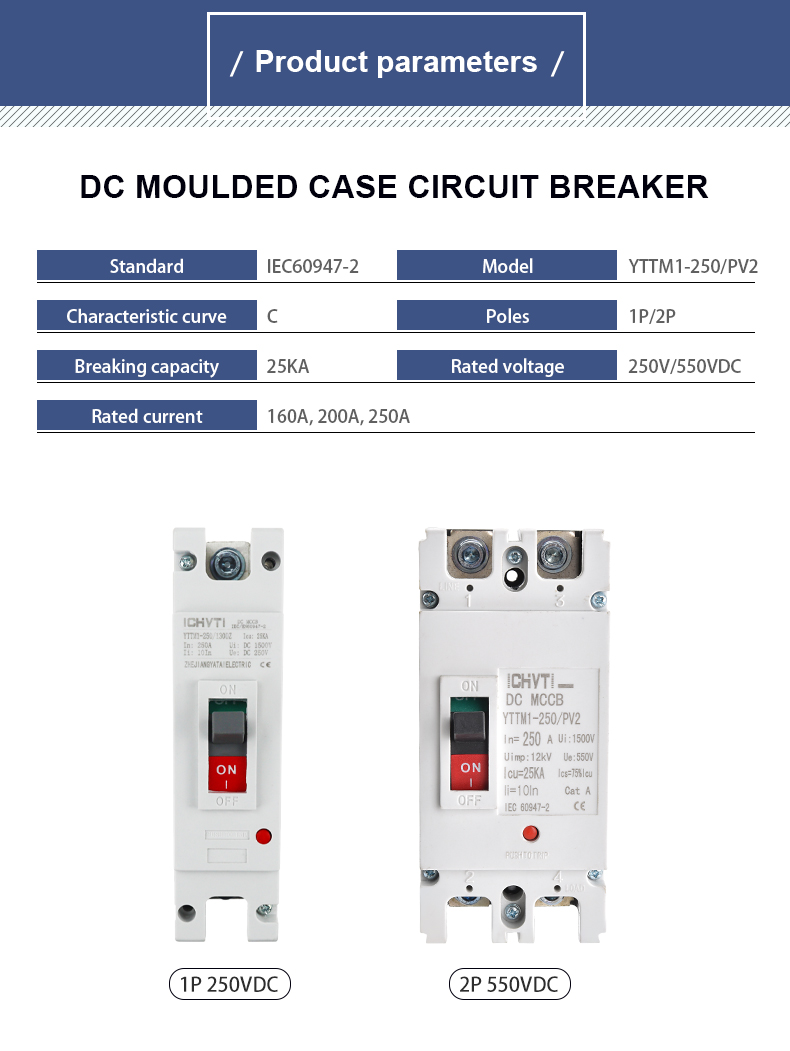

Details Image 2

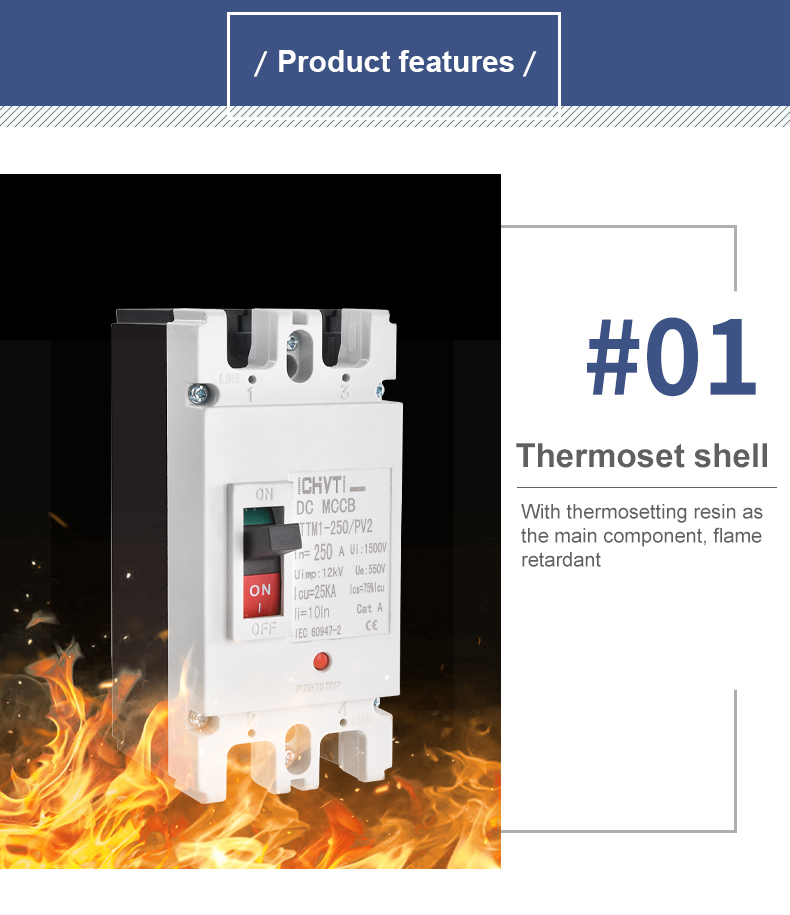

Details Image 3

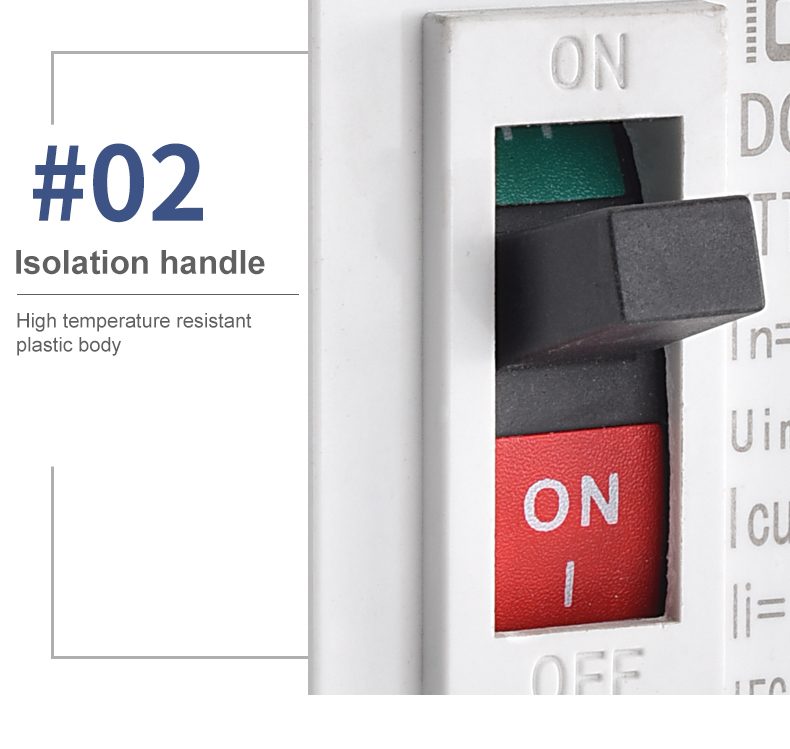

Details Image 4

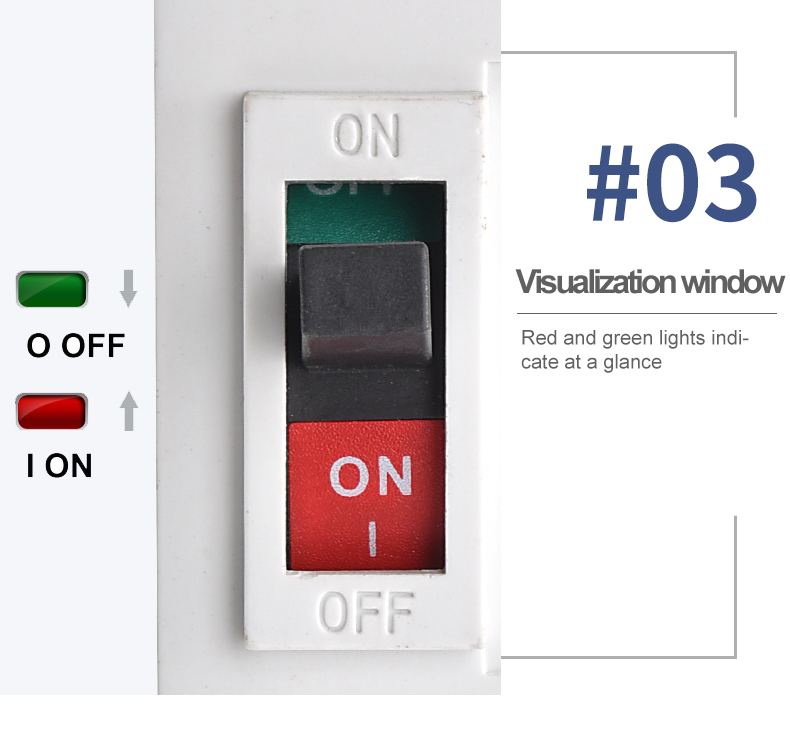

Details Image 5

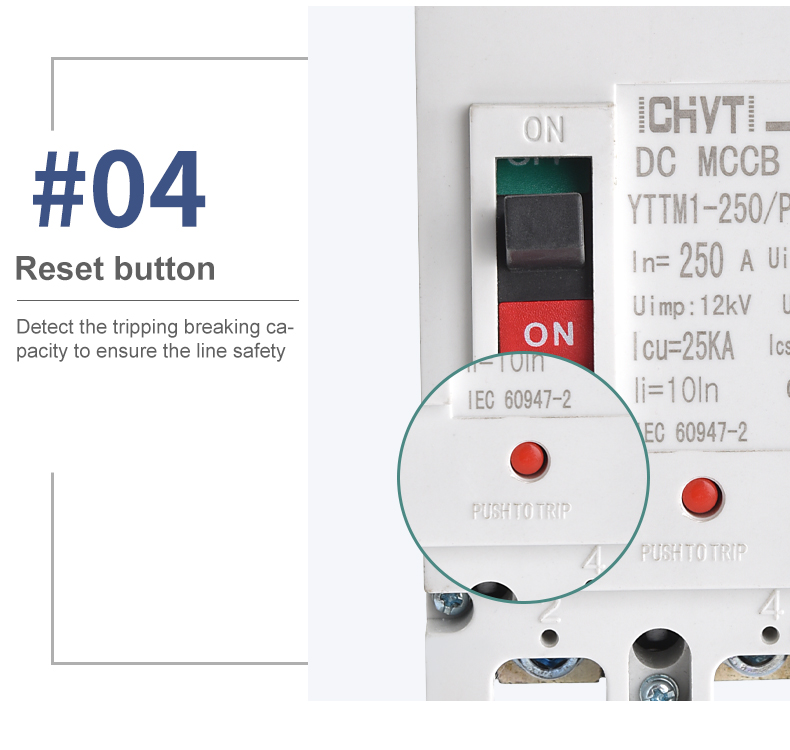

Details Image 6

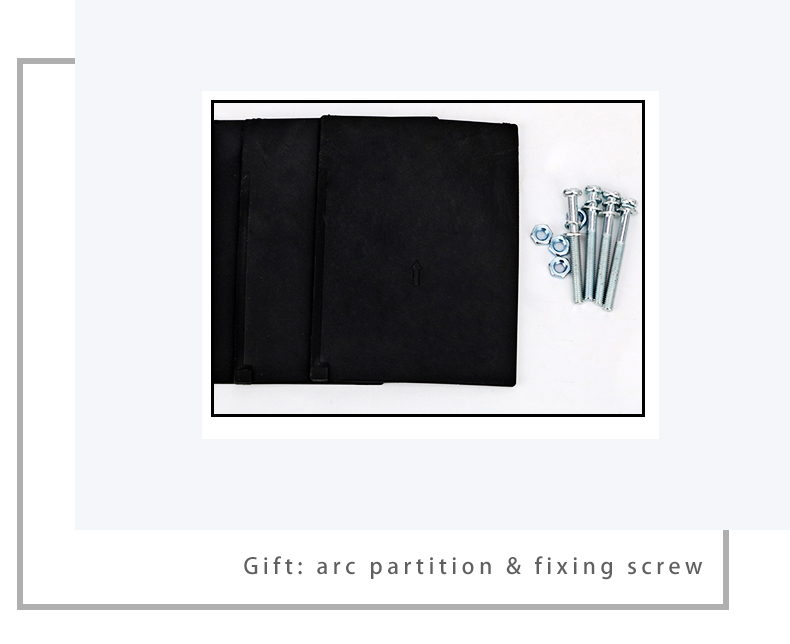

Details Image 7

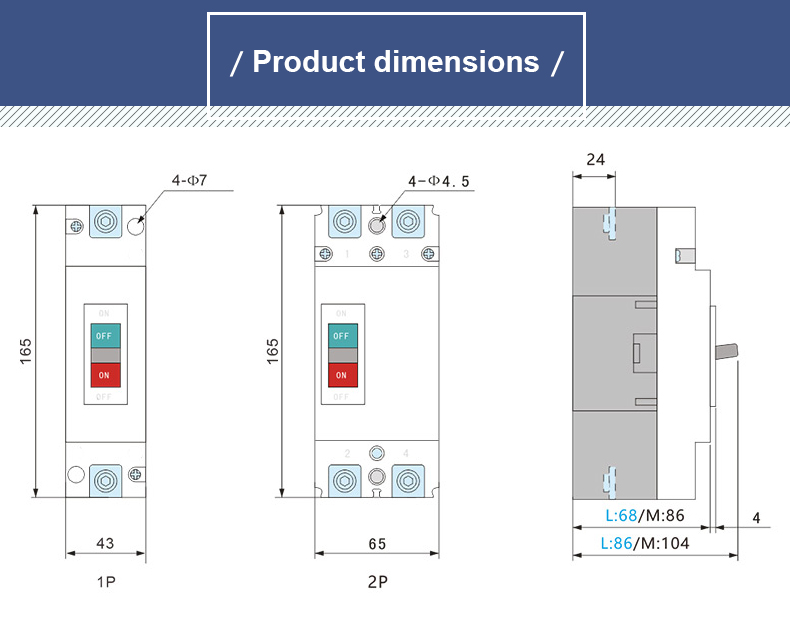

Details Image 8

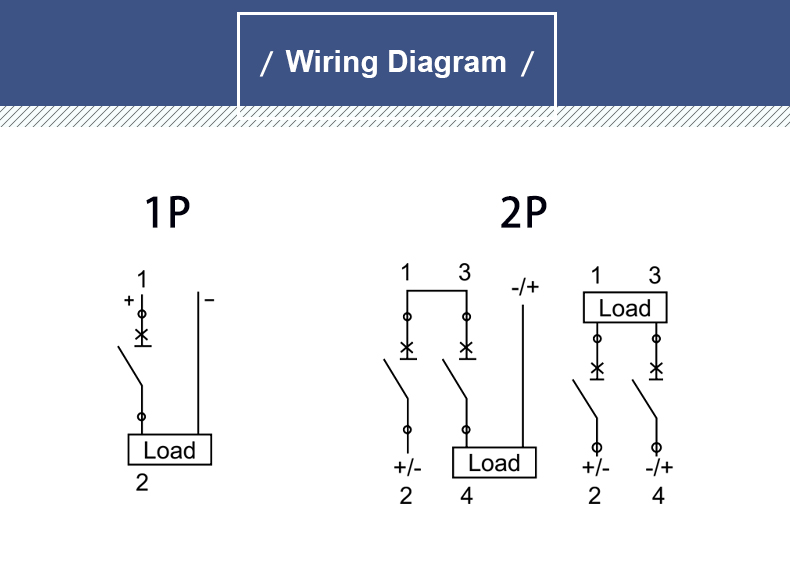

Details Image 9

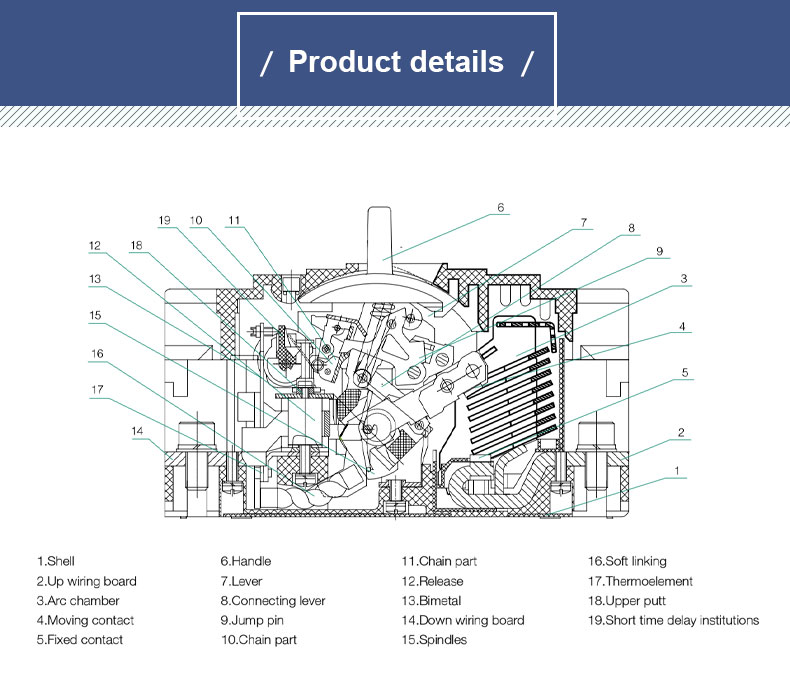

Details Image 10
Packing & Delivery
Packing and Delivery
FAQ
Q: Why should you buy from us not from other suppliers?
The product specifications are complete, the variety is rich, and we have more than ten years of production, research and development and sales experience. The team is young and energetic.
Q: When I can receive quotation and detail information after send the enquiry?
Reply will be sent in 48hours.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: Can I get a sample for test before place order?
Of course!
Q: How's the delivery?Because I really need them is urgently?
Samples cost 5-7 days. Bulk order cost 12-15 days.
Q: What's your shipment method?
We ship by Express, by air, by sea, by train.
